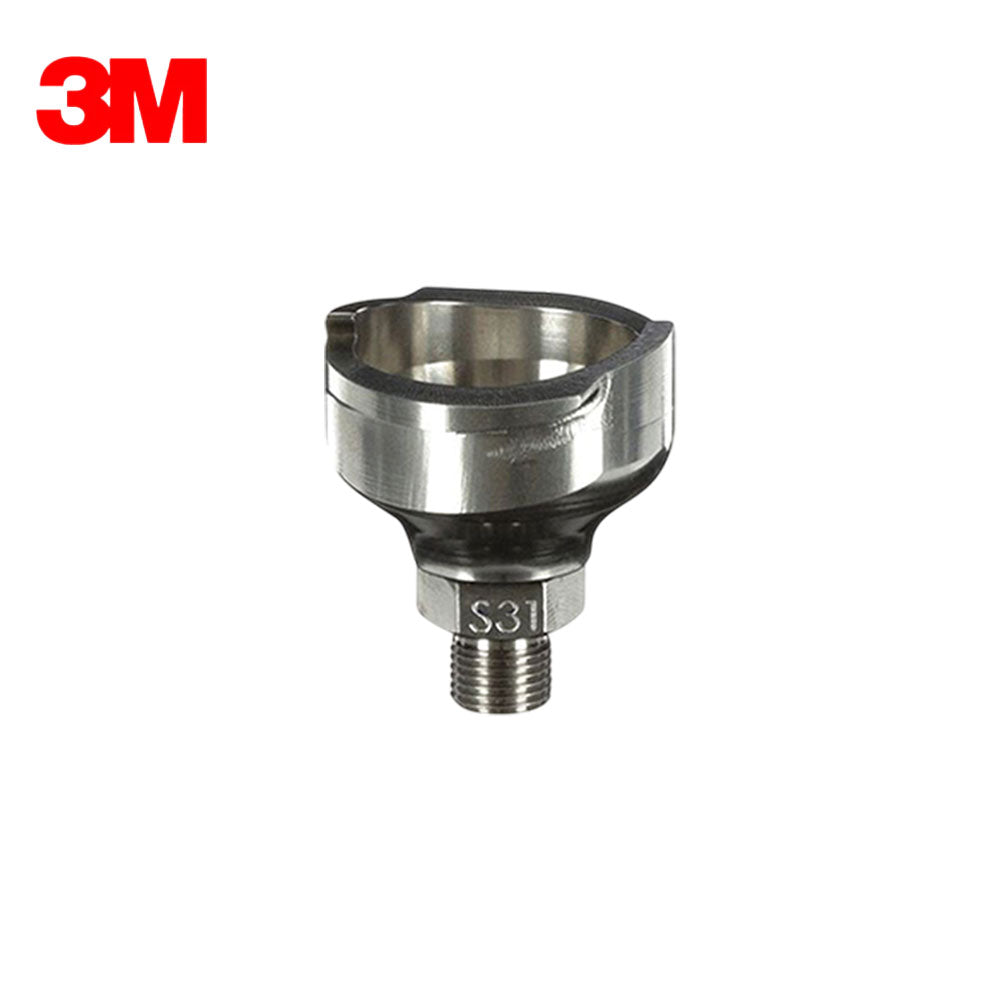

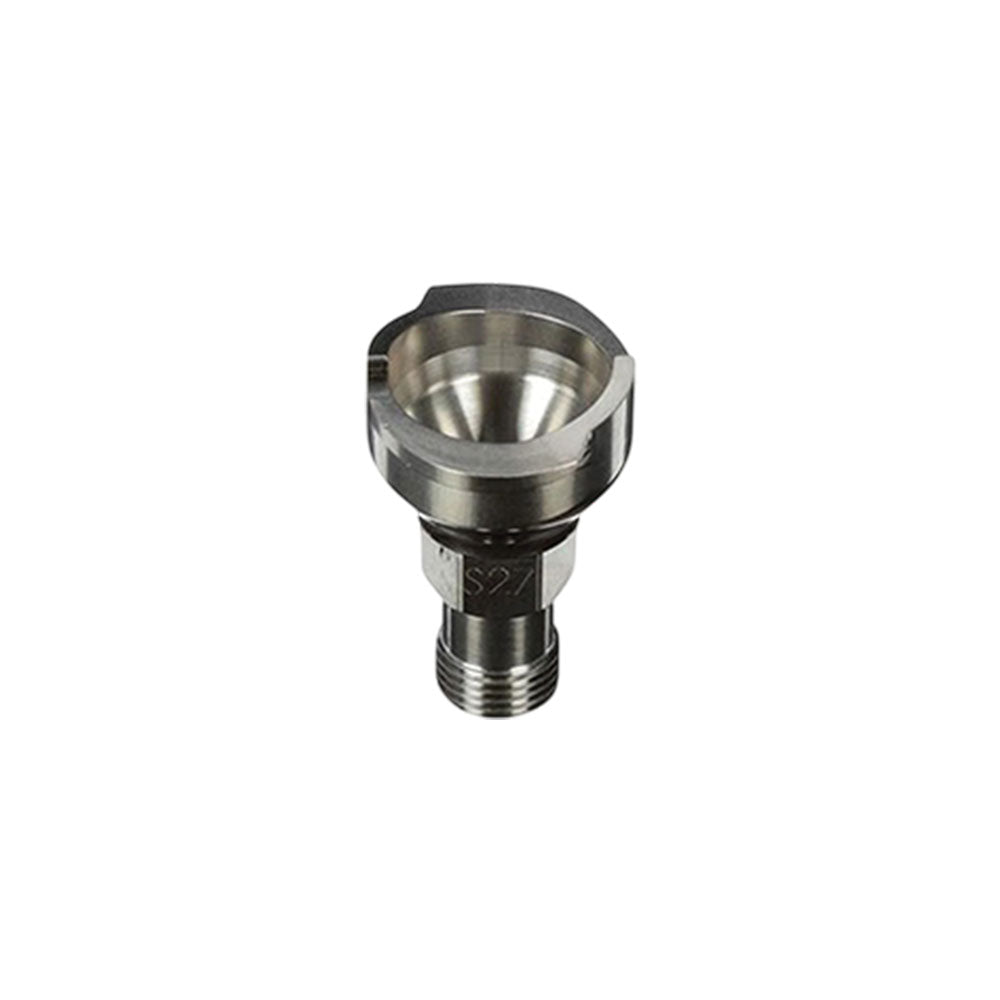

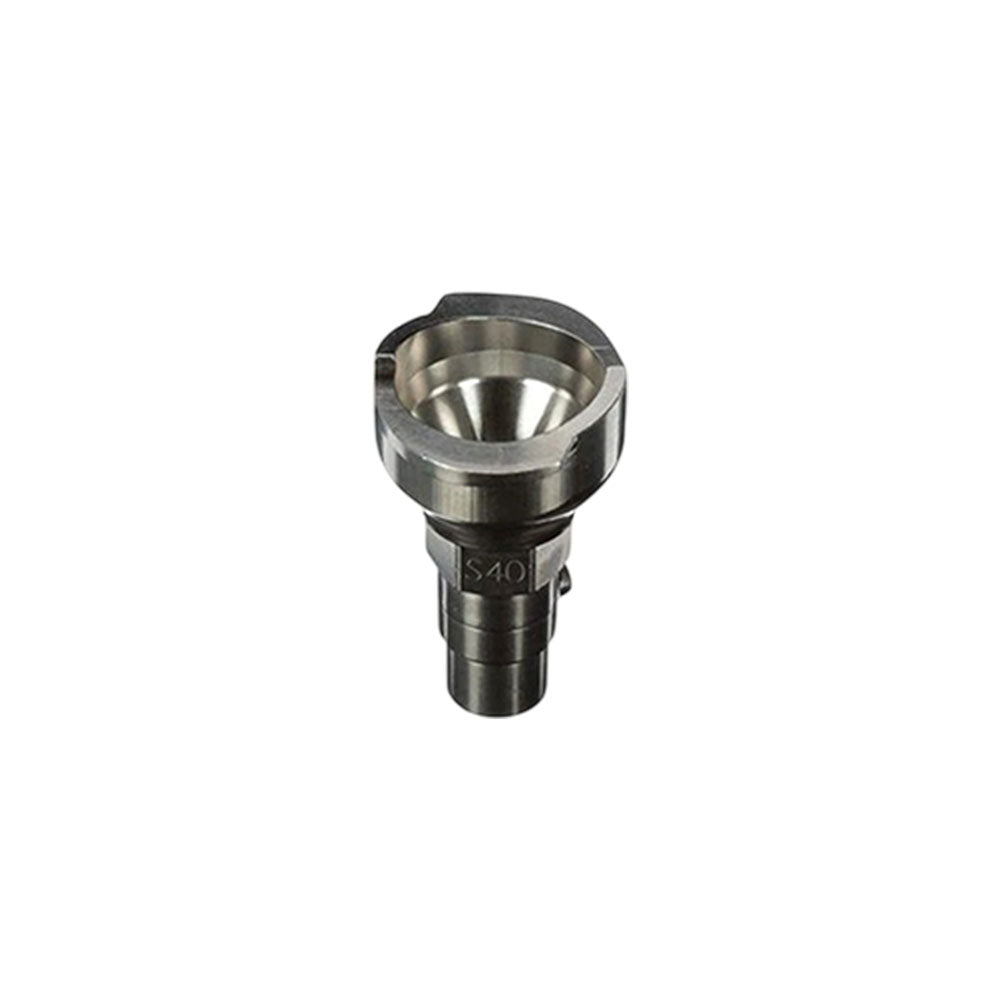

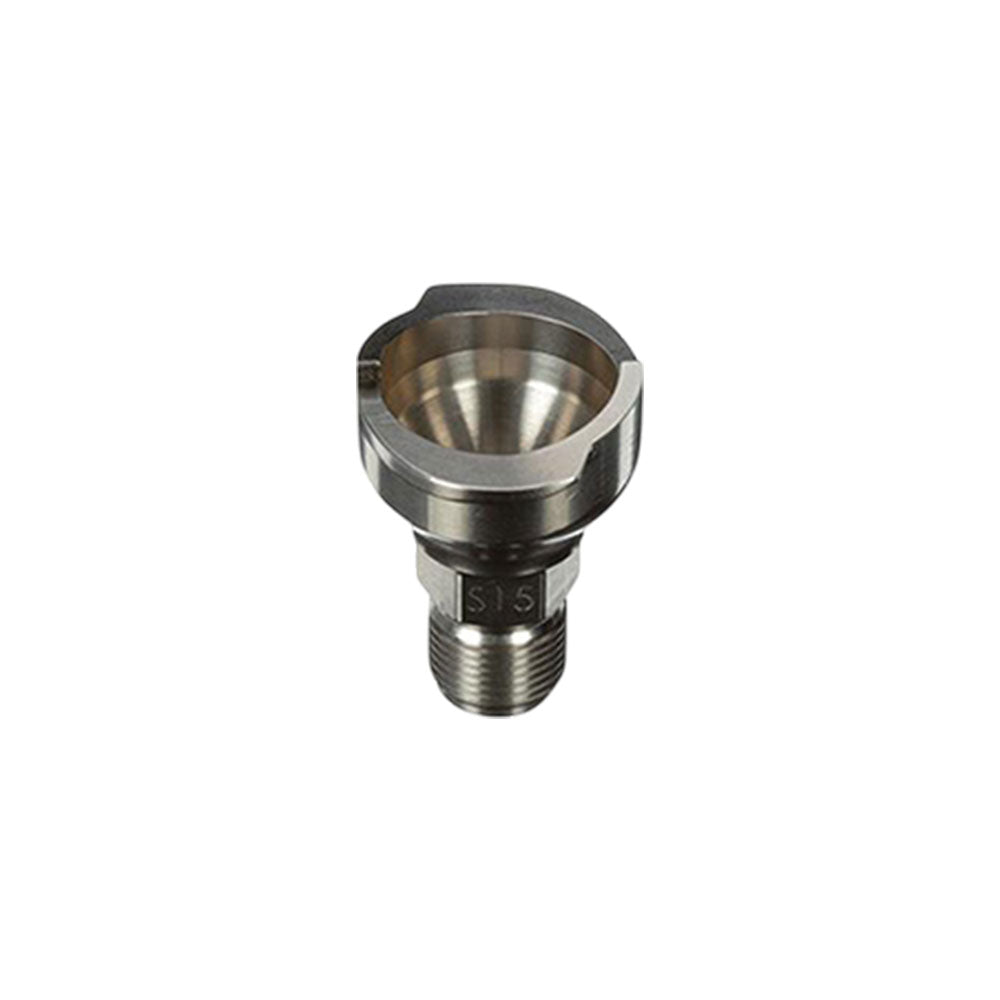

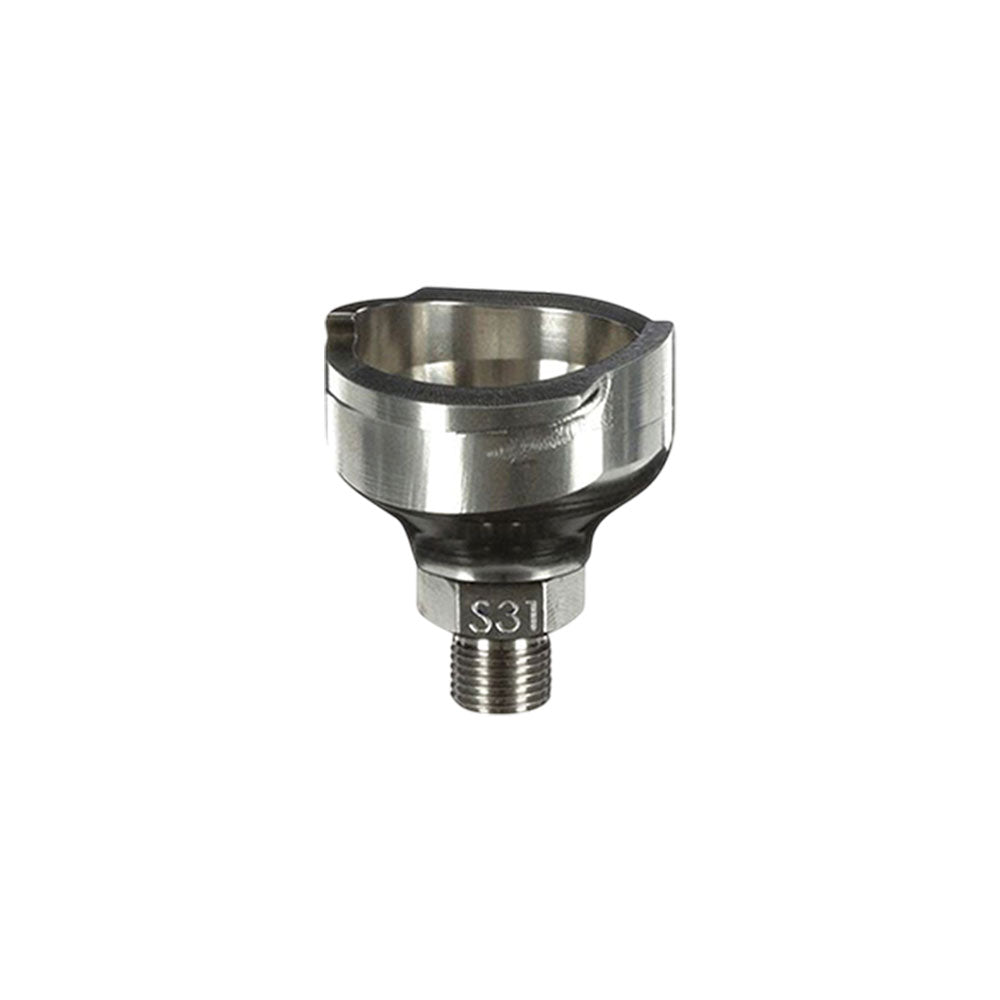

3M - PPS Series 2.0 Adapter

3M - PPS Series 2.0 Adapter

3M PPS Series 2.0 Adapter provides four points of connection from lid-to-gun and converts typical spray guns into ones that work with the 3M PPS Series 2.0 Spray Cup System. Specifically designed adapters allow painters to use PPS with virtually any spray gun model. To use this adapter, remove the existing spray gun cup. Then simply thread the correct PPS Adapter into the spray gun.

Use PPS Series 2.0 Instantly with Almost Any Spray Gun: The 3M PPS Series 2.0 Adapter converts a wide range of spray guns to be used with our 3M PPS Series 2.0 - the next generation of our highest performing disposable spray cup system. The adapter design provides four points of connection to the PPS Series 2.0 cup lid. Stainless steel adapters are durable, resist solvents and are very easy to clean. They are available in a broad selection - with very few exceptions, we have designed a PPS Series 2.0 Adapter for your specific spray gun model.

Next Generation of the 3M Paint Preparation System (PPS): The 3M PPS Series 2.0 Spray Cup System is our latest, best-performing disposable spray cup system. The system has been redesigned from the connection to the cup, and has been improved in six ways offering a complete disposable spray cup solution for mixing/measuring, filtering, spraying and for temporary sealing and protection of sprayable coatings.

Cleanest Disposable Cup System: Every PPS Series 2.0 lid features a quarter-turn lid locking system to help reduce paint build-up and possible contamination. Additionally, each lid and liner kit contains a new hard cup which also features universal mixing ratios built into the cup, eliminating the need for separate inserts and helping ensure the most accurate mix possible.

Reduce Material Waste by Mixing in the Cup: 3M PPS Series 2.0 makes it even easier to mix directly in the cup. If you're mixing on a scale, use the "max fill" notation on each cup to fit the maximum amount. Cups include a clear access window to help you see how much material is left while spraying. The window also allows you to hold the liner for easier, cleaner lid removal. This is especially useful during refills or tinting.

Improved Fluid Flow for More Consistent Paint Application: Our 3M PPS Series 2.0 Lids feature a domed geometry that allows up to 3 oz (90ml) of material below the filter during on-demand spraying. This reduces sputter and other inconsistencies in spray performance. Lids also feature a wider spout for improved fluid flow. A built-in full-diameter filter delivers the highest quality filtration - no assembly needed.

More Confidence in the Connection to Your Gun: A new adapter design provides a four-point connection and a wider 360° platform to ensure a stable, reliable lid-to-spray-gun connection. Larger sealing plugs do more than just seal. For instance, you can turn the cup upside down and use the new sealing plug as a base for temporary sealing and protecting, helping keep the built-in filter wet and reducing the need for replacement lids.

A System for Both Solvent-Based and Waterborne Products: Every lid features a built-in full diameter filter available in 200 micron or 125 micron mesh. Be sure to consult the paint or coatings manufacturer for the recommended filter mesh size.

Use the Right Size Cup for Every Repair: Our PPS 2.0 Spray Cup System is available in 5 sizes: 3 oz (90ml), 6.8 oz (200 ml), 13.5 oz (400ml), 22 oz (650ml) and 28 oz (850ml). Using the right size cup for every repair not only reduces your cost per lid and liner, it can reduce the likelihood of overmixing.

Features:

• Adapter converts virtually any cup spray guns into ones that work with 3M PPS Series 2.0, our next generation, highest performing disposable spray cup system
• Provides a four-point lid-to-spray-gun connection and a wider 360° platform for stability and reliability
• Stainless steel adapter offers exceptional durability and resistance to solvents
• Wider bowl design makes adapter easy to clean
• 3M PPS reduces cleaning solvent consumption by up to 70%
