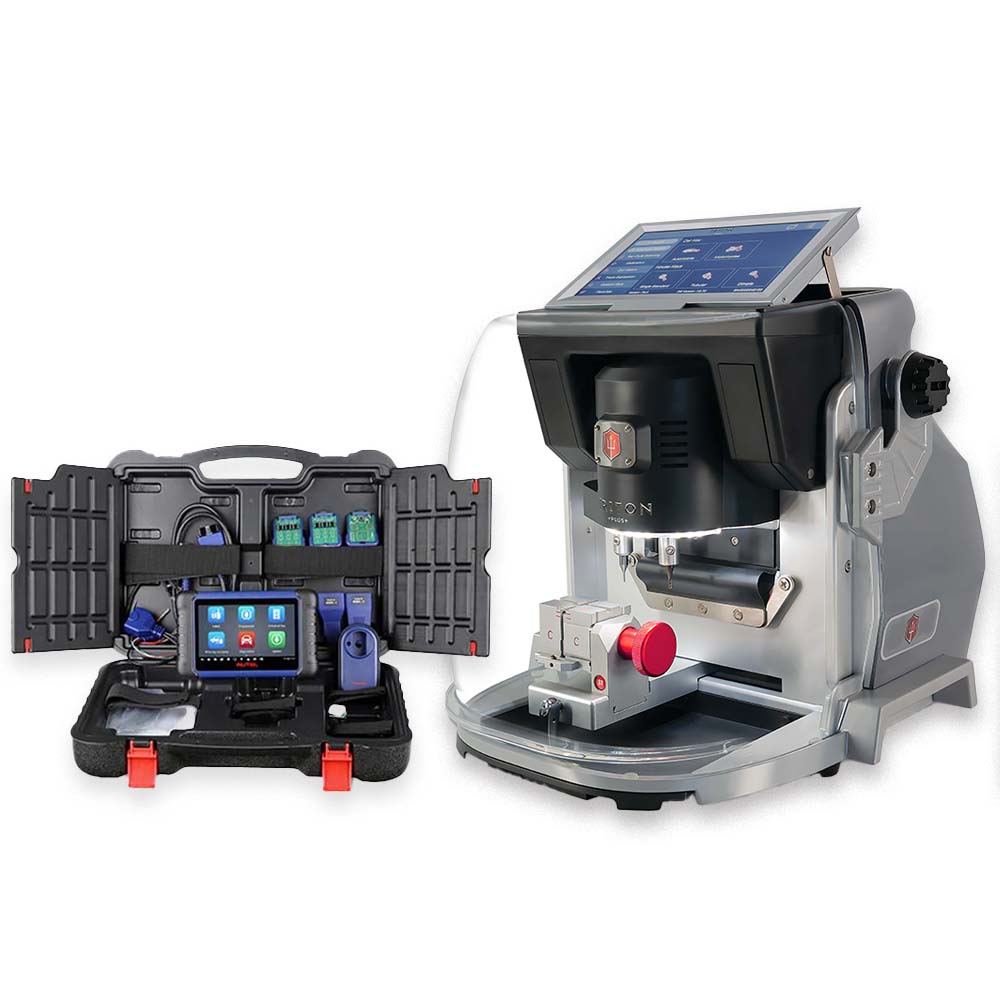

Autel MaxiIM IM508S and Triton PLUS Ultimate Edition - Key Programming and Diagnostic Tool and Cutting Machine Bundle


Autel MaxiIM IM508S Key Programming and Diagnostic Tools with One Year Update

Autel IM508S is a professional car key programmer and immobilizer that combines key programming, all systems diagnosis and advanced service functions. It could perform all keys lost, add key, key learning, remote control add, remote control learning, key chip read and write and other car related functions.

*Wifi is required for key programming and diagnostics*

  • Global Version without IP Blocking Problem
  • One Year Free Update Online. After One Year, IM508 Software Subscription Cost 350USD per year
  • Function IMMO+ Diagnose: Powerful combination of key programming/all system diagnostics/ advanced maintenance services
  • Vehicle Supported: Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
  • Advanced Maintenance Services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
Processor 4 x 1.8GHz
OP System Android 11
Display 7 inches, 1024*600
Connectivity Wi-Fi
Camera No
VCI Wired
Programmer XP200
Battery 5000 mAh
Weight 0.78 kg
Main Features 1. Support auto select car
2. Support guilding function
3. Support IMMO Status scanning
IMMO ve IMMO functions
Diagnostics Basic diagnostic function
Remote Expert N/A
Keytool Function:
Key generation Support
Chip simulation
Via APB112
Auto VIN Support
Read/Clear Codes Support
Live Data Support
Freeze Frame Support
ECU Information Support
Active Test No (Support in Aug)
Service Functions 36 Kinds
Service Functions No (Support in Aug)
Online Coding Support (Partial)
Coding Support (Partial)
Hidden Function Renewal Support (Via MV105/108)
Guilding Function Support (Via MV105/108)
Online Programming Support (Via MV105/108)
Scan VIN/License Support (Via MV105/108)
Protocol Support (Via MV105/108)
Videoscope Support (Via MV105/108)

Triton PLUS Ultimate Edition - Key Cutting Machine

The all-in-one key cutting machine that took the locksmith industry by storm is now more powerful than ever! Featuring upgraded onboard electronics and a powerful new gear-driven motor, Triton PLUS by Lock Labs has been redesigned with the future in mind. Triton PLUS is the only key cutting machine developed and supported by actual locksmiths who truly understand your every need. Discover for yourself how this absolute workhorse has quickly become the core of operations for locksmiths across America!
Triton PLUS has something for everyone—from journeymen learning to cut house keys, to Master Automotive Locksmiths who specialize in BMW and Mercedes, Triton Plus has you covered with three brand-new package options.

Triton PLUS Ultimate Edition – What’s Included?

Cuts all automotive, commercial, and residential keys, right out of the box–and engraves them, too! For locksmith shops that do it all. This all-in-one key cutting package is the first of its kind available in America. It includes every single jaw and accessory available for the Triton PLUS. We've also thrown in a ton of extra cutters and decoders!

Package Includes:
  • (1) 4-way Automotive Jaw (TRJ1)
  • (1) Single-Sided Jaw (TRJ2)
  • (1) Tubular Jaw (TRJ3)
  • (1) Tibbe Jaw (TRJ4)
  • (1) Engraving Jaw (TRJ5)
  • (1) Flip Blade Creation Jaw, for converting mechanical key blanks into Xhorse & KeyDIY blades (TRJ6)
  • (5) 2.0mm Standard Replacement End Mill Cutter (TRC1)
  • (2) Standard Dimple End Mill Cutter “C” (TRC3C)
  • (2) MTL Inside Dimple End Mill Cutter “D” (TRC3D)
  • (2) MTL Outside Dimple End Mill Cutter “E” (TRC3E)
  • (2) Engraving End Mill Cutter (TRC4)
  • (2) 1.5mm End Mill Cutter, for cutting VW HU162T & HU198T (TRC5)
  • (5) 1.0mm Standard Replacement Probe Decoder (TRD1)
  • (2) Dimple Probe Decoder (TRD2)
  • (2) Aluminum & Plastic End Mill Cutter (TRC6)
  • (1) Machine Mounting Brackets (TBD1)
  • (1) 12v Car Power Adapter (TRA4)
  • (1) Triton Jaw Storage Case (TJSC)
  • (2) Screen Protector (MAG-TRM1)

Standard on every Triton PLUS is a 7-inch touchscreen with crisp graphics and an intuitive menu, which makes it much easier to operate than most other computerized key cutters. The unique graphical interface provides step-by-step operator guidance throughout each of its features, complete with pictures and diagrams. Although its core operations are streamlined, seasoned users will appreciate this machine’s host of advanced key cutting features.

Each Triton PLUS includes a 2-year warranty, honored by LockLabs, Inc. in Las Vegas, Nevada. Take comfort in knowing that stateside support is only a phone call away if any issue should arise with your machine. Free technical support is also available for the life of the machine!

Triton PLUS Features:
  • Brand-new, completely overhauled direct-drive motor and motherboard to ensure our machine will have the ability to grow with your business for years to come.
  • Integrated, proprietary key code database supports key cutting directly by code for most automotive keys, streamlining your workflow and eliminating the need to reference other code sources.
  • Contains a comprehensive database of automotive, commercial & residential keys and can even generate dimple-cut keys.
  • Custom search functions include the ability to search by vehicle model, keyway, or IC card number.
  • The direct duplication feature traces and cuts unknown keyways for those rare instances where you have an original key and a compatible blank, but no space and depth information. The advanced key tracing feature will also account for wear on known keyways and automatically round off to meet original key specifications, or cut to a perfect match.
  • Create custom key profiles that will allow you to input your own space and depth info and tether it to the keyway of your choice.
  • A 12-Volt power adapter that will allow you tooperate the machine with the power from your vehicle cigarette lighter.
  • Unlimited, free updates for the life of your machine via Wi-Fi.
  • Removable chip tray for easy clean-up without having to unmount the machine from your bench or vehicle.
  • Bolt-down kit for the safe and secure mounting of your machine to the surface of your choice.
  • A fully-integrated, all-in-one design that includes onboard storage for all cutting bits and tracers.
  • 2-year warranty, which protects against all machine failures that result from flaws in manufacturing. The service center is based in Las Vegas, Nevada.
  • Free technical support for the life of the machine.
How to Obtain Service and Support:

You may obtain service by calling us at (888) 816-1046. Regular business hours are Monday through Friday, 8am to 5pm, Pacific Standard Time.

Triton PLUS Accessories & Replacement Parts:
  • (TRJ1) 4-Way Automotive Jaw (cuts every high-security and double-sided automotive key type)
  • (TRJ2) Single-Sided Jaw (residential, commercial, & single-sided automotive)
  • (TRJ3) Tubular Jaw (decode/cut tubular keys)
  • (TRJ4) Tibbe Jaw (decode/cut tribe keys)
  • (TRJ5) Engraving Jaw (create customized keys)
  • (TRJ6) Flip Blade Creation Jaw
  • (TRC1) 2.0 Standard Replacement End Mill Cutter
  • (TRC3C) Standard Dimple End Mill Cutter “C”
  • (TRC3D) MTL Inside Dimple End Mill Cutter “D”
  • (TRC3E) MTL Outside Dimple End Mill Cutter “E”
  • (TRC4) Engraving End Mill Cutter
  • (TRC5) 1.5mm End Mill Cutter, used for cutting HU162T & HU198T
  • (TRC6) Aluminum & Plastic Cutter
  • (TRD1) Standard Replacement Probe Decoder
  • (TRD2) Dimple Probe Decoder
  • (TBD1) Machine Mounting Kit
  • (TRA4) 12-Volt Vehicle Power Adapter (power your Triton PLUS via a standard cigarette lighter)
  • (TJSC) Customized Triton Jaw Storage Case
