Description
Description

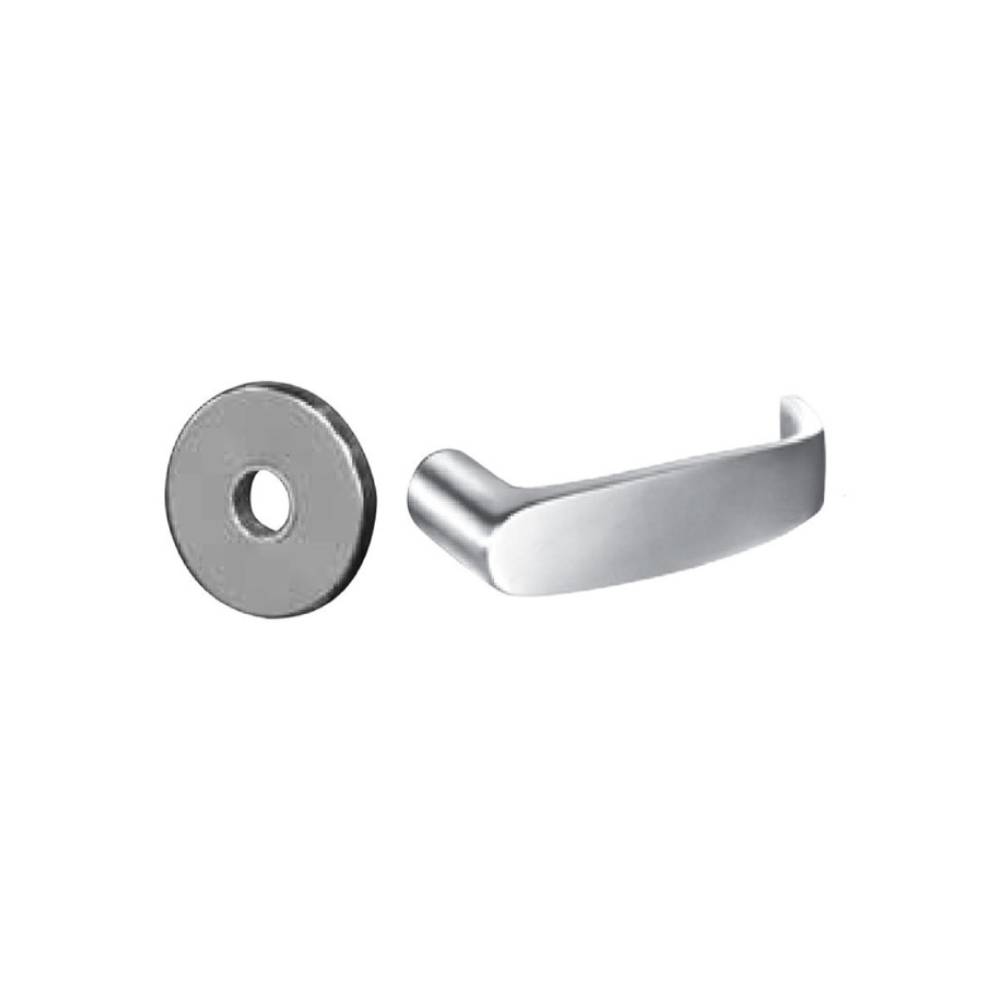

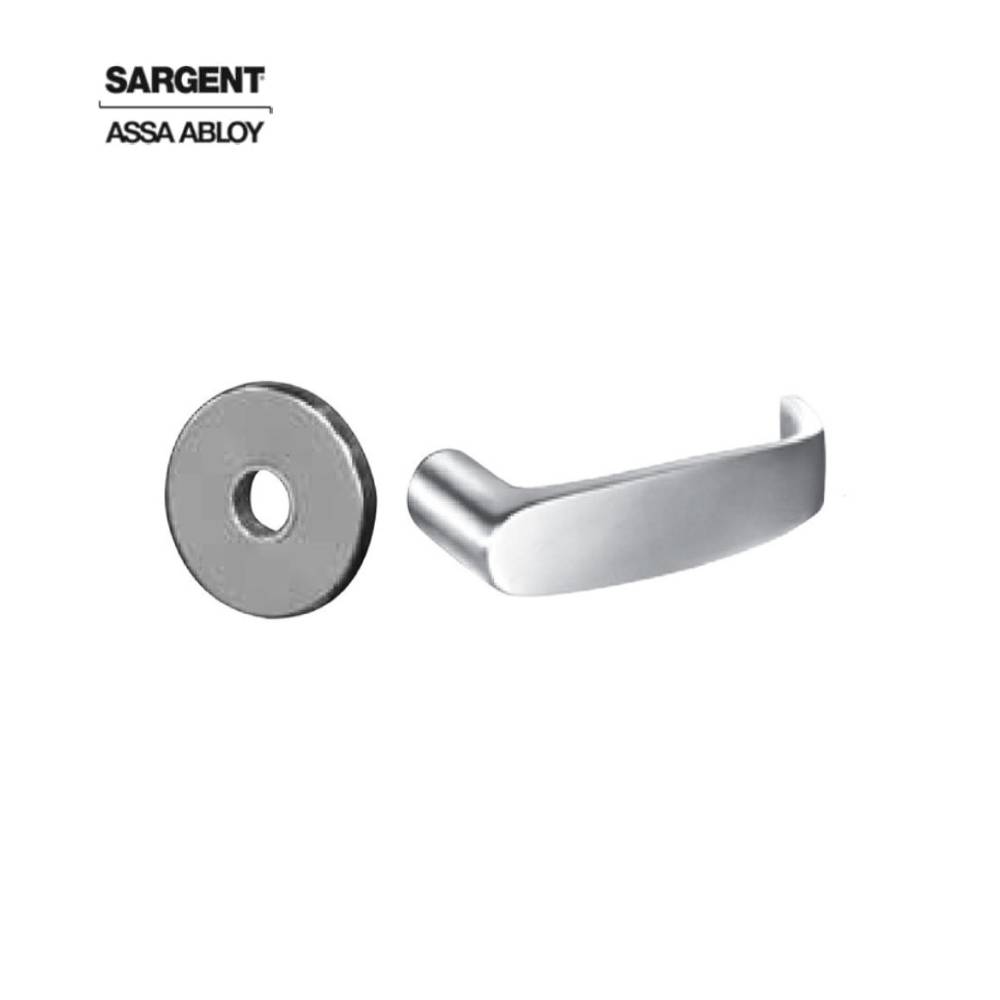

Sargent - 70-8271 - Electrified Mortise Lock - LN Rose - L Lever - SFIC Prep Less Core - 24V - Optional Color
8270 Series Electrified Lever Mortise Locks
Designed and constructed with high quality components to provide maximum security.
The Sargent electrified 8270 series locks represent over a century of innovation and experience in manufacturing hardware and are the industry's benchmark for mortise locks: Strong - Durable - Flexible - Innovative and Secure.
Feature:
- For Doors 1-3/4" (44mm) thick standard. For doors over 1-3/4" (44mm), specify door thickness and panels (if any)
- Backset 2-3/4" (70mm) only
- Case 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109")
- Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x 1-1/4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1/8" (3mm) in 2" (51mm)
- Springs High carbon steel
- Hubs for Knobs Sintered iron copper infiltrated
- Hubs for Levers Cold forged steel
- Hubs for Institutional Stainless steel (3- prefix)
- Latchbolt Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
- Auxiliary Deadlatch Stainless steel, non-handed
- Deadbolt One-piece hardened stainless steel, with 1" (25mm) projection
- Hand Specify hand on order; easily field reversible (if no hand is specified RH will be provided)
- Strike Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed (strike box optional)
- Keys Two, nickel silver (control key or emergency key must be ordered when required)
- Cylinder Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4")). Available with SARGENT Signature, V-10, XC and KESO Security Systems
- Masterkeying Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway.
- Classroom Security 38, 39, 40, 41 Functions (All mortise trim designs available except KE/LE 3 & 4 and PT trim or FE trim with 41 function)
- Stile 4-1/2" (114mm) minimum stile for 7800/8200, 4-3/4" (121mm) minimum stile for electrical function locks
- Door Prep ANSI A115.1 modified per template (see template for 7800/8200 lockbody & trim)
Product Specifications:
| SKU | 70-8271-24V LNL 26D 70-8271-24V LNL 10BE |
| UID | SAR10070827124VLNL26D SAR70827124VLNL10BE |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Complete Lock |
| Base Material | Brass or Bronze |
| BAA Qualified | Yes |
| Fire Rated | 2 Hours {B} |
| Finish | US26D US10BE |
Technical Specifications:
| Function | 71-Electrical Fail Secure |
| Lever/Knob Design | L - Lever |
| Rose/Escutcheon Design | LN Rose (2" Diameter) |
| Cylinder Type | SFIC Prep Less Core |
| Hand | Field Reversible |
| Door Thickness | 1-3/4" |
| Bolt Projection | 3/4" |
| Strike Number | 82-0110 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC/24VDC |
| Amp Draw | 500mA Peak, 15mA Holding |
| Product Type | Electric Mortise Lock |
