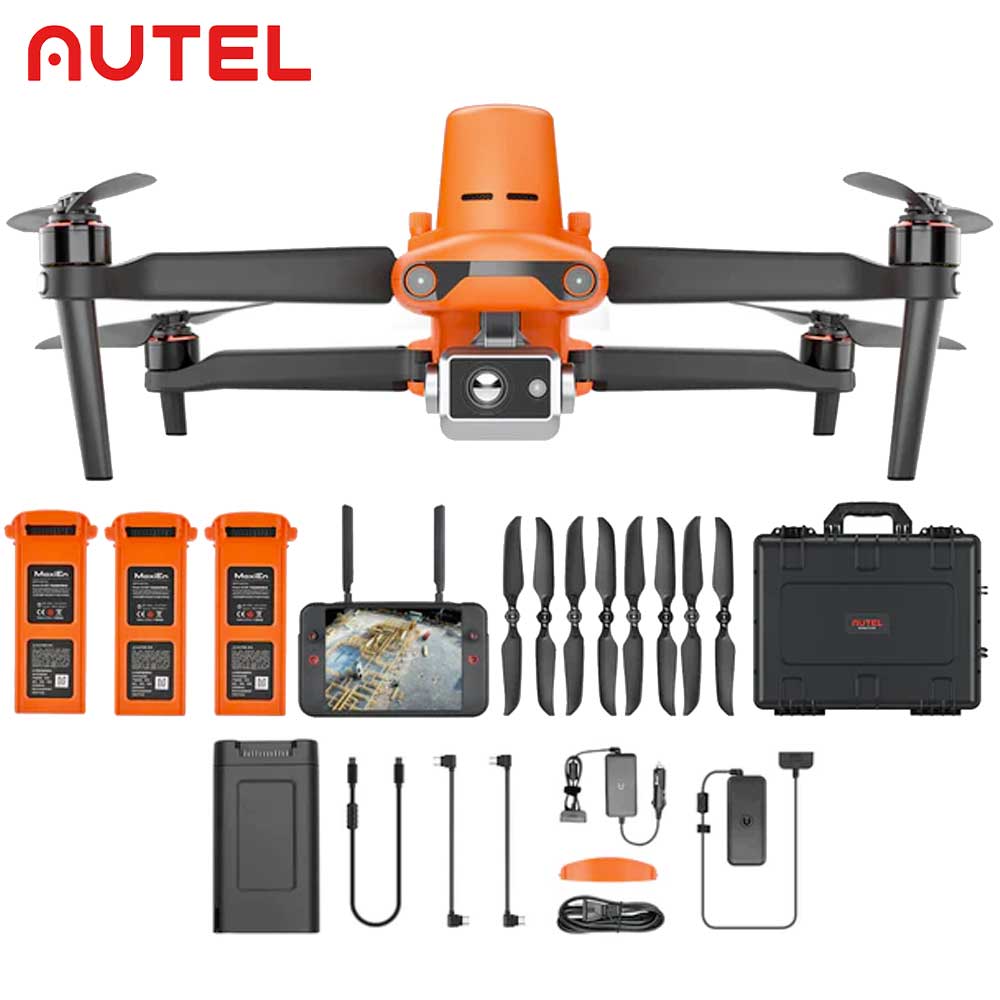

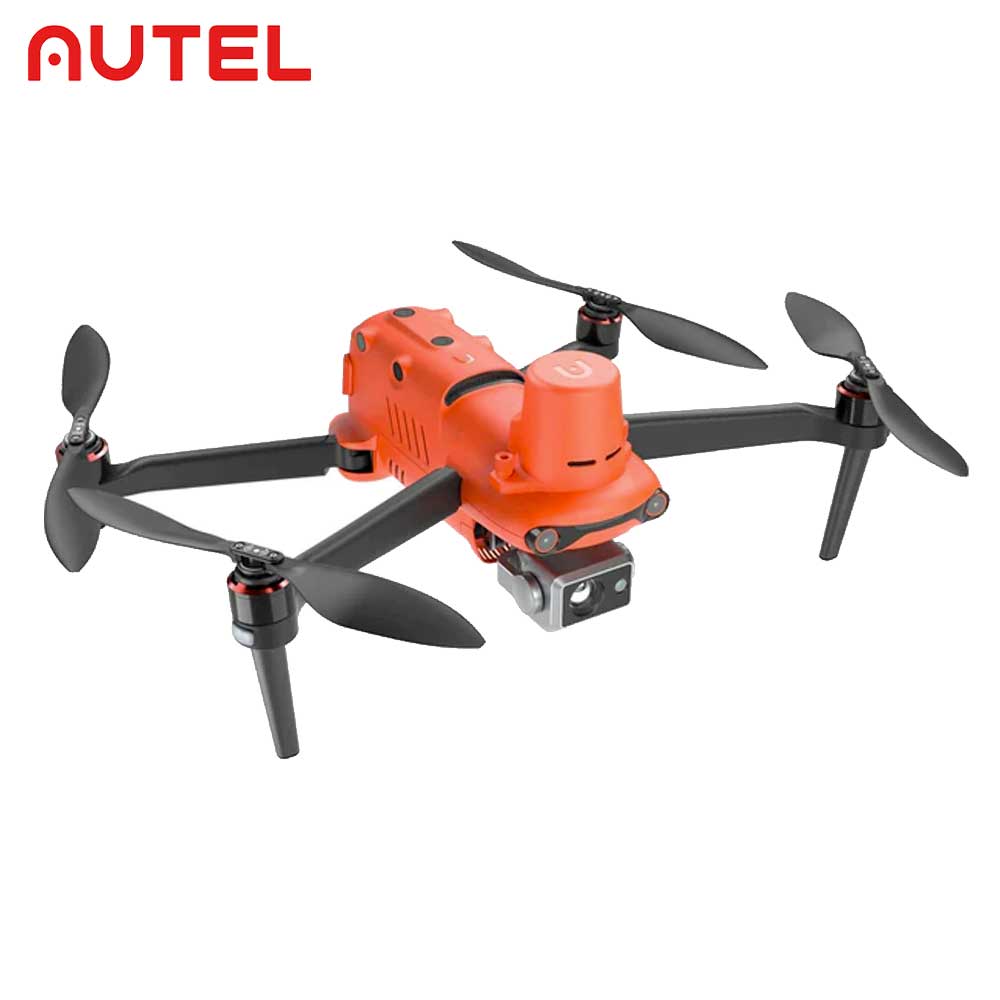

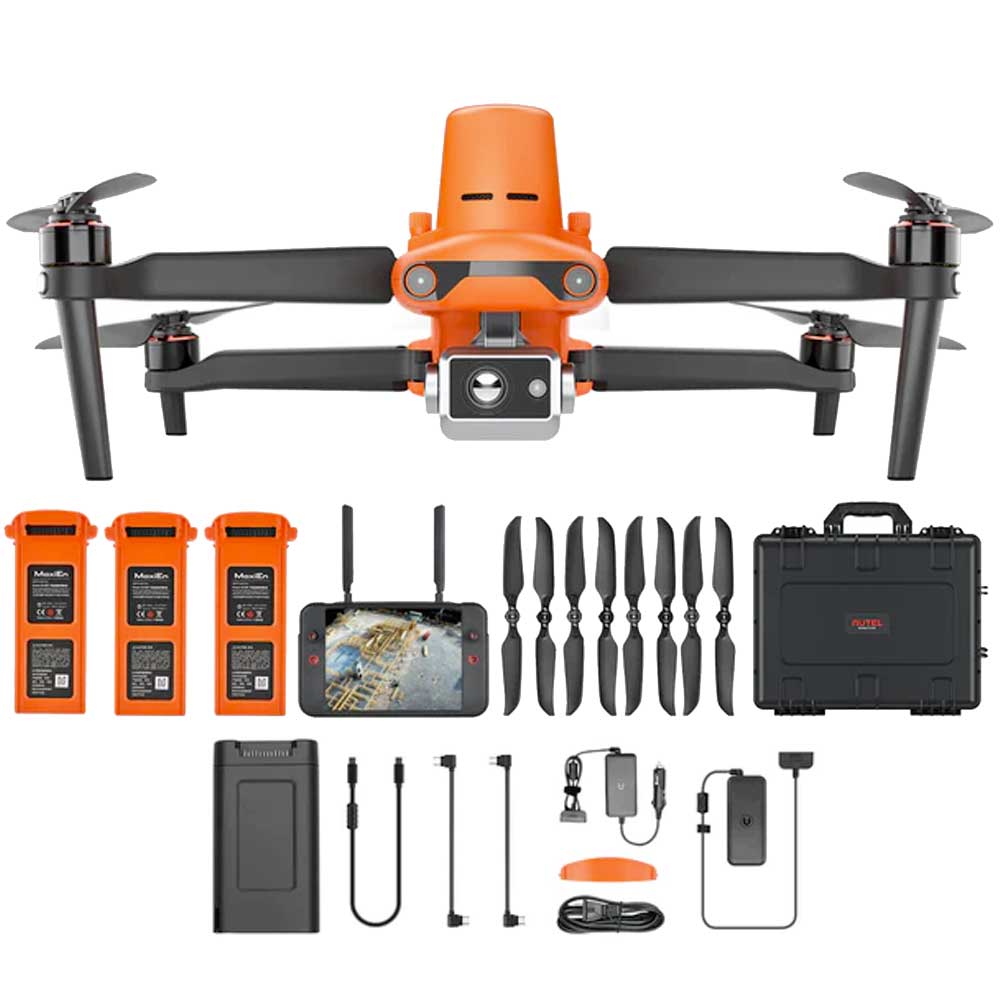

Autel Robotics EVO II Dual 640T RTK V3 Thermal Drone Rugged Bundle with Remote Controller (Android and iOS compatible)
- Product SKU: AUTEL-AT58220011
People also viewed
Autel Robotics EVO II Dual 640T RTK V3 Thermal Drone Rugged Bundle with Remote Controller (Android and iOS compatible)
Description:
- 6.4" Smart Controller SE
- 15KM Image Transmission
- RTK module with centimeter-level accuracy
- SkyLink 2.0
- 50MP Picture/0.8" CMOS Sensor
- 640*512 Thermal Imaging Resolution
- 10 Thermal Color Palettes
- 360° Obstacle Avoidance
- Dynamic Track 2.0
- 38 Mins Flight Time
EVO II Dual 640T RTK
Autel EVO 2 Dual 640T thermal drone is an industry-first drone combining infrared imaging camera with 8K video camera. With thermal resolution up to 640x512 and an 8k sensor EVO 2 becomes a workhorse. First responders, contractors, and business owners finally have a compact and portable tool that gives them the data they have been asking for.
Dual Cameras, Accurate Temperature Measurement-EVO II DUAL 640T RTK V3
The EVO II Dual 640T RTK V3 is equipped with a high-resolution thermal imaging camera and an all new Sony .8" 50 megapixel RYYB sensor.
High-Resolution Thermal Imaging Sensor
Equipped with a 640x512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than the competition with the similar resolution and hardware.
Precise Temperature Measurement
The EVO II Dual 640T RTK V3 can accurately detect heat sources within a distance of 2-20 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.
Thermal Drones In Wildlife Management
More than 6 million feral hogs roam the United States. From Hawaii to Florida, these invasive cousins of domestic swine have increased their range from 17 states in the 1980s to more than 35 states today. Able to breed year-round with average litters of five-eight piglets, feral hog populations can double in size within four months. Weighing between 75 and 500 pounds, feral hogs’ aggressive behavior is very destructive to agriculture, natural ecosystems, people, pets and livestock.
Thermal imaging helps spot predators that could injure or kill farm animals. This will ensure peace of mind for farm owners. This footage show just how hard Wild Boar are to identify with the naked eye but with the help of the thermal drone they are easy to locate and count.
Thermal Drones in Hunting
Welcome to the drone world! While I am vegetarian, I can endorse your efforts for wanting to use a drone for hog hunting!
Using drones to hunt wild hogs is an excellent use case. Add a thermal camera, and they are easier to spot. Using drones to hunt hogs has been a common practice for many years, but it used to be extremely expensive; Hunters in the past have used $15,000+ rigs to make it happen.
Now drones with thermal cameras are cheaper than ever before — and extremely easy to fly.
Thermal Drones In Residential Roof Inspection
On shingle, tile or slate roof structures, you can document the exterior condition of the roof using UAV based high resolution visible imaging where we can easily observe hail damage, wind damage, openings in the roof, cracked tiles and much much more. When it gets wet, it creates a hotter temperature on the surface of the membrane that can be easily detected with infrared imaging.
Thermal Drones In Industrial Inspection
The EVO II 640T uses an 8K Visual Spectrum Sensor and 640 Radiometric Thermal Sensor, giving inspectors the ability to perform multiple roof inspections in half the time it takes by conventional methods. Our drone kits will not only allow you to visually inspect the entire building , but also use thermal technology to check for hot spots. This enables you to safely and quickly check the status of the structure. As well as to help you identify defects, leakage, and corrosion issues, without having to spend on additional personnel and equipment.
Thermal Drones in Agriculture
The benefits of drones in agriculture have been well documented, but beyond monitoring crop and plant health, drones can also keep track of livestock with thermal cameras. In flight, a drone with thermal imaging capabilities is a powerful tool for monitoring many different types of wildlife. Thermal cameras can detect the heat signature from an animal at a distance, providing drone pilots with data they otherwise wouldn't be able to gather.
Thermal Imaging Function
Picture-in-Picture Mode
Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"
Spot Temperature Measurement
Tap the screen, and the temperature of the selected object will be displayed in real time.
Regional Temperature Measurement
Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
The temperature measurement frame can be dragged to any position on the screen.
Temperature Warning
Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set thresholds
Note: The temperature alarm takes effects only in Regional temperature measurement mode
Image Enhancement
Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
10 Thermal Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection
Powerful Infrared Thermal Analysis Tool(IRPC)
This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)
All three camera modules support a variety of shooting modes, including: Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse; High-dynamic-range (HDR) imaging; NIGHTBEAT (high signal-to-noise ratio)
Connect Autel Live Deck to display live on any device
A high-definition live feed from the EVO 2 drone camera can be displayed on your remote control’s screen or connect withAutel Live Deck to displayed on any device including computer, tv, phone, etc. Of course, Images and videos can be stored in the aircraft’s onboard memory or on a micro SD card.
Adjust field-of-view to any angle from 0° to 90° while flying
EVO II Dual Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.
All Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!
Centimeter-Level Positioning System
The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The EVO II RTK aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.
Viewpoint
Viewpoint allows the user to send the aircraft to a selected destination by touching a point on the screen. Featured with the same waypoints function as EVO to program autonomous flight routes. EVO II Dual can even save multiple waypoint missions making it easy for surveying.
Auto go home & Accurate Landing
EVO 2 Dual will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
Super Battery Life & 9KM Extended Range
Autel EVO 2 Dual comes standard with a 7100mAh rechargeable battery. Providing up to 38min of flight time in forward motion to up to 9km away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II Dual.
Specification
Thermal Camera
| Sensor | FLIR BOSON Sensor 640*512/ 320*256 |
| Pixels | EVO II Dual (640) 640*512 EVO II Dual (320) 320*256 |
| Pixel Pitch | 12 µm |
| Wavelength | 7.5 - 13.5µm |
| FOV | EVO II Dual (640) 32° EVO II Dual (320) 34° |
| Lens | EVO II Dual (640) 14 mm EVO II Dual (320) 6.3 mm |
| Zoom | 1 ~ 8x |
| Still Image Resolution | Infrared Mode:640x512 Picture in Picture Mode: 1920x1080, 1280x720 |
| Still Image Format | JPEG |
| Still Photography Modes | Single shot, Burst shooting, Time |
| Video Resolution | Infrared Mode: 640x512 (US) Picture in Picture Mode: 1920x1080 p30, 1280x720 p30 |
| Video Format | MOV/MP4 (H.264/H.265 supported) |
8k Camera
| Sensor | 1/2" CMOS Effective Pixels: 48 MP Performance temperature: -20~60°C |
| Lens | FOV: about 79° 35mm Format Equivalent: 25.6 mm Aperture: f/1.8 Shooting Range: 0.5 m to ∞ |
| ISO Range | Video: ISO100~3200 (Auto) Video: ISO100~3200 (Manual) Photo: ISO100~3200 (Auto) Photo: ISO100~3200 (Manual) |
| Shutter Speed | Electronic Shutter: 8 ~ 1/8000s |
| Digital Zoom | 1 ~ 8x (Max. 4x lossless zoom) |
| Still Image Resolution | 8000x6000 (4:3) 7680x4320 (16:9) 4000x3000 (4:3) 3840x2160 (16:9) |
| Still Image Format | JPEG / DNG / JPEG+DNG |
| Still Photography Modes | Single Shot Burst Shooting: 3/5 frames |
| Video Resolution | 7680x4320 p25/p24 5760x3240 p30/p25/p24 3840x2160 p60/p50/p48/p30/p25/p24 2720x1528 p120/p60/p50/p48/p30/p25/p24 1920x1080 p120/p60/p50/p48/p30/p25/p24 |
| Video Format | MOV / MP4 |
| Codecs | H.264 / H.265 |
| Max Video Bitrate | 120Mbps |
| HDR Video Recording | Supports 3840x2160, 2720x1528, 1920x1080 HDR video recording |
Gimbal
| Weight | 0.30 lbs (135 grams) |
| Mechanical Range | Pitch: -135° to +45 Yaw: -100° to +100° |
| Controllable Range | Pitch: -90° to +30° Yaw: -90° to +90° |
| Stabilization | 3-Axis (Tilt, Roll, Pan) |
| Max Control Speed (Tilt) | 300°/s |
| Angular Vibration Range | ±0.005° |
Aircraft
| Takeoff Weight | 2.5 lbs (1150 g) |
| Max Takeoff Weight | 4.4 lbs (2000 g) |
| Dimensions | Folded: 8.98 x 5.24 x 4.33 inch (L x W x H) (228 x 133 x 110 mm) Unfolded: 16.69 x 13.94 x 4.33 inch (L x W x H) (424 x 354 x 110 mm) |
| Diagonal Distance | 15.63 in (397 mm) |
| Max Service Ceiling Above Sea Level | 22,965 ft (7000 m) |
| Max Flight Time (no wind) | EVO II Dual (640) 38min EVO II Dual (320) 40min |
| Max Hovering Time (no wind) | EVO II Dual (640) 33min EVO II Dual (320) 35min |
| Max Flight Distance (no wind) | 15.53 miles (25 km) |
| Max Wind Speed Resistance | 39-46 mph (Level 8) |
| Max Tilt Angle | Standard mode: 28° Ludicrous mode: 33° |
| Max Angular Velocity | 120°/second |
| Max Ascent Speed | Standard mode: 11.18 mph (5 m/s) Ludicrous mode: 17.89 mph (8 m/s) |
| Max Descent Speed | Standard mode: 6.71 mph (3 m/s) Ludicrous mode: 8.94 mph (4 m/s) |
| Max Speed (near sea level, no wind) | Standard mode: 33.55 mph (15 m/s) Ludicrous mode: 44.73 mph (20 m/s) |
| Operating Temperature Range | 14°F to 104°F (-10°C to 40°C) |
| Operating Frequency | 2.4~2.4835GHz |
| Transmission Power (EIRP) |
2.4~2.4835GHz |
| GNSS | GPS/GLONASS/VIO/ATTI |
| Hovering Accuracy Range | Vertical: ± 0.78 in (when vision positioning is active) ± 7.87 in (with GPS positioning) Horizontal: ± 0.78 in (when vision positioning is active) ± 3.28 ft (with GPS positioning) |
| Internal Storage | 8 GB |
| SD Storage | Standard: 32 GB Max Micro SD Card Supported: 256 GB |
Sensing System (Obstacle Avoidance)
| Sensing System | Omnidirectional Binocular Obstacle Sensing System |
| Forward | Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60°, Vertical: 80° |
| Backward | Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80° |
| Upward | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60°, Vertical: 50° |
| Downward | Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 100°, Vertical: 80° |
| Sides | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60°, Vertical: 50° |
| Operating Environment | Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20) Downward: Surface with clear pattern and adequate lighting (lux > 20) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |
Remote Controller
| Operating frequency | 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only) |
| Transmission power | FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G |
| Max Transmission Distance (unobstructed, free of interference) | FCC：15km CE：8km |
| Display screen | 2048x1536 60fps |
| Battery | 5800mAh |
| Operating time | ~3 hours (Max. Brightness) ~4.5 hours (50% Brightness) |
| Charging time | 120 minutes |
| Internal Storage | ROM 128GB |
Battery
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Max Charging Voltage | 13.2 V |
| Battery Type | LiPo 3S |
| Energy | 82 Wh |
| Net Weight | 0.81 lbs (365 grams) |
| Charging Temperature Range | 41°F to 104°F (5°C to 40°C) |
| Max Charging Power | 93 W |
| Charging Time | 90min |
Downloads
- EVO II Dual 640T Brochure
- EVO II Dual 640T Quick Guide V2
- EVO II Series Disclaimer and Safety Guidelines
- EVO II Dual Reports
- EVO II Dual Certificates
Packing List
