A diagnostic trouble code is a clue, not a complete diagnosis.
Modern vehicles can generate multiple fault codes when a single sensor, wiring connection, power supply, or communication network develops a problem. A conventional scan tool can identify the affected system, but it may not show you what is actually happening to the electrical signal.
That is where advanced diagnostic equipment makes a difference.

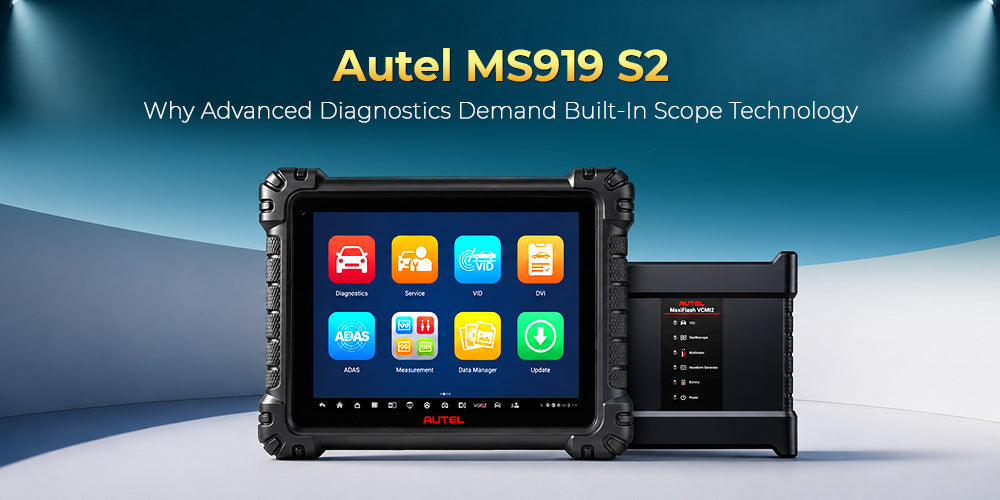

The Autel MaxiSys MS919 S2, paired with the MaxiFlash VCMI2, combines advanced vehicle diagnostics with electrical testing capabilities, including a 4-channel oscilloscope, digital multimeter, waveform generator, and CAN bus testing functions. Instead of switching between separate diagnostic devices, technicians can investigate electronic faults from a single platform.
For shops handling complex electrical problems, intermittent faults, module communication issues, or advanced programming, that integration can help reduce diagnostic time and unnecessary parts replacement.
Why Reading Diagnostic Trouble Codes Isn't Always Enough
A diagnostic trouble code tells you what condition a vehicle's control module detected. It does not necessarily identify the failed component.
For example, a sensor-related DTC could be caused by:
- A failed sensor
- Damaged or corroded wiring
- A poor ground
- An intermittent power supply
- A connector problem
- An abnormal sensor signal
- A communication issue between modules
Simply replacing the component named in a fault code can turn a diagnostic problem into an expensive guessing game.
The next step is verifying what the vehicle's electrical system is actually doing.
That's where tools such as an automotive oscilloscope and multimeter become valuable.
From DTC to Root Cause: Why an Automotive Oscilloscope Matters
An oscilloscope allows a technician to see electrical signals as they occur in real time.
Instead of only asking whether a sensor has a fault code, the technician can examine its waveform and determine whether the signal is behaving as expected.
This can be particularly useful when diagnosing:
- Intermittent sensor faults
- Crankshaft and camshaft position signals
- Ignition and injector circuits
- Actuator operation
- Power and ground problems
- Communication signals
- Electrical faults that do not consistently generate a DTC
For example, if a vehicle repeatedly reports a sensor circuit fault, replacing the sensor may not solve the problem if the actual cause is damaged wiring or an intermittent connection. Viewing the signal can provide additional evidence before parts are replaced.
The difference is simple: a scan tool tells you what the vehicle detected, while signal testing helps you investigate why it happened.
What the Autel MS919 S2 and VCMI2 Bring to the Diagnostic Workflow
The MS919 S2 is designed for technicians who need more than basic code reading and service resets. Its MaxiFlash VCMI2 interface integrates multiple testing and communication capabilities into the diagnostic workflow.
Advanced Vehicle Diagnostics
The MS919 S2 provides advanced diagnostic functions for identifying faults across vehicle systems, including module scanning, active tests, special functions, coding, and other service procedures supported by the vehicle and software.
For technicians working on modern vehicles, this provides the starting point for identifying which systems require further investigation.
4-Channel Oscilloscope
The integrated 4-channel oscilloscope allows technicians to monitor multiple electrical signals simultaneously.
This is useful when the relationship between signals matters, such as comparing sensor inputs or examining electrical events across different circuits.
Rather than relying solely on a fault code, technicians can inspect the actual waveform and use that information to narrow down the root cause.
Digital Multimeter
Electrical diagnosis often requires more than waveform analysis.
The VCMI2's digital multimeter functions can help technicians measure electrical characteristics such as voltage, resistance, and current during appropriate diagnostic procedures.
Having these measurements available through the same diagnostic platform reduces the need to move between multiple pieces of equipment.
Waveform Generator
The waveform generator can produce test signals for appropriate diagnostic procedures, allowing technicians to evaluate how vehicle electronics respond to simulated inputs.
This can be useful when troubleshooting certain circuits and verifying ECU input behavior without immediately replacing a component.
CAN Bus Testing
Modern vehicles rely heavily on network communication between electronic control modules.
A communication problem can generate multiple DTCs across different systems, making it difficult to identify the original fault from scan data alone.
CAN bus testing capabilities can help technicians evaluate network signals and investigate potential physical-layer problems, including abnormal signal behavior, shorts, opens, and termination-related issues.
J2534 Pass-Through Programming
The VCMI2 also supports J2534 pass-through communication for supported applications.
This gives professional repair facilities another option when manufacturer-specific programming procedures require pass-through hardware and compatible OEM software.
Always verify vehicle-specific coverage, software requirements, and manufacturer procedures before performing programming.
Visualizing Vehicle Networks With Topology Mapping
Modern vehicles contain increasingly complex communication networks. When one module stops communicating, the resulting fault codes can make the problem appear larger than it actually is.
Dynamic topology mapping provides a visual representation of the vehicle's electronic architecture, helping technicians see how modules are connected and identify systems reporting faults or communication problems.
Instead of navigating through individual modules one at a time, technicians can use the network overview to quickly identify areas that require further investigation.
This does not replace electrical testing, but it can help establish a more efficient diagnostic path.
Once a network problem has been identified, technicians can move from the scan tool to physical testing with the oscilloscope, multimeter, or CAN testing functions.
That combination is where an integrated diagnostic platform becomes particularly useful.
A Practical Diagnostic Workflow
Consider a vehicle arriving with intermittent communication faults and several warning lights.
A basic scan might reveal communication-related DTCs in multiple modules. Clearing the codes may temporarily remove the warnings, but it does not establish the root cause.
With an advanced diagnostic platform, the technician can approach the problem in stages:
- Scan the vehicle: Identify the modules reporting faults and determine whether the codes are current, stored, or intermittent.
- Review the network: Use topology information to identify modules with communication problems and establish where further testing should begin.
- Test the electrical system: Use the multimeter to check relevant power, ground, and resistance conditions.
- Analyze signals: Use the oscilloscope or CAN testing functions to examine the relevant electrical signals and network behavior.
- Verify the repair: After addressing the suspected cause, rescan the vehicle and confirm that the system is operating correctly.
This approach moves the technician from code retrieval to evidence-based diagnosis.
Who Actually Needs an Advanced Diagnostic Platform?
An advanced diagnostic system is not automatically the right choice for every shop.
When It's Overkill
If your business primarily handles:
- Oil and maintenance services
- Basic code reading
- Brake services
- Service resets
- Routine repairs
A more affordable diagnostic scanner may provide everything you need.
Paying for advanced electrical testing capabilities that rarely get used may not make financial sense.
When It Makes Sense
An advanced platform becomes more valuable when your shop regularly handles:
- Electrical troubleshooting
- Intermittent faults
- Network communication problems
- Advanced module diagnostics
- ECU programming and coding
- Complex sensor problems
- High diagnostic vehicle volume
- Mobile diagnostic or repair work
For these applications, reducing the time spent isolating faults can have a direct impact on shop productivity.
The value is not simply having more features. It is having the right diagnostic information available when a conventional scan tool reaches its limits.
Why Integrated Diagnostic Hardware Can Save Time
Using separate equipment for scanning, waveform analysis, multimeter testing, and network diagnostics can create additional setup time and hardware clutter.
An integrated platform puts these capabilities into the same diagnostic workflow.
That matters when a technician needs to move quickly from:
DTC → module analysis → electrical measurement → waveform testing → repair verification.
Instead of stopping to retrieve another piece of equipment, the technician can continue investigating the same problem from the diagnostic platform.
For high-volume repair facilities and technicians who regularly perform advanced electrical diagnostics, that workflow can be more valuable than any individual feature.
Is the Autel MS919 S2 Worth the Investment?
The answer depends on the type of work your shop performs.
If you only need to retrieve fault codes and perform routine service functions, the MS919 S2 may offer capabilities you will rarely use.
If your shop routinely diagnoses complex electrical problems, investigates intermittent faults, works with vehicle networks, performs advanced module procedures, or needs integrated testing capabilities, the additional functionality can provide a significant advantage.
The key question is not:
"Does my shop need the most advanced diagnostic tool available?"
It is:
"How often does my shop need to go beyond the information provided by a standard scan tool?"
If the answer is frequently, built-in electrical testing capabilities can turn diagnostic guesswork into a more structured troubleshooting process.
Upgrade Beyond Code Reading
Modern vehicle diagnostics increasingly require more than retrieving and clearing fault codes.
A scan tool can identify where a problem was detected. An oscilloscope can help you examine the signal behind the fault. A multimeter can verify electrical conditions. CAN testing can help investigate network behavior, while topology mapping provides a broader view of vehicle communication.
The Autel MaxiSys MS919 S2 with MaxiFlash VCMI2 brings these capabilities together in one professional diagnostic platform.
For shops that regularly work on complex electrical and communication faults, that integration can mean faster troubleshooting, better evidence before replacing components, and a more efficient diagnostic workflow.
Ready to move beyond code reading? Explore the Autel MaxiSys MS919 S2 at Locksmith Keyless and review its available specifications, packages, and support options.
Frequently Asked Questions
What is the Autel MS919 S2?
The Autel MaxiSys MS919 S2 is an advanced automotive diagnostic platform designed for professional technicians. It combines advanced vehicle diagnostics with the MaxiFlash VCMI2 interface for functions including oscilloscope testing, multimeter measurements, waveform generation, CAN bus testing, and supported J2534 pass-through applications.
What is the VCMI2?
The MaxiFlash VCMI2 is Autel's vehicle communication and measurement interface used with compatible MaxiSys diagnostic tablets. It provides vehicle communication capabilities along with integrated electrical testing functions.
Why would a technician need an automotive oscilloscope?
An automotive oscilloscope allows technicians to view electrical signals over time. This can help diagnose intermittent faults, sensor signals, actuator circuits, ignition systems, and other electrical problems that may not be fully explained by diagnostic trouble codes alone.
Can an oscilloscope diagnose a bad sensor?
An oscilloscope can help determine whether a sensor's electrical signal is behaving as expected, but waveform analysis should be interpreted alongside other diagnostic information. A fault may originate from the sensor, wiring, power supply, ground, connector, or another part of the circuit.
Is the MS919 S2 suitable for basic automotive diagnostics?
Yes, but its advanced capabilities may be unnecessary for shops that only perform basic code reading and routine service functions. The platform is better suited to professional technicians who can take advantage of its advanced diagnostic and electrical testing capabilities.
Does the MS919 S2 support ECU programming?
The MS919 S2 supports advanced programming-related functions and the VCMI2 provides J2534 pass-through capability for supported applications. Programming coverage varies by vehicle, manufacturer, software, and procedure, so compatibility should be verified before beginning a programming operation.
