Last Updated: July 2026
Autel has confirmed that NASTF Secure Data Release Model (SDRM) validation will begin rolling out to selected key programming tools starting in Q3 2026.

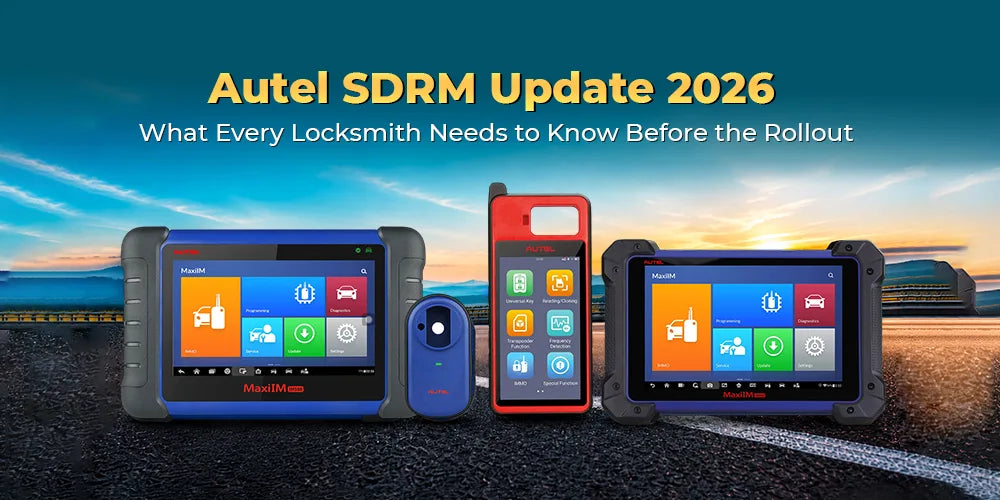

If you use an Autel MaxiIM KM100, MaxiIM IM508 Series, or MaxiIM IM608 Series for key programming, you will eventually need a valid National Automotive Service Task Force (NASTF) Vehicle Security Professional (VSP) account to perform supported security functions such as adding keys and completing All Keys Lost (AKL) procedures.
This guide explains which Autel tools are affected, when the rollout begins, how SDRM works, and what you should do now to prepare your business.
If you're still deciding which Autel platform is right for your shop, check out our guide: Which Autel Tool Should You Buy? A Shop Owner's Guide to Choosing the Right Scanner.
Quick Answer
Autel's SDRM update will begin rolling out in Q3 2026, starting with the MaxiIM KM100. The IM508 Series and IM608 Series will follow in later phases.
Once SDRM is enabled on your compatible tool, supported immobilizer and key programming functions will require authentication through a valid NASTF Vehicle Security Professional (VSP) account using multi-factor authentication (MFA).
If you only use Autel products for diagnostics, TPMS, ADAS calibration, or general vehicle service, this update does not affect those functions.
Which Autel Tools Are Affected?
Autel is implementing SDRM validation in phases to give users time to prepare before the requirement becomes mandatory.
| Autel Tool | Rollout Timeline |
|---|---|
| Autel MaxiIM KM100 | Q3 2026 (Initial Rollout) |
| Autel MaxiIM IM508 Series | Future phased rollout |
| Autel MaxiIM IM608 Series | Future phased rollout |
Autel MaxiIM KM100
The KM100 will be the first Autel key programming tool to receive SDRM validation beginning in Q3 2026.
Autel MaxiIM IM508 Series
The IM508 Series will transition to SDRM validation during a later phase. Autel has not yet announced a specific release date.
Autel MaxiIM IM608 Series
The IM608 Series will also receive SDRM validation in a future software update following the initial rollout.
Important: This update only affects supported key programming and immobilizer operations. Autel diagnostic scanners, TPMS tools, ADAS equipment, EV diagnostic tools, and general service tablets are not affected.
What Is NASTF SDRM?
The Secure Data Release Model (SDRM) is a security framework developed by the National Automotive Service Task Force (NASTF) to help protect vehicle security functions.
Rather than allowing unrestricted access to key programming features, SDRM verifies that the technician performing the work is an authorized Vehicle Security Professional (VSP).
The goal is to reduce unauthorized use of key programming equipment while helping legitimate locksmiths and automotive professionals continue performing secure vehicle services.
Many vehicle manufacturers already use this authentication process within their factory diagnostic software. Aftermarket tool manufacturers, including Autel, are now adopting the same security standard.
Which Functions Will Require SDRM Validation?
Once SDRM is enabled on your compatible Autel tool, authentication may be required for supported vehicle security functions, including:
- Adding a key
- All Keys Lost (AKL) programming
- Immobilizer programming
- Other manufacturer-specific security functions supported by the tool
The exact functions requiring validation may vary depending on the vehicle manufacturer and software version.
Who Needs a NASTF VSP Account?
If your business performs vehicle security-related programming using compatible Autel key programming tools, you should register as a Vehicle Security Professional (VSP) before SDRM reaches your device.
This generally includes:
- Automotive locksmiths
- Mobile locksmiths
- Automotive repair facilities performing key programming
- Vehicle security professionals working with immobilizer systems
If you only use Autel tools for diagnostics, maintenance, TPMS, ADAS calibration, or EV service, you do not need to take any action related to this update.
How the SDRM Authentication Process Works
Once SDRM is active on your tool, the authentication process is integrated into your normal workflow.
Step 1: Enter Your VSP ID
When prompted during a supported security function, enter your registered NASTF Vehicle Security Professional identification number.
Step 2: Generate Your Verification Code
Open the NASTF multi-factor authentication (MFA) app on your smartphone to generate a temporary verification code.
Step 3: Complete Authentication
Enter the verification code into your Autel tool. Once validated, the transaction is securely recorded through the NASTF SDRM system, allowing the programming procedure to continue.
The authentication process typically takes only a few moments.
How to Prepare Before the Rollout
Because obtaining VSP approval requires identity verification and documentation, professionals should begin the registration process before SDRM becomes mandatory for their tool.
1. Review the Requirements
Gather your business information, locksmith credentials, licenses, and any documentation required by NASTF.
2. Register as a Vehicle Security Professional
Submit your application through the official NASTF SDRM registration portal:
https://sdrm.nastfsecurityregistry.org/register
3. Install the NASTF MFA App
Download and configure the required multi-factor authentication application on your mobile device so it is ready when SDRM becomes available.
Need Help?
Support responsibilities are divided between Autel and NASTF depending on the issue.
Contact Autel If You Need Help With:
- Software updates
- Tool compatibility
- Rollout timing
- Device-specific questions
Phone: 1-855-288-3587
Email: ussupport@autel.com
Contact NASTF If You Need Help With:
- VSP registration
- Background checks
- Application status
- Documentation requirements
- SDRM policies
Visit the NASTF Support Center
Autel also maintains an official SDRM Resource Center containing announcements, documentation, training videos, and additional FAQs:
Frequently Asked Questions
Will my Autel scanner stop working?
No. The SDRM rollout only affects supported immobilizer and key programming functions. Standard diagnostic, TPMS, ADAS, EV diagnostics, and general service functions remain unchanged.
Which Autel tools are affected?
Autel has announced SDRM implementation for the following key programming tools:
- Autel MaxiIM KM100
- Autel MaxiIM IM508 Series
- Autel MaxiIM IM608 Series
Additional products may be announced in future phases.
Do I need to register with NASTF?
If you perform supported key programming or immobilizer procedures using affected Autel tools, you will need a valid NASTF Vehicle Security Professional (VSP) account once SDRM is enabled on your device.
What happens if I don't register?
Without a valid VSP account after SDRM becomes mandatory on your tool, supported security-related programming procedures may not be available.
Does SDRM affect All Keys Lost (AKL) programming?
Yes. Supported All Keys Lost (AKL) procedures will require SDRM authentication once the update has been implemented for your compatible tool.
Is there an additional subscription fee?
Registration requirements and any associated fees are determined by NASTF. Check the official NASTF website for the latest information.
Final Thoughts
Autel's adoption of NASTF SDRM represents an important shift toward standardized security verification across the automotive key programming industry. While the new authentication process introduces an additional step for supported security functions, it also helps protect professional tools and aligns aftermarket equipment with the security standards already used by many vehicle manufacturers.
If you rely on an Autel MaxiIM KM100, IM508 Series, or IM608 Series for daily key programming, preparing your NASTF Vehicle Security Professional (VSP) registration before the rollout begins will help ensure a smooth transition and minimize workflow disruptions as SDRM becomes available.
