Choosing a professional mechanical key duplicator comes down to more than cutting speed. For locksmith shops handling high-security automotive keys, factors such as supported key profiles, calibration, machine size, cutting controls, and available accessories can all affect the daily workflow.
Two professional options worth comparing are the Keyline 303 and the ILCO Matrix II. Both are designed for high-security key duplication and feature heavy-duty construction, 6,000 RPM motors, dedicated calibration systems, and accessories that expand their capabilities.
However, their designs take different approaches to the locksmith bench. The Keyline 303 emphasizes three-axis movement, three-dimensional calibration, and support for laser, dimple, and Tibbe keys. The ILCO Matrix II focuses on electromechanical calibration, ergonomic operation, and a modular accessory system for additional key applications.

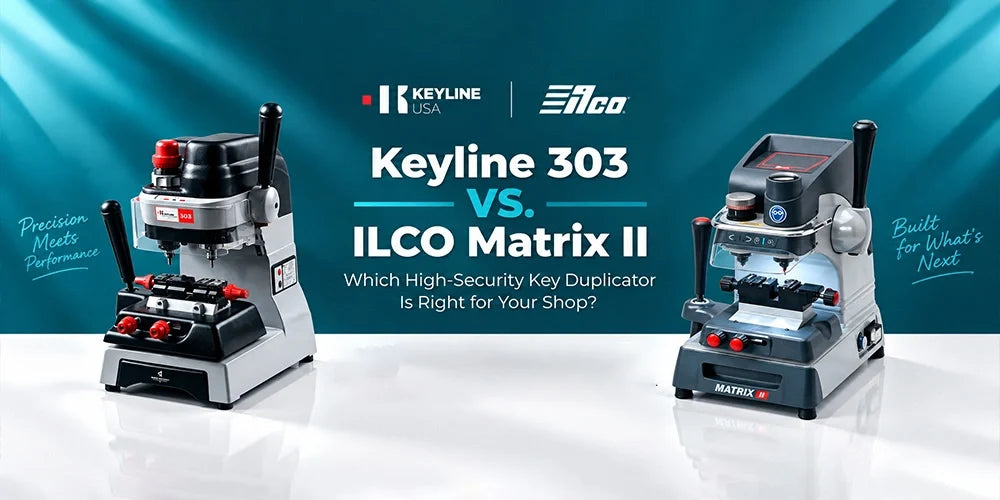

Keyline 303 vs. ILCO Matrix II at a Glance
| Feature | Keyline 303 | ILCO Matrix II |
|---|---|---|
| Machine type | High-security key duplicator | High-security automotive key duplicator |
| Supported key types | Dimple, laser, and Tibbe | Laser and Tibbe, with optional specialty accessories |
| Motor | Asynchronous, one speed | Single phase, one speed |
| Cutter speed | 6,000 RPM | 6,000 RPM |
| Calibration | Three-dimensional calibration | Electromechanical calibration with visual and audible feedback |
| Movement | 3 axis | Z-axis lever-controlled system |
| Weight | 51 lbs. | 54.23 lbs. |
| Lighting | LED | LED |
| Power | 110V, 60Hz, 200W | 100/120V, 50/60Hz, 2.3A, 220W |
Build Quality and Bench Footprint
The Keyline 303 uses a one-piece cast-iron body designed to reduce vibration and noise during operation. At 51 pounds, it provides a substantial platform for professional key duplication.
The Keyline 303 measures 12" x 15" x 21", giving locksmiths a compact footprint for a machine with its heavy-duty construction. Its base also includes a storage tray for tools, keys, and other small items used at the bench.
The ILCO Matrix II is slightly heavier at 54.23 pounds. Its footprint is 12.2 inches wide, increasing to 15.75 inches when including the side lever. It measures 18.5 inches high and 15.75 inches deep.
ILCO also designed the Matrix II for either counter or mobile use, making its size and weight relevant for locksmiths who need flexibility between a shop bench and a mobile setup.
Key Compatibility and Accessories
Key compatibility is one of the most important differences between these two machines.
The Keyline 303 is specified for dimple, laser, and Tibbe keys. Optional equipment is available for additional applications, including an Audi/VW adapter, Mercedes 2-track adapter, and dimple cutter and tracer set.
The ILCO Matrix II is designed for the duplication of high-security laser and Tibbe-style keys. Its optional accessory system allows locksmiths to expand the machine for specific automotive applications, including:
- Mercedes clamp adapter set
- VW/Audi clamp adapter set
- Lexus/Toyota wallet key adapter
- Ford and Jaguar Tibbe code attachments
- Additional laser and sidewinder code attachments
- Optional cutters and tracers
This gives the Matrix II a modular approach for locksmiths who want to configure their machine around specific automotive applications.
Calibration and Cutting Controls
The Keyline 303 uses a three-dimensional calibration system designed to improve cutting accuracy. The machine provides an audible signal when calibration is completed correctly.
It also features electronic height adjustment with a directional indicator, vertical and lateral carriage locking, and a dual-mode control system. The red button is used for calibration while the black button activates the cutting function.
The ILCO Matrix II uses an electromechanical calibration system. A green light and audible signal indicate when calibration has been completed.
The Matrix II also includes a separate push-button microswitch to activate the cutter, a Z-axis lever-controlled cutter motor, and a Z-axis locking mechanism operated by a twist of the lever. Its spring-loaded table is designed to apply steady cutting pressure during operation.
Daily Ergonomics and Workspace Features
Both machines include features designed to make repetitive key duplication more manageable.
The Keyline 303 features a large, full-view protective shield designed to improve visibility while reducing the dispersal of key shavings. Its LED-style light illuminates the cutting area, and removable faceplates provide additional configuration flexibility.
The ILCO Matrix II also uses a wide transparent safety shield to reduce exposure to moving parts and chips. Its LED light has a separate manual power switch, while an integrated storage tray provides space for key blanks and tools. An additional tool and accessory storage drawer is also included.
ILCO also emphasizes operator ergonomics. The Matrix II uses ergonomic levers designed to require minimal operating effort and replaceable jaw surface plates that can be replaced when normal wear occurs.
Which Machine Is More Versatile?
The answer depends on how your shop approaches key duplication.
The Keyline 303 provides direct support for dimple, laser, and Tibbe keys and combines that coverage with three-axis movement, three-dimensional calibration, electronic height adjustment, and removable faceplates.
The ILCO Matrix II takes a more modular approach. Its optional clamp adapters and code attachments allow locksmiths to configure the machine for specific automotive key applications, including Mercedes, VW/Audi, Lexus/Toyota, Ford, and Jaguar applications.
For a shop that values broad supported key profiles in the machine's standard configuration, the Keyline 303 may be the more straightforward choice. For a locksmith who prefers to expand a machine around specific automotive applications, the Matrix II's accessory ecosystem is worth considering.
Keyline 303 vs. ILCO Matrix II: Which Should You Choose?
Consider the Keyline 303 if:
- You need a professional mechanical duplicator for dimple, laser, and Tibbe keys.
- You want three-dimensional calibration and electronic height adjustment.
- You prefer a three-axis cutting system.
- You want a heavy-duty cast-iron machine weighing 51 pounds.
- You need optional Audi/VW, Mercedes 2-track, or dimple cutting accessories.
Consider the ILCO Matrix II if:
- You primarily need a professional machine for laser and Tibbe-style key duplication.
- You value electromechanical calibration with visual and audible feedback.
- You want to configure the machine with specialty automotive clamp adapters.
- You work with applications such as Mercedes, VW/Audi, Lexus/Toyota, Ford, or Jaguar.
- You value ergonomic controls, a spring-loaded table, and replaceable jaw surface plates.
Final Verdict
The Keyline 303 and ILCO Matrix II are both professional mechanical key duplicators designed for locksmiths working with high-security automotive keys. Their differences are primarily in key coverage, calibration systems, machine controls, and accessory ecosystems.
The Keyline 303 stands out with its three-axis movement, three-dimensional calibration, electronic height adjustment, cast-iron construction, and direct support for laser, dimple, and Tibbe keys.
The ILCO Matrix II offers electromechanical calibration, ergonomic controls, a spring-loaded table, replaceable jaw surface plates, and a broad selection of optional automotive adapters and code attachments.
Ultimately, the better machine depends on the key profiles your shop handles most often and whether you prefer the Keyline 303's integrated feature set or the Matrix II's modular approach to expanding automotive key capabilities.
Looking for the right machine for your shop? Compare the specifications, supported key profiles, and available accessories before making your decision. Learn more about the Keyline 303 at Locksmith Keyless or view the ILCO Matrix II.
