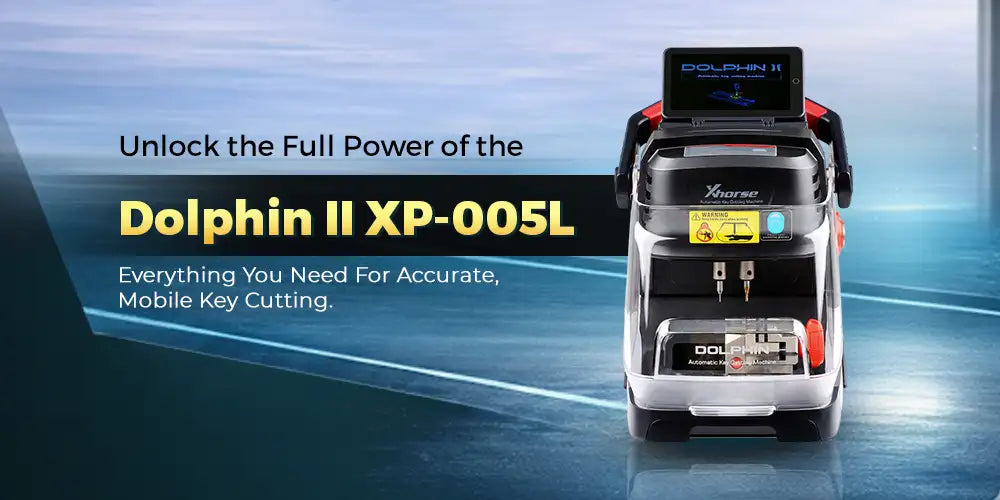

So, you’ve just unboxed your Xhorse Dolphin II XP-005L. You’re ready to cut, but there are a few essential steps to ensure your machine is accurate to the micron. Skipping calibration is the #1 cause of broken probes and wasted key blanks.
Follow this 2026 updated guide to get your "King of Mobile Cutting" up and running perfectly.
Part 1: Physical Installation
- Remove the Shipping Bracket: Unscrew the 3 screws holding the protective bracket in place. This bracket is only for transport; the machine won't move properly with it on.
- Install the M5 Clamp: Slide the M5 Clamp onto the base from right to left. Tighten the locking knob firmly. Note: The M5 clamp is a 2-in-1, so you won’t need to swap it as often as the old M1/M2 setup.
-
Install the Cutter & Probe:
- Insert the cutter into the left hole and the probe into the right.
- Pro-Tip: Push them both all the way up to the limit, then tighten the screws. For the initial height leveling, the cutter should technically be slightly higher than the probe, but the software will guide you through the fine-tuning.
Part 2: Activation & Updates
Before the first cut, the machine must be "born" on the Xhorse server.
- Power Up: Turn the machine on and select your language (English).
- Connect to WiFi: Go to settings and connect to your shop or phone hotspot.
- Bind to Your Account: Open the Xhorse App on your phone, scan the QR code on the Dolphin II screen, and enter the verification code.
- Check for Updates: Go to System > Update Center. Always update the Firmware first, then the Database.
Part 3: 2026 Calibration Best Practices
Calibration isn't a one-time thing. You should recalibrate after every firmware update or if you’ve had a particularly bumpy ride in the locksmith van.
Step-by-Step Calibration:
- Navigate to System > Machine Parameter > Cutting Calibration.
- Select Cutter Diameter: Most users use the 2.5mm or 1.5mm. Ensure the screen matches what is physically in the machine.
- The Blank Key: Place a clean, uncut key blank (HON66 is the standard for this) into the M5 clamp. Align it to the 3rd mark line.
-
The Process:
- Click Start. The machine will probe the key and the clamp.
- Clean the debris! Halfway through, the machine will pause. Use your brush to clean the metal shavings off the key and probe. If there is even one tiny flake of metal on the probe, your calibration will be off.
- Click Continue to finish.
Expert Tip: If your machine isn't cutting deep enough after calibration, double-check your "Cutting Setting" under Machine Parameters. In 2026, most pros set the spindle speed to "Medium" for the best balance of speed and precision.
