A basic OBD2 scanner can identify engine faults, but diagnosing ABS, transmission, airbag, and other electronic systems requires broader vehicle access.

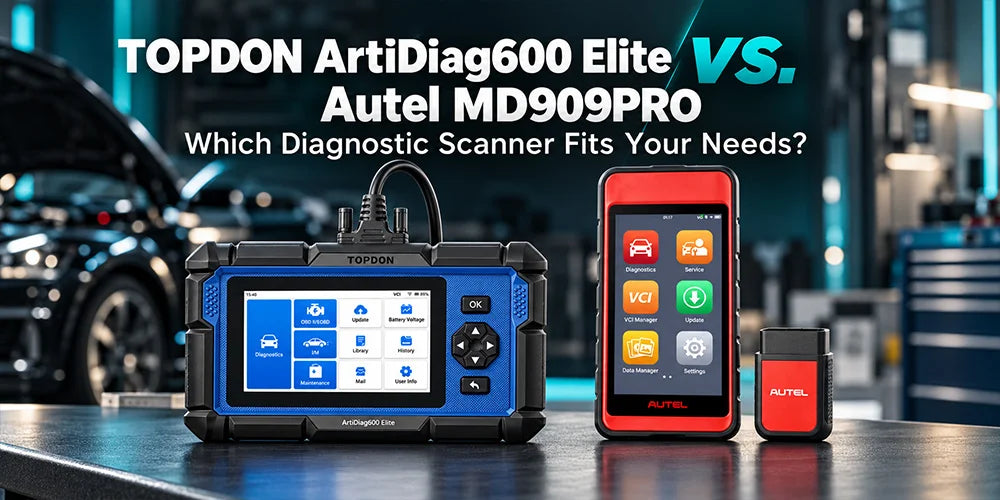

The TOPDON ArtiDiag600 Elite and Autel MaxiDiag MD909PRO offer full-system diagnostics, live data, maintenance functions, CAN-FD support, and advertised lifetime free software updates. Their main differences include connectivity, hardware specifications, and service functions.
Specifications at a Glance
| Feature | TOPDON ArtiDiag600 Elite | Autel MD909PRO |
|---|---|---|
| Full-system diagnostics | Yes | Yes |
| Live data | Up to 4 streams simultaneously | Live data and graphing |
| Advertised service functions | 13 | 11 |
| Connection | Wired OBD2 | Bluetooth VCI |
| Display | 5 inches | 5.5 inches |
| Storage | 32 GB | 64 GB |
| Battery | 3,350 mAh | 5,000 mAh |
| CAN-FD | Supported | Supported |
| DoIP | Not listed in supplied specifications | Advertised as supported |
| Software updates | Advertised lifetime free updates | Advertised lifetime free updates |
| Battery testing expansion | No comparable accessory listed | Optional Autel BT506 |
Note: Functions and vehicle coverage vary by make, model, year, software version, and authorization requirements. Verify current manufacturer specifications before purchasing.
TOPDON lists more service functions, while Autel offers wireless connectivity, a larger display, and more storage.
Diagnostic Capabilities
Both scanners access supported electronic modules beyond the engine, including ABS, SRS, transmission, and body electronics. They provide diagnostic trouble codes and live data to help technicians investigate faults.
The TOPDON can display up to four live-data streams simultaneously. The Autel offers live-data graphing, freeze-frame information, and AutoScan across supported systems.
For example, an ABS fault code may indicate a wheel-speed sensor issue. Live data can help identify inconsistent readings, but further testing of the sensor, wiring, and connectors may be necessary before replacing parts.
Neither scanner should automatically be considered a substitute for advanced equipment when extensive bidirectional controls, coding, ECU programming, or specialized manufacturer procedures are required. Check vehicle coverage and specific functions rather than relying solely on advertised feature counts.
Service Functions
The TOPDON ArtiDiag600 Elite advertises 13 service functions:
- Oil reset
- Electronic parking brake reset
- Steering angle sensor reset
- TPMS reset
- Battery management system reset
- ABS bleeding
- DPF regeneration
- Injector coding
- Throttle adaptation
- AFS reset
- AdBlue reset
- Stop/start reset
- Window calibration
The Autel MD909PRO advertises 11 service functions, including oil reset, brake bleeding, injector-related functions, steering angle reset, throttle adaptation, electronic parking brake service, battery management, TPMS, DPF regeneration, AFS, and air/fuel-related resets.
Although TOPDON lists more functions, the total count does not determine which scanner is better. Both may cover routine maintenance needs on supported vehicles. Verify compatibility for less common procedures and specific vehicle applications.
Wired vs. Wireless Connectivity
The TOPDON uses a wired OBD2 connection, offering a straightforward setup for diagnostics near the driver's seat. The Autel uses a Bluetooth vehicle communication interface (VCI), allowing the tablet to communicate wirelessly with the device connected to the diagnostic port.
Wireless operation makes it easier to position the tablet away from the port, which can be useful when moving between the cabin and engine bay. A wired connection, however, avoids managing a separate wireless interface.
Which is better? Wired connectivity is simple and practical, while wireless connectivity offers greater mobility. Neither connection type is inherently more accurate.
Vehicle Compatibility and Software Updates
Both scanners advertise CAN-FD support for compatible newer vehicles. The Autel MD909PRO also advertises DoIP support for vehicles using Ethernet-based diagnostic communication.
The supplied TOPDON specifications list FCA SGW and Renault SGW capabilities. Autel supports certain protected gateway applications, subject to applicable authorization requirements. Access may require registration, an account, additional authorization, or fees. Gateway support does not guarantee unrestricted access to every protected system.
Both products advertise lifetime free software updates. However, this does not guarantee support for every future vehicle or manufacturer-specific function. Check current coverage for the makes, models, years, and procedures you encounter most frequently.
Which Scanner Fits Your Work?
For DIY vehicle owners: The TOPDON ArtiDiag600 Elite is worth considering for full-system diagnostics and common maintenance functions without a wireless VCI.
For mobile mechanics: The Autel MD909PRO may suit technicians who value wireless operation, additional storage, and flexible tablet positioning.
For independent repair shops: Either scanner may work as a primary diagnostic tool for suitable jobs or as a secondary device. TOPDON's listed service functions may appeal to shops focused on maintenance procedures, while Autel's wireless setup offers greater mobility.
For technicians seeking a backup scanner: Consider which capabilities your primary tool lacks. A wired scanner may cover routine diagnostic needs, while a wireless model can provide additional flexibility.
For advanced bidirectional testing, coding, ECU programming, or specialized manufacturer functions, verify that the scanner supports the exact procedures required.
Frequently Asked Questions
Can both scanners diagnose ABS and transmission problems?
Yes, both advertise full-system diagnostics for supported modules, including ABS and transmission. Available functions depend on the vehicle.
Does TOPDON offer more service functions?
The supplied specifications list 13 functions for TOPDON and 11 for Autel. Confirm compatibility with your intended vehicle and procedure.
Is the Autel MD909PRO suitable for bidirectional testing?
Do not assume full-system scanning includes extensive active tests. Verify the specific bidirectional capabilities you need before purchasing.
Is wireless connectivity worth it?
Wireless operation provides flexibility when positioning the tablet. A wired connection may be equally practical for routine diagnostics.
Do both scanners offer lifetime free updates?
Both advertise lifetime free updates in the supplied information. Confirm the current terms with the manufacturer.
Final Verdict: Two Approaches to Vehicle Diagnostics
The TOPDON ArtiDiag600 Elite and Autel MaxiDiag MD909PRO provide access to supported vehicle systems beyond basic OBD2 code reading, but their designs suit different workflows.
The TOPDON ArtiDiag600 Elite offers wired diagnostics, live-data monitoring, and a broad list of advertised maintenance functions. The Autel MD909PRO adds a Bluetooth VCI, a larger display, more storage, and wireless flexibility.
Neither is the best choice for every technician. Compare vehicle coverage, required procedures, and preferred workflow before deciding.
Explore both diagnostic scanners at Locksmith Keyless:
Specifications, software coverage, availability, and advertised capabilities may change. Verify current product information and vehicle compatibility before purchasing.
