Professional diagnostic scanners can cover many of the same core functions, but differences in programming capabilities, repair information, hardware, and vehicle coverage can make one platform more suitable for a particular shop workflow than another.
In this comparison, we look at the TOPDON Phoenix Elite and the Launch X-431 Torque 5, focusing on their confirmed hardware specifications, diagnostic functions, programming capabilities, and additional tools.

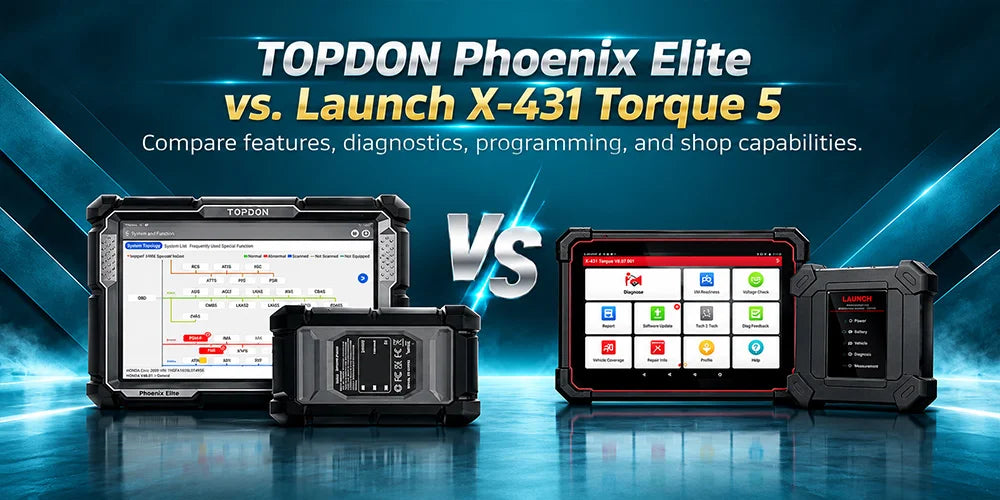

TOPDON Phoenix Elite vs. Launch X-431 Torque 5 at a Glance
| Feature | TOPDON Phoenix Elite | Launch X-431 Torque 5 |
|---|---|---|
| Operating System | Android 10 | Android 10 |
| Display | 10.1-inch touchscreen | 10.1-inch touchscreen, 1280 × 800 |
| Processor | 2.0 GHz quad-core | 2.0 GHz quad-core |
| RAM | 4 GB | 4 GB |
| Storage | 64 GB | 128 GB |
| Full-System Diagnostics | Yes | Yes |
| Bidirectional / Active Tests | Yes | Yes |
| CAN FD / DoIP | Yes | Yes |
| Topology Mapping | Yes | Not listed in the supplied specifications |
| J2534 | Yes | Not listed in the supplied specifications |
| Repair Information | Diagnostic and guided functions | Identifix Code Assist and X-431 Fix |
| Oscilloscope / Multimeter | Not listed in the supplied specifications | Supports 2-channel oscilloscope and multimeter functions |
| FCA Secure Gateway | Not listed in the supplied specifications | Supported |
What Both Diagnostic Scanners Have in Common
Both the TOPDON Phoenix Elite and Launch X-431 Torque 5 are professional Android-based diagnostic tablets built around a 10.1-inch display and 2.0 GHz quad-core processor.
Both platforms support full-system diagnostics and functions such as reading and clearing diagnostic trouble codes, viewing live data, performing active or actuation tests, coding, matching, and other special functions. Both also support modern vehicle communication protocols including CAN FD and DoIP.
For technicians working across multiple vehicle brands, both tools provide coverage for U.S., Asian, and European vehicles. The Torque 5 product information specifies coverage from 1996 and newer, while exact functions can vary by vehicle make, model, year, and system.
Where the TOPDON Phoenix Elite Differs
Topology Mapping and Network Diagnostics
One of the notable features of the TOPDON Phoenix Elite is its topology feature. It provides a visual representation of vehicle systems and can help technicians identify communication issues and locate diagnostic trouble codes across vehicle networks.
For shops that regularly work with complex vehicle networks, topology mapping can provide additional context beyond viewing individual modules separately.
J2534 and Programming Capabilities
The Phoenix Elite supports J2534 pass-through functionality and programming capabilities for supported vehicle applications. Its listed programming coverage includes online programming for supported Mercedes-Benz, BMW, VAG, Porsche, Jaguar Land Rover, Nissan, Subaru, and Hyundai/Kia applications, along with offline programming for selected Ford, Mazda, and Opel/Vauxhall applications.
Programming availability is vehicle-specific, so technicians should verify the supported make, model, year, module, and software requirements before purchasing a scanner specifically for programming work.
Service and Guided Functions
The Phoenix Elite includes 41 service functions and supports active tests, coding, and other advanced diagnostic operations. It also includes VAG guided functions for supported vehicles and pre- and post-scan reporting.
These features can be useful for shops that want to document vehicle conditions before and after diagnostic or repair work.
Where the Launch X-431 Torque 5 Differs
128 GB Storage
The Launch X-431 Torque 5 includes 4 GB of RAM and 128 GB of internal storage. The Phoenix Elite has 4 GB of RAM and 64 GB of storage.
The additional storage provides more room for software, reports, and other data. However, storage capacity should not be interpreted as a direct measurement of diagnostic performance.
Identifix Code Assist and X-431 Fix
The Torque 5 includes Identifix Code Assist and access to X-431 Fix repair information. These resources can provide technicians with additional information when diagnosing trouble codes and planning repair procedures.
This makes the repair-information component of the Launch platform an important consideration for shops that want diagnostic and repair resources integrated into their scanner workflow.
Oscilloscope and Multimeter Functions
The Torque 5 supports 2-channel oscilloscope and multimeter functions using the included testing accessories. This gives technicians additional options for electrical testing and signal analysis beyond standard scan-tool diagnostics.
For shops that regularly troubleshoot electrical systems, sensor signals, wiring, or communication issues, having these measurement capabilities available through the same diagnostic platform can be useful.
FCA Secure Gateway Support
The Torque 5 also supports FCA Secure Gateway, allowing authorized diagnostic access for supported FCA/Stellantis vehicles when the required security procedures and credentials are met.
Remote Diagnostics and Launch Software Ecosystem
The Torque 5 supports remote diagnostic functionality and provides access to additional software through the Launch in-app Mall. Software availability and additional purchases can vary, so shops should review the current Launch software options and subscription requirements for the vehicles they service.
Diagnostic Capabilities Compared
Both scanners cover the core functions expected from professional diagnostic equipment, including:
- Full-system vehicle diagnostics
- Reading and clearing DTCs
- Live data and data streams
- Active or bidirectional tests
- Coding and matching functions
- Auto VIN detection
- CAN FD communication
- DoIP communication
- Special service functions
The distinction is more apparent in the additional capabilities surrounding those core functions. The Phoenix Elite emphasizes topology mapping, J2534 functionality, supported programming applications, guided functions, and pre/post-scan reporting. The Torque 5 adds Identifix Code Assist, X-431 Fix, FCA Secure Gateway support, remote diagnostics, and oscilloscope and multimeter functionality.
Which Tool Fits Your Shop?
The choice between the TOPDON Phoenix Elite and Launch X-431 Torque 5 depends largely on the type of diagnostic work your shop performs.
The Phoenix Elite may fit workflows where topology mapping, J2534 pass-through, supported OEM programming, VAG guided functions, and pre/post-scan reporting are important parts of the diagnostic process.
The Torque 5 provides a different combination of capabilities, including 128 GB of storage, Identifix Code Assist, X-431 Fix repair information, FCA Secure Gateway support, remote diagnostics, and 2-channel oscilloscope and multimeter functionality.
Before selecting either platform, consider the vehicle makes your shop services most frequently, the diagnostic and programming functions you require, the importance of integrated repair information, and any ongoing software or subscription requirements.
Final Considerations
Both the TOPDON Phoenix Elite and Launch X-431 Torque 5 provide full-system diagnostics, bidirectional testing, modern communication protocols, and broad vehicle coverage in a professional tablet format.
The main differences are found in their supporting ecosystems and specialized functions. Comparing those capabilities against your shop's actual diagnostic workflow can help you determine which platform aligns with the vehicles, services, and diagnostic procedures you handle most often.
For current pricing, availability, and product specifications, visit the TOPDON Phoenix Elite and Launch X-431 Torque 5 product pages at Locksmith Keyless.
