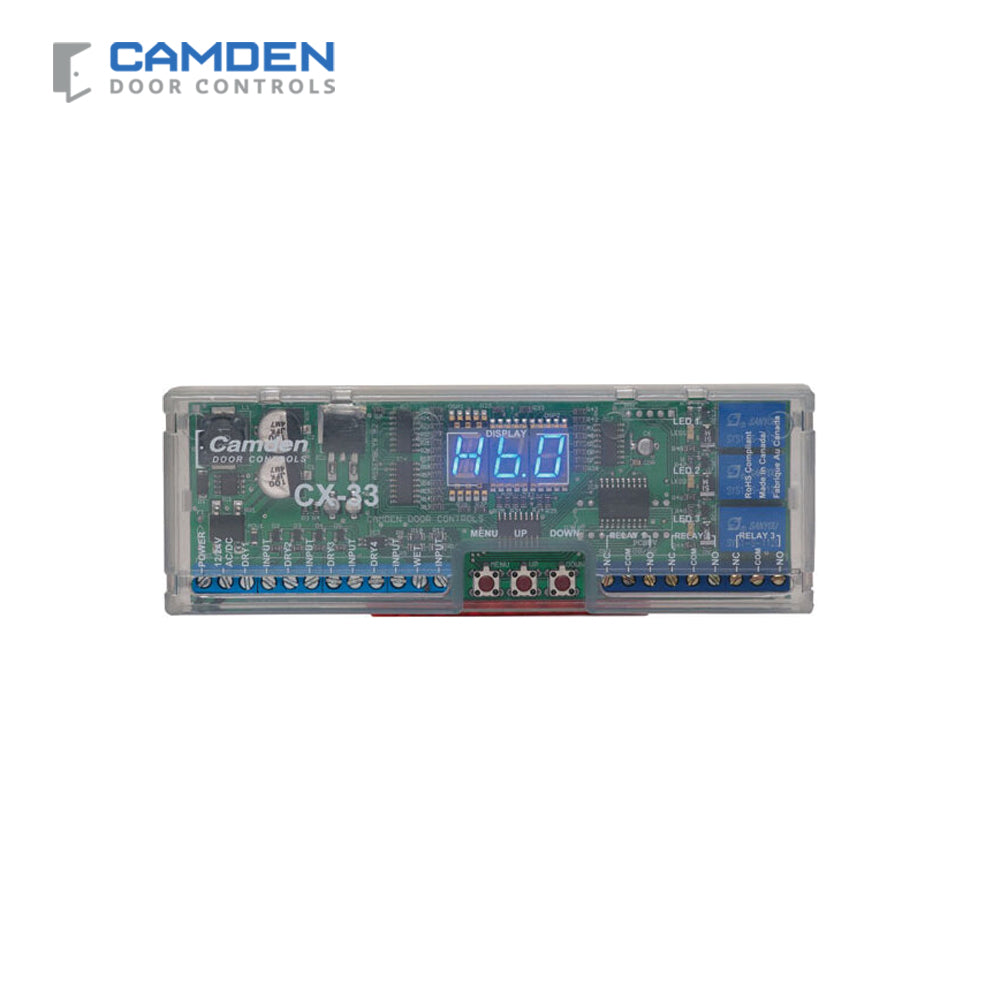

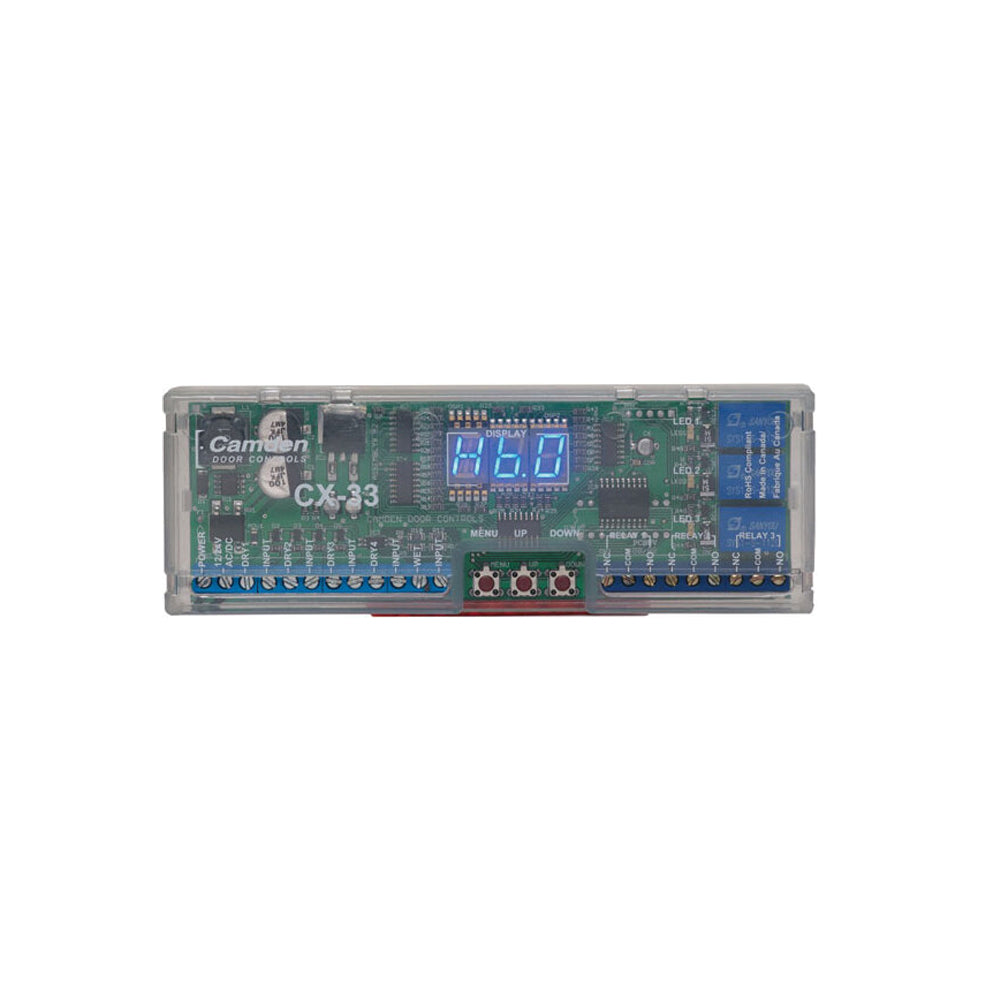

Camden CX-33 Advanced Logic Relay for Automatic Doors with Large LCD Display
Camden's CX-33 is a 'state of the art' logic relay designed to support virtually any automatic door application. The CX-33 features 15 operating modes, with sub-modes, and easy programming with large LCD display and push button selection. Applications: Programmable modes include up to 3 door sequencing, airlocks, lock-out-relay, fire door in stairwells, and for control of automatic operators in restroom applications, with support of illuminated indicator of occupancy status.
Features:
- Ideal for most automatic door applications, as well as air lock and other security applications.
- Metal Cabinet w/ CX-33 and 2.5 Amp power supply available
- 15 operating modes, with sub-modes. Selection and configuration with 3 push buttons
- Easily sequence multiple inputs with multiple maintain and hold outputs.
- Large 3 segment (blue) LED display
- Selectable time delays, with delay on input activation
- ‘Tried and true’ power circuitry ensures outstanding power filtering and surge protection.
- Larger terminal strips allow larger wire gauge, or more conductors to be connected.
- Clear plastic case provides better protection of circuit board and easy mounting.
- 12/24V AC/DC
- 3 year warranty
Specifications:
| Voltage | 12 to 30V AC/DC |
| Current Draw | 105 mA Typical, 320 mA Maximum |
| Response Time | .5 Seconds |
| Display | Blue LED: 1 Alpha/Numeric and 2 x 7-Segment |
| Input | 4 x Dry 1 x Wet: min. 4.5V AC/DC |
| Output | 3 x Form C (SPDT) |
| Contact Rating | 3 A @ 24 VDC |
| Temp Range | -22°F to +185°F (-30°C to +85°C) |
| Electrical Life | 100,000 Operations @ Rated Capacity |
| Time Delay |
Hold 1 timer: 0-50 Seconds Delay 1 Timer: 0-15 Seconds Hold 2 timer: 0-50 Seconds Delay 2 timer: 0-60 Seconds Hold 3 Timer: 0-50 Seconds Delay on Activate: 0-10 Seconds |
| Dimensions | 2"L x 6"W x 7/8"H (51mm x 152mm x 22mm) |
| Mounting | 2 x #6 Screws or Velcro |
