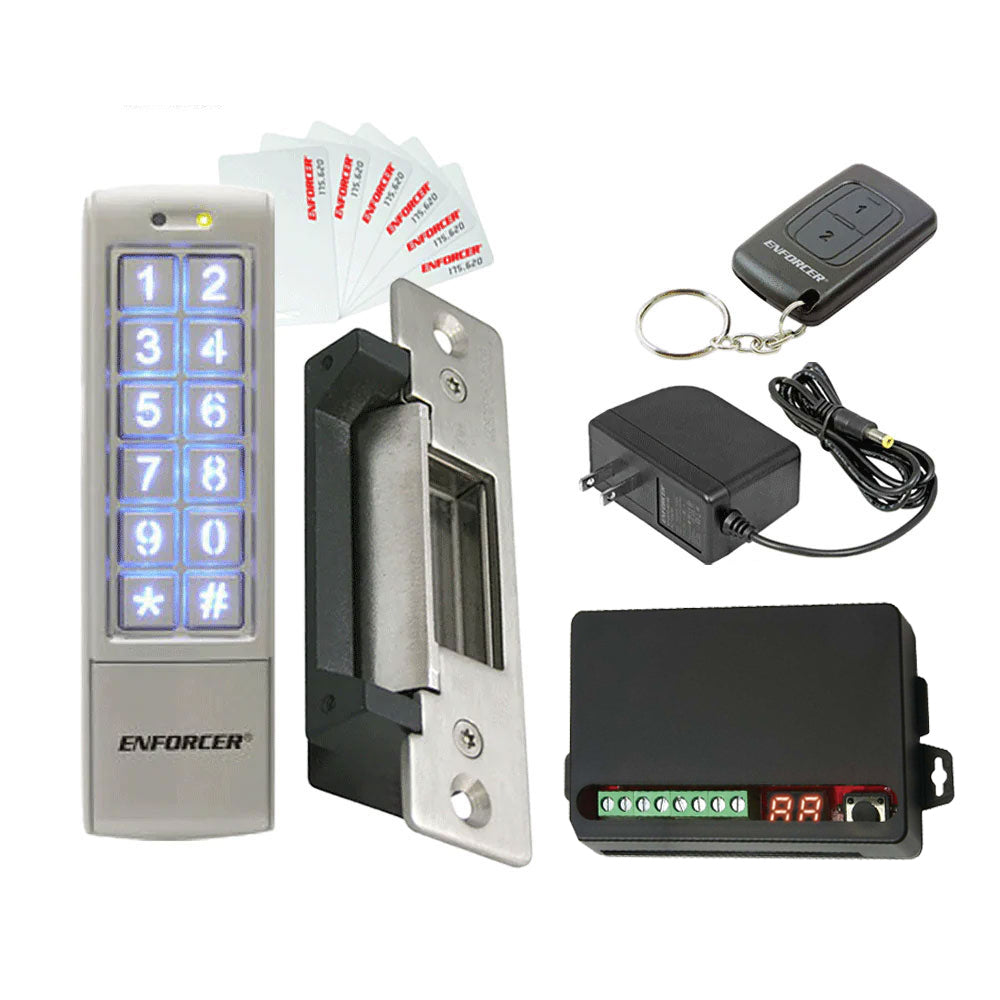

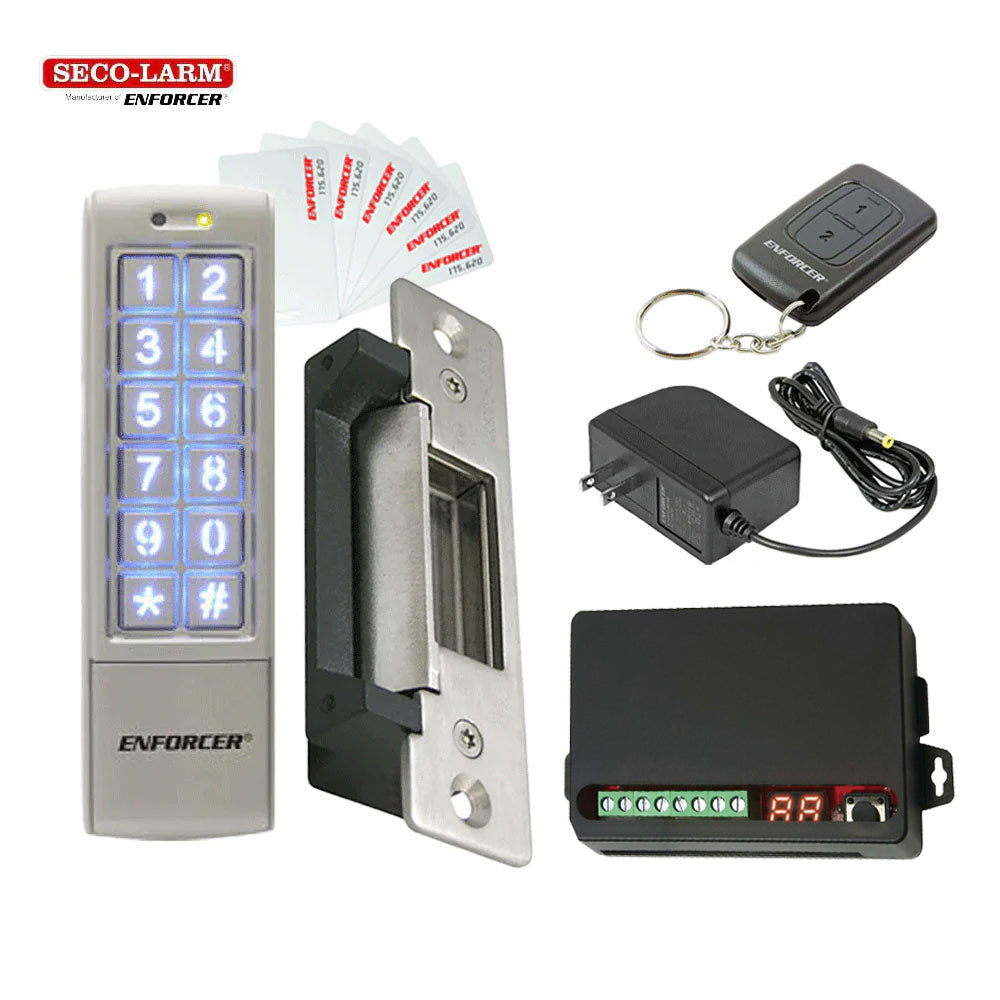

SECO-LARM - Electric Door Strike with Digital Access Keypads, Proximity Cards, 2-Channel RF Receiver, 3-Channel RF Transmitter and 12VDC Plug-in Transformer

SECO-LARM - Electric Door Strike with Digital Access Keypads, Proximity Cards, 2-Channel RF Receiver, 3-Channel RF Transmitter and 12VDC Plug-in Transformer

Includes:

• Electric Door Strike
• Digital Access Keypad
• Proximity cards
• RF Receiver
• RF Transmitter
• Plug-in Transformer

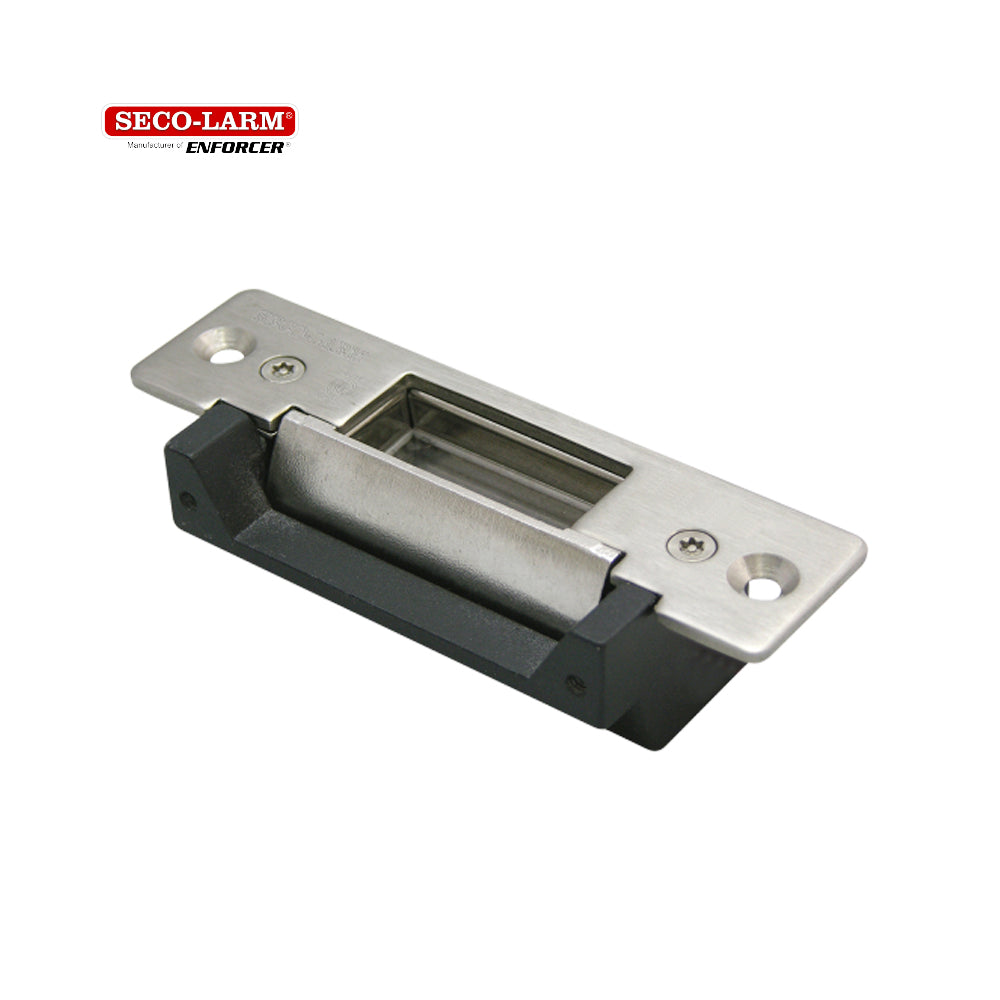

SECO-LARM SD-995C Electric Door Strike for Metal Doors, Fail-secure or Fail-safe, 12VDC

The SECO-LARM® Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.

Features:

• UL 294 & UL 1034 Listed
• Field-selectable for fail safe or fail-secure operation
• Can be used with virtually any cylindrical door locking system
• Can use with an optional digital keypad
• Suitable for office-type applications
• Reversible non-handed design fits either right hand or left-handed doors
• Shallow design for use with most metal doors
• Powered by a solenoid, not a buzzer coil
• Static strength – 1,000 lbs. (454kg)
• Stainless steel keeper for strength and long life
• Non-polarized connection
• Tested to 250,000 cycles (UL Tested)
• Optional lip-extension brackets available:
  • SD-995C-LE25 – 1" Extension
  • SD-995C-LE50 – 2" Extension

Specifications:

Download:

• Data Sheet
• User Manual
• Diagram
• Sample Ad

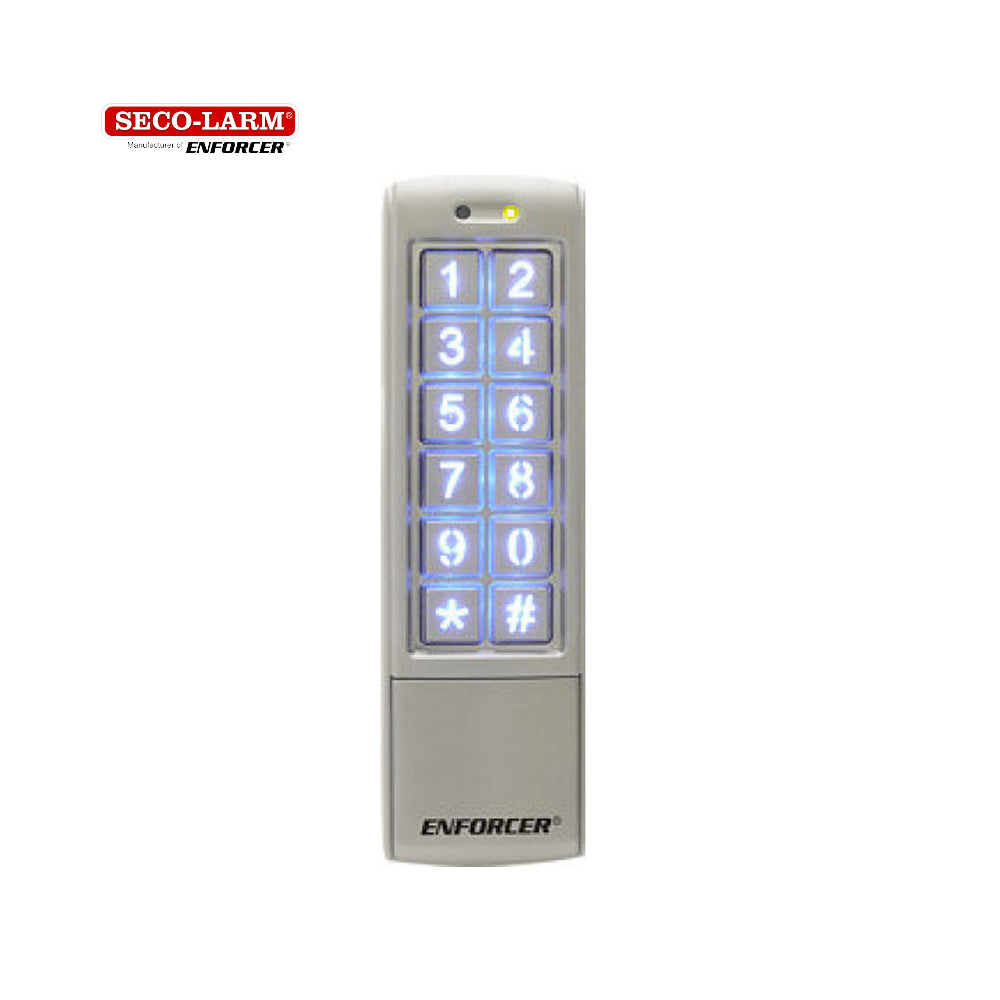

SECO-LARM SK-2323-SPQ Mullion-Style Digital Access Keypad - Adds Built-In Proximity Card Reader

Features:

• 12~24 VAC/VDC operation
• 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
• 2 Form C relays, each rated 1 Amp @ 30VDC
• Each relay has programmable output time from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs and 1 door sensor input
• Backlit keys for easy nighttime use
• 2 Multi-colored status LEDs
• All features are programmed directly from the keypad - no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper sensor for added security
• Circuitry is potted with epoxy for outdoor use
• IP65 Weatherproof rating, rugged aluminum construction
• Built-in proximity card reader
• 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
• Output #2 may have either a card or a code programmed for each user
• Optional accessories: PR-K1S1-A: Proximity card, sold in packs of ten

Specifications:

Download:

• Data Sheet
• User Manual
• Diagram

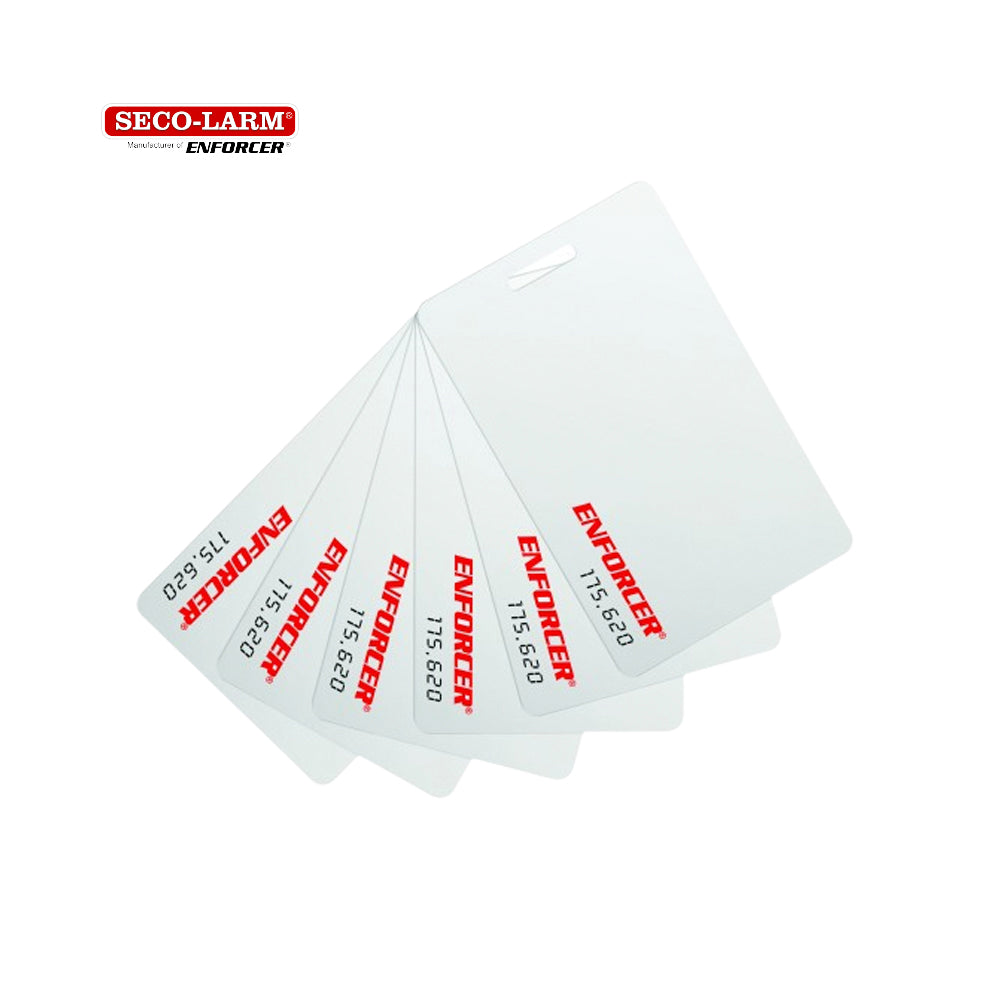

SECO-LARM PR-K1S1-A Proximity cards for prox readers

Feature:

• Proximity cards sold in packs of ten
• For use with all SECO-LARM proximity readers
• Frequency: 125kHz (EM125)

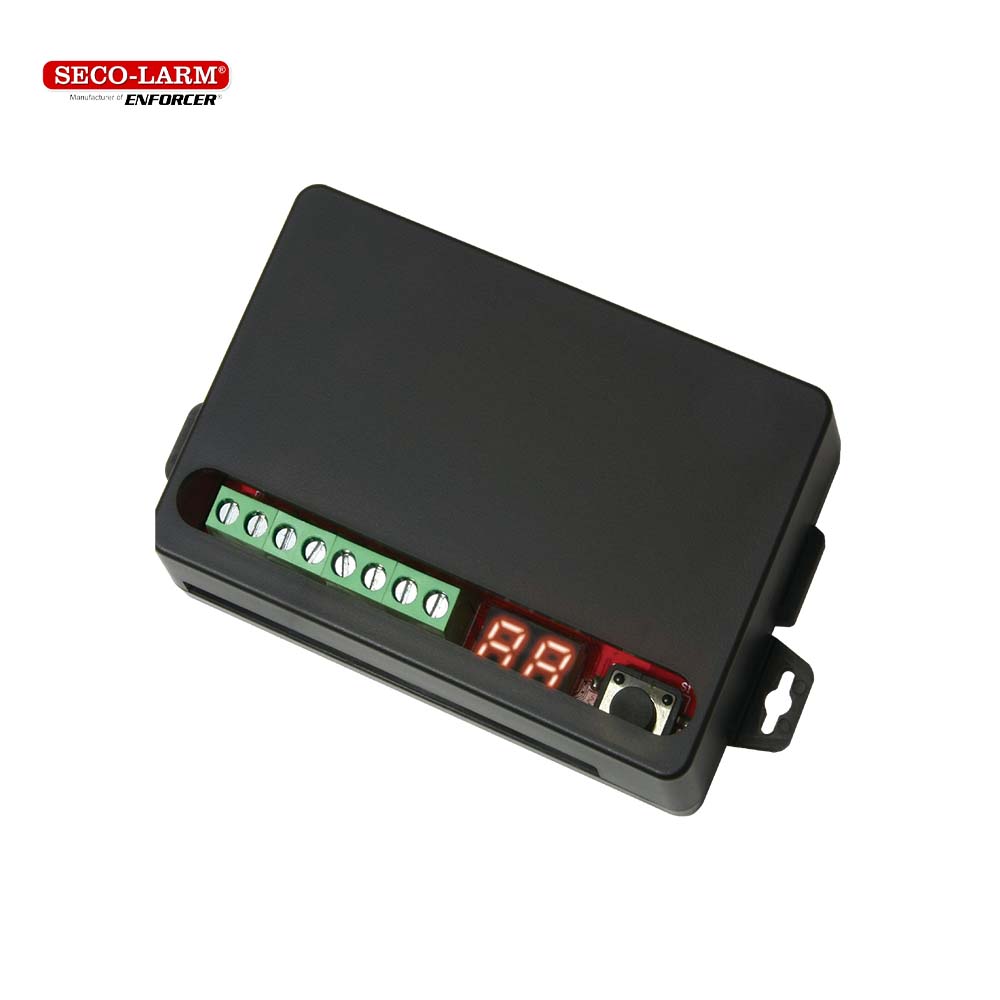

SECO-LARM SK-910RD2 - 2 Channel RF Receiver Compatible with All Enforcer SK-Series and Dual Frequency Support

ENFORCER 2-Channel RF Receiver offers multiple independently controlled output modes to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, and more. Now with dual-frequency support, it offers increased flexibility and compatibility with all ENFORCER 315 or 433.92MHz transmitters, both fixed and code-hopping CODEBUMP variants.

Features:

• Simultaneously receive 315 and 433.92MHz signals with optional Extended Range Antenna
• Range up to 500ft (150m) or up to 1,000ft (300m) with optional Extended Range Antenna
• Independently programmable channels and up to 15 transmitter button codes per channel
• Pushbutton programming, no jumpers to cut or switches to set
• 5 Output modes/channel timed pulse (0.5~99sec), timed pulse (1~99min), toggle, latch, and follow (validity)
• Compatible with all ENFORCER SK-series transmitters of the receiver's base frequency and the optional Extended Range Antenna's frequency

Specifications:

*Can simultaneously receive 433.92MHz signals with optional SK-93ERSD Extended Range Antenna

Downloads:

• User Manual
• Product Information Data Sheet
• Comparison Chart

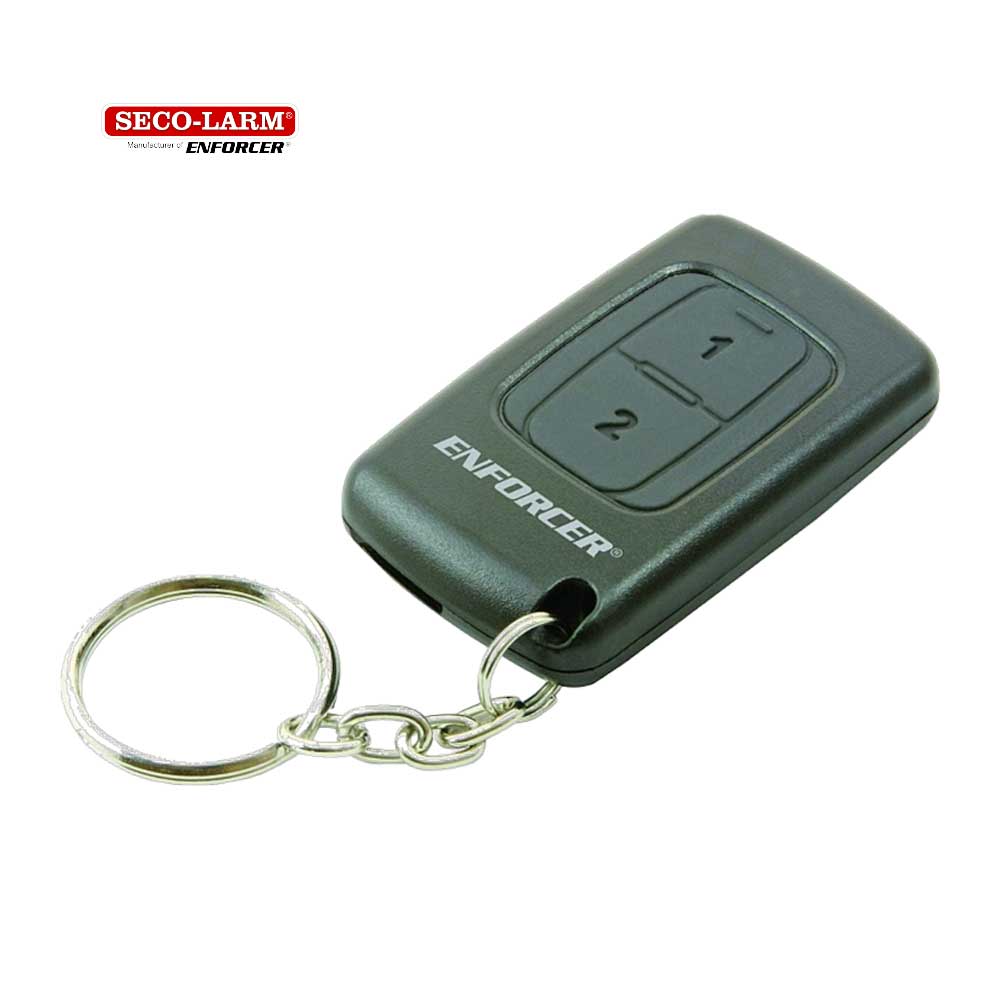

SECO-LARM SK-919T2-GNQ 2-Button, 3-Channel RF Transmitter, Pendant, 315MHz

Features:

• Over 68 billion possible codes
• LED transmission indicator only appears when buttons are pressed
• Operates up to 500ft (150m)*
• RF Anti-scan protection
• FCC and IC Certified
• 315MHz (433.92MHz available)
• Weatherproof (IP66)
• Compatible with all 315MHz SECO-LARM receivers
• Slimline design: 1-1/4"x2-3/16"x5/16" (31.5x55x8 mm)
• CODEBUMP™ codehopping models also available
• Replacement batteries available: X-930-096 (CR2032)
• Patented design

Specifications:

Download:

• Data Sheet
• Sample Ad

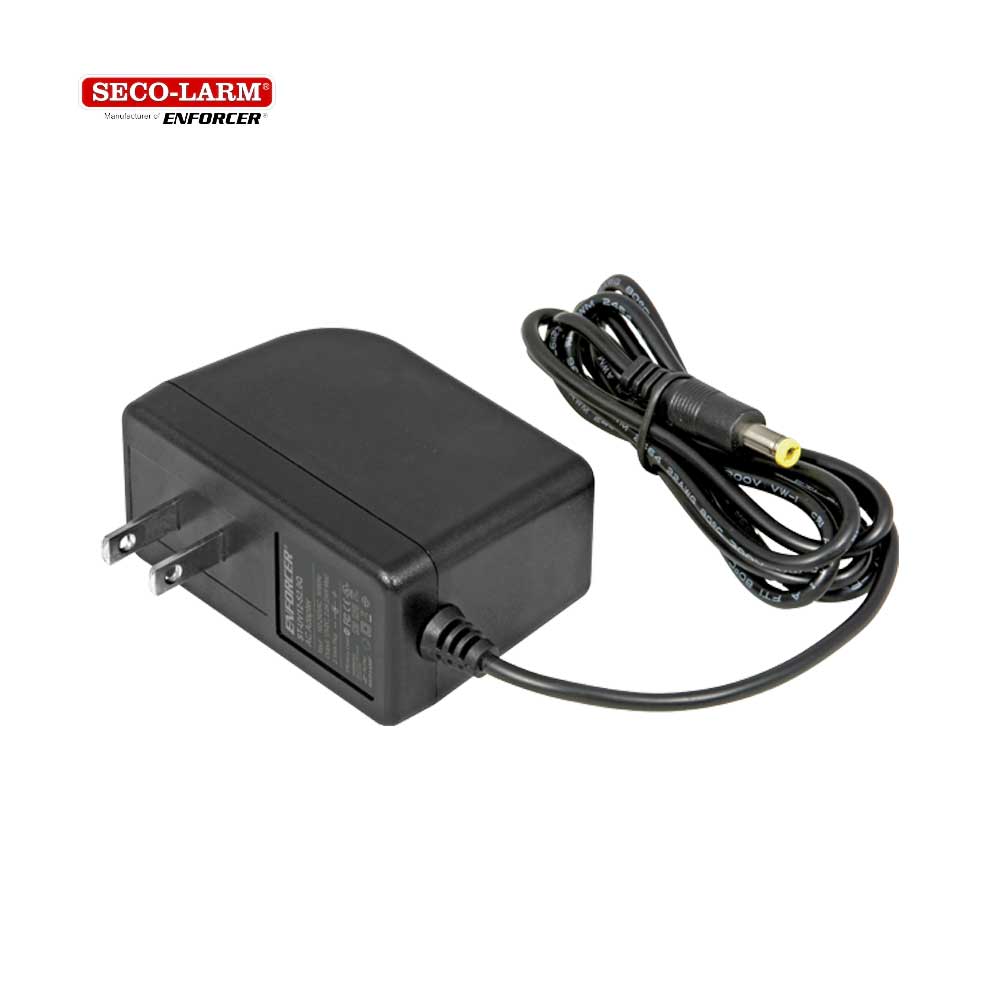

SECO-LARM ST-UV12-S2.0Q 12VDC Plug-in Transformer

The SECO-LARM ST-UV12-S2.0Q 12VDC Plug-in Transformer is a reliable and convenient power supply solution for various electronic devices and low-voltage systems. With its plug-in design, this transformer can be easily connected to standard electrical outlets, providing a stable 12VDC output. The compact and efficient design makes it suitable for a wide range of applications, including powering security cameras, access control systems, and other electronic components. Its 2.0-amp output capacity ensures ample power for most devices, and the 12VDC output is commonly used in many electronic systems. Whether for residential or commercial use, the SECO-LARM ST-UV12-S2.0Q 12VDC Plug-in Transformer offers a hassle-free and dependable power source for various low-voltage applications.

Features:

• Regulated 2.0A
• Use in a wide variety of applications including CCTV, access control, and security
• Sideways plug for easy use with power strips
• Universal 100-240 VAC input. Regulated 12VDC output
• 4ft (1.2m) cord, 2.1mm plug (positive center)
• Low power consumption

Download:

• Product Information Sheet
