Cal-Royal - CRCODE203 - Mechanical Push Button Lock - Institution F...
Description
Description

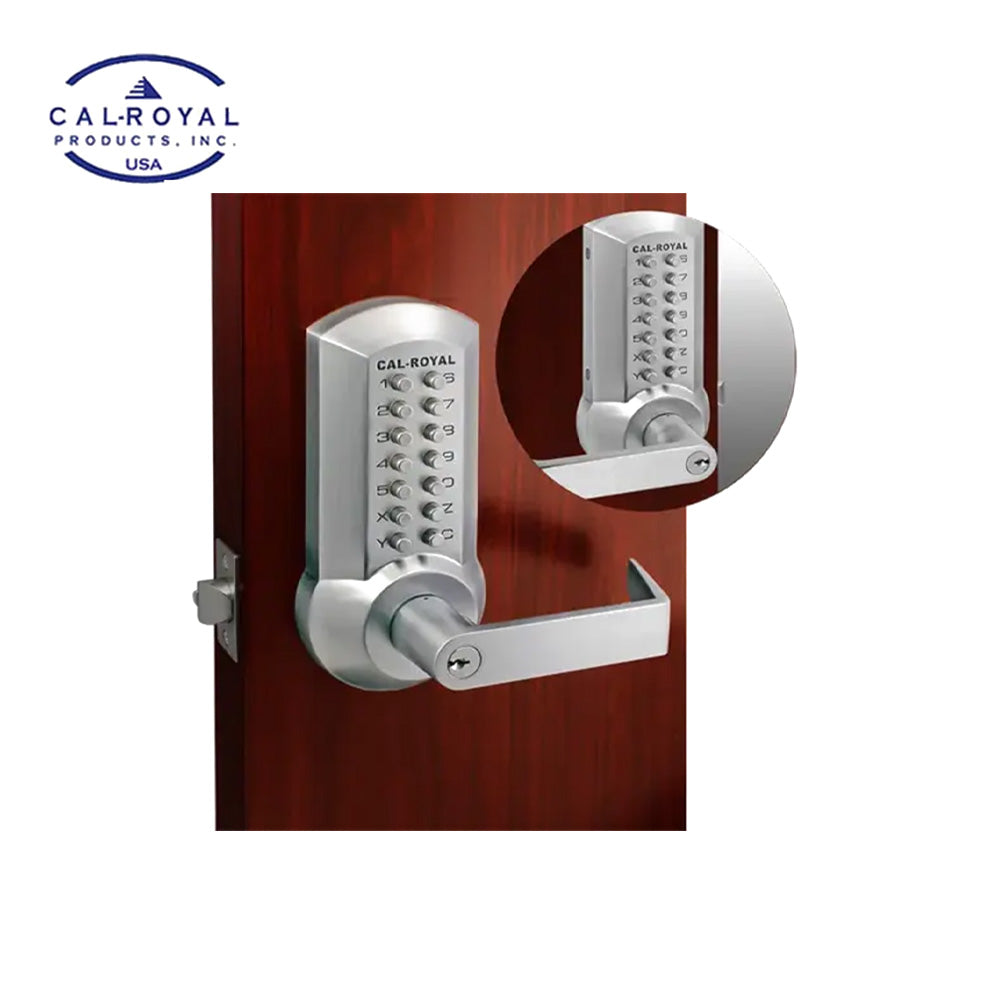

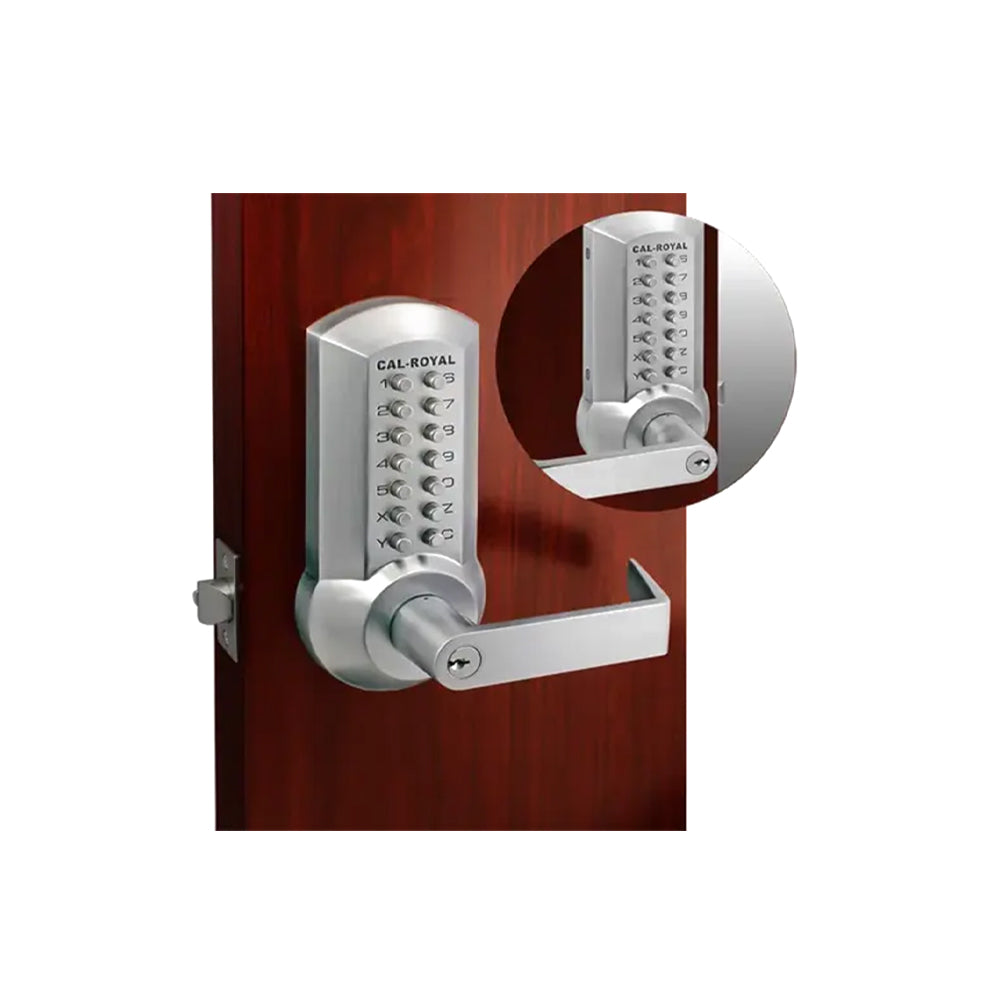

Cal-Royal - CRCODE203 - Mechanical Push Button Lock - Institution Function - Grade 2
The CRCODE203 a Grade 2 mechanical stand-alone push button lock and exit device trim engineered for secure keyless access control. Featuring a durable breakaway lever mechanism, weather-resistant construction, and easy code change functionality, it delivers reliable performance for commercial and institutional applications.
Features:
- Meets ADA requirements specially designed for Barrier Free Application.Conforms with ANSI A156.2, Series 4000 GRADE 2.
- Easy installation covers 161 prep (2-1/8" hole)
- Supports 1 to 12 digit code combinations
- Single code user operation
- Built-in key override function
- Easy on-the-door code change without removing the lock
- Code-free passage mode option
- Breakaway lever design for added protection
- Clutch-free mechanism for reliable operation
- Weather-resistant construction
- Non-handed design for flexible installation
- More than 8,000 non-sequential possible code combinations
Specifications:
| General | Full length 5-1/2" lever handle with 7/8" return. Escutcheon dimension 3-1/2" x 8-1/8". Key removable outside lever for fast re-keying. Non-handed levers with 2-1/8" diameter bore. |
| Breakaway Lever Design | Lever stays at the 5 o'clock position when forced down without retracting the latch to help prevent handle breakage. |
| Door Ranges | 1-3/8" - 1-3/4" |
| ANSI Standards | Meets or exceeds ANSI A156.2, Series 4000 Grade 2 requirements. |
| Strikes | ASA 1-1/4" x 4-7/8" |
| Latch Faceplate | Standard 2-1/4" x 1-1/8" faceplate with 2-3/4" |
| Trim | Thru-bolted assembly through door with separate spring cage for each lever. |
| Latch Options | Standard 2-3/4" brass latch with 1/2" throw. Optional 2-3/8" backset with 2-1/4" x 1" faceplate CRCODE203. |
