Cal-Royal - ICCRCODE203 - Mechanical Easy Code Change Exit Trim wit...
Description
Description

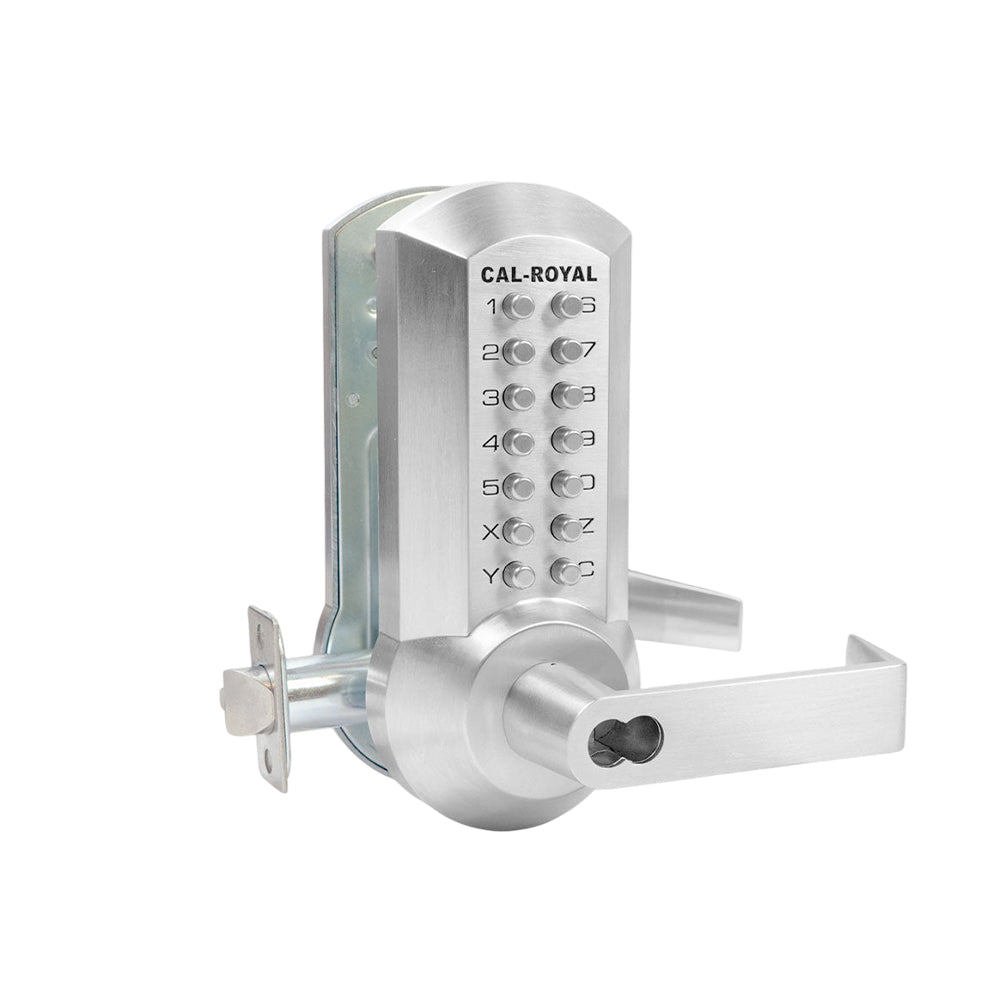

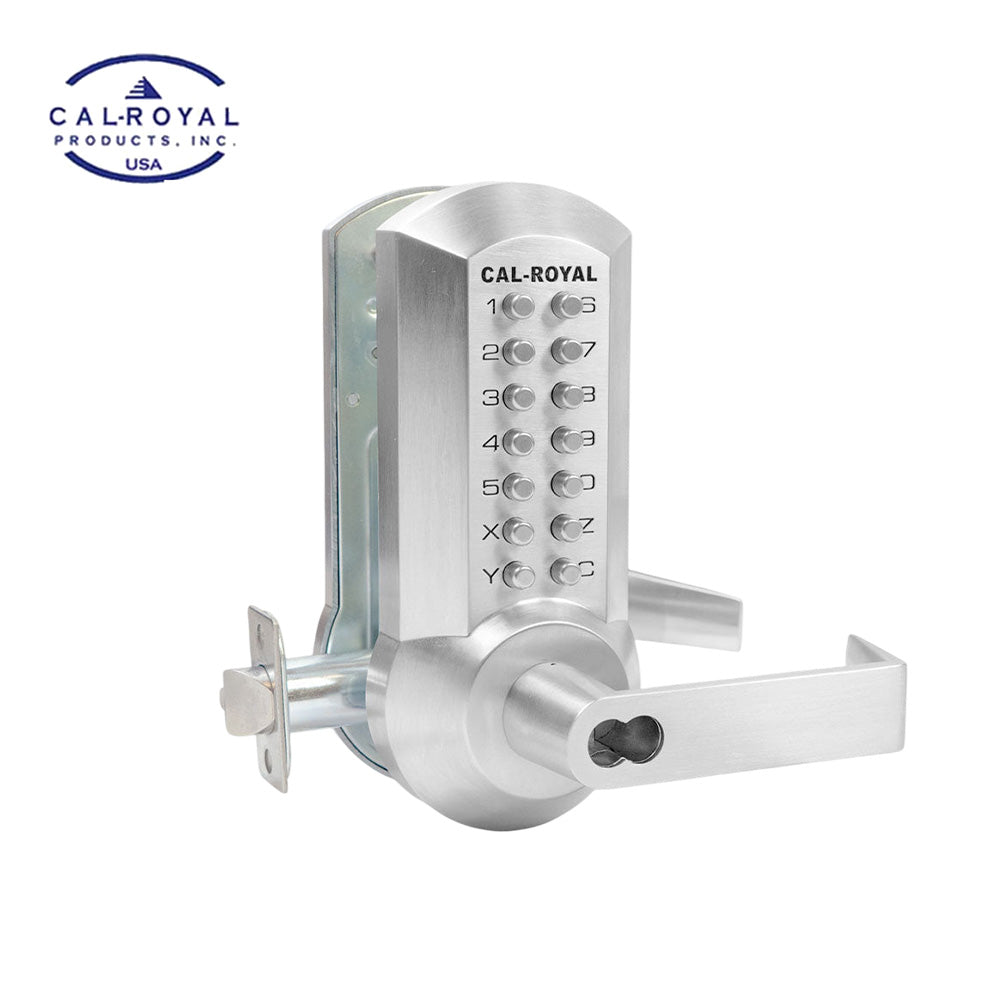

Cal-Royal - ICCRCODE203 - Mechanical Easy Code Change Exit Trim with IC Core - Institution Function - Grade 2
The ICCRCODE203 is a grade 2 mechanical easy code change exit trim with interchangeable core compatibility, designed for Cal-Royal 2200, 6600, 7700, and 9800 series exit devices. Features keyless access, weather-resistant construction, and on-door code changes without lock removal.
Features:
- Meets ADA requirements specially designed for Barrier Free Application.Conforms with ANSI A156.2, Series 4000 GRADE 2.
- Easy installation covers 161 prep (2-1/8" hole)
- Supports 1 to 12 digit code combinations
- Single code user operation
- Built-in key override function
- Easy on-the-door code change without removing the lock
- Code-free passage mode option
- Breakaway lever design for added protection
- Clutch-free mechanism for reliable operation
- Weather-resistant construction
- Non-handed design for flexible installation
- More than 8,000 non-sequential possible code combinations
Specifications:
| General | Full length 5-1/2" lever handle with 7/8" return. Escutcheon dimension 3-1/2" x 8-1/8". Key removable outside lever for fast re-keying. Non-handed levers with 2-1/8" diameter bore. |
| Breakaway Lever Design | Lever stays at the 5 o'clock position when forced down without retracting the latch to help prevent handle breakage. |
| Door Ranges | 1-3/8" - 1-3/4" |
| ANSI Standards | Meets or exceeds ANSI A156.2, Series 4000 Grade 2 requirements. |
| Strikes | ASA 1-1/4" x 4-7/8" |
| Latch Faceplate | Standard 2-1/4" x 1-1/8" faceplate with 2-3/4" |
| Trim | Thru-bolted assembly through door with separate spring cage for each lever. |
| Latch Options | Standard 2-3/4" brass latch with 1/2" throw. Optional 2-3/8" backset with 2-1/4" x 1" faceplate available for CRCODE203. |
| Interchangeable Core | Accepts compatible 6 or 7-pin interchangeable cores with BEST, Falcon, and Arrow. Prefix "IC" before part number. |
| Cylinder & Keyways | 6-pin solid brass "C" keyway standard. Compatible with Schlage, Corbin, Russwin, Sargent, Falcon, Arrow, Yale, Kwikset, Medeco, ASSA, Kaba, and Cal-Royal high security cylinders. |
