Description
Description

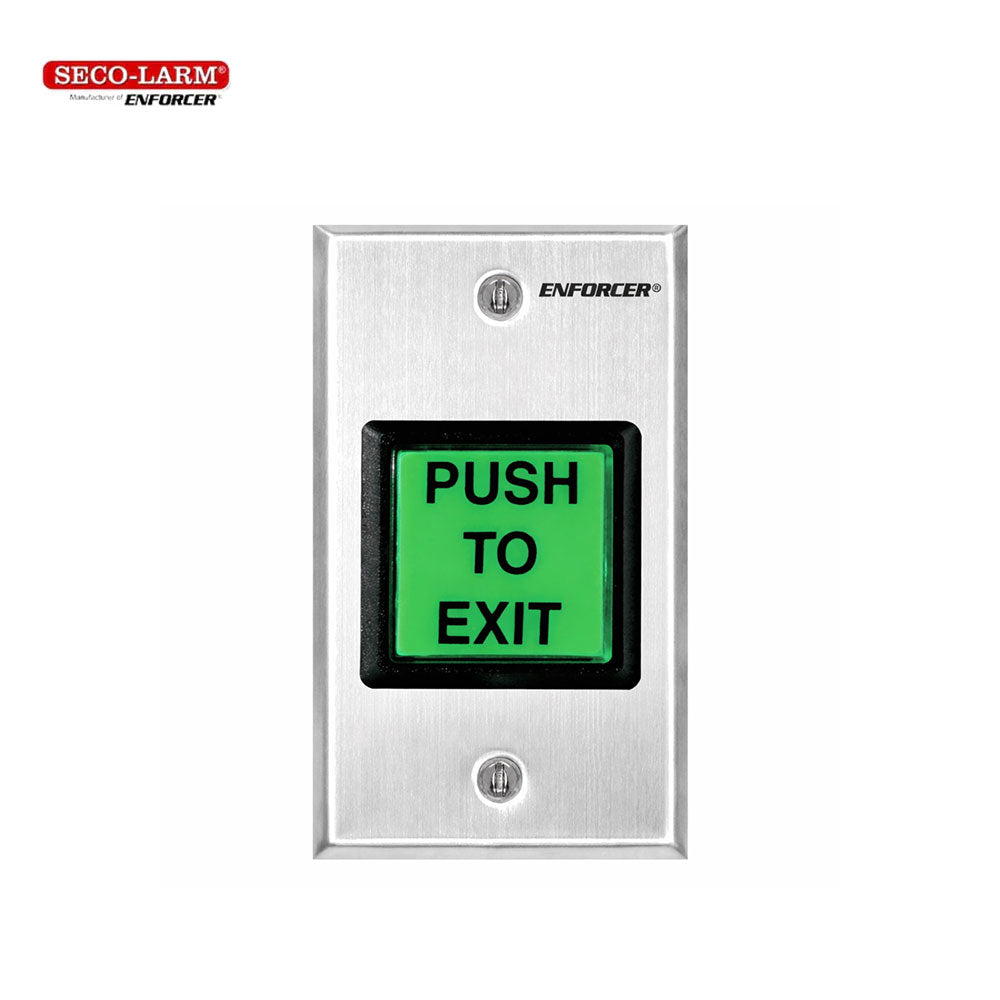

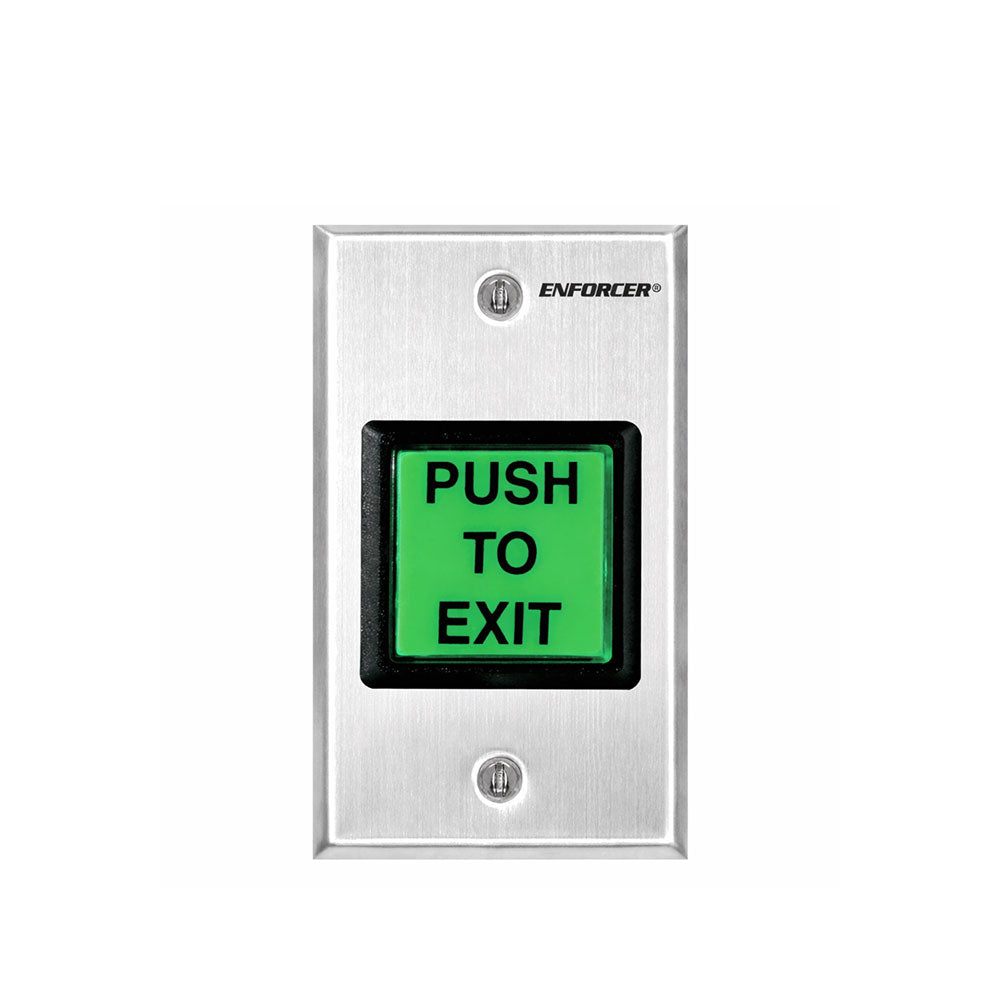

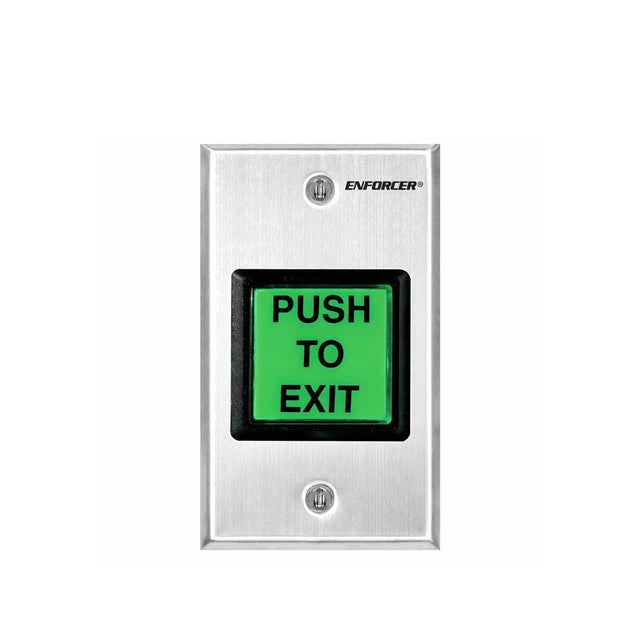

SECO-LARM SD-7202GF-PEQ Square Illuminated Push Button DPDT Request to Exit Plate with LED Indicator
The ENFORCER Square Illuminated Pushbutton Request-to-Exit Plate features a bright LED for easy visibility and a DPDT output for flexible installation. It also includes interchangeable message plates in English, French, and Spanish, making it ideal for a variety of access control applications.
Features:
- DPDT output rated 5A @ 30VDC / 125VAC for reliable performance
- 12-24 VDC operating voltage with no resistors required
- Large illuminated pushbutton with "PUSH TO ExIT" caption
- Interchangeable message plates in English, Spanish, and French
- Includes eight 12-inch colored wire leads with spade lugs for easy installation
- LED provides over 50,000 hours of illumination
- Stainless steel single-gang faceplate for durability
- IP65 weatherproof design for indoor and outdoor use
Specifications:
| Operating voltage | 12/24VDC |
| Current rating | 8mA@12VDC, 18mA@24VDC |
| Output | Type: DPDT, Rating: 5A@30VDC/125VAC |
| Faceplate type | Single-gang |
| Button type | Large square, LED illuminated (up to 50,000 hours), green |
| Connectors | 8x 12" (25cm) Colored wire leads |
| IP Rating | IP65 Weatherproof |
| Operating temperature | -40°~167° F (-40°~75° C) |
| Dimensions | 4-1/2" x 2-3/4" x 2-1/16" (114x70x53 mm) |
| Weight | 3.25-oz (92g) |
