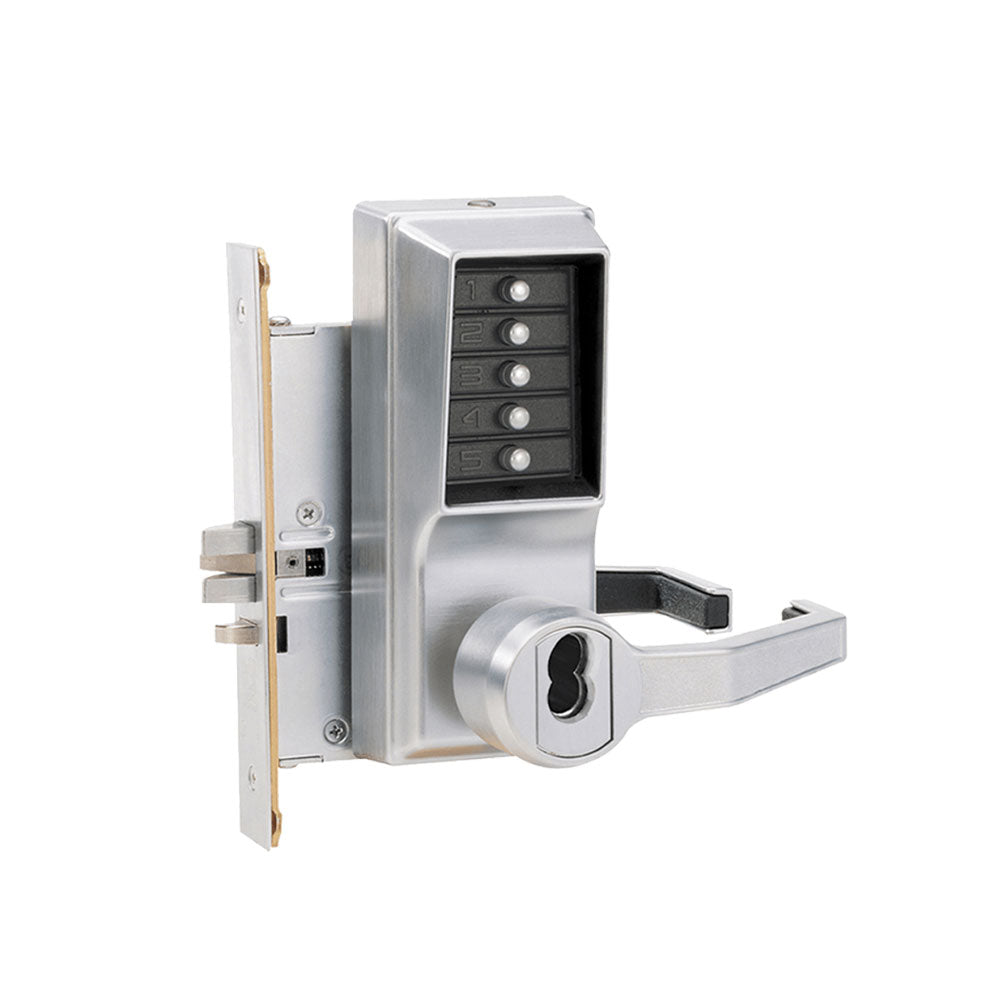

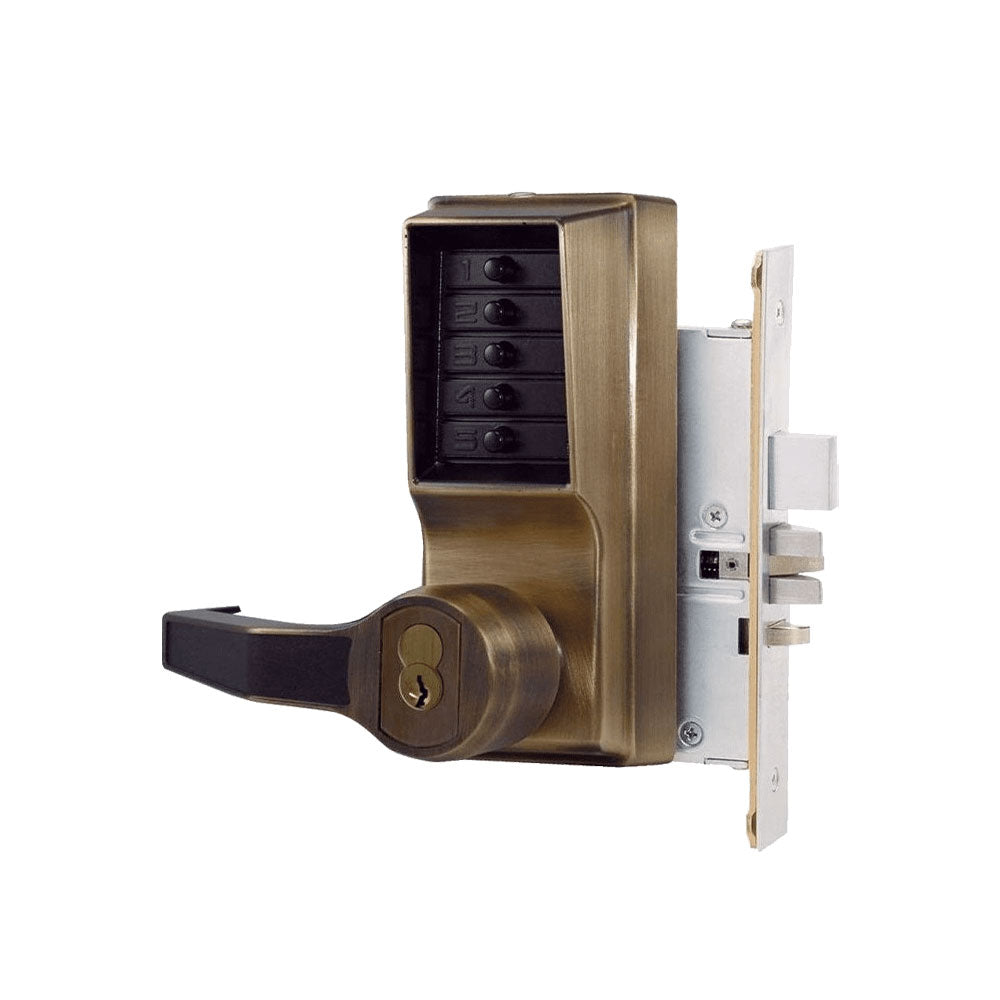

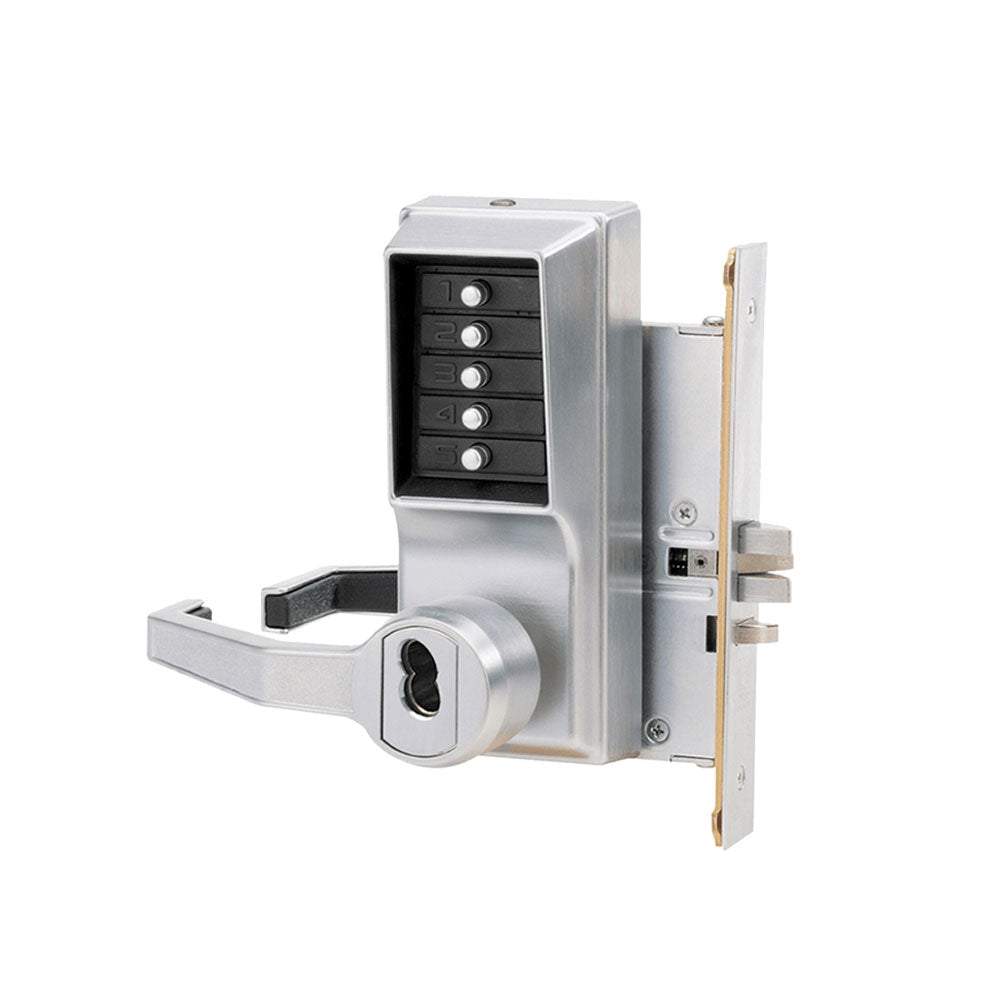

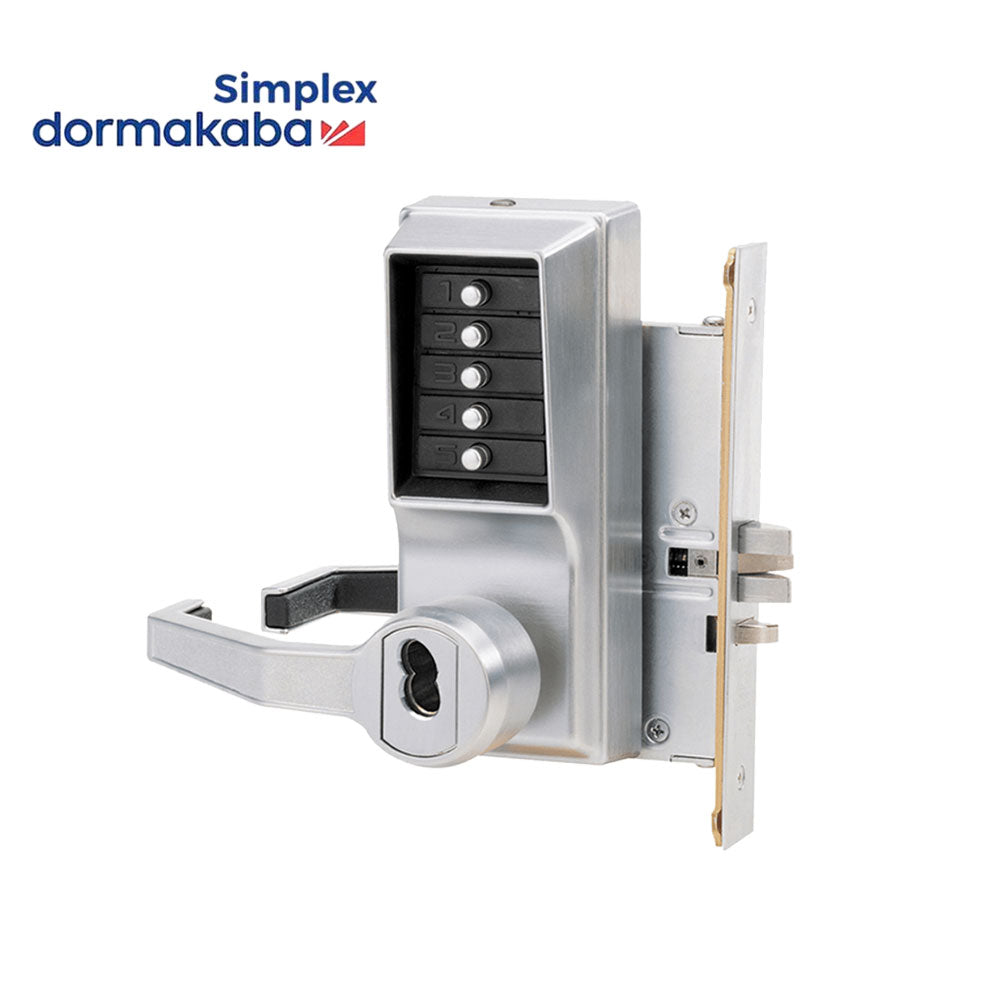

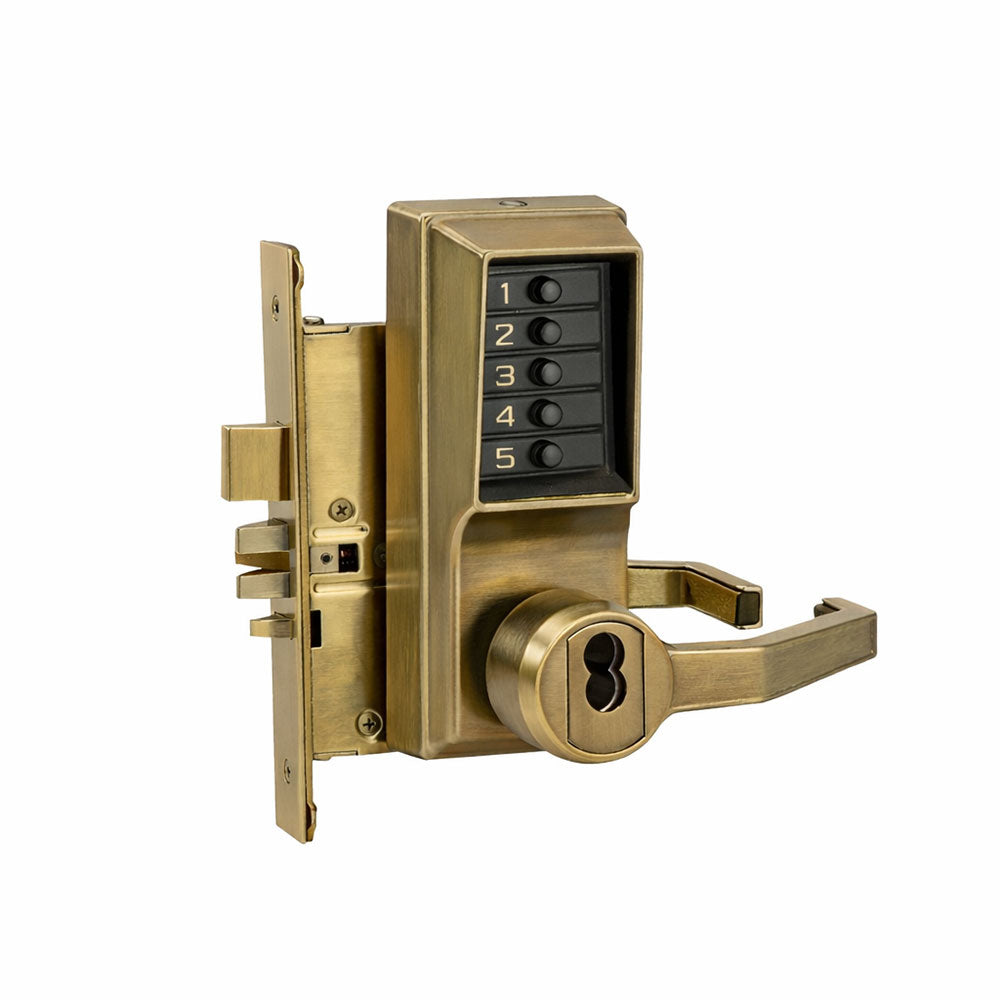

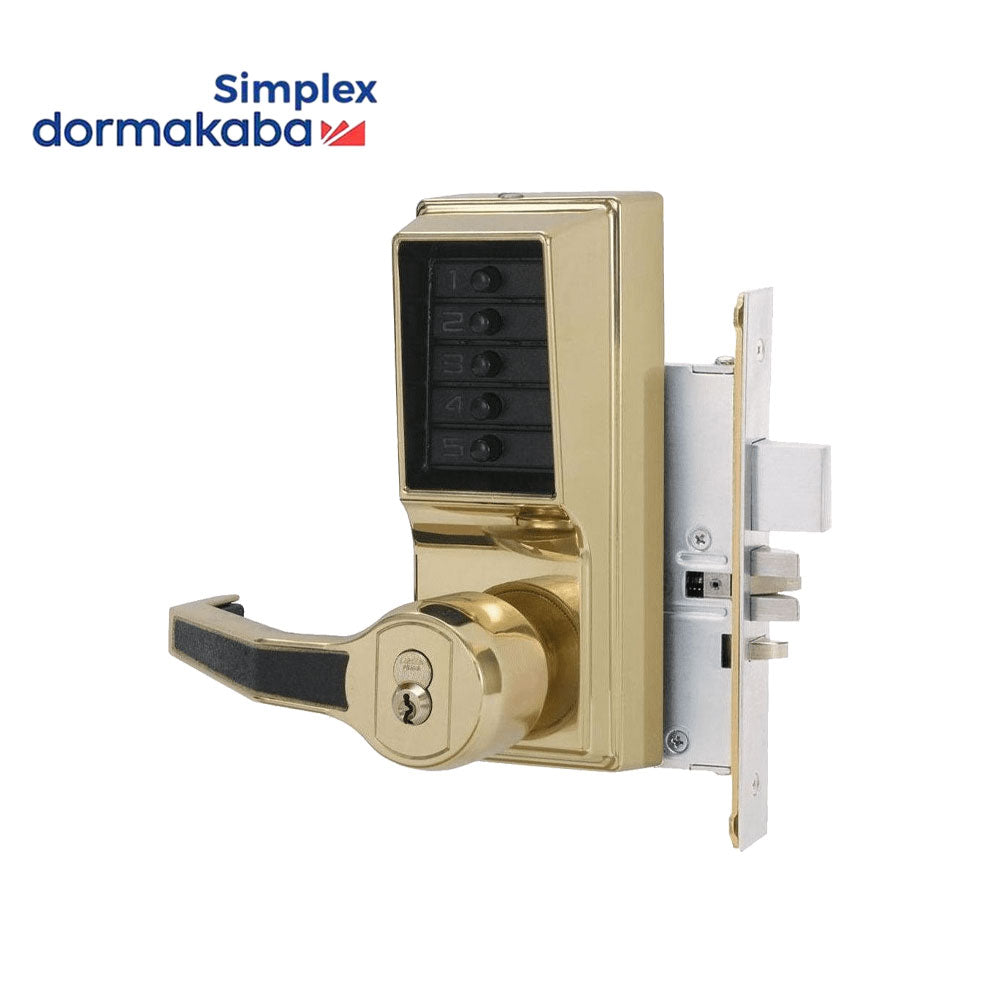

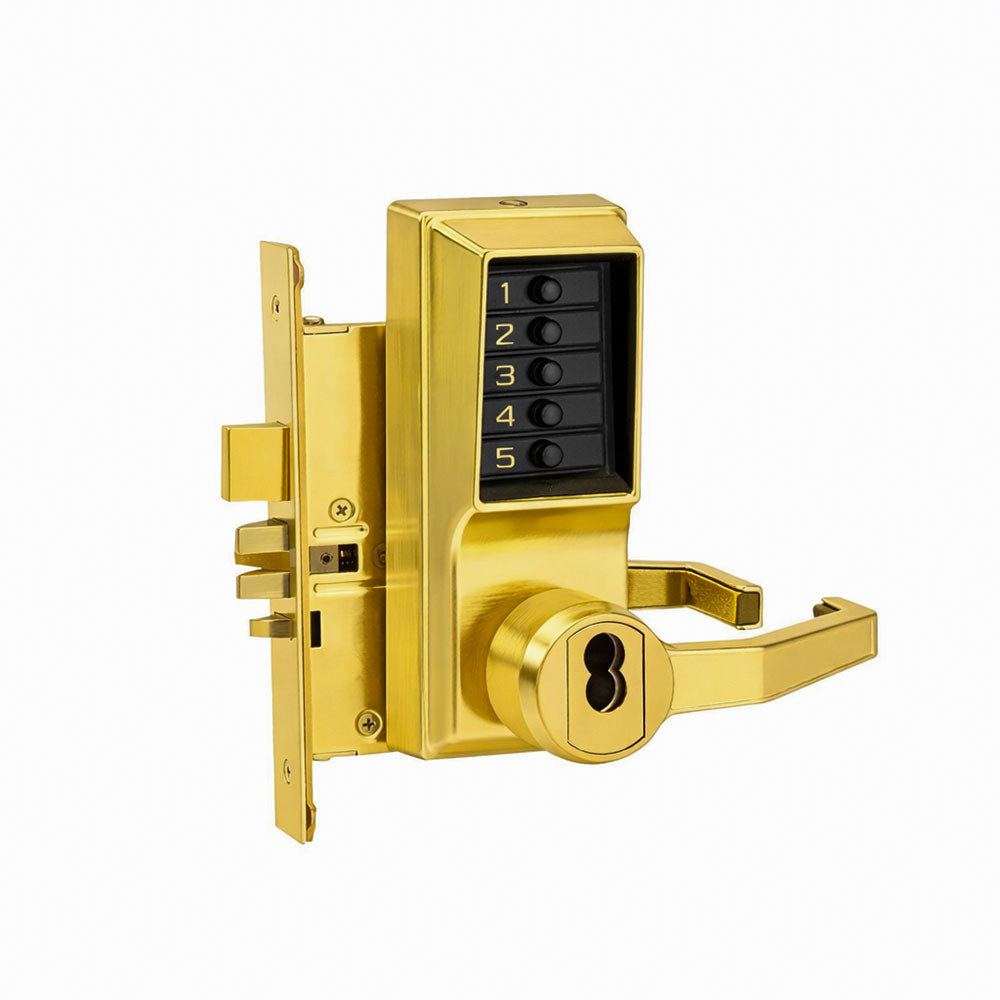

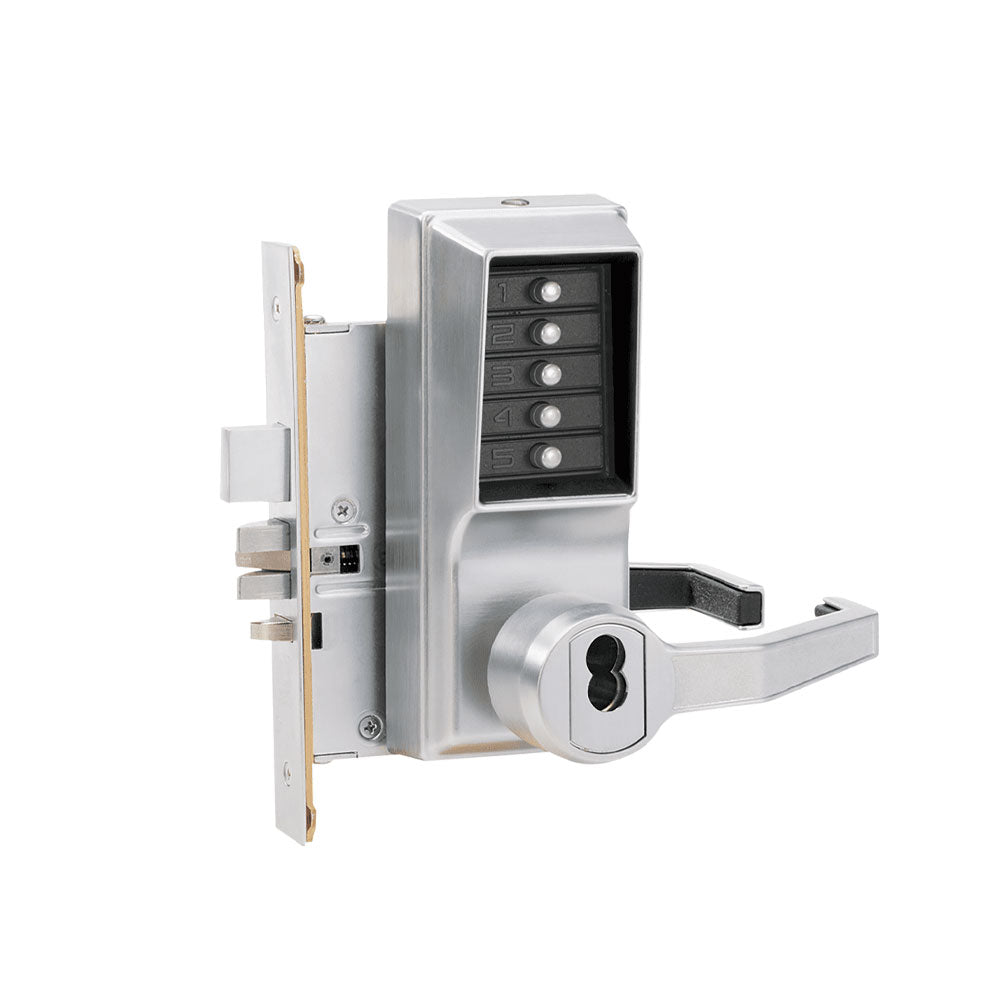

Simplex - 8146 - Mortise Combination Lever Lock with Key Override - Passage Lockout
Features:
- Construction: Cast front housing; unified trim plate; fixed ADA-compliant levers
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Backset: 2 3/4" (70 mm)
- Latch: 3/4" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
- Minimum Stile Recommended: 5" (127 mm)
- Strike: 4 7/8" (124 mm) L x 1 1/4" (32 mm) W x 1/4" (6 mm) D Deadbolt/Latch mortise strike plate
- Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
- Door Thickness: 1 3/4" (44 mm) to 2 1/4" (57 mm)
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
- Durability: Weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
