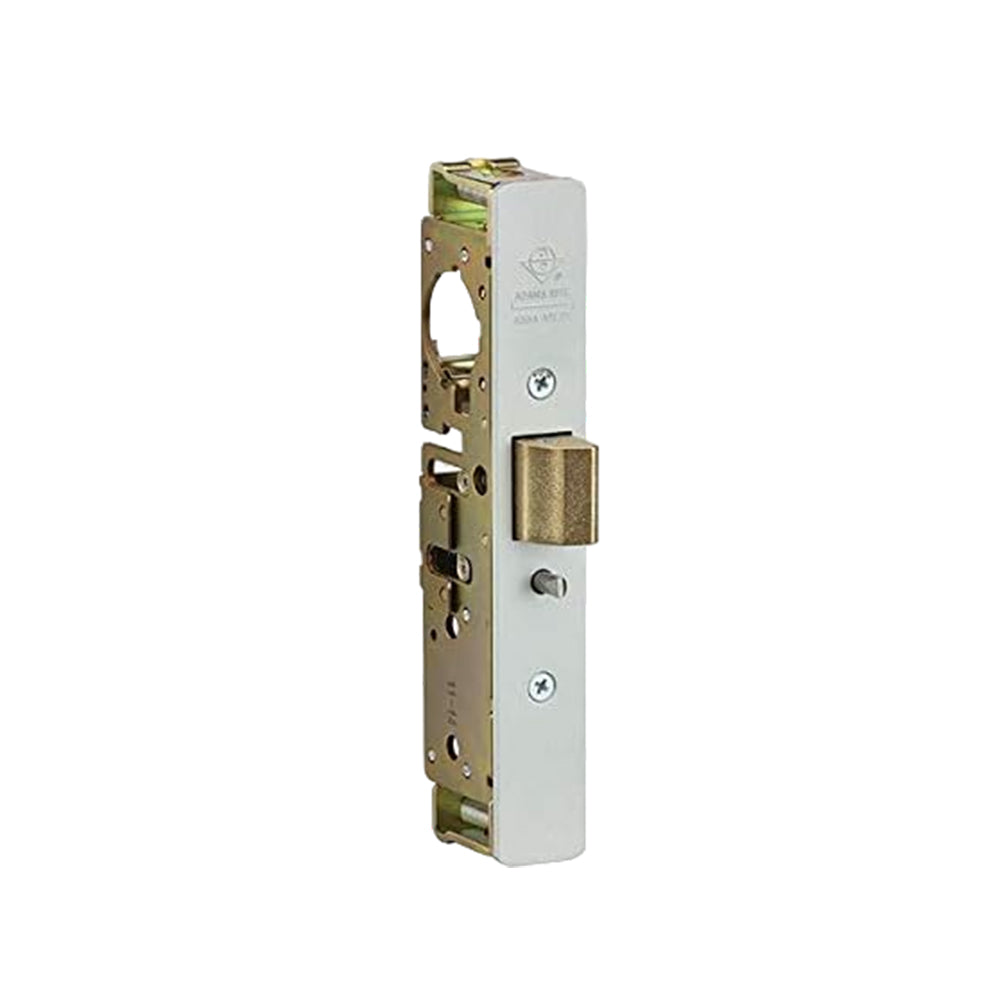

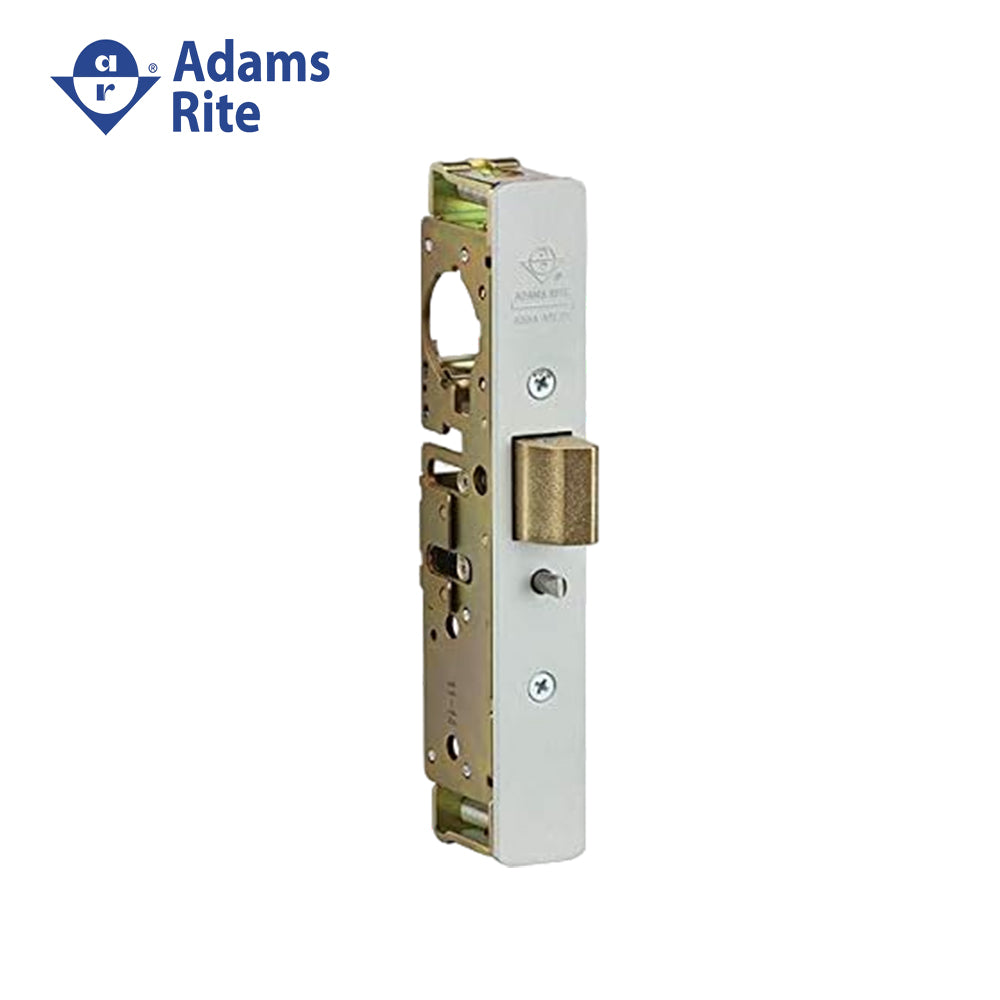

Adams Rite - 4920AN - Heavy Duty ANSI Size Deadlatch Flat Faceplate with Less Strike and 2-3/4" Backset -628 (Satin Aluminum Clear Anodized Finish)
4920AN Heavy Duty Deadlatch Flexible traffic control and easy installation for wood or hollow metal doors. For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI), 4920AN Heavy Duty Deadlatches provide precise traffic control. A key-controlled bolt hold-back feature allows a door to free-swing part of the day and exit-only when the bolt is free to latch.
Features:
- Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- Cylinder Backset: 1-1/2" or 2-3/4" only
- Case: Measures 7/8" x 5-13/16" x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
- Latchbolt: 5/8" x 1" x 5/8" throw. Solid brass. Handing is easily reversible using only a screwdriver.
- Auxiliary Latchpin: Stainless steel. Deadlocks latch bolt to prevent "loiding" or case-knife entry.
- Faceplate: 1-1/4" x 8" armored flat faceplate can also be adjusted in the field for right or left beveled edge doors.
- Strikes: Stainless steel, US32D Satin finish (630). 4506-02 Strike furnished to ANSI preparation specifications for flat jamb.
- Cylinder Cam: Operable by any standard mortise cylinder with MS cam, dimensioned as shown. Cylinders with MS cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
- Options: Backset, strike, and finish must be specified when ordering. For information on handles, paddles, and lever operators, see TRIM. See ELECTRIC STRIKES for compatible access control products. See 4900 Heavy Duty Deadlatch for aluminum stile door applications.
- Standard Package: Individually boxed with faceplate, strike, and machine screws for mounting. Order cylinders, paddles, handles or lever operators separately. Shipping weight: 1-1/4 lbs.
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Adams Rite |
| SKU | 4920AN-56-000-628 |
| UID | ADA1004920A56000628 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Base Material | Aluminum |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
Technical Specifications:
| Function | All Purpose |
| Cylinder Type | Less Cylinder |
| Handing | Field Reversible |
| Std. Latch Type | Guarded Latch |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 5/8" |
| Std. Strike Number | LESS |
| Screws | Machine |
| Product Type | Mortise Lock |
