Altronix - AL1002ULADA - NAC Power Extender - 2 Class A or 4 Class ...
Description
Description

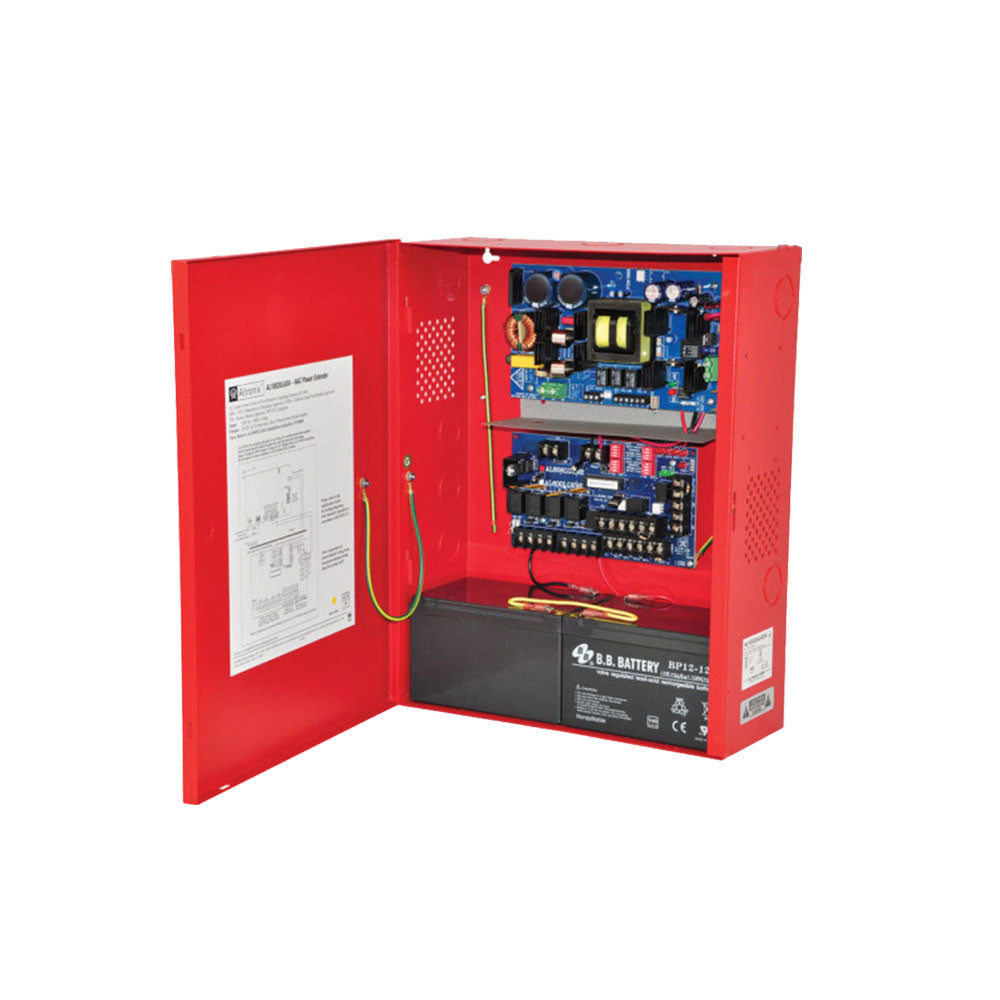

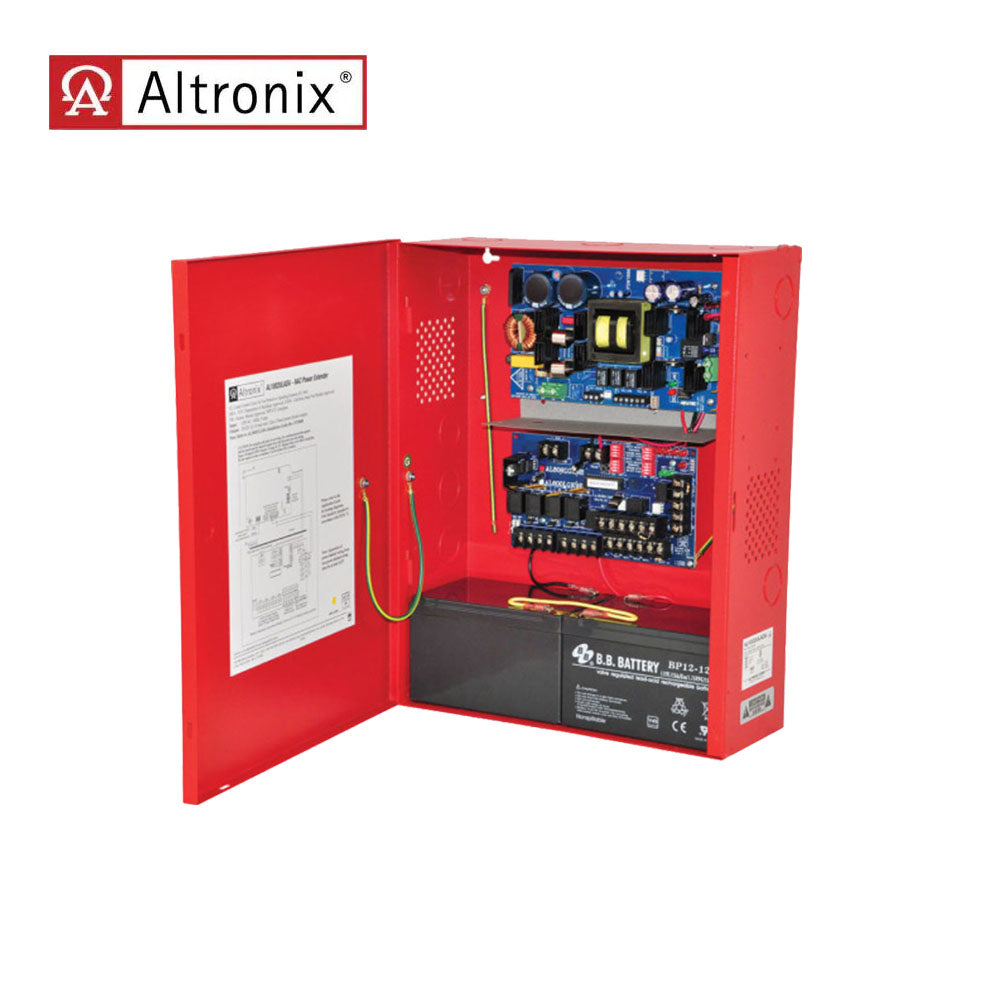

Altronix - AL1002ULADA - NAC Power Extender - 2 Class A or 4 Class B Outputs
Altronix AL1002ULADA is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories
Product Specifications:
- Manufacturer: Altronix
- SKU: AL1002ULADA
- UID: ALT100AL1002ULADA
- Installation: Commercial
- Unit of Measure: Each
- Type: Hardwired
- Product Type: Power Supplies
Technical Specifications:
Input:
-
Voltage:
120VAC, 60Hz, 5A
Two (2) Class A or two (2) Class B inputs.
Two (2) NC dry contact trigger inputs. -
Input Ratings (INP1 and INP2):
8-30VDC 6.5mA max from FACP.
12V 6.5mA, 24V 6.5mA from FACP
Output:
-
Voltage:
24VDC power-limited outputs -
Current:
10A max. total alarm current
2.5A max. current per output - Auxiliary:1A.
-
Other:
Thermal and short circuit protection with auto reset
Filtered and regulated outputs -
Programmable Supervised Indicating Circuit Outputs:
Four (4) Class B, or Two (2) Class A, or
One (1) and Two (2) Class B
