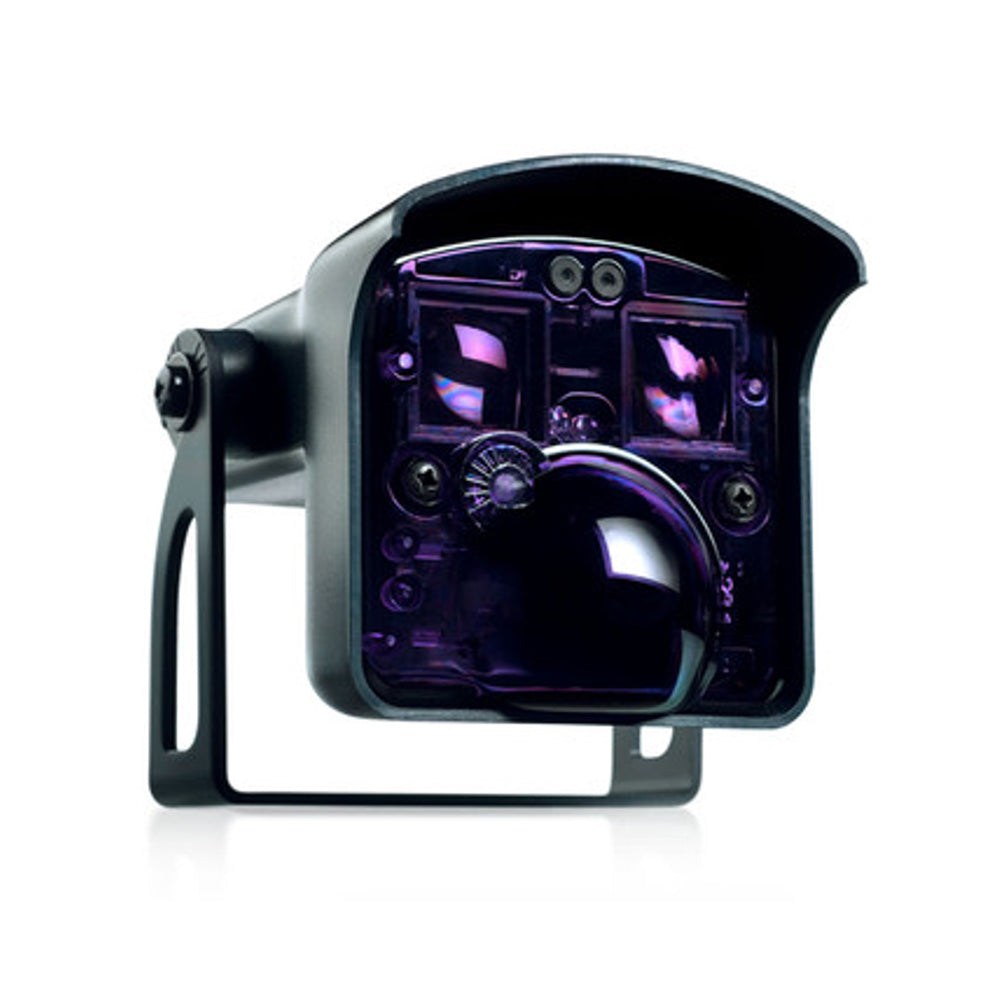

BEA - 10IS40 - Dual Technology Industrial Sensor Utilizing Microwave Motion and Active Infrared Presence Detection
BEA's IS40 / IS40XL are dual technology sensors designed to provide motion and presence detection in industrial applications. The standard IS40 can be mounted from 8 feet to 16 feet to fit any industrial application. For lower mounting heights, BEA's IS40XL can be mounted from 6 1/2 feet to 11 1/2 feet. Housed in a rugged IP65-rated enclosure, the IS40 / IS40XL will operate in harsh environments, capable of withstanding damage caused by wind-blown dust and rain and hose-directed water.
Specifications:
| Technology | Microwave Doppler Radar | Active Infrared |
| Detection Mode | Motion | Presence |
| Led Signal | Green (Activation Relay) | Red (Presence Relay) |
|
Transmitter Frequency / Wavelength |
24.150 GHz | 875 nm |
| Transmitter Power Density | < 5 mW / cm2 | < 250 mW/m2 |
|
MAX. Detection Fietection Field IS40 IS40XL |
13' x 16 1/2" 13' x 6 1/2" |
10' x 10' 7 1/2" x 7 1/2" |
| Output Hold Time | 0.5 s - 9 s | 0.5 s |
| MIN. Detection Speed | 2 in / s | 0 in / s to activate detection |
| Tilt Angle | -8 - 22° and 15 - 45° (Relative to sensor face) |
15° - 45° |
| Mains Frequency | 50 - 60 Hz | |
| Power Consumption | < 3.5 W | |
|
Relay Output MAX. Contact Voltage MAX. Contact Current MAX. Switching Power |
2 relays (free of potential change-over contact) 42 VAC / VDC 1 A (resistive) 30 W (DC) / 48 VA (AC) |
|
|
Installation Height IS40 IS40XL |
8 - 16' 6 1/2 - 11 1/2' |
|
| Temperature Range | -22°F - 140°F | |

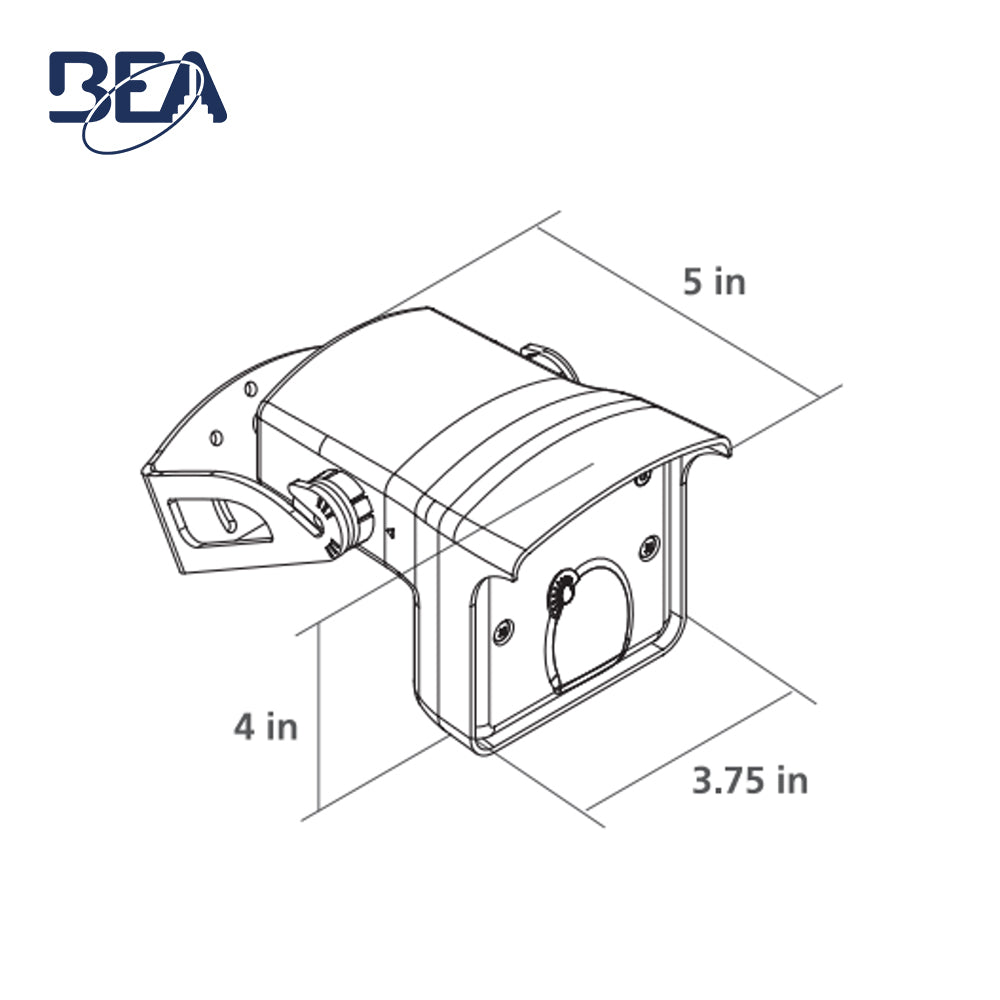

| Dimentions | 3 3/4" (W) x 4" (H) x 5" (L) | |
| Materials | ABS & Polycarbonate | |
| Cable Length | 32' | |
| Degree of Protection | NEMA 4 / IP65 | |
| Norm Conformance | R &TTE: 1999/5/EC; EMC 2004/108/EEC |
