BEA - 10LZRFLATSCAN-SWB - Full Energy Safety System Swing Door - 12...
Description
Description

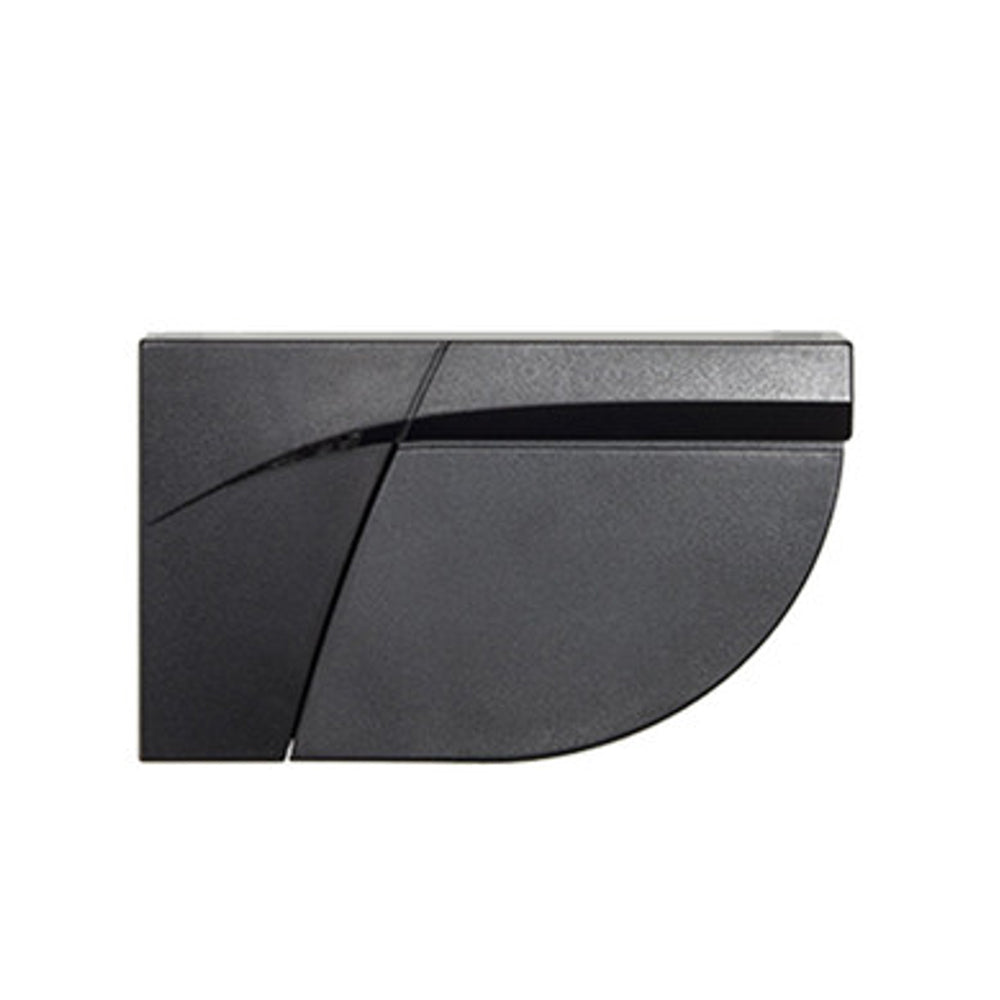

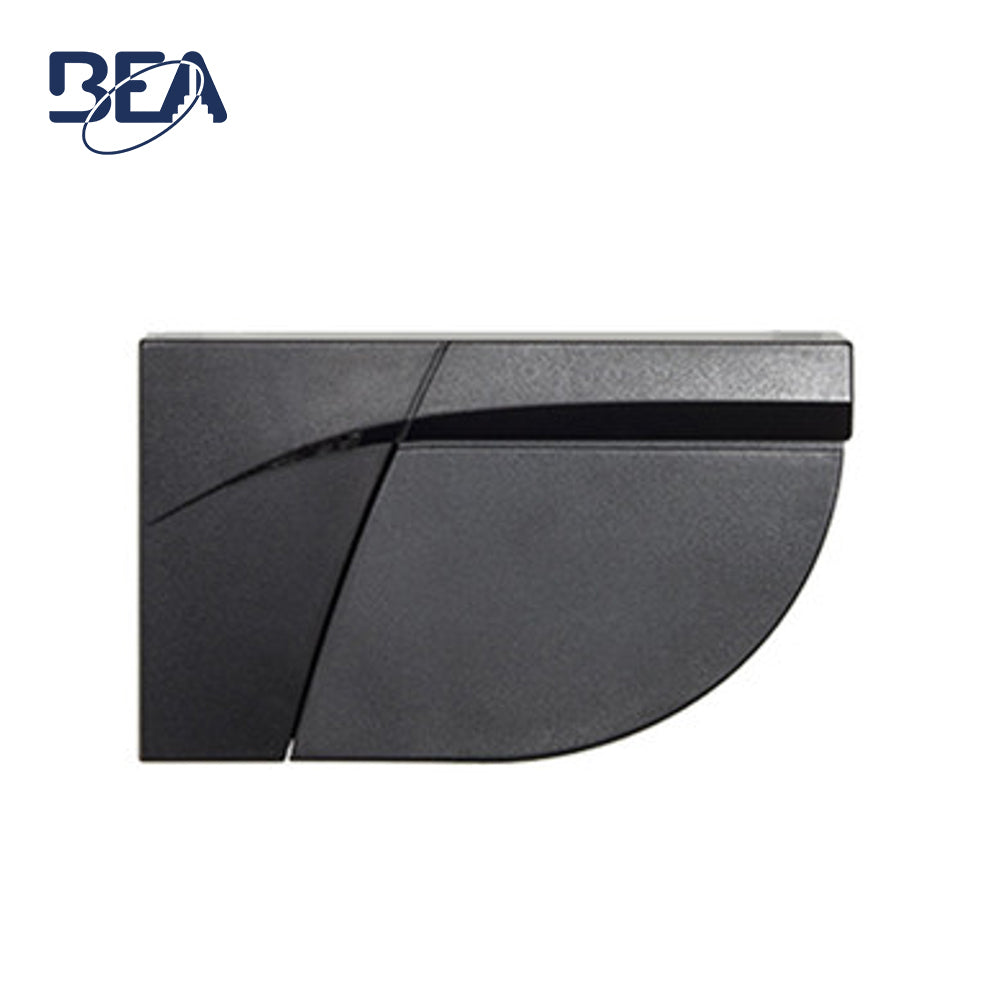

BEA - 10LZRFLATSCAN-SWB - Full Energy Safety System Swing Door - 12 to 24VDC - Black
Specifications:
| Technology | LASER scanner, Time-of-Flight measurement |
| Detection Mode | Presence |
| Max. Detection Range | 13' (diagonal) with reflectivity of 2% |
| Detection Area | Door Leaf Safety- 90° Pinch Zone Safety- 16° |
| Angular Resolution | Door Leaf Safety- 1.3° Pinch Zone Safety- 0.2° |
| Typ. Min. Object Size | Door Leaf Safety- 4" @ 13' (in proportion to object distance, DIP 2 = ON) Pinch Zone Safety- 3/4" @ 13' (in proportion to object distance, DIP 2 = ON) |
|
Emission Characteristics IR LASER | Wavelength 905 nm; max. output pulse power 25 W; Class 1 |
| Supply Voltage | 12 - 24 VDC ±15% |
| Power Consumption | ≤ 2 W |
| Response Time | Door Leaf Safety- max. 50 ms Pinch Zone Safety- max. 90 ms |
| Test Input | 30 VDC (max. switching voltage) low < 1 V high > 10 V (voltage threshold) |
| Output | 2 electronic relays (galvanic isolation - polarity free) Max. Switching Voltage- 42 VAC / VDC Max. Switching Current- 100 mA |
| LED Signals | Red- Swing side detection Green- Approach side detection Yellow- Error |
| Dimensions | 5 1/2" (W) x 3 1/3" (H) x 1" (D) |
| Material | PC / ASA |
| Tilt Angles | 2 - 10° (without mounting bracket) |
| Degree of Protection | IP54 (EN 60529) |
| Temperature Range | -22 - 140°F (if powered) |
| Humidity | 0 - 95% non-condensing |
| Vibrations | < 2 G |
| Min. Door Leaf Speed | 2° / s |
| Norm Conformity | ISO 13849-1 Pl "d"/ CAT2; IEC 60825-1; IEC 60950-1; IEC 61000-6-2; IEC 61000-6-3; IEC 62061 SIL 2 |
