Description
Description

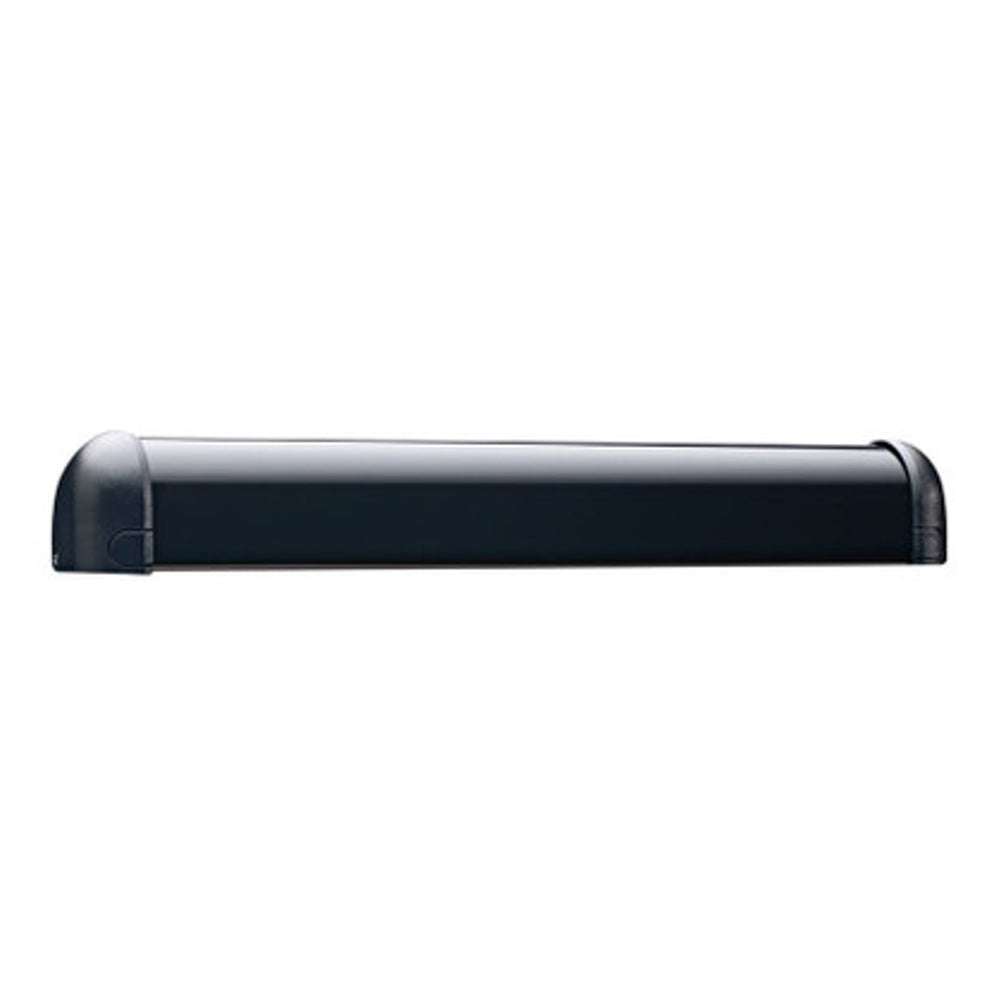

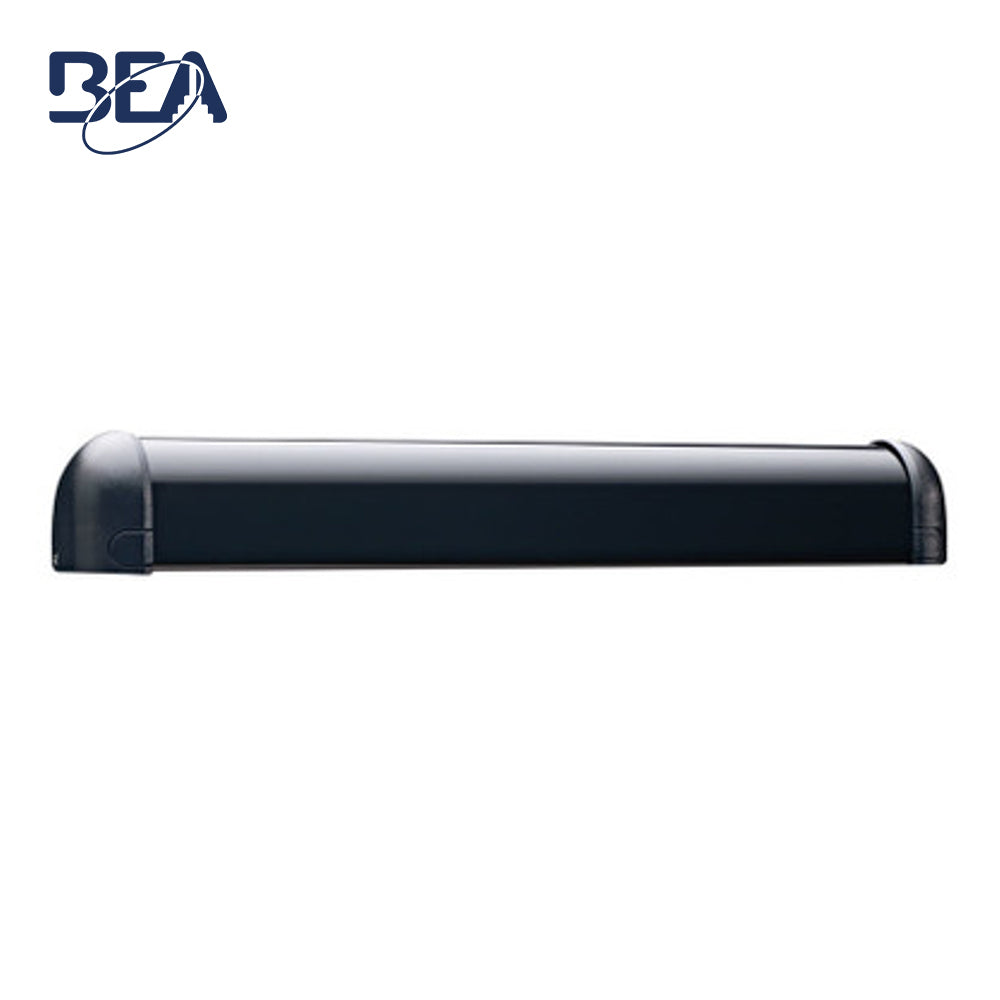

BEA - 10SSTII40 - Presence Sensor - Active Infrared with Background Suppression - 1 Primary & 1 Secondary - 40" End Cap to End Cap - 12 to 24 VAC/DC
Features:
- Fit to the Application Housing available up to 96 inches; can be field-cut to desired door width
- User-Defined Detection Zones Detection zone of 24 to 96 inches
- Adjustable Detection Zone Can be set to background analysis mode to reduce the change of false detection from faulty environmental situations
- Customizable Hold Time Relay hold time can be adjusted from 0.1 to 4.5 seconds
- Standards Compliant Capable of external monitoring
Specifications:
| Technology | Active infrared with background suppression |
| Detection Mode | Presence |
| Measurement of Distance | Triangulation |
| Power Supply | 12 - 24 VAC/VDC ±10% |
| Output Interface; Relay | Relay - max. contact rating: 1A at 30 V (resistive) |
| Detection Range | 0 - 8' |
| Distance Adjustment | 2 - 8' (rotating cam with linear adjustment) |
| Max. Mounting Height | 8' |
| Detection Signal Duration | Infinite presence detection |
| Detection Time | < 50 ms |
| Output Hold Time | Potentiometer range: 0.1 - 4.5 s |
| Operating Temperature Range | -30 - 140° F |
| PCB Dimensions | Primary - 10.91" (W) x 1.5" (H) Secondary - 8.75" (W) x 1.5" (H) |
| Connector to Door Controller | 8-position screw terminal on Primary PCB |
| Primary-to-Secondary Connection | Flat-ribbon cable with connectors and key lock |
| Max. Number of Secondaries | 8 |
| Functions Selection | Detection mode: NO or NC Normal mode or Background Analysis mode |
