Description
Description

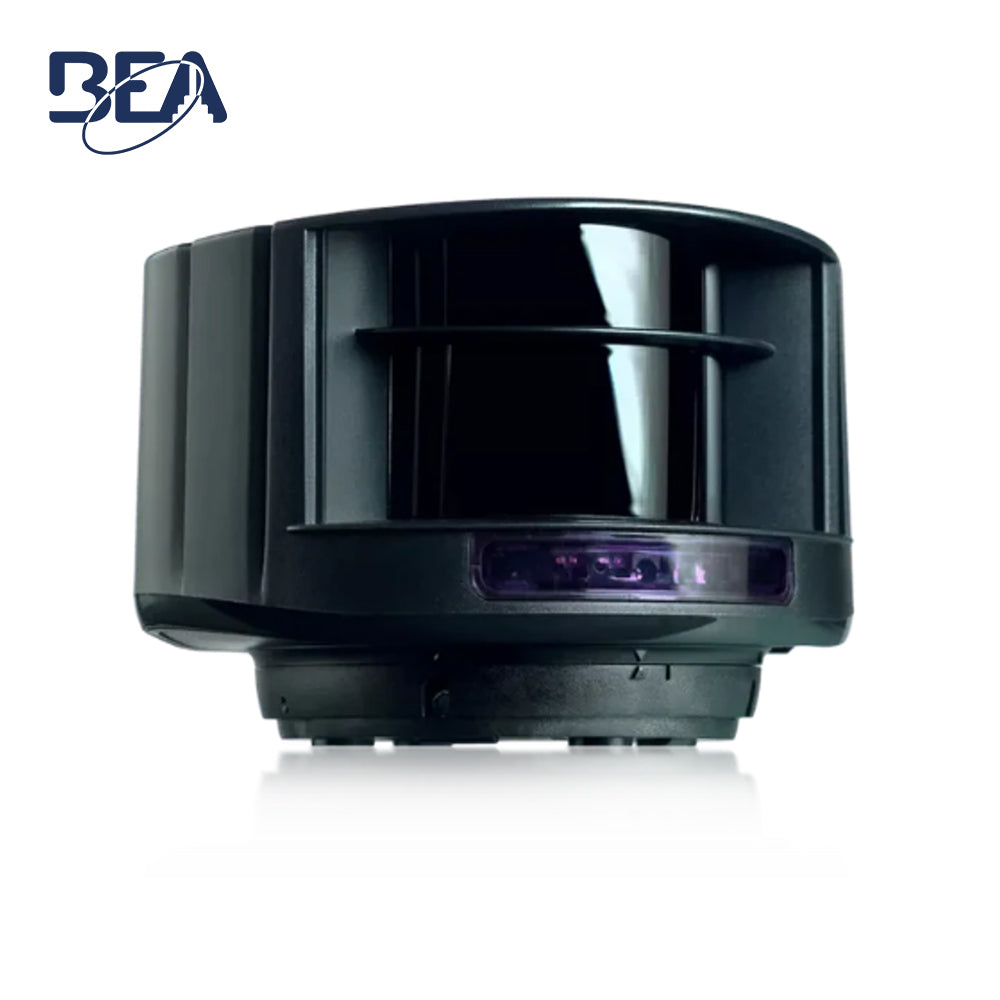

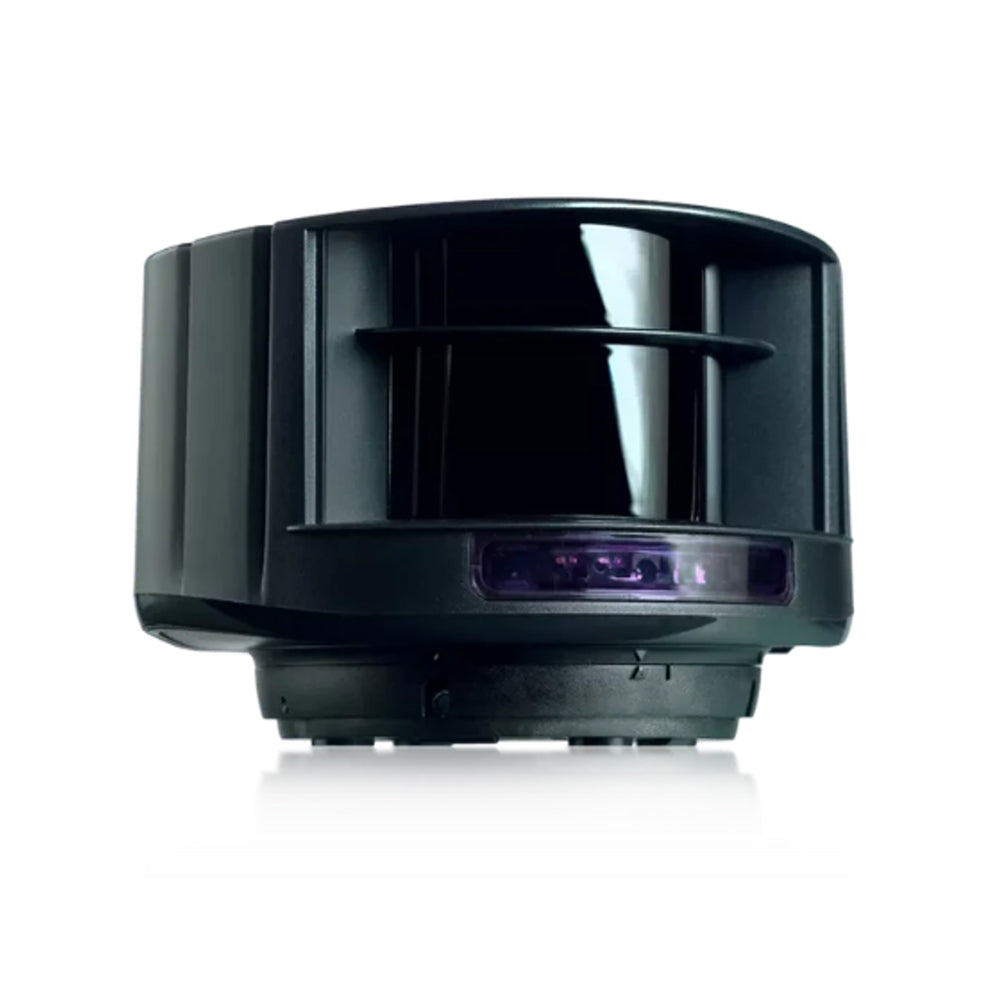

BEA - LZR-I30 - Laser Scanner for Industrial Automation - 35VDC and 24VAC
Features:
- 3-Dimensional Safety ZoneFour curtains of detection each capable of 360 in by 360 in (30 ft by 30 ft).
- Highly Accurate Detections Detects objects as small as 2 inches at 30 feet away, depending on application.
- Energy Savings Has the ability to ignore dynamic ground conditions and extreme weather.
- Easily Adjustable Three visible LEDs for pattern alignment
Specifications:
| Technology | LASER scanner, Time-of-Flight measurement |
| Detection Mode | Motion and presence (EN 12453 Typ. E) |
| Max. Detection Range | 30' x 30' |
| Remission Factor | > 2% |
|
Emission Characteristics IR LASER Red Visible LASER |
Wavelength 905 nm; output power 0.10mW (CLASS 1) Wavelength 635 nm; output power 0.95mW (CLASS 2) |
| Supply Voltage | 10 - 35 VDC at sensor terminal (to be operated from SELV compatible power supplies only) |
| Peak Current at Power-On | 1.8 A (max. 80 ms at 35 V) |
| Power Consumption | < 5 W |
| Response Time | Typ. 20 ms; max. 80 ms (+ output activation delay) |
| Output | 2 electronic relays (galvanic isolated - polarity free) Max. Switching Voltage- 35 VDC / 24 VAC Max. Switching Current- 80 mA (resistive) |
| LED Activity | Blue- Power-on Orange- Error status Red/Green (x2) - Detection / Output Status (green = no detection, red = detection) |
| Dimensions | Housing- 5" (W) x 2 3/4"(H) x 3 2/3 (D) 10LBA- Adds 11/20" |
| Cable Length | 30' |
| Materials | PC, ASA |
| Rotation Angle on Bracket | ±5° (lockable) |
| Tilt Angle on Bracket | ±3° |
| Degree of Protection | NEMA 4 / IP65 |
| Temperature Range | -22 - 140°F if powered 14 - 140°F if unpowered |
| Humidity | 0 - 95% non-condensing |
| Vibrations | < 2 G |
