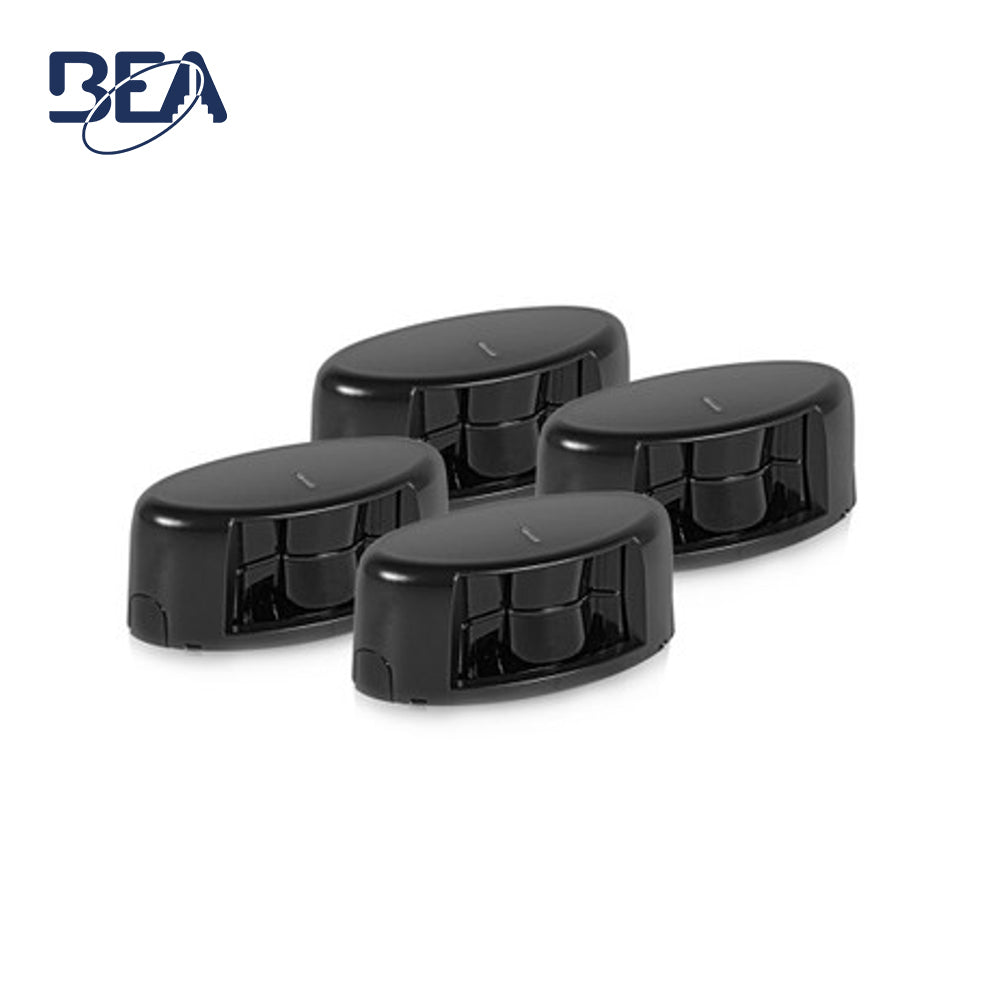

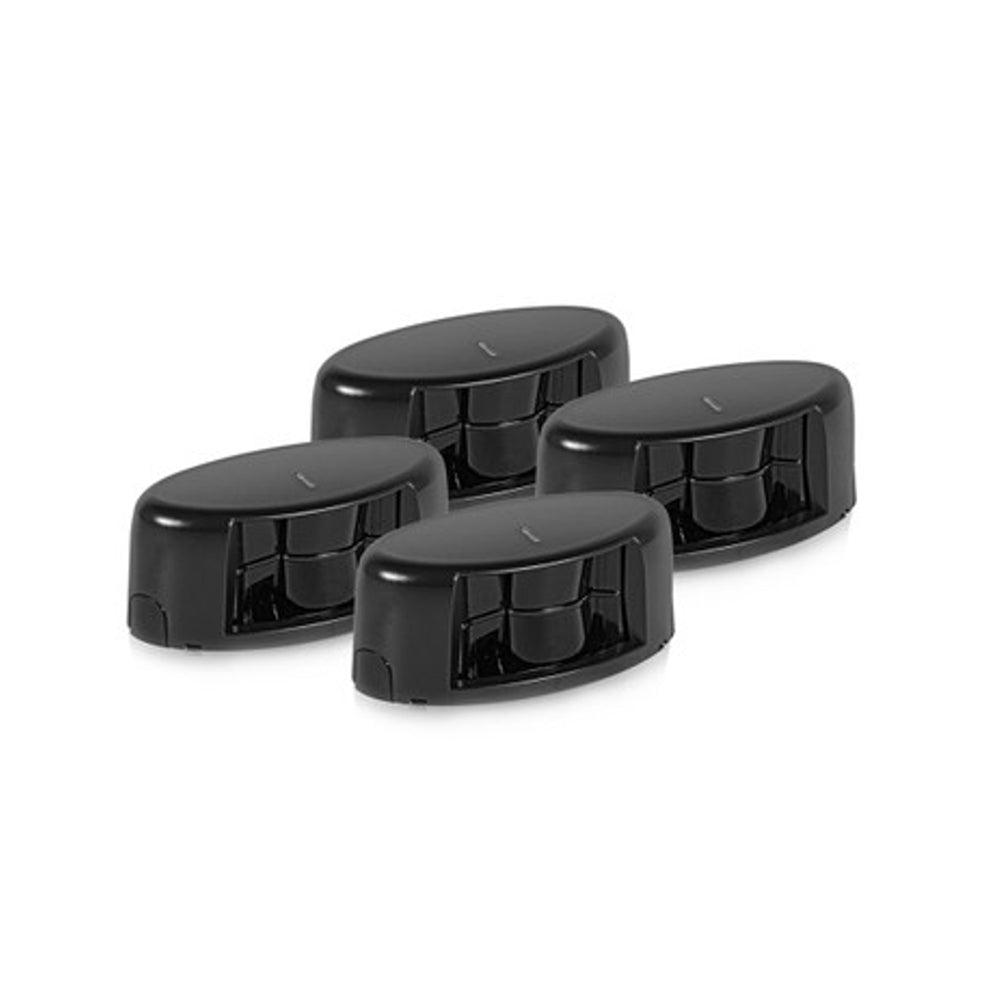

BEA - LZR-MICROSCAN T - Presence Sensor - Dual-Egress Door Kit
Description
Description
BEA - LZR-MICROSCAN T - Presence Sensor - Dual-Egress Door Kit
Features:
- Easy to Install Plug-and-play technology utilizing a centralized hub and intuitive LCD interface greatly reduces installation and setup time
- Highly Accurate Detection High resolution, self-adapting detection zones, coupled with reduced uncovered zones create the most accurate and reliable safety sensor
- Built-in Troubleshooting On-board error log ensures easy technical support
- Standards Compliant Fully monitored internally, capable of external monitoring
- UL10B/C Listed Fire-rated for up to three hours
Specifications:
| Technology | LASER scanner, Time-of-Flight measurement |
| Detection Mode | Presence |
| Min. / Max. Door Width | 20 - 48" (measured from leading edge to sensor LED) |
| Mounting Height | 75 - 98"(measured from finished floor to sensor LED) |
| Remission Factor | > 2% |
| Angular Resolution | 2.56° |
| Testbody | 28" (H) x 12" (W) x 8" (D) |
| Emission Characteristics | IR LASER- Wavelength 905 nm; maximum output pulse power 35 W (Class I) |
| Supply Voltage | 12 - 30 VDC (15 W Class II) |
| Power Consumption | < 15 W |
| Response Time | Typ. 40 ms; max. 80 ms |
| Output Rating | 4 electro-mechanic relays |
| Test Rating | 2 optocouplers (galvanic isolated - polarity free) 12 - 30 VDC, max. 15 W |
| Temperature Range | -13 - 121°F (-25 - 55°C) |
| Degree of Protection | Hub: IP20 / NEMA 1 Sensor: IP53 / NEMA 3 |
| Humidity | 0 - 95%, non-condensing |
| Vibrations | < 2 G |
| Materials | PC, ASA |
| Norm Conformity | EN 60825-1-Eye-safety class 1 IR LASER (905 nm) UL10B/C Fire Rated 3 hrs (file #R39071) |
| Mounting Angle (rotational) | 35° fixed |
| Tilt Angle | 0 - 5° (for angles less than 5°, contact Technical Support) |
| Pollution on Front Screens | Maximum 30%, homogenous |
