Camden CM-120I Flush Mount Standalone Keypad - 12/24V AC/DC
Description
Description

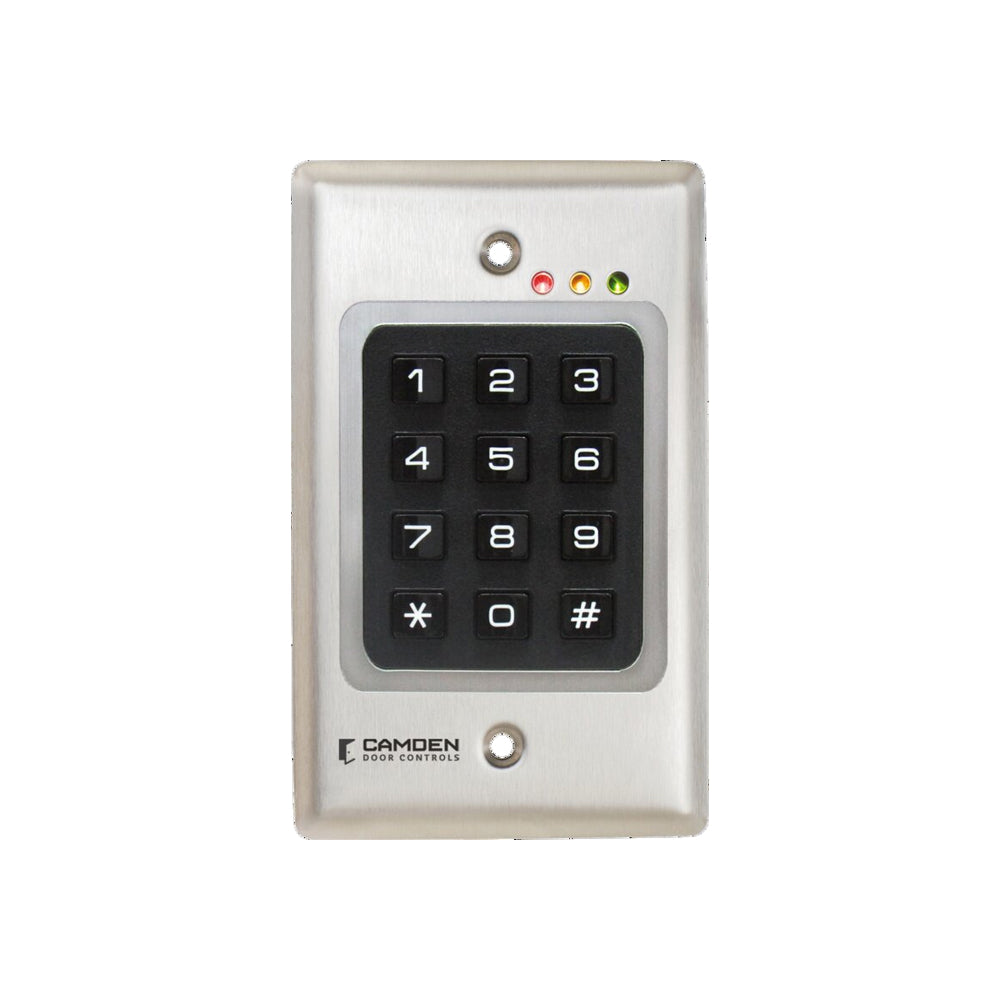

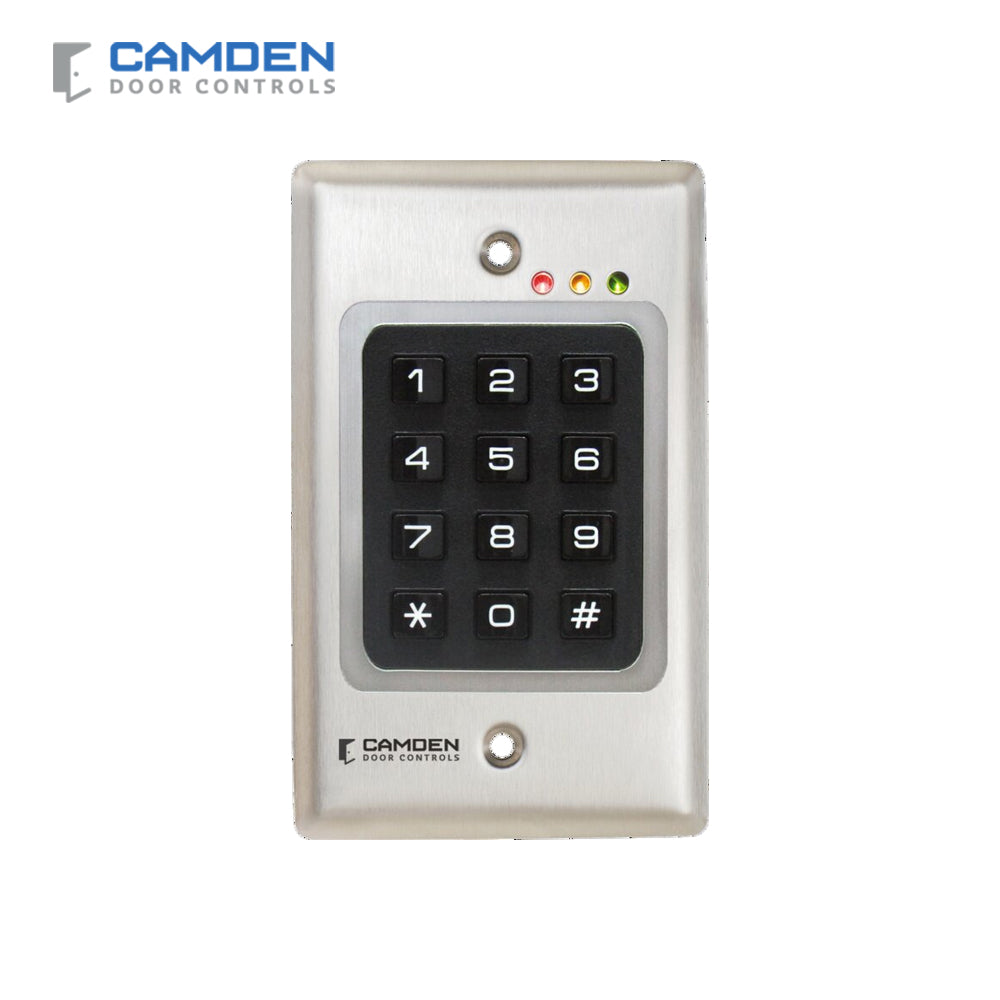

Camden CM-120I Flush Mount Standalone Keypad - 12/24V AC/DC
TCM-120 Series keypads are North American built and provide Tri-Brid stand alone, Wiegand and optional wireless operation! CM120i offers the best performance and value for indoor applications. CM-120wV2 is a vandal and weather resistant model with a metal back-lit keypad. CM-120 Series hardwired keypads have added wireless functions by plugging in a CM-TX99 wireless transmitter module.
Features:
- CM-120i keypad for indoor use, features stainless steel faceplate and polycarbonate keys
- CM-120wV2 features backlit, weatherproof & vandal resistant metal keypad
- Flush mount single gang stainless steel faceplate
- 3 LED's + Piezo Buzzer
- Request-to-Exit Input
- Door contact input for anti-tailgating & door open alarm
- Global lock-out feature
- Includes tamperproof screws & driver
- Option for plug-in TX-99 wireless transmitter, 2 channel
Specifications:
| Voltage | 12/24V AC/DC |
| Mounting | Single gang, flush (2) #6 machine and tamper proof screws |
| Current Draw | 30 mA Standby, 90 mA Max |
| Input | 1 x Rex Input / 1 x Door Contact Input |
| Contact Type | 2 x Form 'C' |
| Contact Rating | 3 AMPS @ 24 VDC |
| Capacity | 999 User Codes |
| Length | Variable, Up to 8 Digits (10 Million Possible Codes) |
| Response Time | 0.3 Seconds |
| Time Delay | 1 to 255 Seconds, or Latched |
| Temp Range | -40°F to + 122°F (-40°C to +50°C) |
| Dimensions | 4-1/2" x 2-3/4" x 3/4" (114mm x 70mm x 19mm) |
| RF Output | Optional Plug-In Transmitter, 2 Channel |
Specification Sheets:
Manuals:
- CM-120_Manual_R5
- CM-120 Series Keypads_Programming Guide_R3
- CM-120 Series Keypads_Programming Guide_French_R3
- CM-120TX_Manual_R1
- CM-120TX_Manual_French_R1
Reference Guides:
