Description
Description

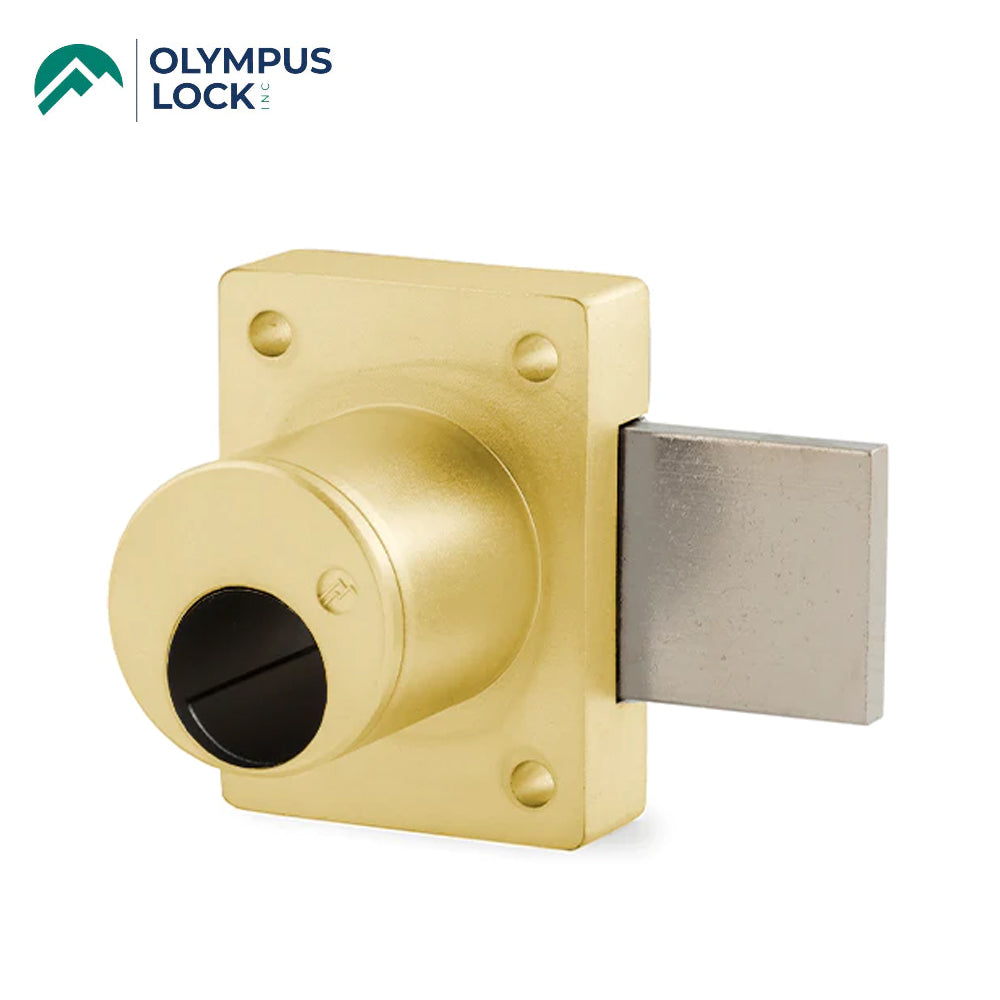

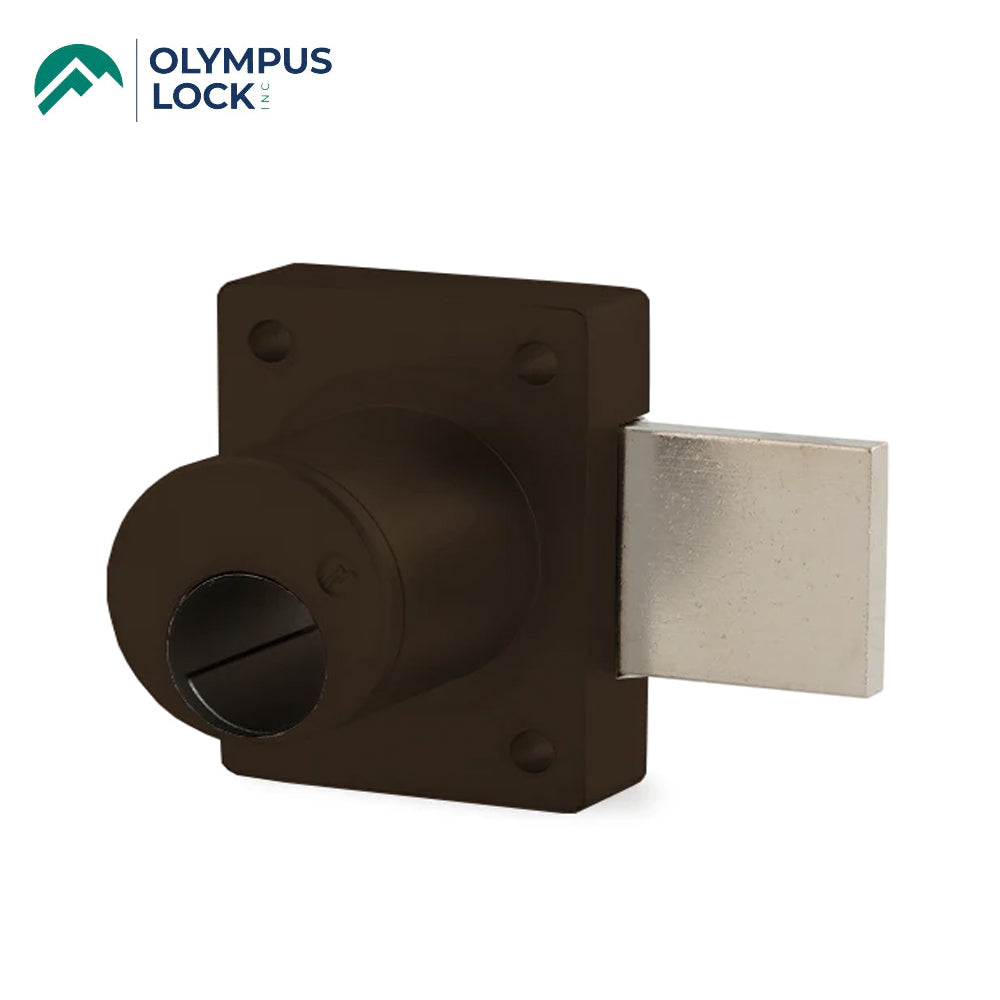

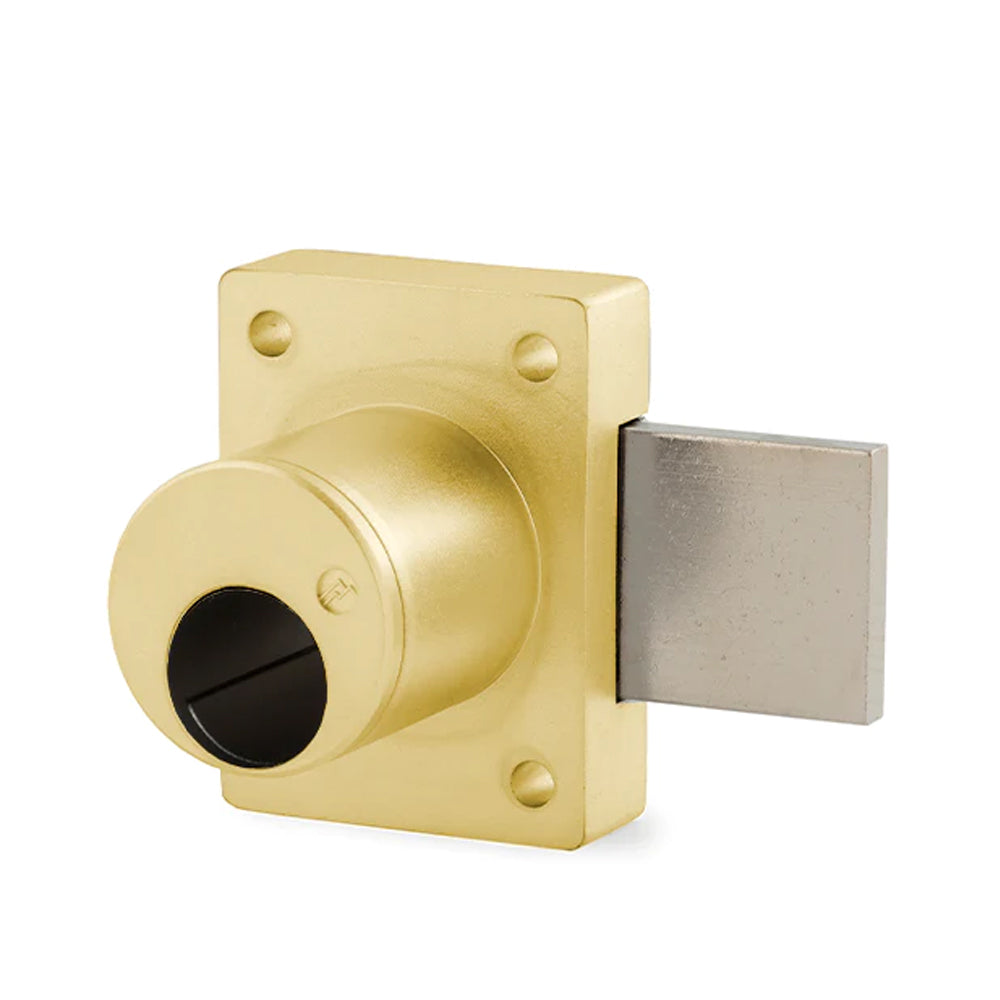

OLYMPUS LOCK - 700LC - Cabinet Deadbolt Door Lock - LC Series - Optional Cylinder length - Less Cylinder - Optional Color
Feature:
- Cabinet lock - deadbolt door lock
- Easily rekeyable via cylinder release mechanism
- Will accept other manufacturer's Schlage compatible deadbolt cylinders
- (Grade 1) ANSI/BHMA No. E07121
- 700LCA barrel length: 1-1/8"
- 700LCM barrel length: 1-3/8"
- Barrel diameter: 1-1/8"
- Bolt projection: 15/16"
- 700LCA: 26D, US3 or 10B finish
- 700LCM: 26D or US3 finish
- US Patent Nos: 4,899,563; 4,920,774
Specification:
- Rekeyable: Easily rekeyable via set screw cylinder release mechanism
- ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (700LC) / E07041 (800LC).
- Body: Zinc die cast
- Cylinder: Will accept other manufacturer's Schlage compatible key-in-knob cylinders
Cylinder Information:
- Cylinder: Not included
- Includes: All parts necessary to work with other manufacturers cylinders
- ILCO cylinder: #1599 (various keyways available)
- Assa cylinder: Assa part-number #65611 (Requires 1-3/8” lock body)
- Medeco cylinders: Requires LCM (1-3/8”) locks
- Original: 6 pin #20-009S4, 5 pin #20-008S4
- Biaxial: 6 pin #20W009S4, 5 pin #20W008S4
- Keymark: 6 pin #20K009S4
- Key retaining cylinder: #20W200S1
- Compatible electronic cylinders: Medeco LOGIC, ASSA CLIQ or VIDEX CyberLock key-in-knob cylinders
Included Accessories:
For 1-1/8"barrel length locks:
- 10-350 plastic spacers (qty 2)
- 10-054 1/4" plastic bar strike
- 10-055 1/2" plastic bar strike
For 1-3/8"barrel length locks:
- 10-054 1/4" plastic bar strike
Optional Accessories:
- Spacers: 10-348 (1/4" thick), 10-349 (1/2" thick), 10-350 (1/8" thick)
- Strikes: 10-052, 10-056, 10-057, 10-058, 12-2, 12-3, 12-4
- Trim collar: TR78
- Through-bolt hardware: ETS1 through-bolt plate, ETS1-PL trim pull and ETST1 template
Download:
