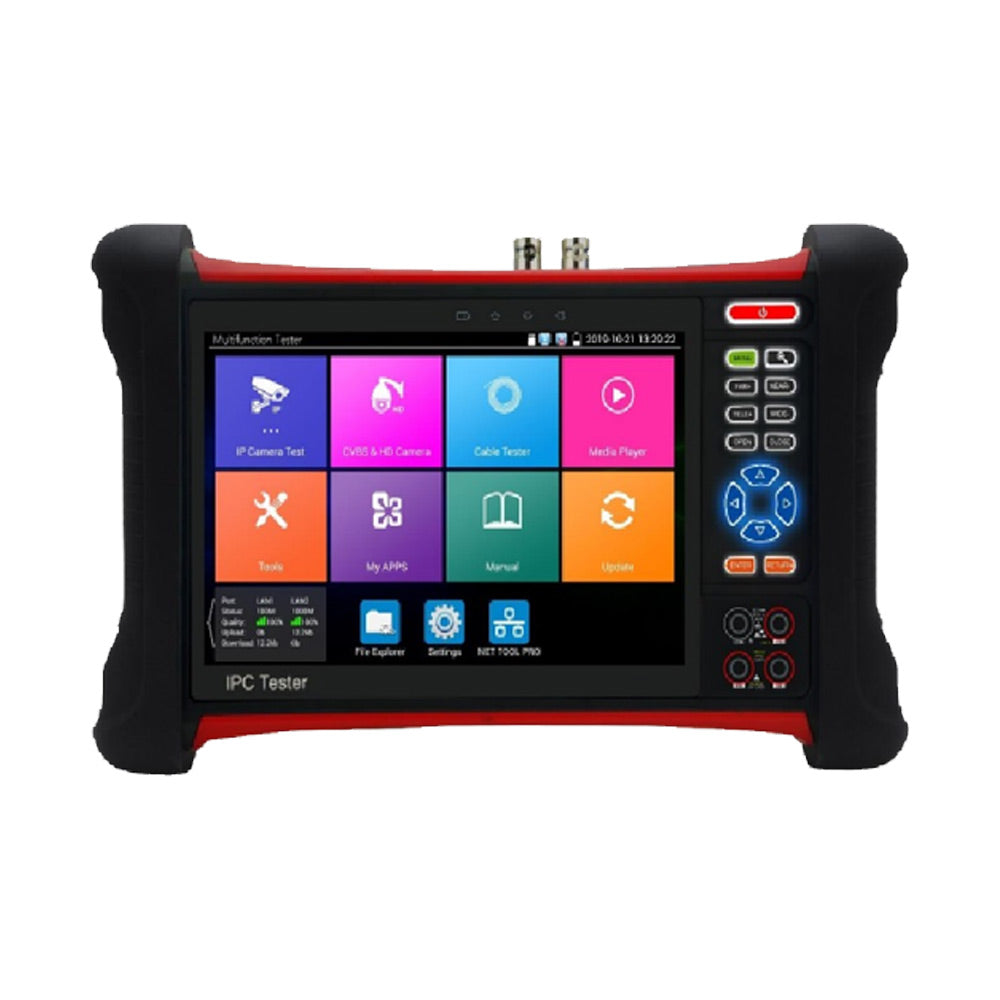

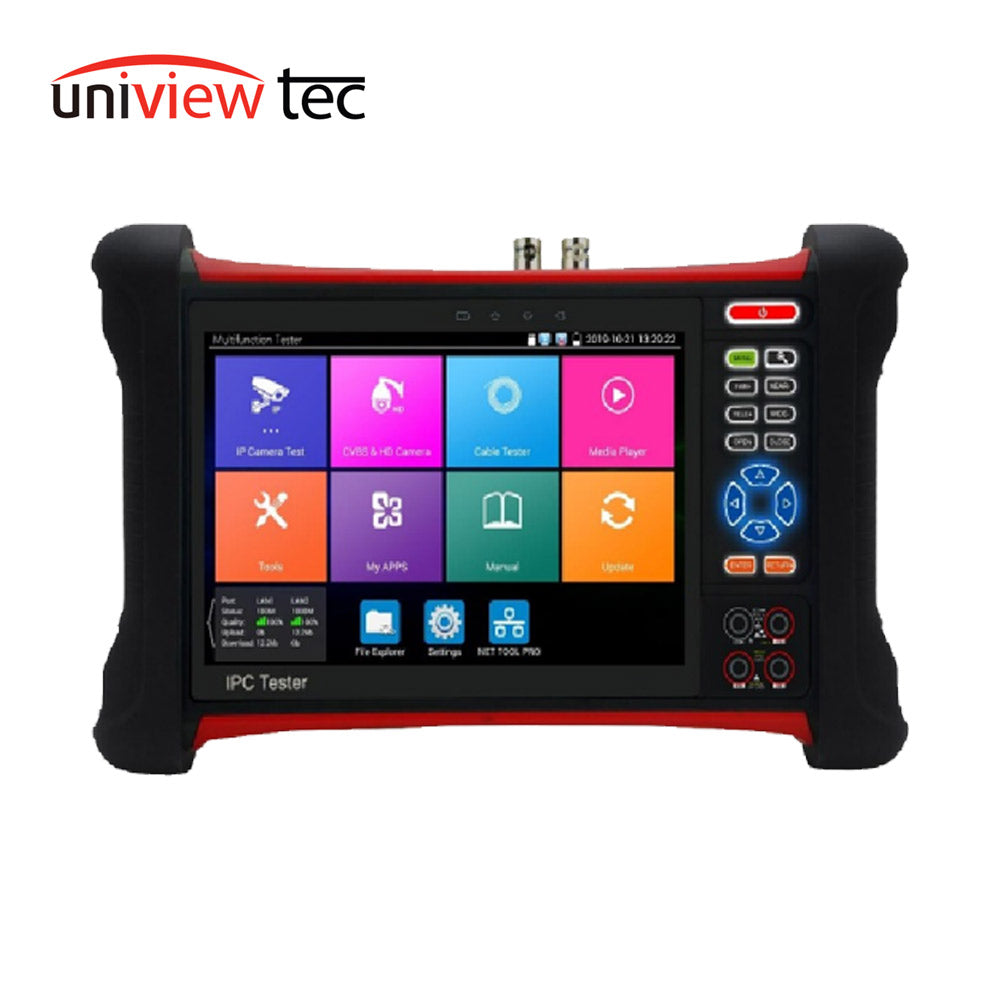

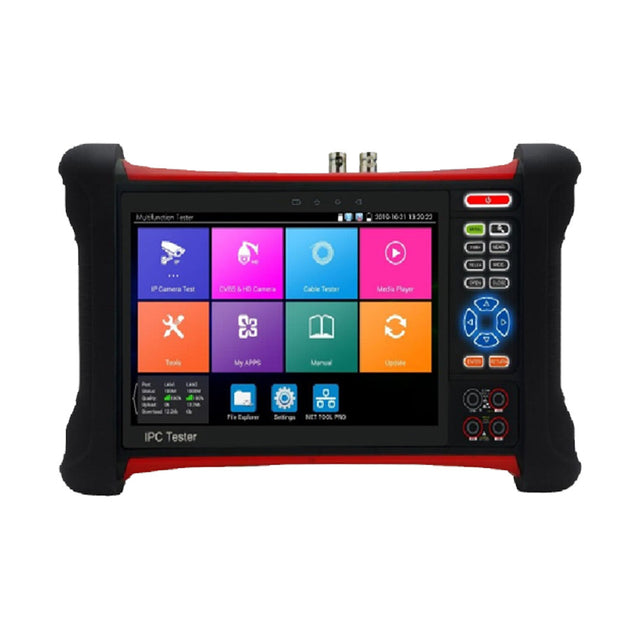

Uniview Tec 4KTESTMON1 Multi-Function Video Test Monitor
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Uniview Tec 4KTESTMON1 Multi-Function Video Test Monitor
Description
Description
Uniview Tec 4KTESTMON1 Multi-Function Video Test Monitor
Features:
- Designed for installation and maintenance of IP and Analog cameras
- Composite video (CVBS, TVI, CVI, AHD) and IP video input support with ONVIF Profile S Compliance
- 7” Touch-Screen, 1920 x 1200 resolution
- H.265/H.264, 8K video display via mainstream
- RJ45 Ethernet cable, video level meter and cable trace test support
- PoE power voltage, PING and IP address searching support
- 4K, 30fps HDMI input and 4K, 60fps, HDMI output
- Support VGA input and Wi-Fi connectivity
- Rechargeable lithium battery and external 12VDC power supply
- Includes Digital Multimeter
Specifications:
Video Test Monitor:
| Monitor | 7” touch screen |
| IP Video | 1 x RJ-45, 10M/100M auto adjust |
| Analog Video |
1 x BNC input: CVBS, TVI, CVI, AHD 1 x BNC output |
| Serial Interface | 1 x RS-485 |
| HDMI | 1 x input and 1 x output |
| VGA | 1 x input |
| PoE | 1 x RJ45, 48V output, maximum 30W |
| Camera Power | 12VDC, 3A output power to camera |
| Audio | 1 x RCA input and 1 x RCA output |
| Micro SD Slot | 8GB card included |
| Power Supply | 12VDC, 2A |
| Battery | 7.6V Lithium polymer battery ,7800mAh |
| Digital Multimeter | DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, support record data and create report |
| Operating Temperature | -10°C ~ + 50°C (4°F ~ 122°F) |
| Operating Humidity | 30% ~ 90% RH |
| Dimensions | 255 x 160 x 46mm (10 × 6.3 × 1.8") |
| Weight | 95kg (2.1lb) |
