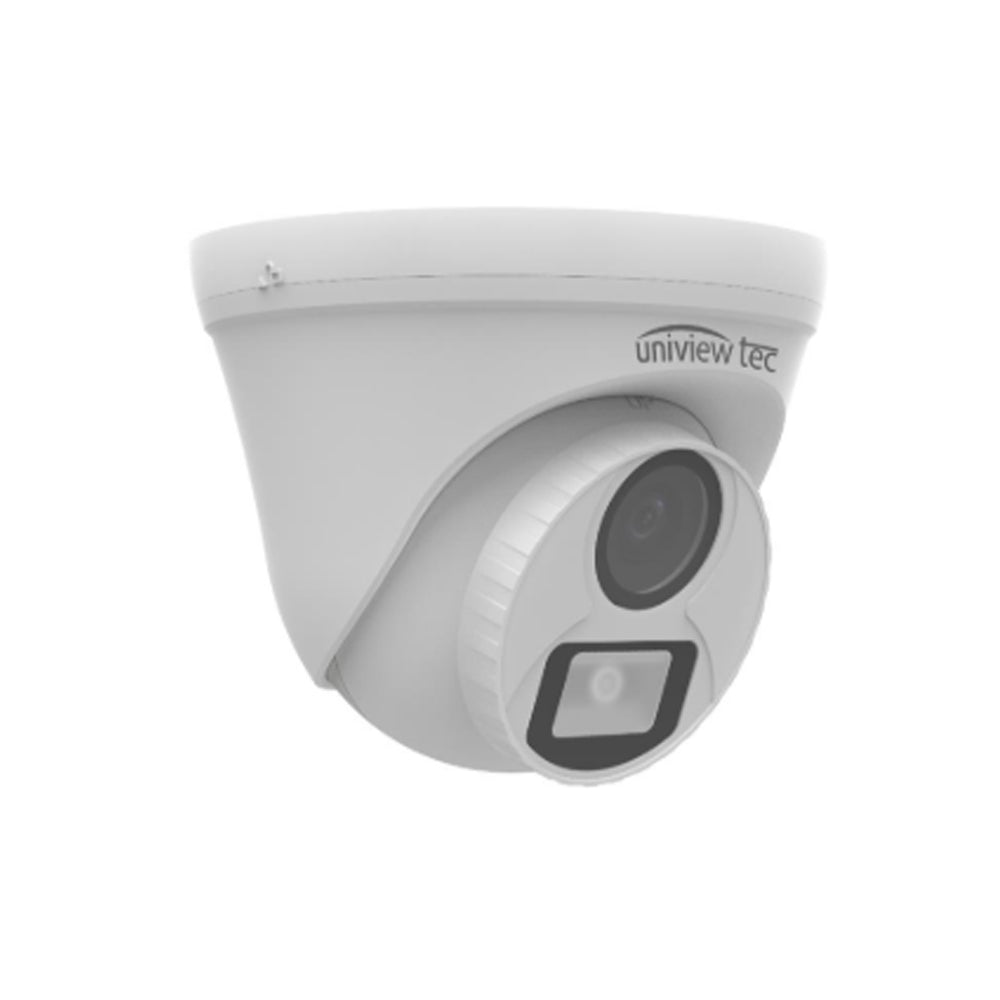

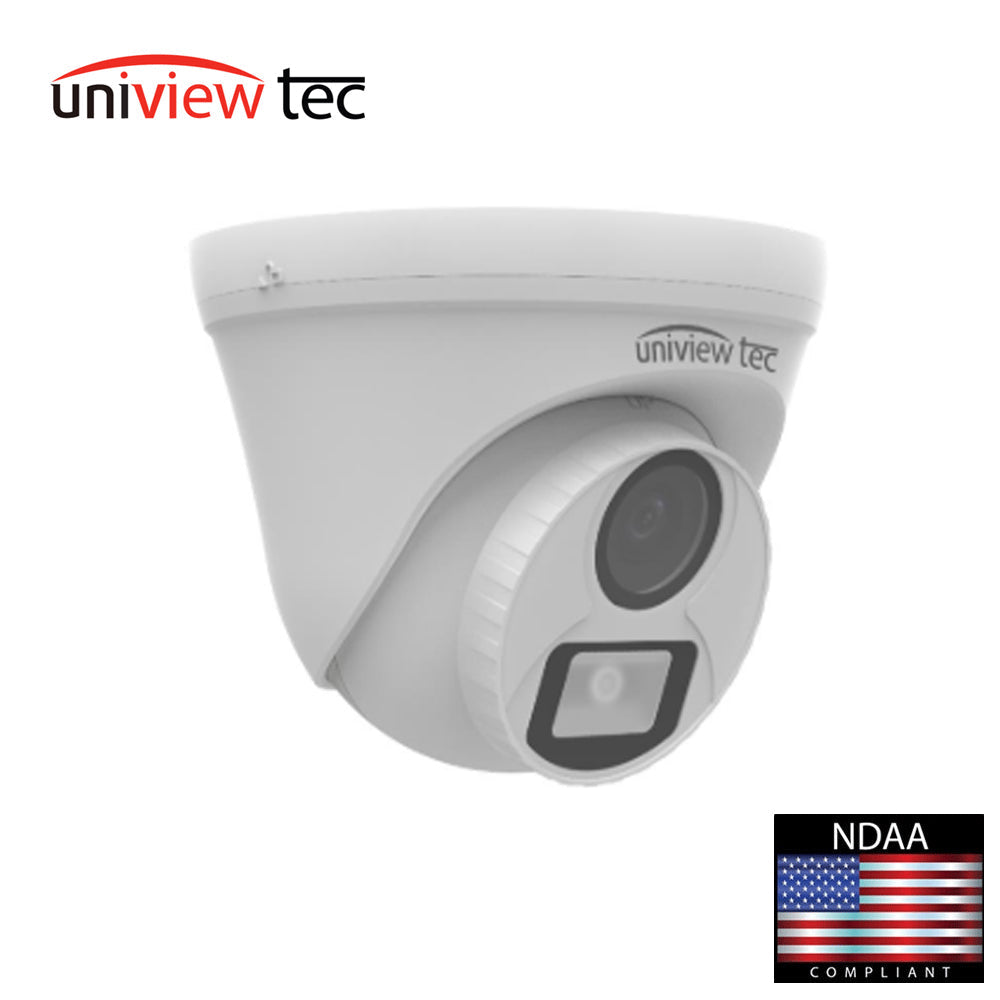

Uniview Tec UHDT5EC28X 5MP DWDR Color Hunter HD Analog Turret Camera
Description
Description
Uniview Tec UHDT5EC28X 5MP DWDR Color Hunter HD Analog Turret Camera
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- High Video Quality with 5MP, 2880 x 1620 Resolution
- High-Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
- TVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVRs for Maximum Stability and Performance
- ColorHunter Technology allows 24/7 Full-Color Imaging with White Light Illumination
- 2.8mm fixed lens
- TRUE Day/Night and DWDR functionality for all Lighting Conditions
- Backlight Compensation and 2D DNR (Digital Noise Reduction)
- Supports 180° horizontal flip, 180° vertical flip
- Easy to Operation On Screen Display (OSD) Configuration Menu
- 12VDC Power Options; IP67 Weather Resistant Housing with Optional Mounts
- Easy to Operation On Screen Display (OSD) Configuration Menu
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Specifications:
| Sensor | |
|---|---|
| Pixel | 5MP |
| Size | 1/2.7" CMOS |
| Minimum illumination | 0.02 lux (F2.0, AGC ON) 0 lux (white light on) |
| Lens | |
| Focal Length | 2.8mm |
| Angle of View (H x V) | 110° x 57° |
| IR Illumination | |
| White Light | One Illuminator; 20M (65ft) |
| Video | |
| Resolution |
5MP @ 25fps: 2880 × 1620; 5MP @ 20fps: 2592 × 1944; 5MP @ 12.5fps: 2592 × 1944 4MP: 2560 × 1440 1080P: 1920 × 1080 |
| Frame rate |
TVI: 5MP @ 20fps, 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps AHD: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps CVBS: PAL, NTSC |
| Shutter time |
PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 full-color imaging |
| Digital noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip. |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI / AHD / CVI / CVBS |
| Operating Environment | |
| Temperature | -30℃ to 60℃ (-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.4W |
| Mount | Surface mount (default); optional junction box and wall mount available |
| Dimensions (Dia x H) | Φ118 x 96mm (4.6 x 3.8”) |
| Material | Plastic |
| Weight | 205g (0.45lb) |
| Certification | CE, FCC |
