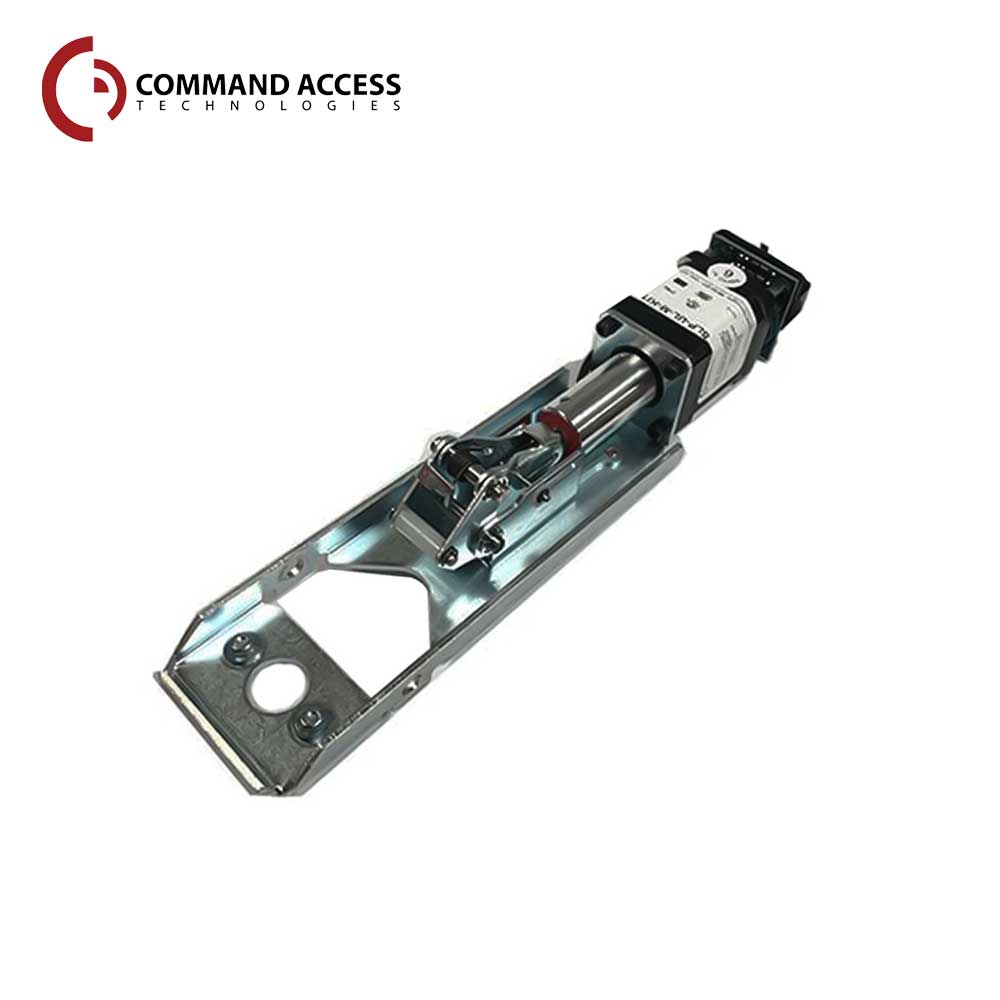

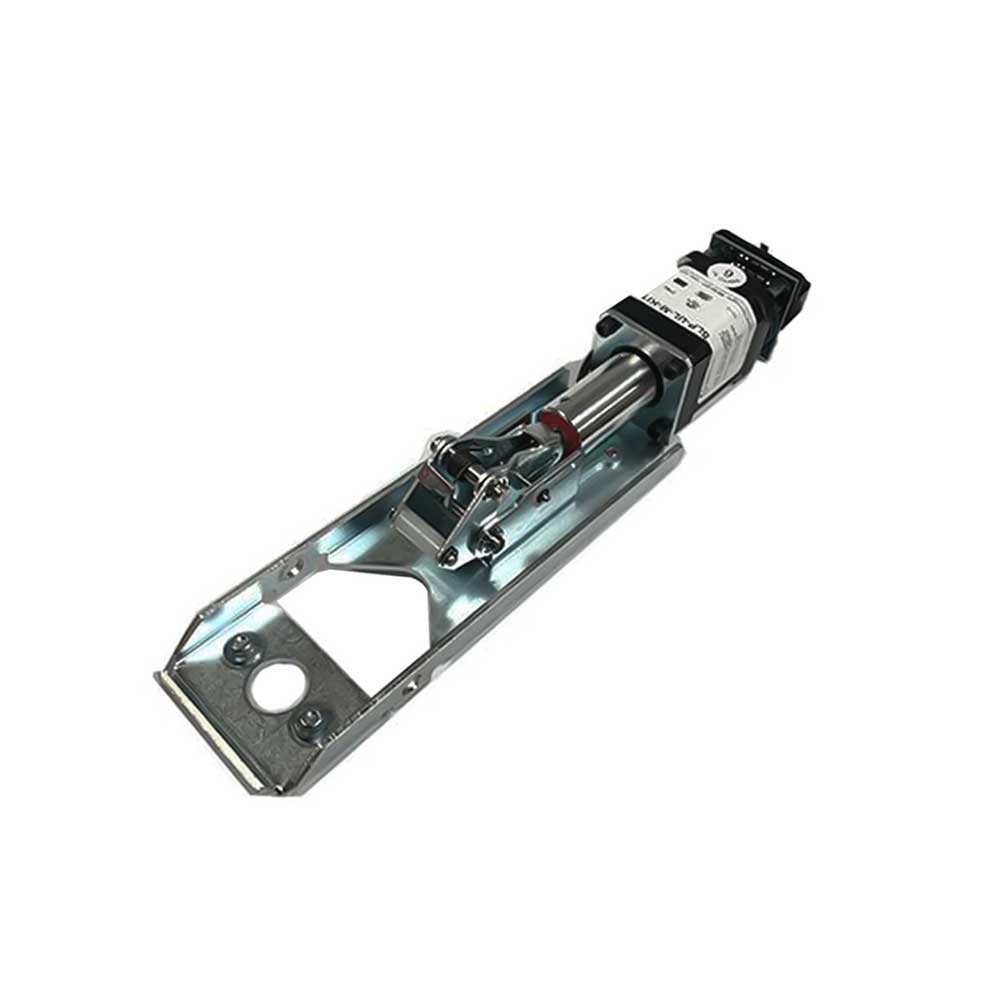

Command Access - MLRK1-SGT - Motorized Latch Retraction Kit for Sargent 80 Series Exit Device
**This is the replacement of MLRK1-CAL.
The MLRK1-SGT is a practical and cost-effective way to convert a mechanical Sargent 80 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post installation adjustment of the latch/latches. Last but not least, the SLP features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!
- “PTS” Push to set technology
- Easy installation - underneath the push pad for ultimate cutdown
- Fast, quiet, smooth
- True Electronic Dogging - Full push pad retraction
- UL Listed
Features:
- MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
- “PTS”: 5 second electronic adjustment for easy post installation adjustment
- Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
- Low Current Draw - Field switchable to “High Torque” mode
- Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
- 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead
- Request-to-exit kit available
- 3-year “no hassle” warranty
Voltage:
- Voltage range – 24 to 25.3 VDC
- System protection – unit shutdown when voltage exceeds 28VDC
- Standard - Average Current Peak: 1.3A, Average Current Hold: 215mA
- High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
- PTS adjustment – approx. 1/4”
Wire Run:
- 300' with 18ga wire
Product Details:
- Weight: 2 Lbs
Device Cutdown Details:
- 36” - All the way to push pad
- 48” - All the way to push pad
Accessories:
- CRSREXKIT-ED - Field Installable REX kit
Sargent Kit:
- Mechanical Device
- CAT Modified Motor
- Sargent Motor (-56)
- SDC Motor (LR100-SGK)
- ACSI Motor (1550-MDS)
Download:
