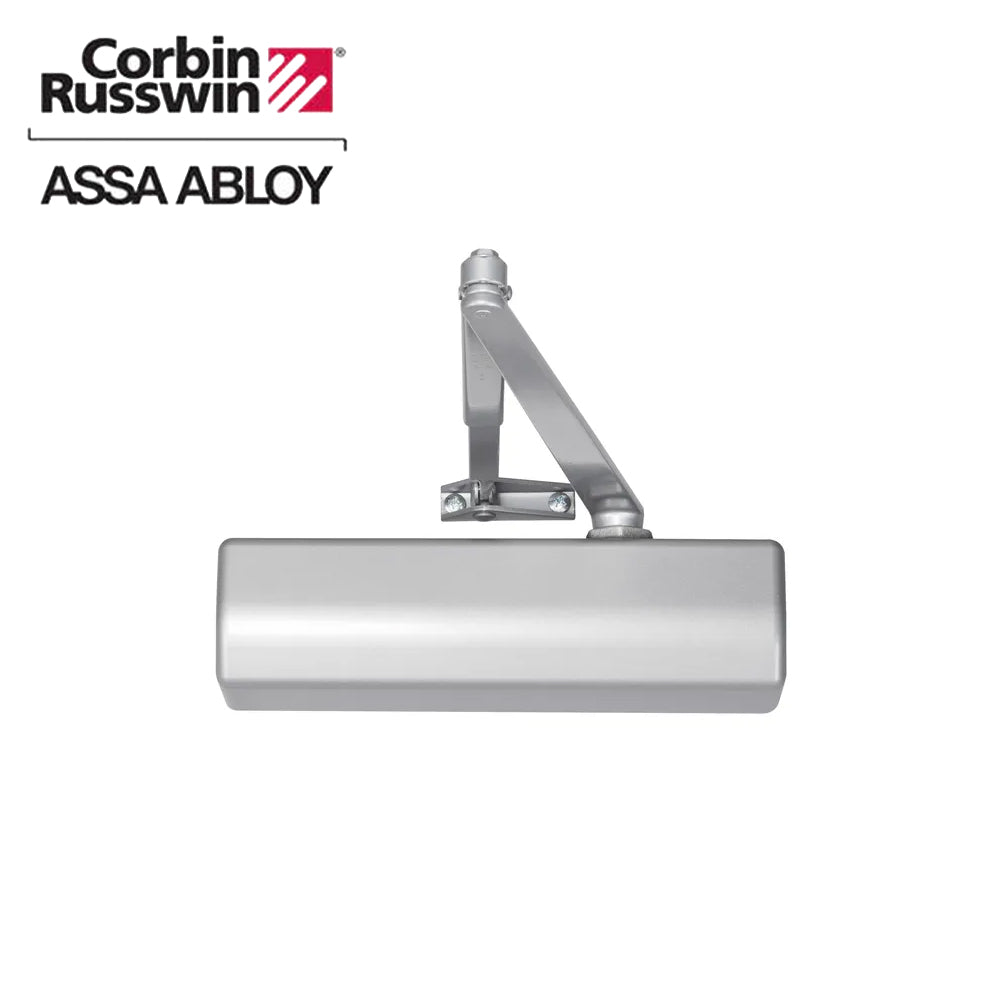

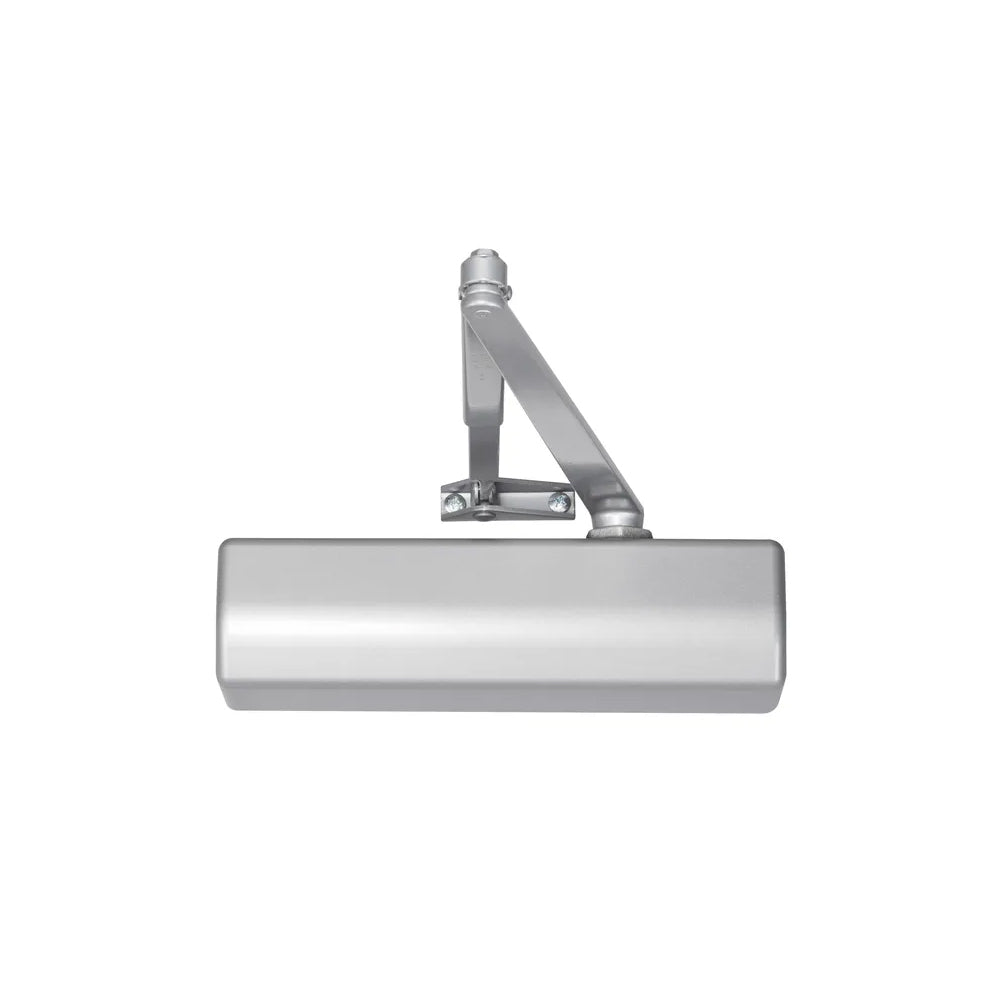

Corbin Russwin Top Jamb Arm Cast Iron Surface Door Closer Silver Aluminum Finish - Grade 1 - 689 (Aluminum Painted)
- Product SKU: CBRN-DC3220-689
-
Order within
and choose FedEx 2Day® Shipping
People also viewed
Corbin Russwin Top Jamb Arm Cast Iron Surface Door Closer Silver Aluminum Finish - Grade 1 - 689 (Aluminum Painted)
DC3000 Series Door Closers ideal for high-traffic situations and has reliable latching for access control and fire code compliance. THE DC3000 Series is a mid-priced, cost-effective choice. Ideal for virtually all door openings and draft conditions in both new construction and renovations, including schools and universities, health care, government, commercial/industrial, office/retail, transportation/utilies, hotels/conference centers, and religious.
The DC3220 series meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements. Top jamb mounting: Accommodates reveals up to 3-1/4" (83mm); Closer is mounted on the push side, with the arm perpendicular to the face of the door; Arm bracket is mounted on the door; Minimum 1-3/4" (44mm) top jamb required.
Features:
- Meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements
- Compliance with building and barrier-free codes
- Up to full 180° door opening
- One-piece seamless steel spring tube seals in hydraulic fluid
- Tapered valves allow precise adjustment
- Cast iron body
- Quik-Install™ mounting bracket speeds installation, reducing cost and errors
- Five-year limited warranty
- UL10C, UBC
- Powder painted arms and retrofit plates
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Corbin Russwin |
| SKU | DC3220 689 M54 |
| UID | COR300DC3220689M54 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | VARIES |
| Limited Warranty | 15 Years |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push Side |
| Mounting Style | Top Jamb |
| Hold Open | No |
| Arm Type | Double Lever Arm Regular |
| Hand | Non-Handed |
| Degree Swing | 180 Deg. |
| Back Check | Adjustable |
| Cover | Full |
| Cement Case | No |
| Screw Type | Self Tapping |
| Through Bolts | Yes |
| Voltage | Mechanical |
| Spacer | Available |
| Bracket | Available |
| Drop Plate | Available |
| Special Rust Inhibitor | No |
| Sealed Closer | Yes |
| Physically Handicapped | Yes |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
