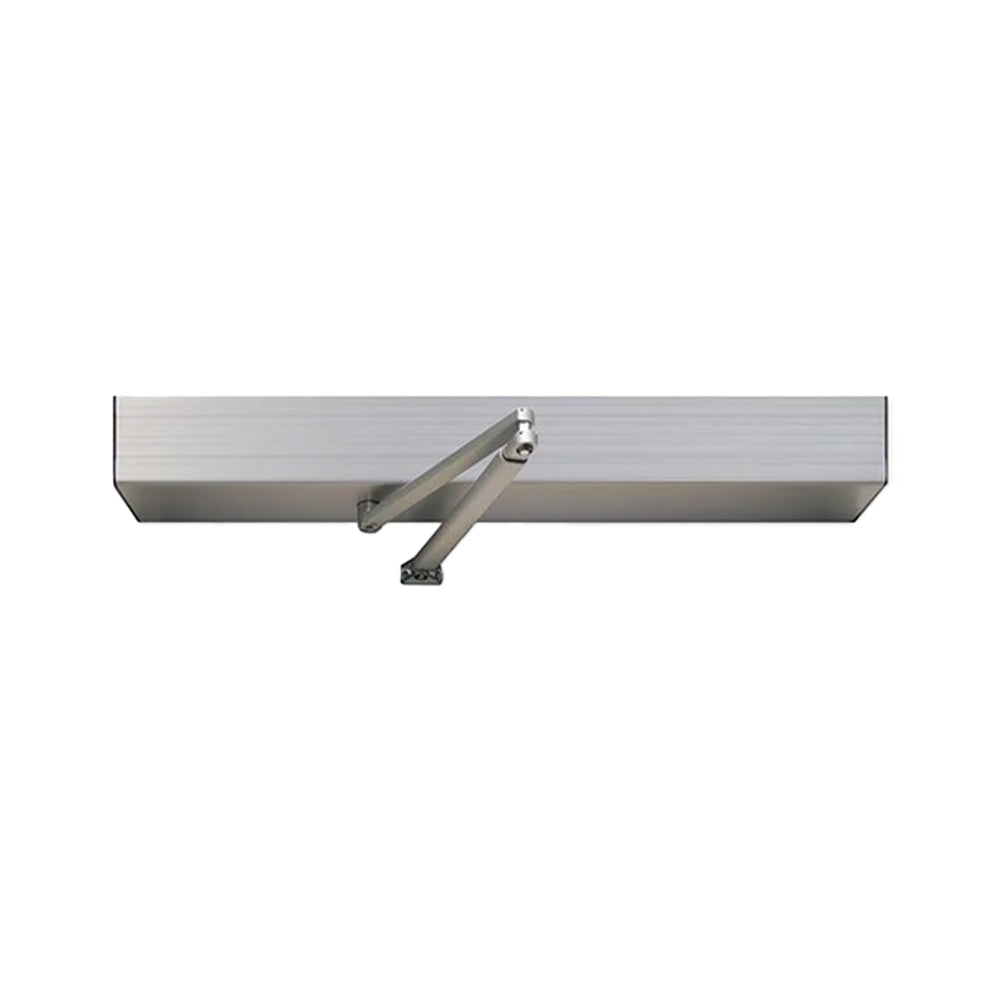

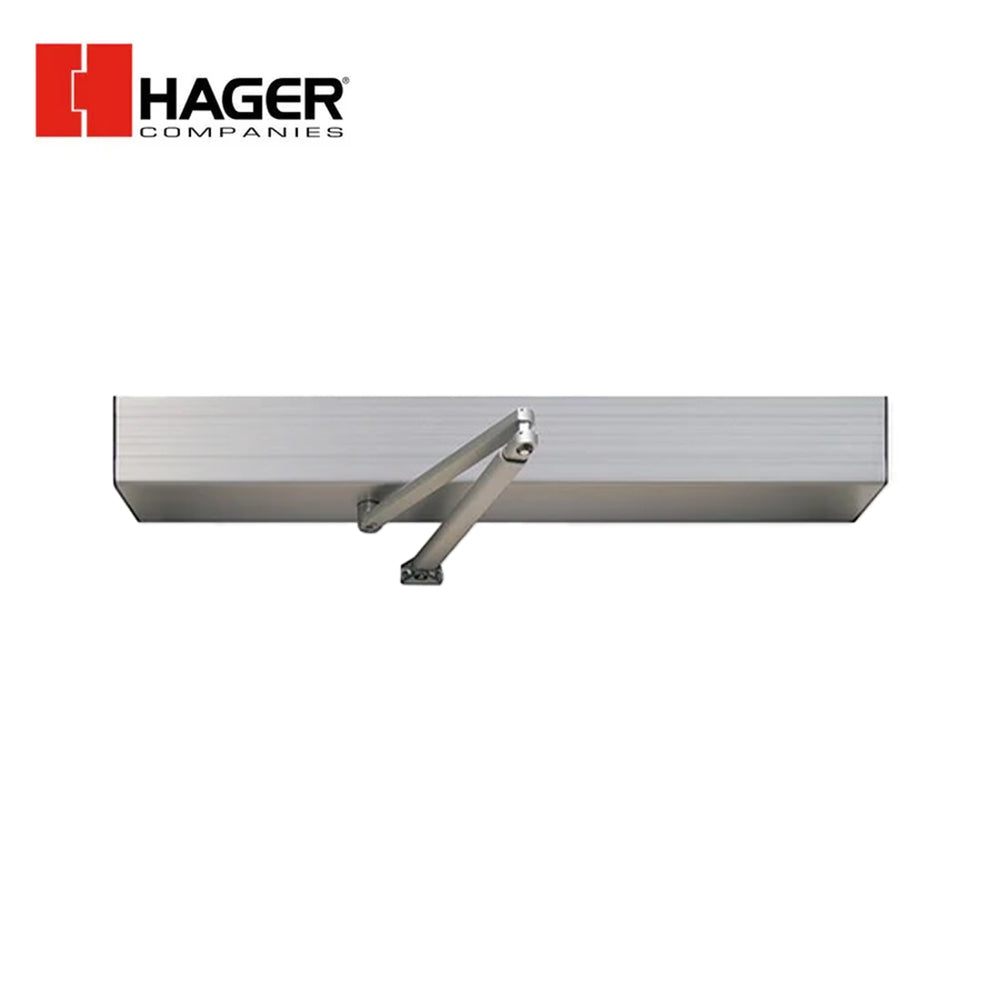

HAGER - 8318 - Low Energy Power Operator for Single Door Opening - Non-Handed - Push Side Mount
As more and more buildings are becoming ADA compliant, more options need to be made available. Hager's low energy operators allow you to do just that without a long list of part numbers to keep track of. Instead, Hager's low energy operators are customizable so that you can meet your customer's requirements and expectations each and every time. The 8300 Series is Hager's most versatile low energy power operator. The 8300 was designed for easy installation and programming, along with quiet operations and features that make it an ideal choice for ADA openings.
Features:
- Non-Handed
- Three Operating Modes (On/Off/Hold Open). 8319: switch is shared between both
doors on independent configurations. - Designed for doors up to 48" wide (1219 mm) single, 96" wide (2438 mm) double
- Designed for doors up to 350 lbs. (125 Kg)
- Power Open Spring Close
- Microprocessor controlled for ultra-flat reactions
- ANSI A156.19 compliant
- Complies with all U.S. and Canadian ADA requirements for low energy operators
- Appropriate door signage included with each operator
- ANSI/UL 325 listed for both United States and Canada
- ADA compliant
- UL/cUL Listed for up to 3-hours
- UL10C Listed for Positive Pressure Rating
Specifications:
| Power Requirements: | 115 VAC 60 HZ |
| Current Draw: | 0.4 A to 1.2 A (Max) |
| Onboard Power Supply: | 24 VDC 1 A |
| Electric Lock Relay Type: | Form "C" SPDT |
| Lock Relay Rating: | 5.0A @ 28 VDC |
| Fused Protection: | 3.5A Fuse |
| Dimensions: | 5" x 4-1/2" x Door Opening Width + 3" |
| Reveal: | Push Arm: 9-3/4" |
| Opening Force: | < 15 lbs. - Exceeds all ADA Requirements |
| Closing Force: | > 8 lbs |
| Max Degree of Swing: | Powered - 180° (push) |
| On/Off/Hold Open Switch: | Standard |
| On/Off Power Switch: | Standard |
| Swing Direction: | Inswing/Outswing |
| Operating Temperature: | -4°F to +131°F |
| Enclosure Protection: | NEMA 3R (IP23) Protection against spray water (i.e. rainstorm) |
| Adjustable Opening/Closing Speeds: | Yes, Exceeds all ADA Requirements |
| Adjustable Swing Degree: | 80° to 140° |
| Adjustable Latch Check Speed: | Yes |
| Built-in-Stop: | Manual swing to 180° / Power swing to 140° (pull), 180° (push) |
| Hold Open Time: | 5 Second Minimum (per ADA) |
| Fire Alarm Input: | FA input shuts swing activations until FACP is manually reset |
| Obstruction Stop: | Unit will stop cycle if an obstacle is detected in the swing path |
| Auto Reverse: | If the unit detects an obstacle, the door will travel in the opposite path |
| Push to Start ("Push 'n Go"): | Yes * Safety Sensors required |
