SDC - AUTOS136V - Low Energy Swing Door Operator with Push Side Top...
Description
Description

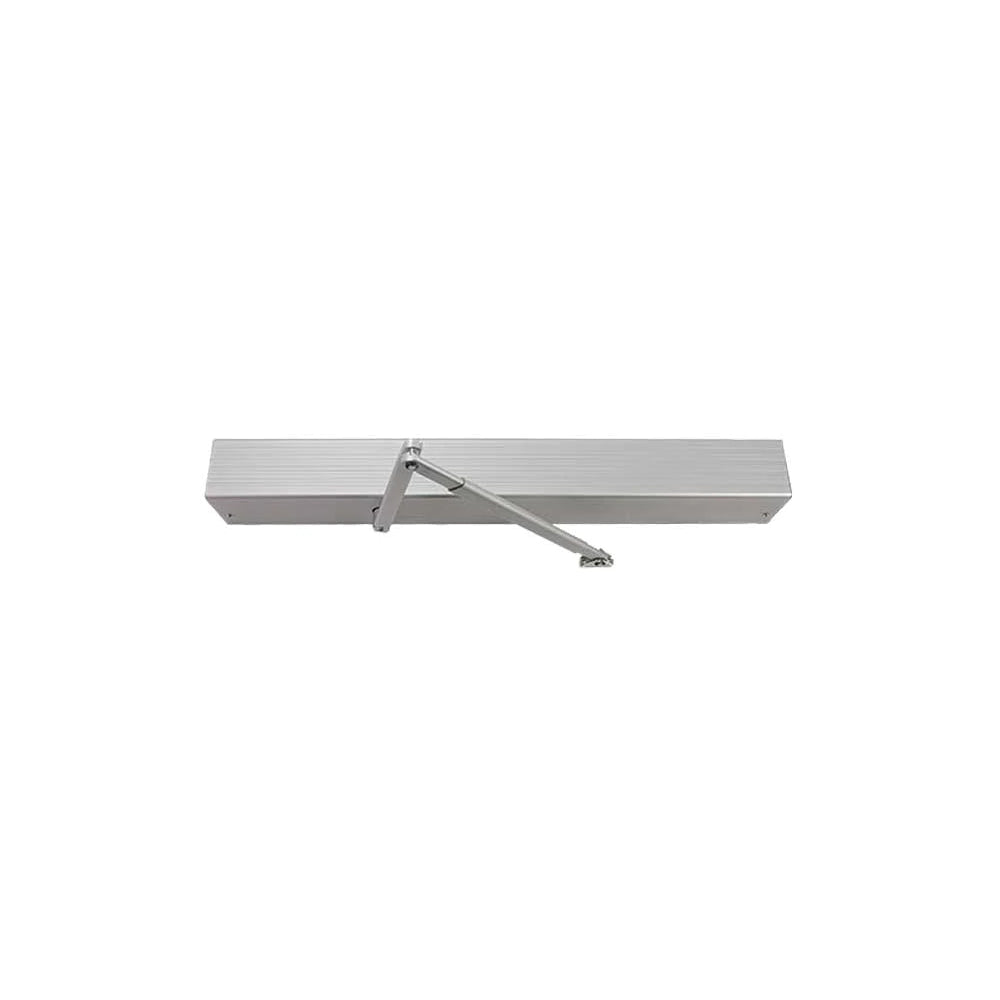

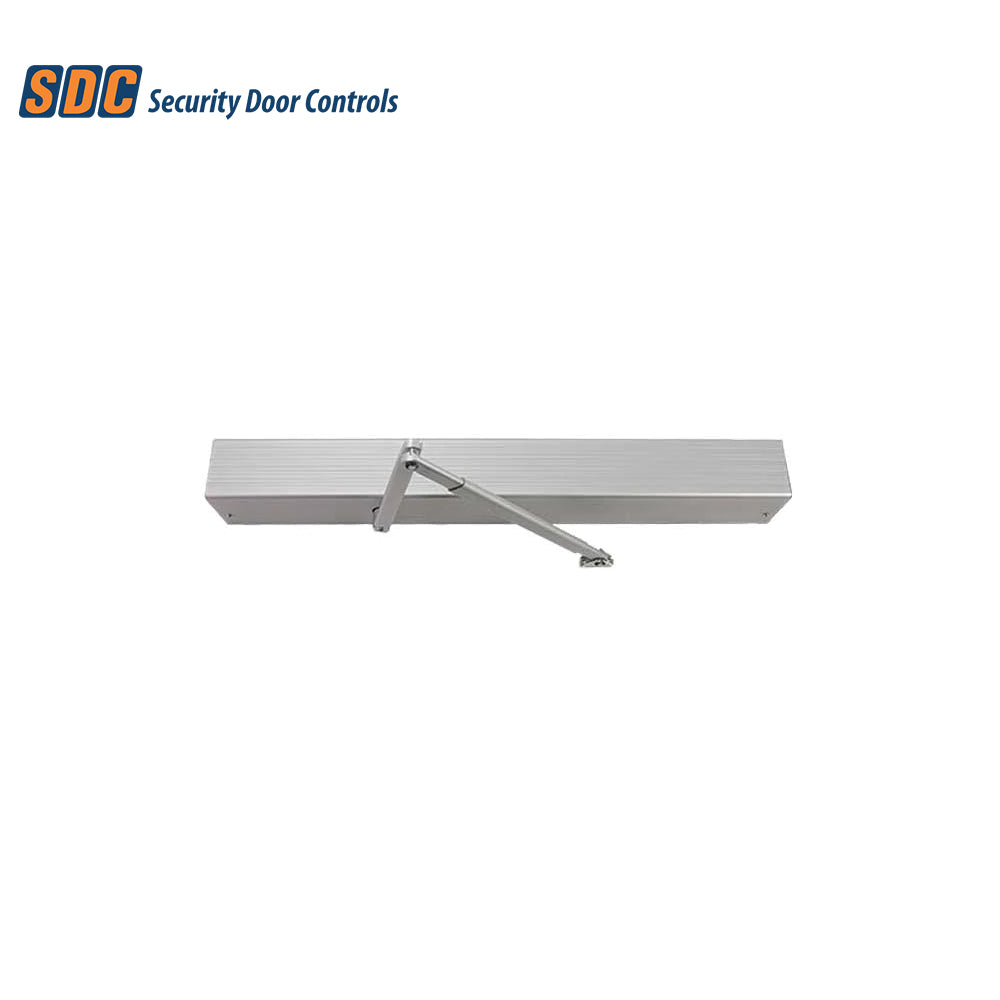

SDC - AUTOS136V - Low Energy Swing Door Operator with Push Side Top Jamb Mount - 36" Opening - Satin Aluminum Clear Anodized Finish
AUTO Series Low Energy Swing Door Operators. Low Energy Swing Door Operators providing the newest and most convenient features to gain safe access for ADA applications. SDC’s Operator is built with a state-of-the-art microprocessor-based unit that is self-tuning and self-learning while offering non- handed operation, full-mechanical stops and a variety of interface options for sensors, push-plates, fire alarms and electrified locks.
Features:
- Single Button, Self-Tuning Setup
- Exremely Quiet Operation
- Momentary Back Pressure Relief
- Obstruction Detection
- Power Close Option
- Hold-Open Timer
- External Function Switches
- Built-in 1 Amp Power Supply
- On-board Lock Sequencing
- Preset Dip Switches for Alternative Functions
- Customizable Programming for System Design
- USB Port to Easily Upload Customized Programming
- Non-Handed
- Push or Pull Compatible
- Spindles Included
- High Traffic Use
Product Specifications:
| Manufacturer | SDC |
| SKU | AUTOS136V |
| UID | SDCAUTOS136V |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL324, UL10C |
| ANSI Number | A146.19 |
| BAA Qualified | Yes |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specifications:
| Type | Surface |
| Technology | Electromechanical |
| Mounting Location | Push Side |
| Mounting Style | Top Jamb |
| Hold Open | Yes |
| Hold Open Type | Electric |
| Closer Size | Non-Sized |
| Arm Type | Double Lever Arm Regular |
| Hand | Non-Handed |
| Degree Swing | 130 Deg. |
| Stop | Dead Stop |
| Back Check | Adjustable |
| Spindle Size | 34mm |
| Cover | Full |
| Screw Type | Machine and Wood |
| Through Bolts | Yes |
| Door Size | 36" |
| Door Weight | 438 |
| Reveal Size | 8" Max |
| Voltage | 24V |
| Aux Power | 1A, 100W |
| Relay | NO/NC |
| Physically Handicapped | Yes |
| Product Type | Door Operators |
