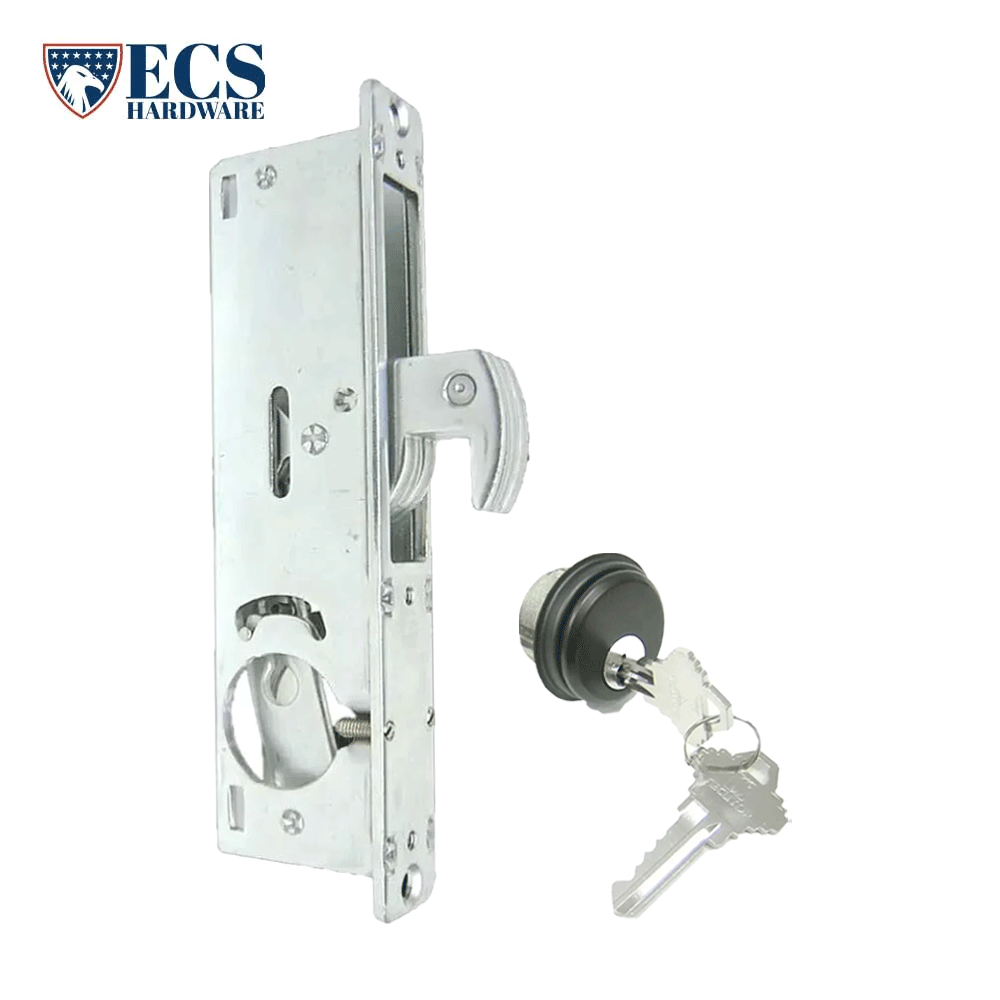

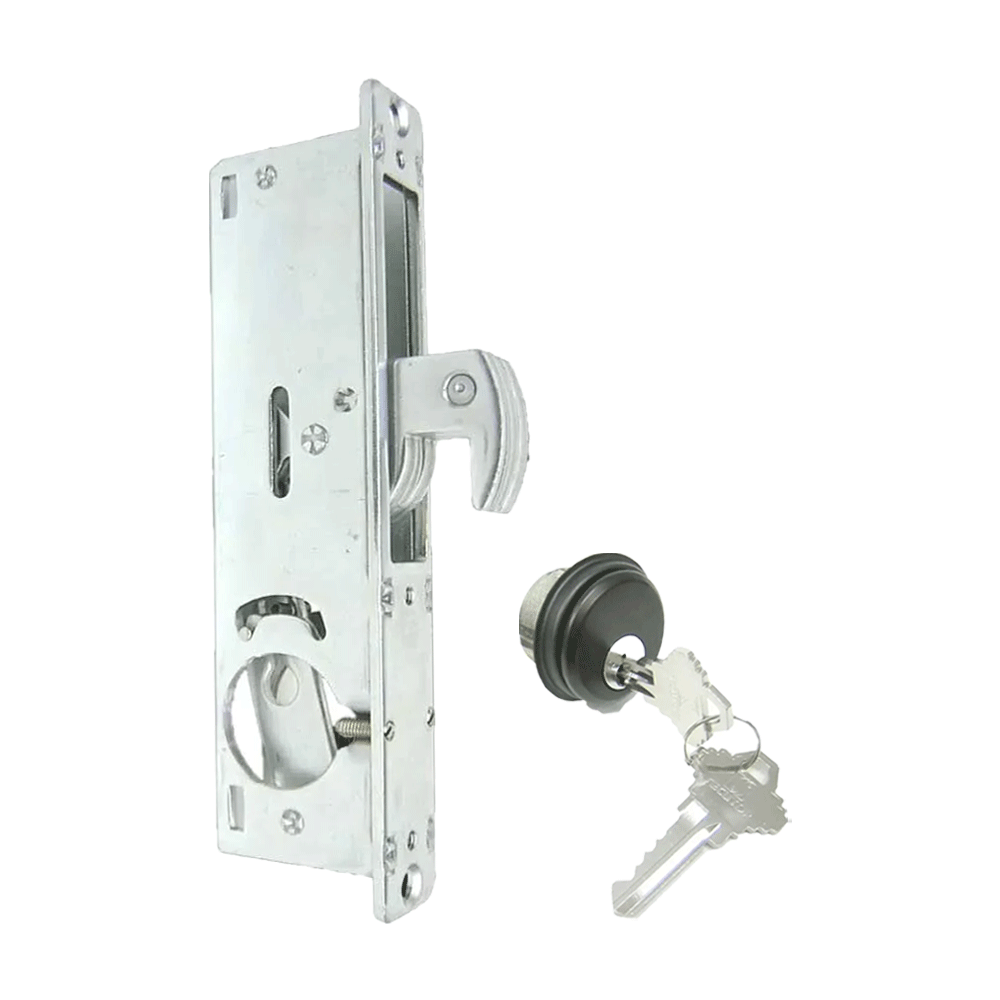

ECS HARDWARE - Zinc Plated Laminated Steel Lock Body 1-1/8" Backset with 2 Aluminum Faceplate and 1-5/32” Diameter Anodized Bronze Zinc Mortise Cylinder SC1 Keyway with 2 Brass Keys
Includes:
ECS HARDWARE - Narrow-Stile - 1-1/8" BACKSET, Hook Bolt Lock Zinc Plated 5 ply Laminated Steel Bolt, with 2 Aluminum Faceplates
Description:
This Premium Narrow-Stile Hook Bolt Lock Body offers a flexible solution for traffic control. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise cylinders.
Features:
- Invisible Lock Mechanical Aluminum Frame Door Hookbolt Mortise Lock
- Designed for aluminum or steel entrance doors
- Backset: 7/8", 31/32", 1-1/8", 1-1/2" available
- Accepts 1-5/32" mortise cylinder or thumb-turn from either or both sides
- Lock case: 1" x 5-13/16" x depth (case depth varies with backset)
- Hook Bolt made of 5 ply laminated steel bolt with concealed hardened steel pin provides maximum security for any single leaf door or a typical installation where gap between door and jamb is greater than it should be
- All parts are zinc plated for protection against corrosion
- Hook Bolt hardened to resist hacksaw attack
- For commercial, Industrial, and Institutional buildings
- Faceplate available: Flat, Radius, Revel, or Radius with weather strip
ECS HARDWARE - ZINC Mortise Cylinder- 1-5/32” Diameter, 1” Length, Anodized Bronze SC1 keyway with 2 brass keys
Description:
Premium Zinc Mortise Cylinders are machined engineered and manufactured to OEM specifications. Re-keyable to original manufacturers systems. The broad selection of models and components within our line provides you with the flexibility to cover numerous applications at a reasonable cost.
Specifications:
| Size | 1" (25.4 mm) 1-5/32"(29.37 mm)in. Dia. |
| Material | High Durability Zinc |
| Cylinder | 5-Pin Keyed, Pre-Drilled to Accept 6-Pin |
| Keyway | Available in Schlage SC1 |
| Keys | Includes 2 Brass Keys for each Cylinder - 4 Keys Total |
| Cams | Includes - AR - AdamsRite Cam |
| Finish | Clear Coat Aluminum Duranodic |
| Keying | Keyed Alike in Pairs KA2 |
| Package | Contains 2 Cylinders |
