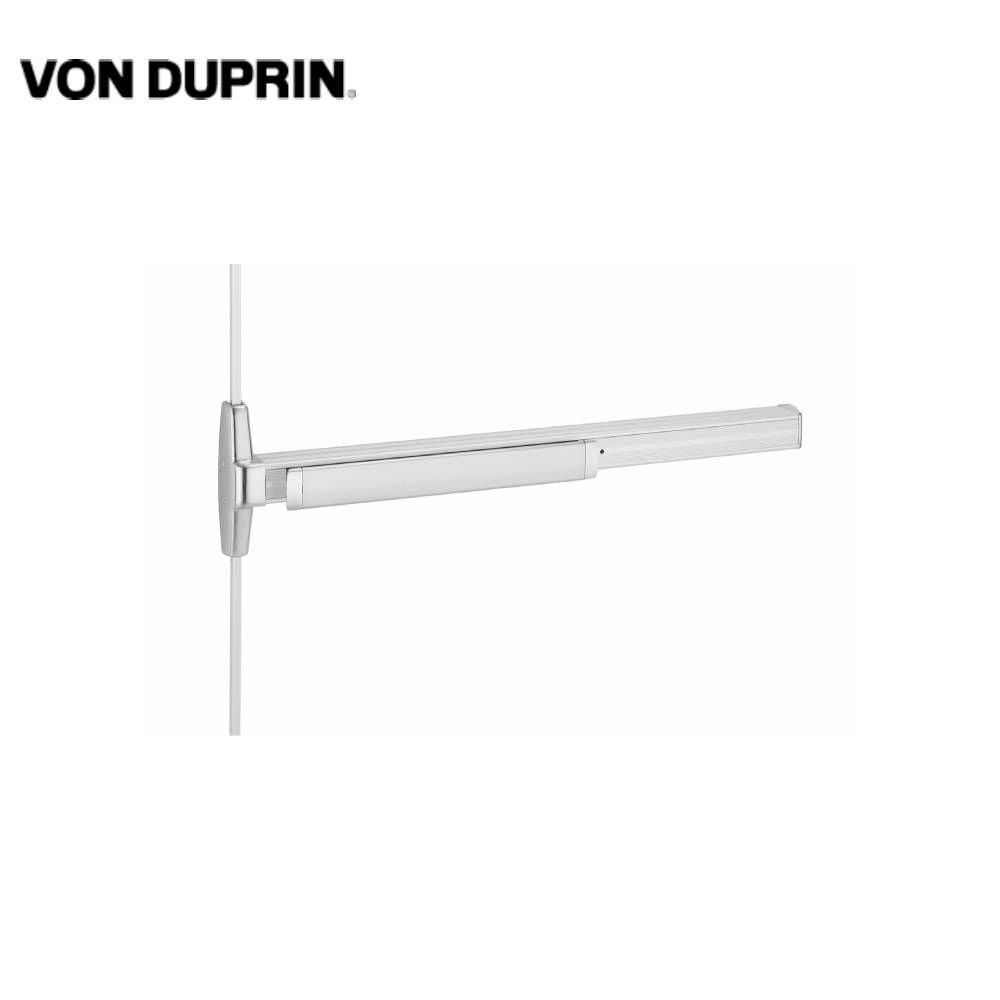

Von Duprin - CD3547A-EO - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - 36 - Exit Only - Less Trim - Satin Chrome Finish - Grade 1
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Description
Description
Von Duprin - CD3547A-EO - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - 36" - Exit Only - Less Trim - Satin Chrome Finish - Grade 1
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. /3547A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm). Newly designed device has a one piece center case cover
Features:
- Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
- Device centerline from finished floor: 39 13/16" (1006mm)
- Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top bottom bolt 5 /8" (16mm) throw
- Door undercut: 1 /4" (7mm)
- Top bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm
- Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)
- Fasteners and sex bolts (SBN) Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | CD3547AEO 3 26D |
| UID | VON100CD3547AEO326D |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| UL Listing Type | UL Listed |
| ANSI Number | A156.3 2008 |
Technical Specifications:
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Concealed Vertical Rod |
| Mechanical Function | Exit Only |
| Device Length | 36" |
| Hand | Non-Handed |
| Dogging Options | Cylinder Dogging |
| Top Strike | 338 |
| Strike Bottom | 385A |
| Trim Type | Less Trim |
| Minimum Stile Size | 2-1/8" |
| Door Material | Hollow Metal |
| Door Width | 28" to 36" |
| Door Height | 100" |
| Door Thickness | 1-3/4" |
| Reversible | Yes |
| Product Type | Concealed Vertical Rod Exit Devices |
