Global Door Controls - CPS Series - Full Mortise Spring Hinge
Description
Description

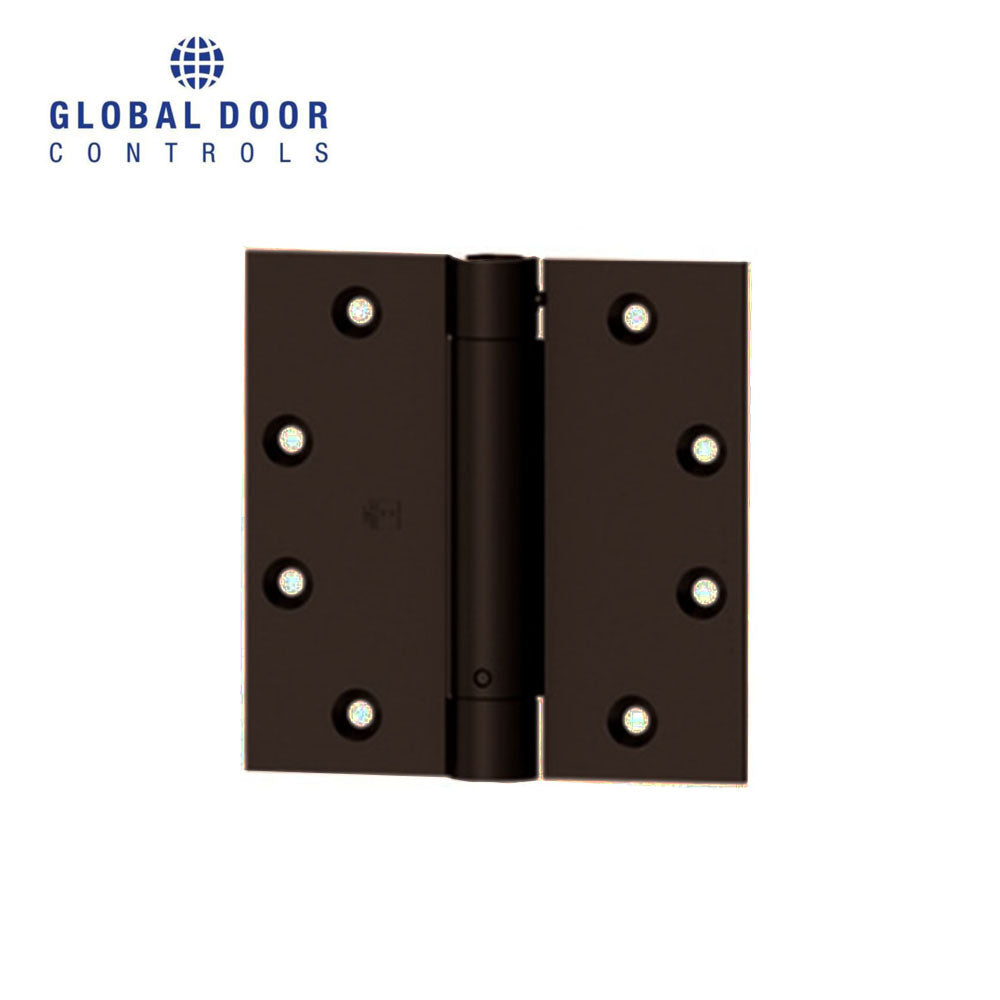

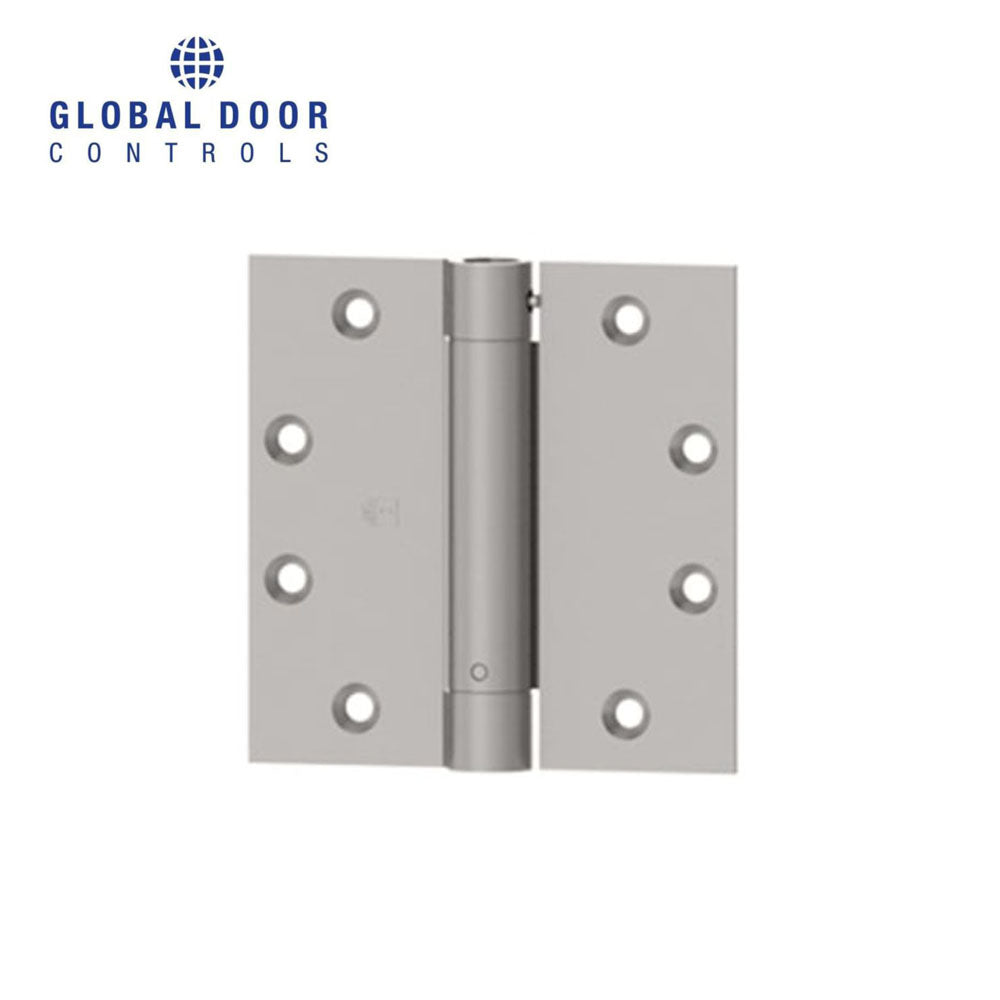

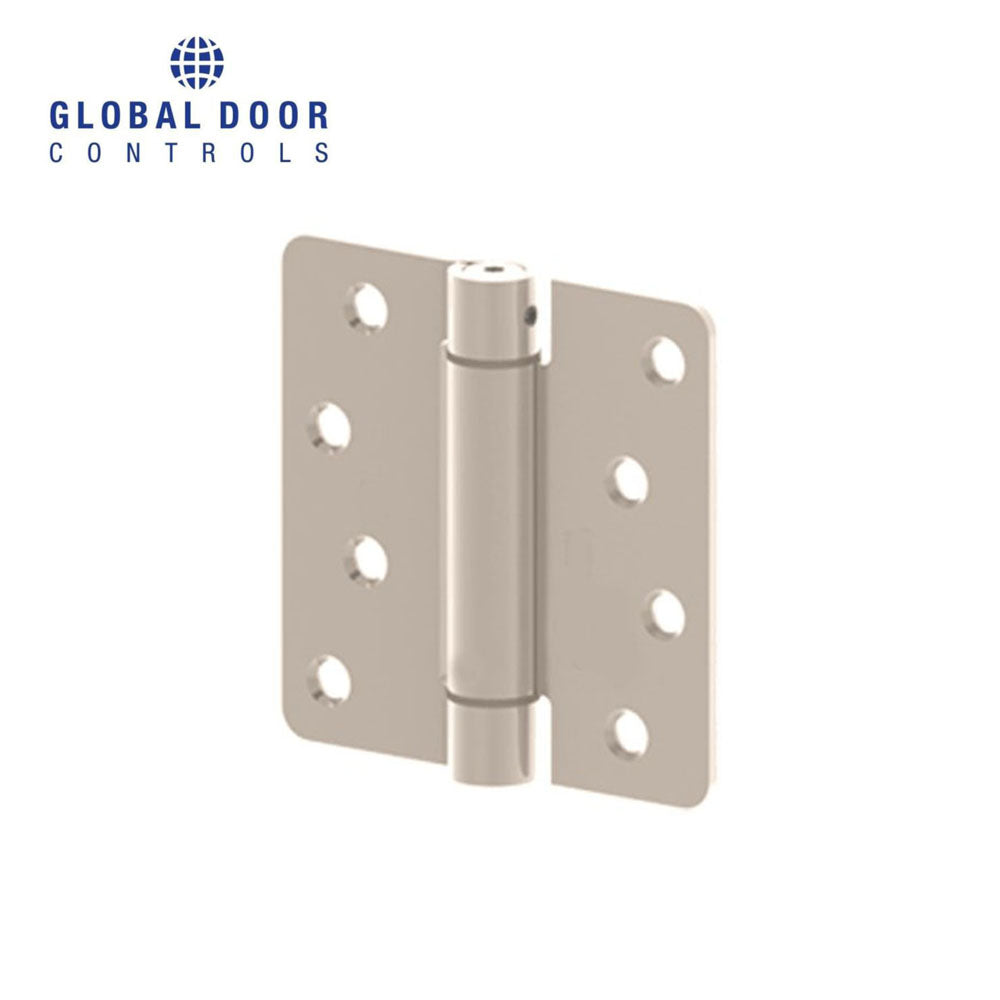

Global Door Controls - CPS Series - Full Mortise Spring Hinge
The CPS series full mortise single acting spring hinge is recommended for use where automatic self closing of a door is required. This three knuckle hinge is adjustable and the spring tension can be increased or decreased by using adjusting tool included. For maximum versatility use three spring hinges on required opening. Full spring tension may not be required on all hinges but allows for greater adjustment.
Fetures:
- UL listed for “A” label fire doors
- Steel base material
- Square and 5/8“ radius corner available
- Template screw hole locations
- Conforms to ANSI / BHMA - K81071F for self closing hinges
- Meets NFPA 80 for 3 hour fire rating
Specifications:
| Band | Global Door Controls |
| Type | Full Mortise Spring |
| Thickness | 2.5mm |
| Bearing | Plain |
| Size | 3.5"X3.5" 4"X4" 4.5"X4" 4.5"X4.5" |
| Colors | Brushed Chrome-US26D Primed for Painting-600 Polished Brass-US3 Satin Clear Coated-US4 Satin Nickel-US15 Oil Rubbed Bronze-US10B Bright Chrome-625 Flat Black Coated-US19 |
