Global Door Controls - THY Series - Continuous Hinge
Description
Description
Global Door Controls - THY Series - Continuous Hinge

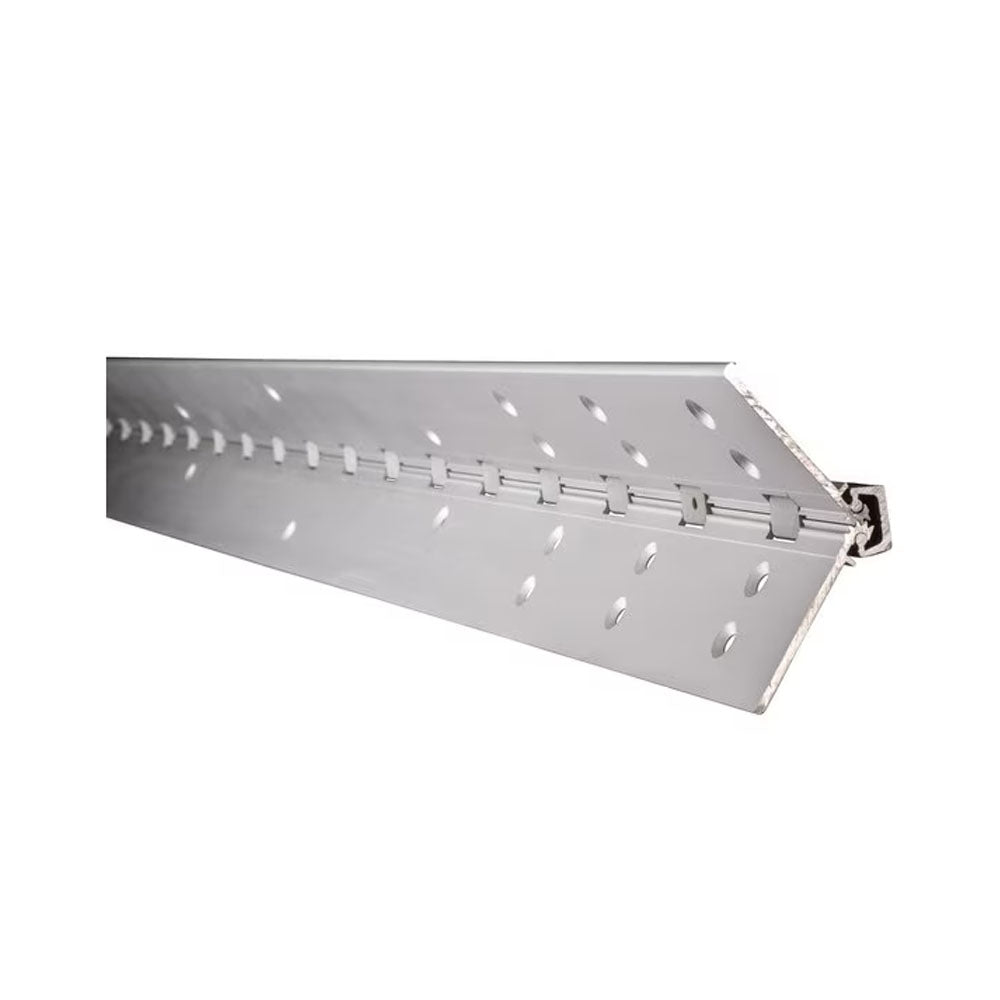

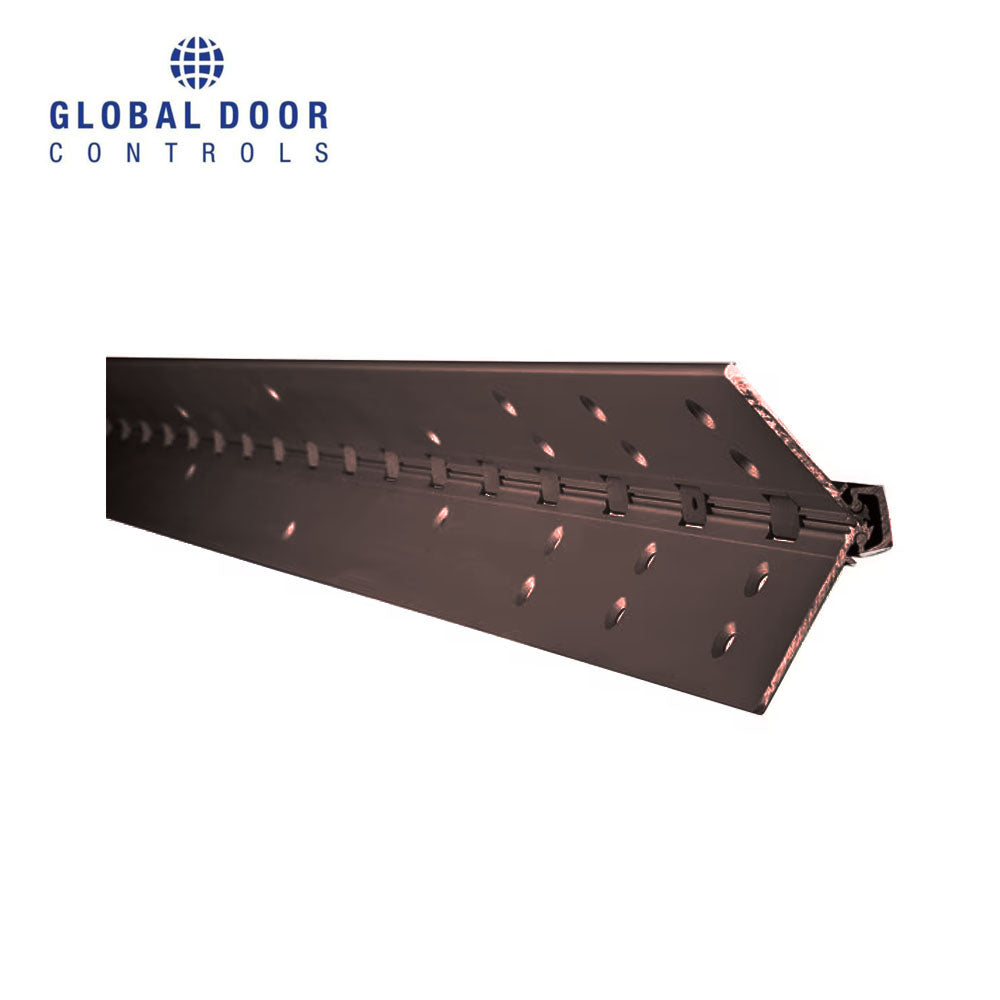

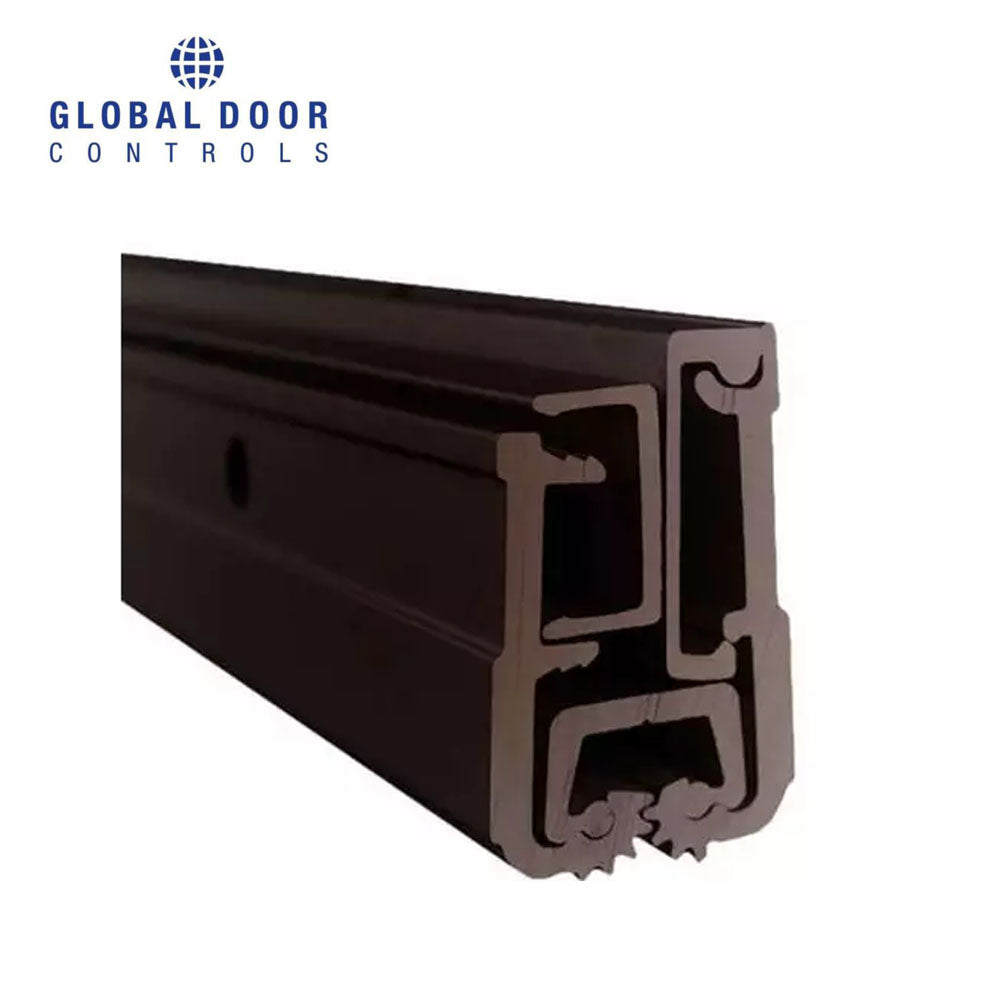

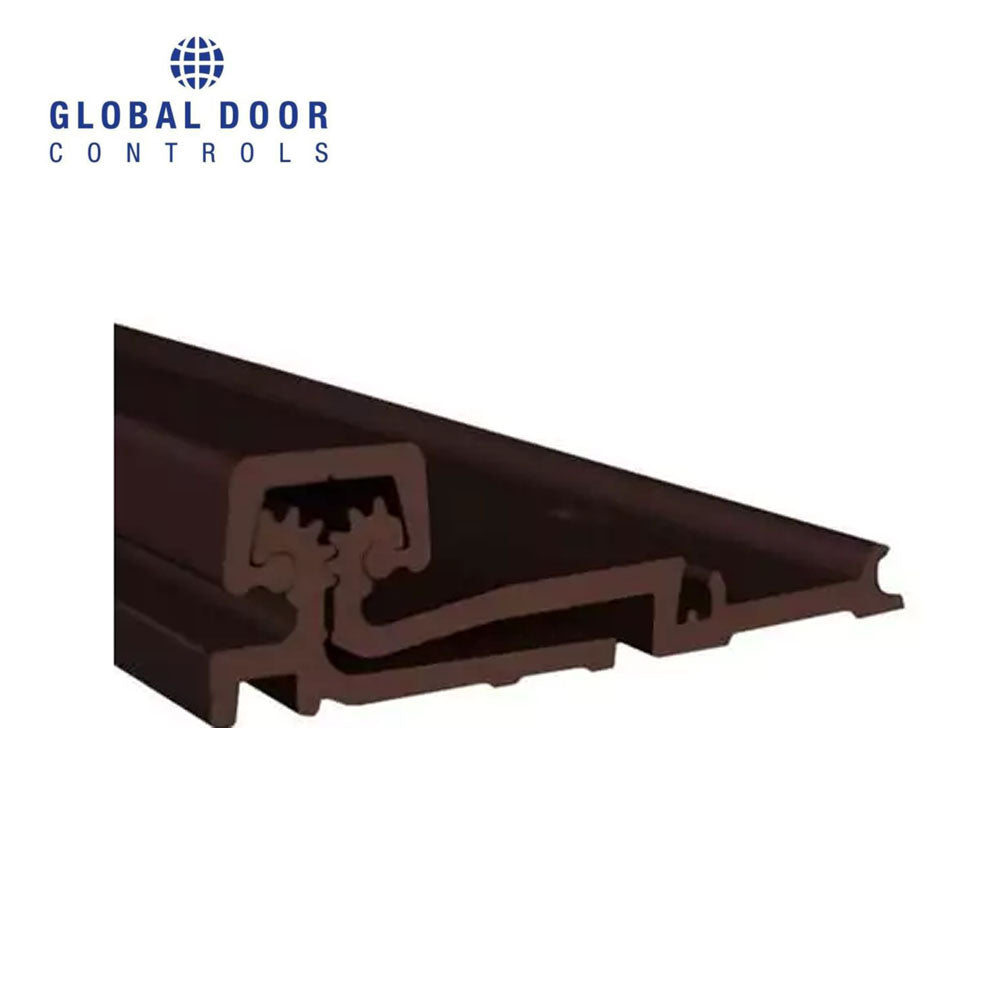

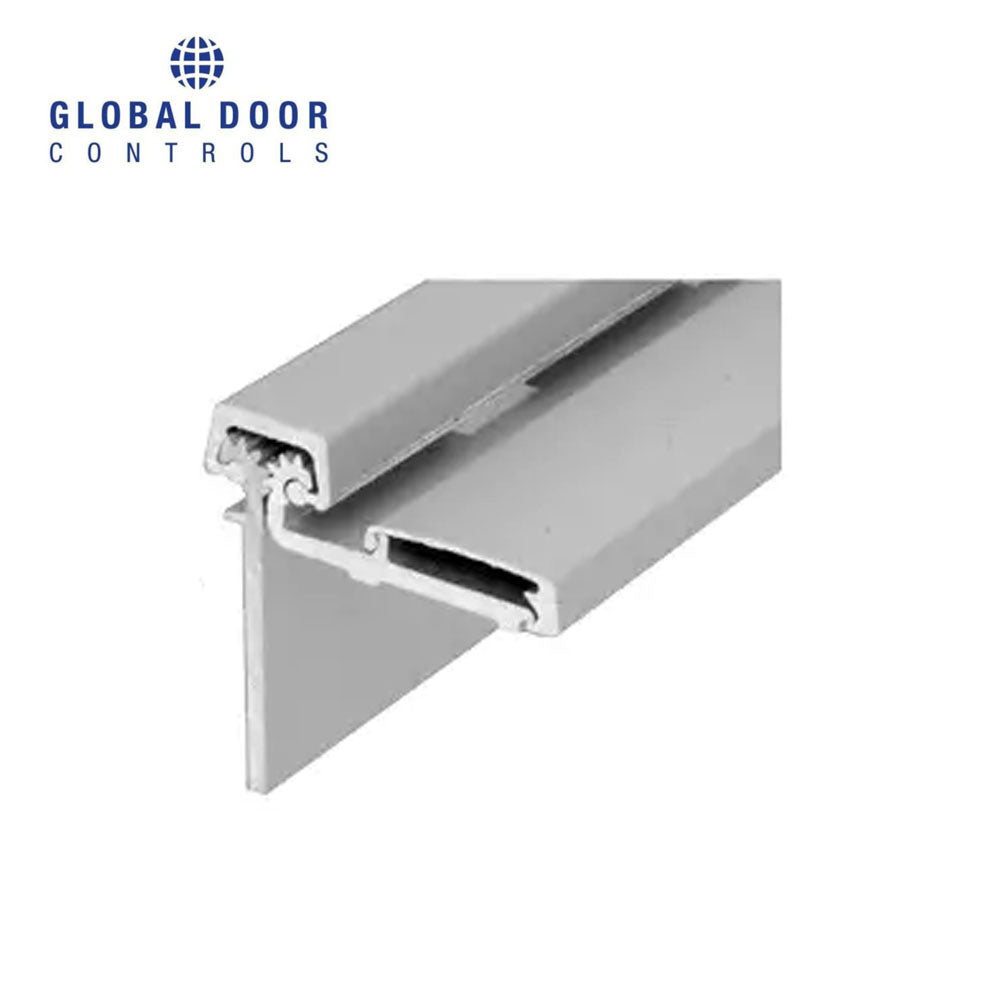

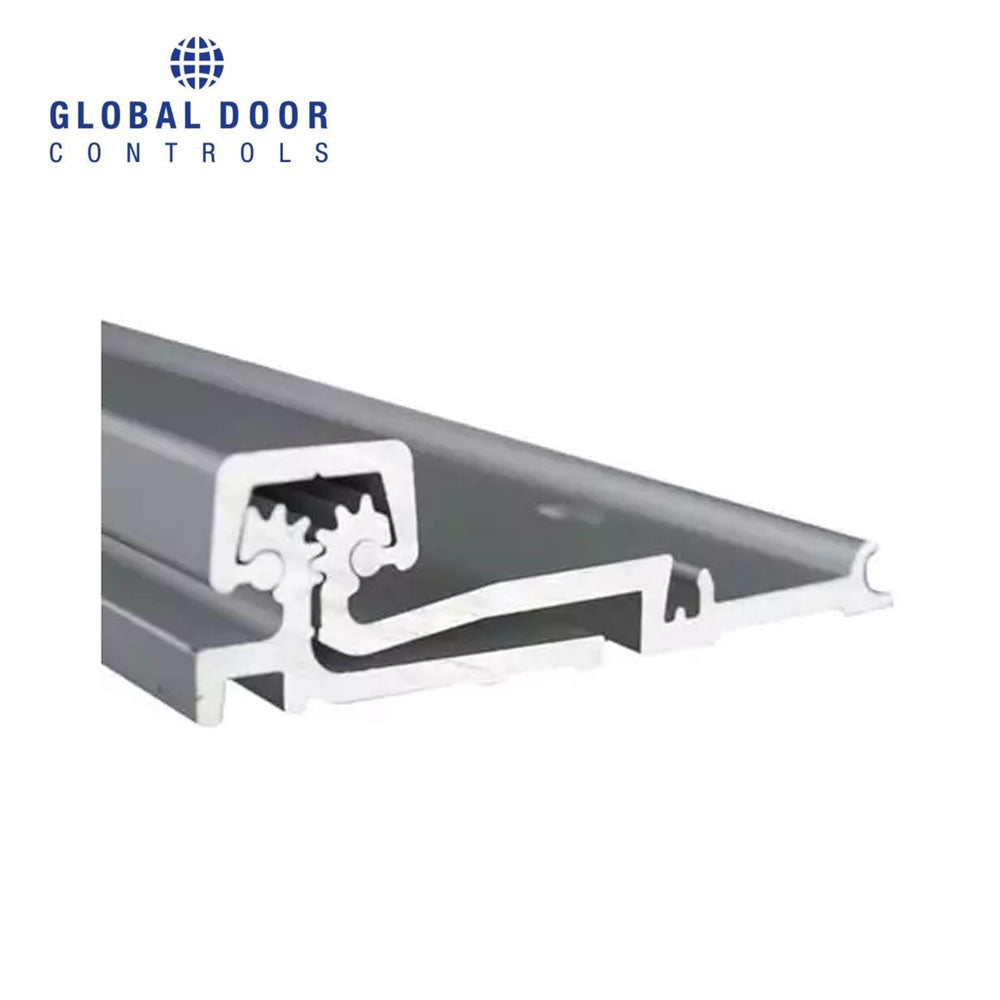

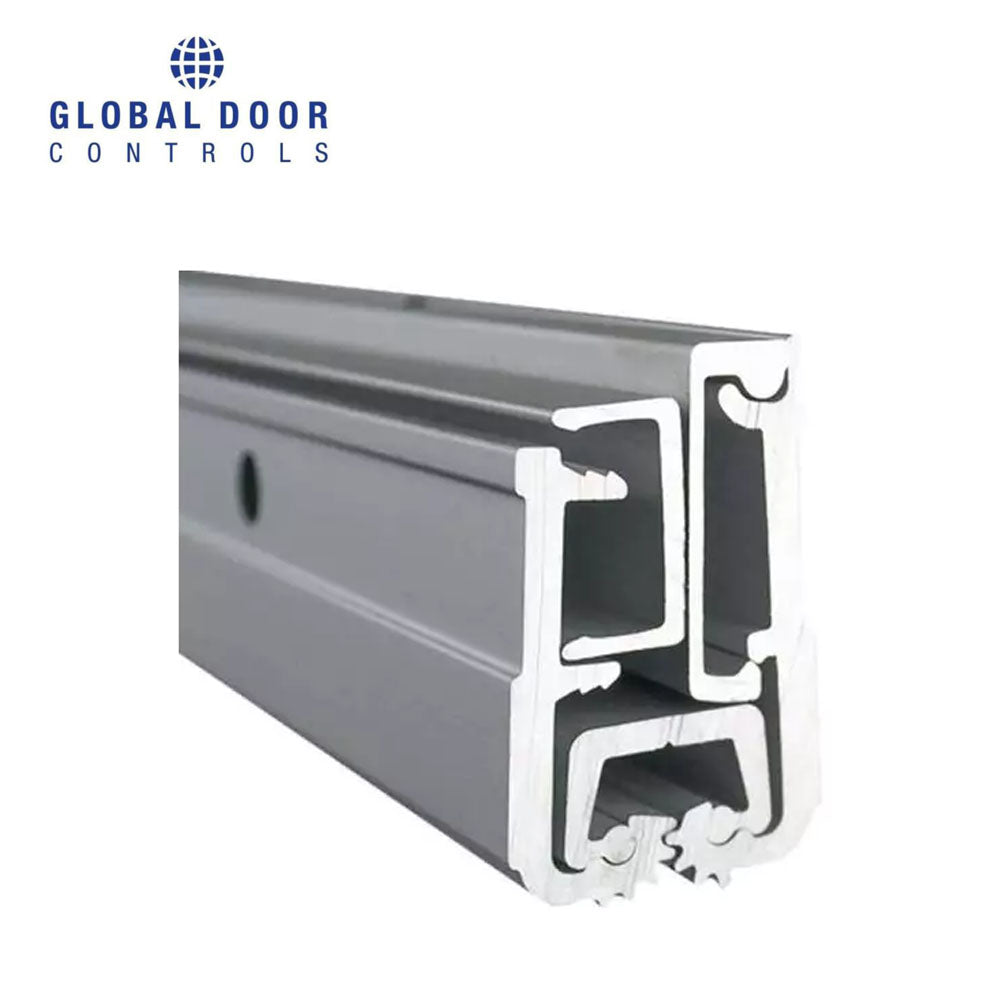

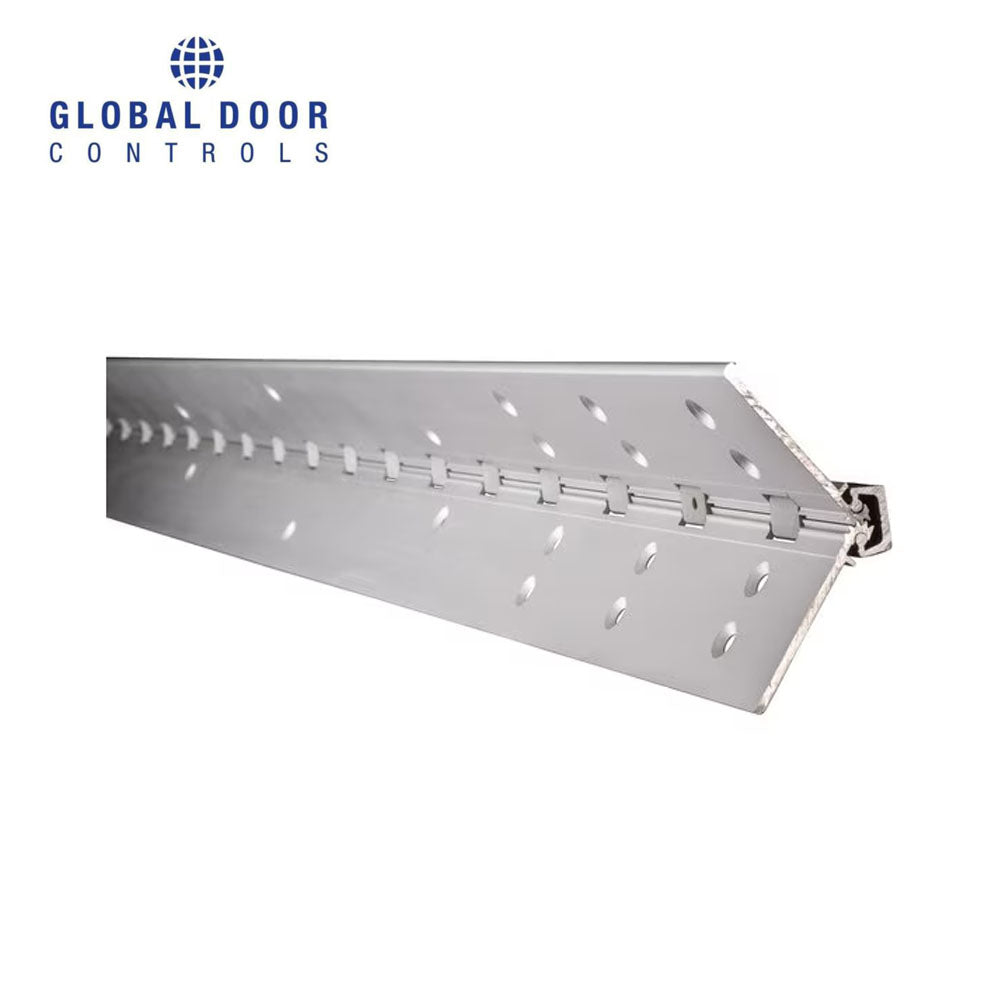

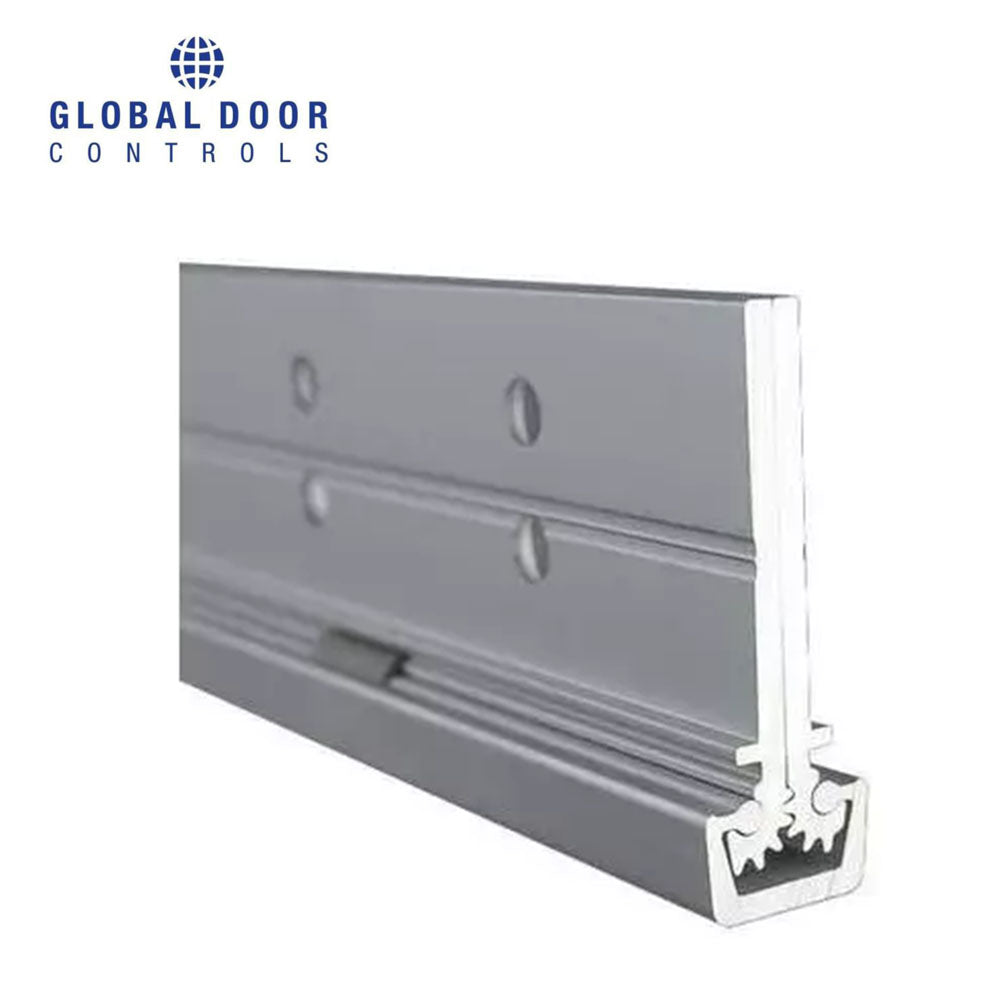

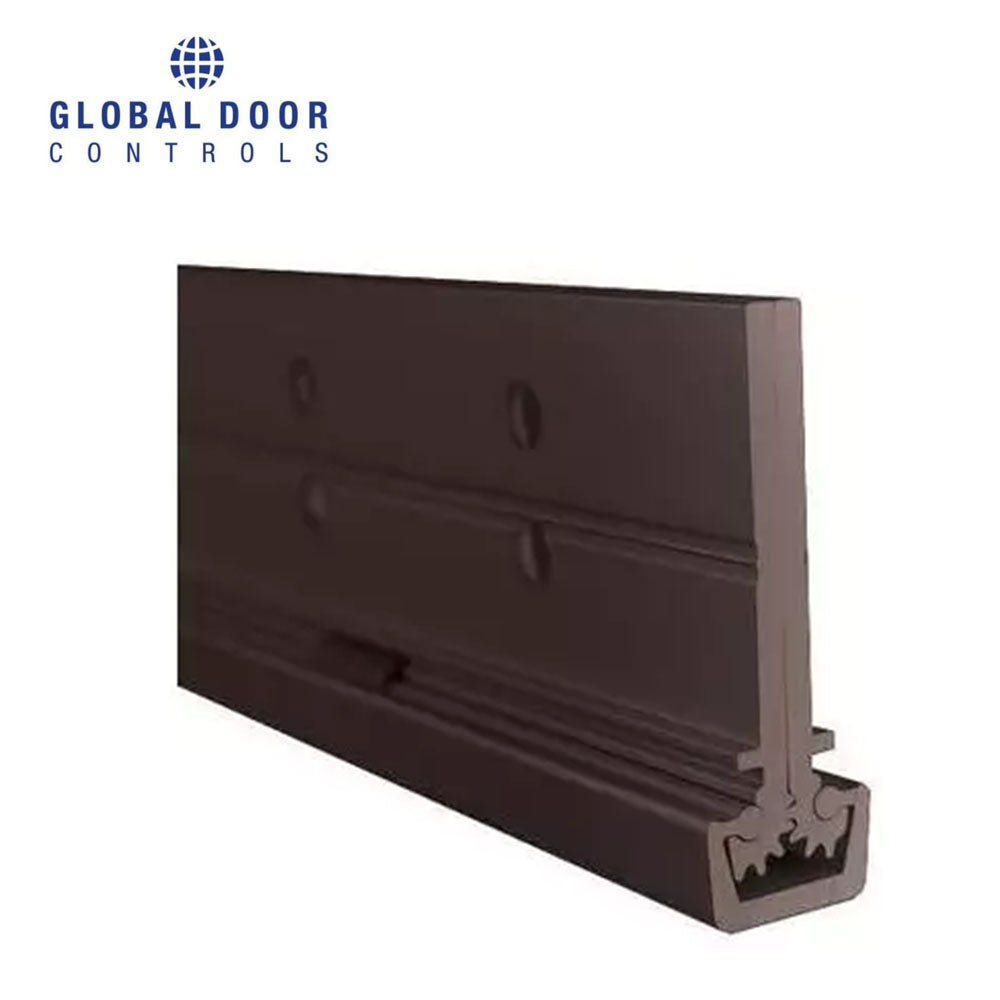

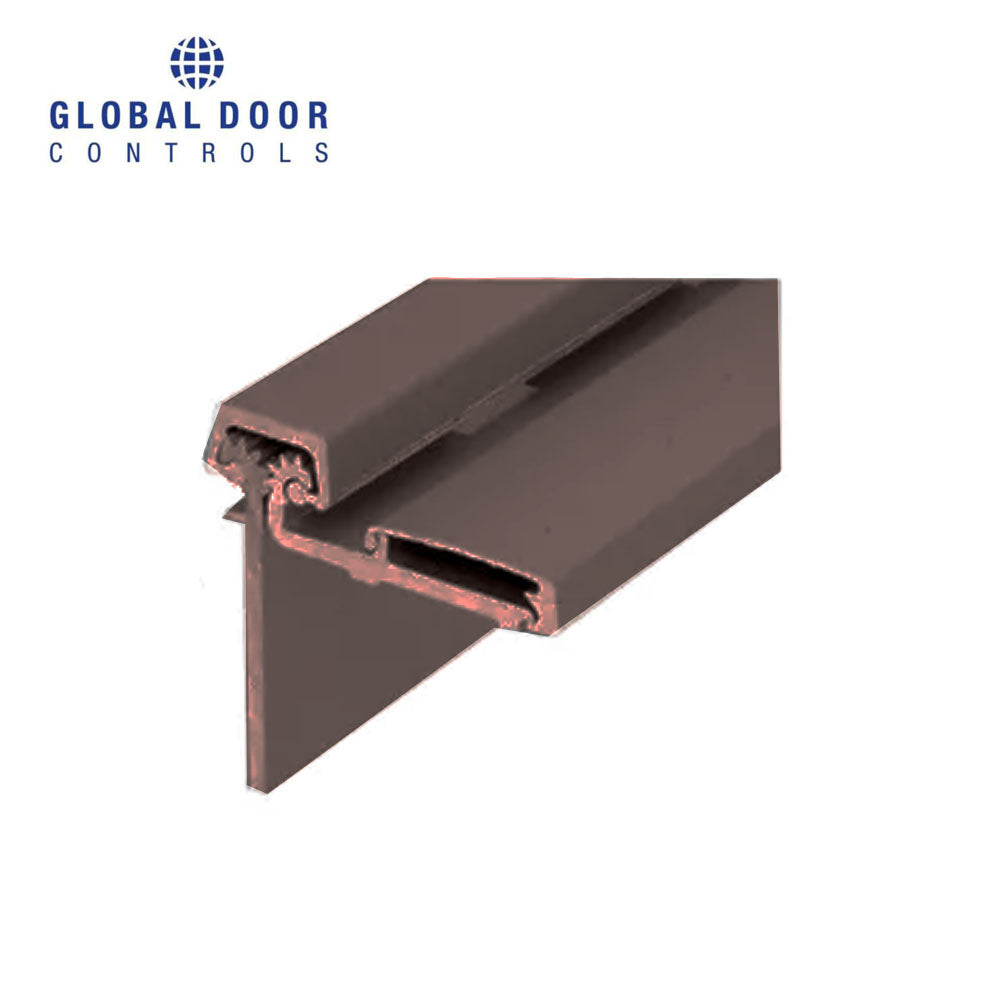

Continuous hinges have the option of being 83" or 95" long with screw holes. The 2 finishes available for these hinges are duranodic (DU) or aluminum (AL). These continuous hinges are CFM Mortise type Flush mount Each hinge leaf has an alignment stop 1/4” clearance between door and frame FM2 Mortise type 1/16" door offset Door edge guard 5/16” clearance between door and frame. Full Surface Full surface continuous hinge 1/32” door panel offset Tamper resistant removable door leaf cover 1/16” clearance between door and frame LF Limited Frame Full surface continuous hinge For narrow (limited) frame applications Tamper resistant removable door leaf cover 1/32” clearance between door and frame
Features:
- Available in Mortise and Surface
- 6063 T6 Aluminum alloy, with interlocking extrusions
- Non-handed design
- 83” or 95” length.
- Standard duty with 16 thrust type self-lubricating. concealed bearings per hinge.
- Heavy duty with 32 thrust type self-lubricating concealed. bearings per hinge.
- High degree of security.
- Anodized Aluminum finish.
- Through bolt and machine screws
- Templated hole patterns.
- 10 year warranty.
- Finishes: AL, DU.
