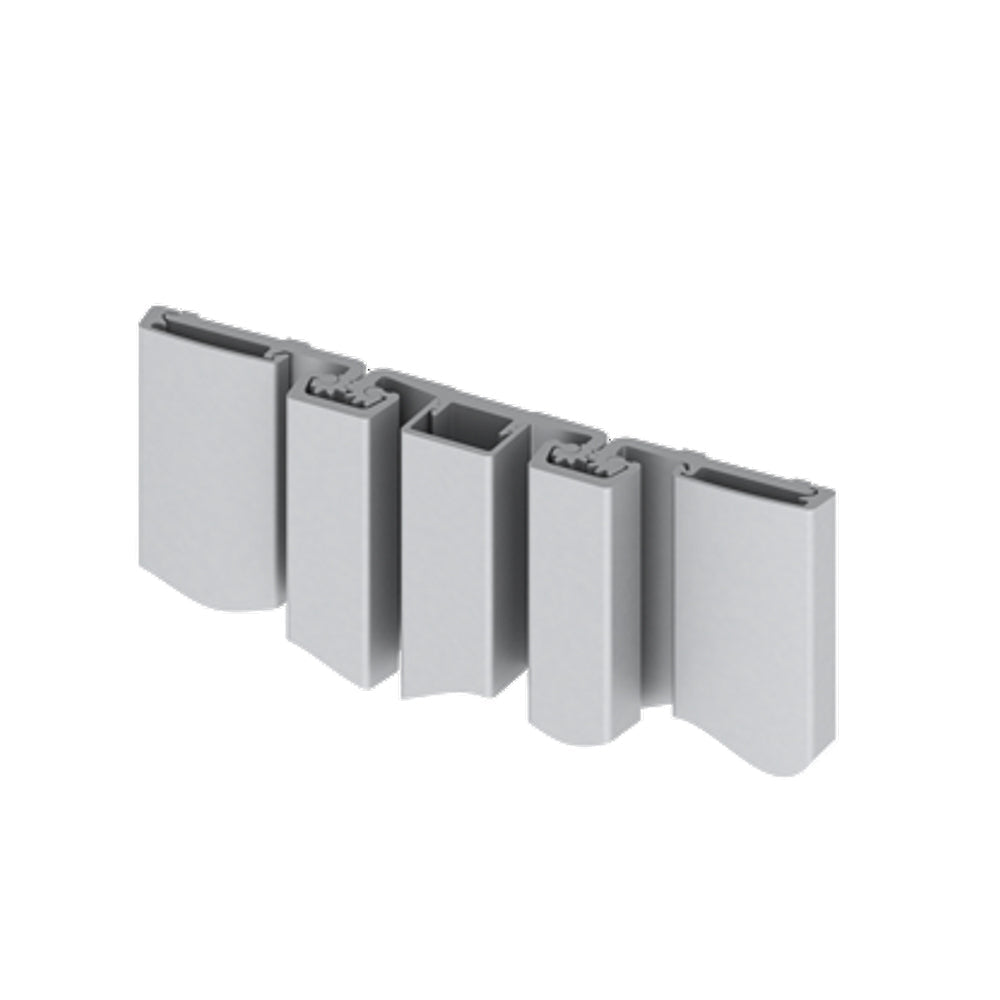

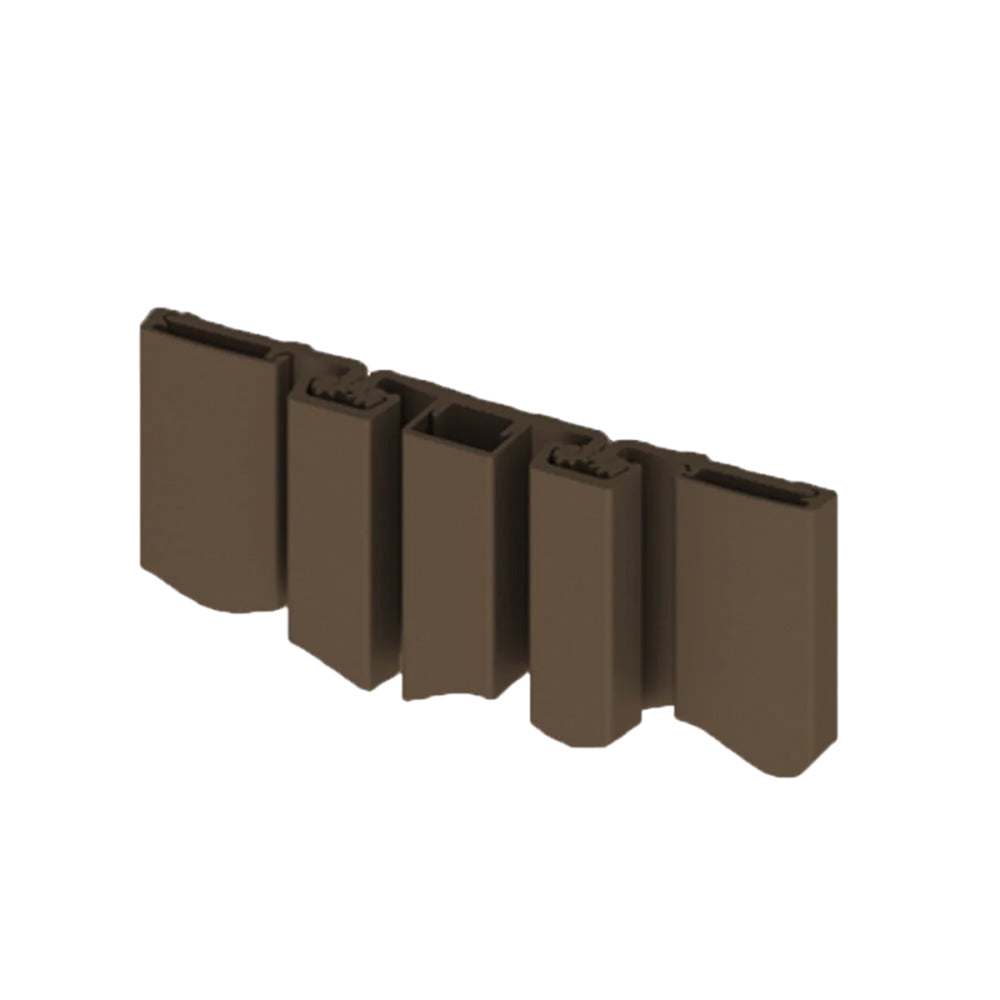

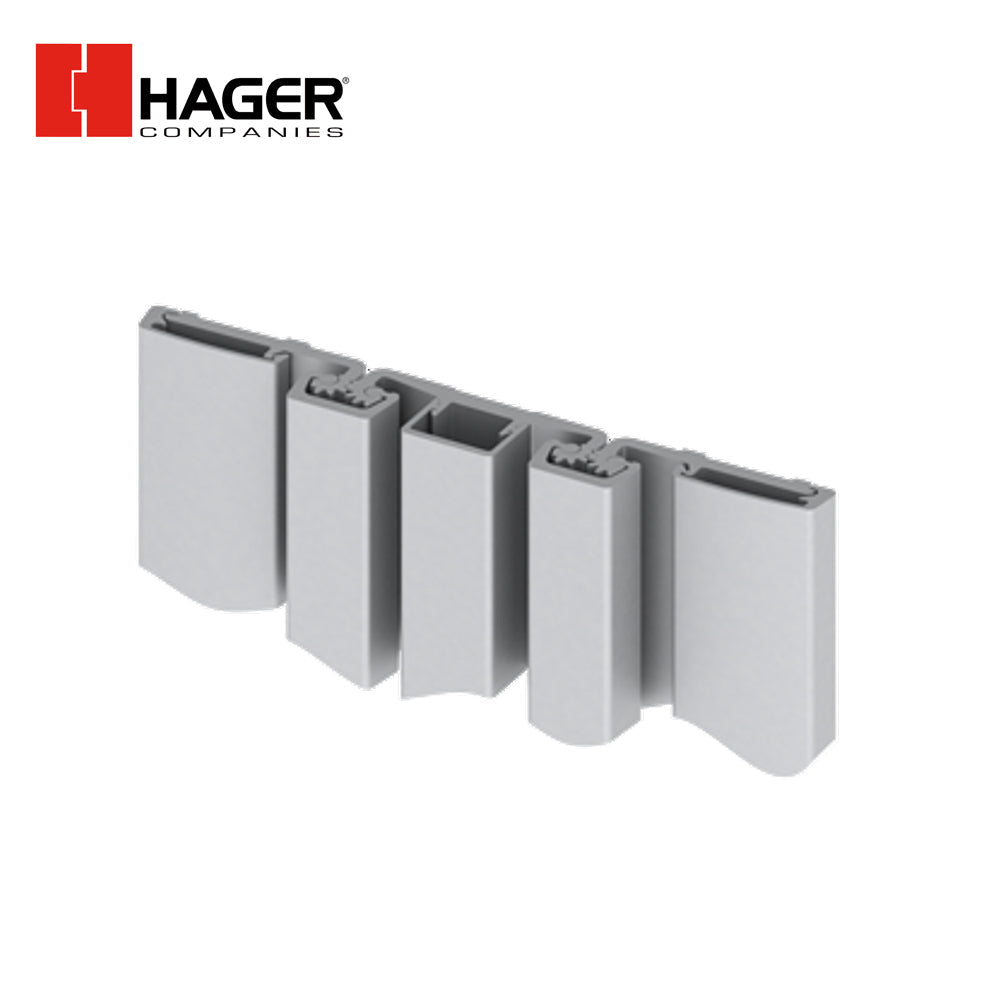

HAGER - 780-257HD - Heavy Duty Full Surface Continuous Geared Hinge

HAGER - 780-257HD - Heavy Duty Full Surface Continuous Geared Hinge

HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge applicatios.

• ANSI/BHMA A156.26 C
• Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards<

Product Specifiations:

Applications:

• Double hinge for hanging two entrance doors from a fixed mullion
• Security moldings.
• 1/16" (1.5 mm) inset

Clearance:

• 1/32" (1mm) minimum recommended between mullion and door, plus standard lockside clearance - 1-1/2" (38mm) to 2-1/4" (57mm) mullion width;
• 1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance

Door Reinforcement: None required.

Fasteners:

• Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post)
• Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
• Additional Options Available upon request.

Features:

• Heavy duty for high frequency doors or heavy, medium frequency doors
• Double hinge for hanging two entrance doors from a fixed mullion
• Security moldings.
• 1/16” (1.5 mm) inset

Finishes: CLR, DBZ, BLK

Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);

Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Length: 79", 83", 85", 95", 119"

Material: Aluminum 6063-T6

Notes:

• EPD: Roton Continuous Hinges Environmental Product Declaration

Product Description:

• Full Surface
• Heavy Duty
• Double hinge for hanging two doors from a fixed mullion.

Download:

• Installation Instructions
• Roton Electrical Modifications
