Alarm Lock - NETDKPAK/26D - Networx Wireless Keypad and Control Panel with 12V Power Supply and Plug-in AC Transformer - US26D (Satin Chromium Plated Over Nickel)

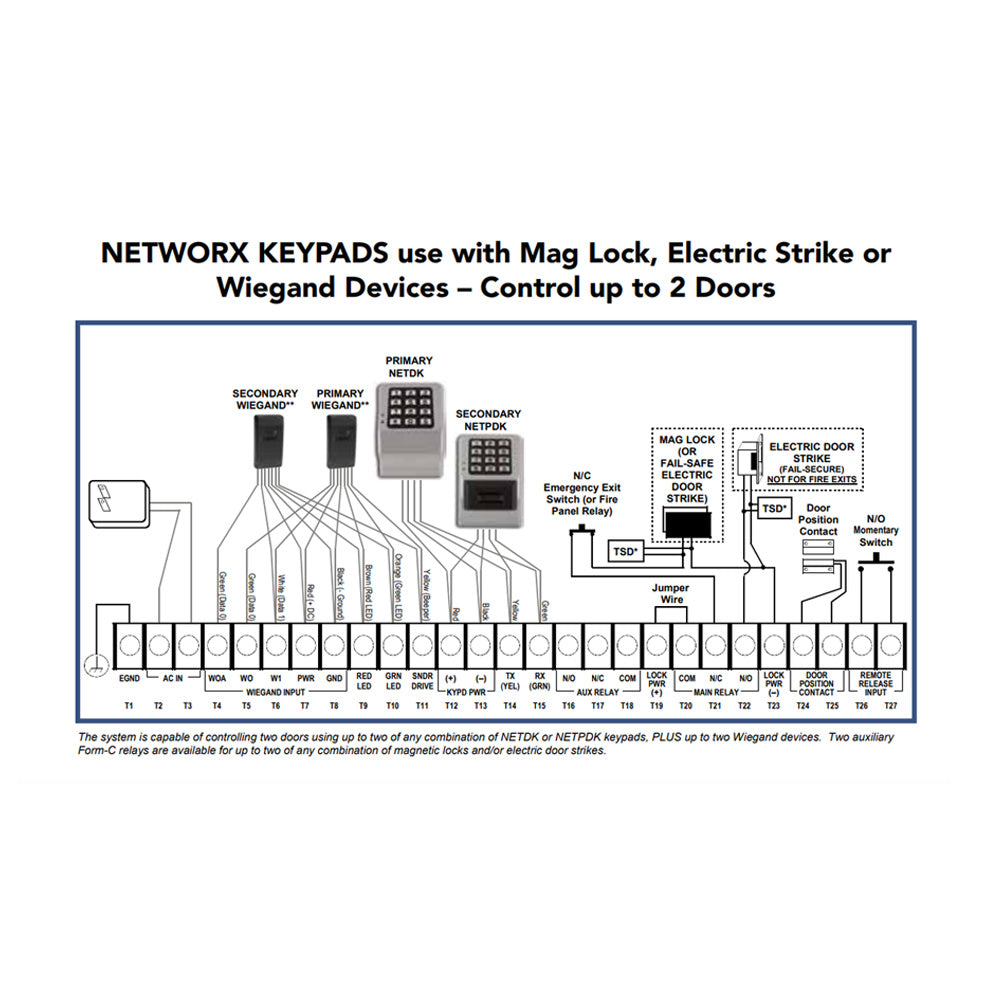

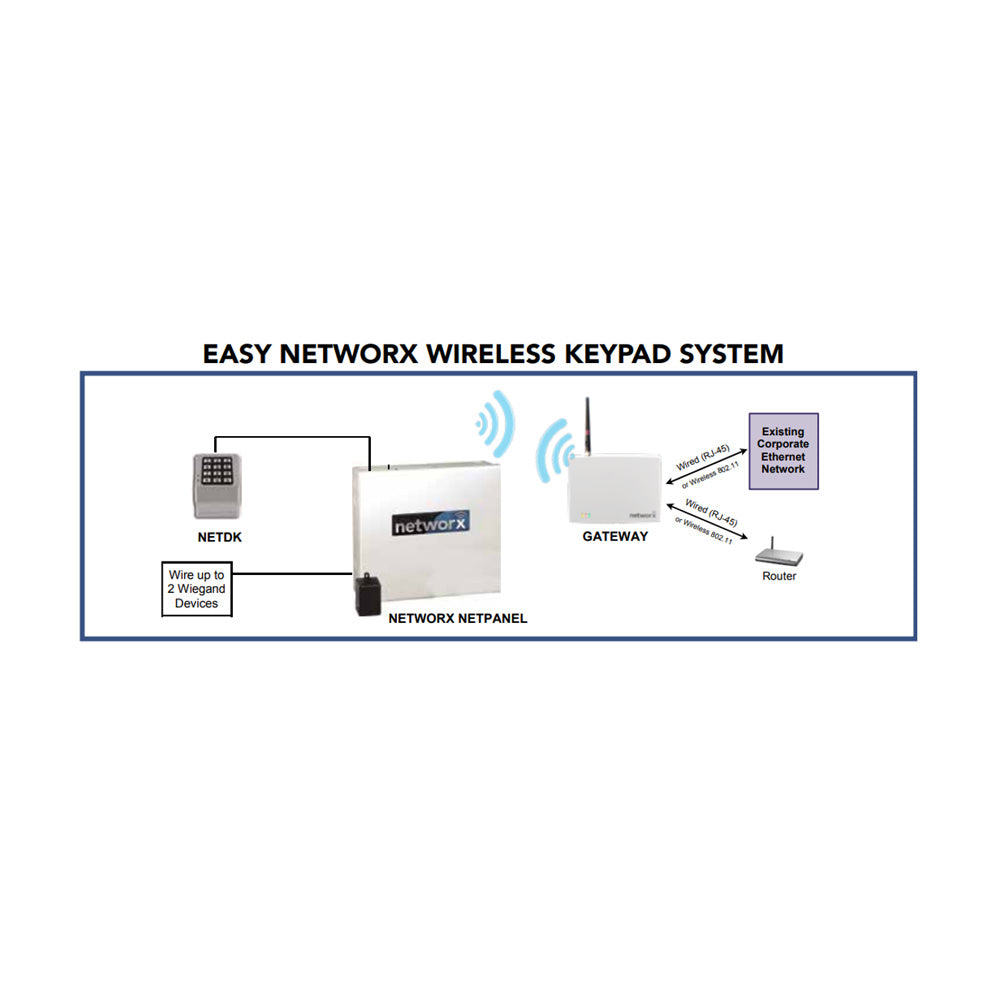

The NETDK Keypad works in conjunction with the Networx NETPANEL wireless Door control panel for restricting entry by PIN code. The NETDK wires directly to the dedicated NETPANEL, and releases an electric Strike or maglock upon authorization of an enrolled pass-code. Refer to Description of the NETPANEL for system Features and functionality as all of the access control decisions are made by the panel. Locks will be programmed via DL Windows software which can be used with both your existing standalone locks and new wireless locks.
Features:
- Networx Keypads NETDK / NETPDK
- Power Requirements: 12VDC supplied by NETPANEL
- Idle Current: 10mA
- Maximum Wire Length: 200 feet (61m)
- Recommended Wire Size: 24 AWG minimum
- Proximity Card Formats Supported: Alarm Lock standard 36 bit format or HID standard 26 bit format (for use with the Model NETPDK only)
- Operating Temperature: 14-120°F (–10-49°C)
- Input Power: 16.5VAC via Class 2 Plug-In 50VATransformer (supplied Model TRF-14)
- Maximum Lock Power Output Current: 1.5A @12VDC
- Primary and Secondary Relays: SPDT Form C, N/O, N/C 8A @ 30VAC or VDC
- Powers up to 2 Readers
- Supplied Backup Battery: Sealed Lead Acid 4AH
- Battery Backup Time: Approximately 2 hours at full load
- Backup Battery Included
Specifications:
| Access Type | Keypad |
| Alternate Codes | ALANETDKPAK26D, NETDKPAK/26D, NETDKPAK26D |
| Audit Trail | 35000 Events |
| Battery Type | 4x, AA |
| Category | Access Control, Wireless |
| Code Length | 3-6 |
| Door Application | Access Management |
| Feedback | Audible Low Battery Alert, Audible & Visible Entry Indicator |
| Finish Code | US26D |
| Manufacturer | Alarm Lock Systems Inc |
| Users | 5000 User Codes |
| Weatherproof | Yes |
