Description
Description

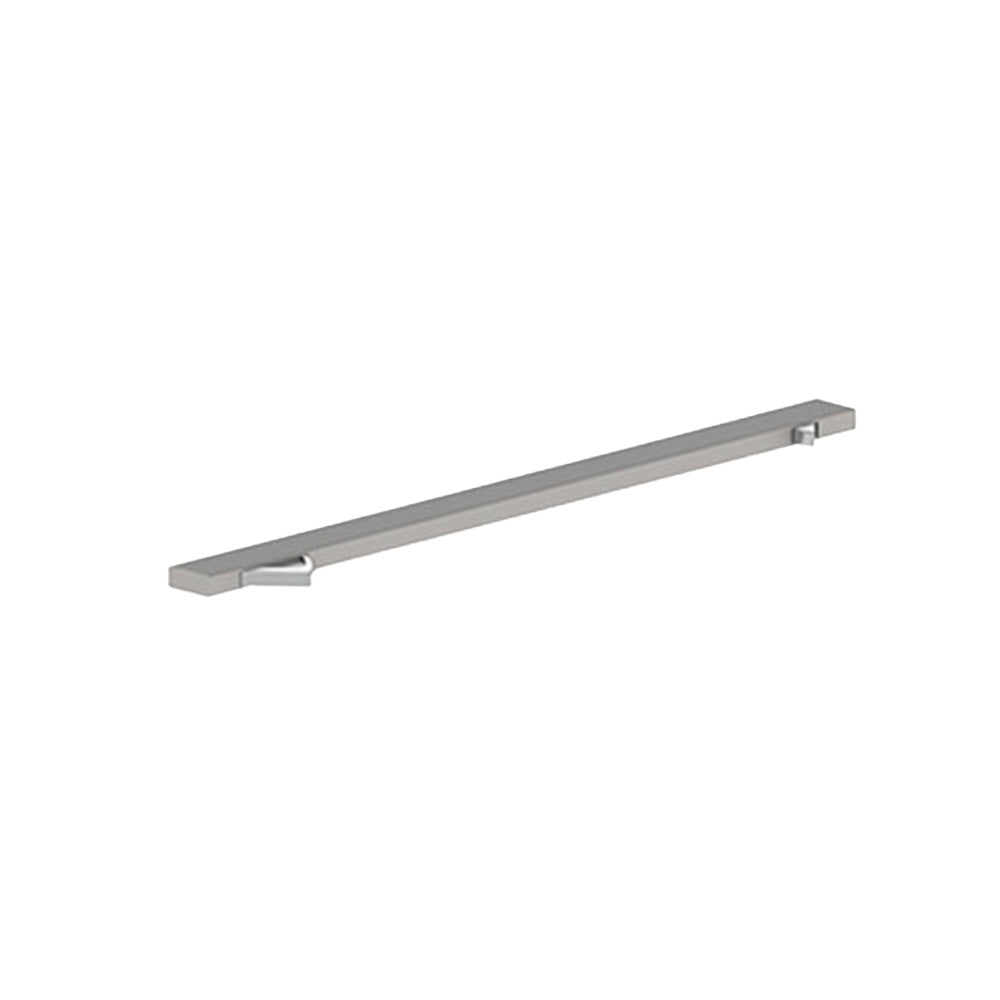

HAGER - 297D - Steel Coordinator with Filler Bar and 1-5/8" by 5/8" Base - Black
Features:
- Designed for use on pairs of doors when one door needs to close before the other
- Active door lever, located nearest to the active stop, holds the active door open until the trigger mechanism is released by the closing of the inactive leaf
- ANSI A156.3 Type #21A
- Coordinator may not span the entire length of the stop
- 297F Filler Bar, cut to length by factory to match overall frame width, may be needed to fill extra space
- Optional mounting brackets 297M/297N may be used when mounting other soffit applied hardware
- Non-handed
- Compatible with flush bolts
- Do not use spring hinges with coordinating device
- USP Black Prime Coat
- Includes Four #8 x 1″ combo screws, Seven 12 – 24 x 1-1/4″ TPHMS
Models:
- 297D-60 (for 60" door openings)
- 297D-72 (for 72" door openings)
- 297D-96 (for 96" door openings)
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Installation | Commercial |
| Unit of Measure | Each |
| Hand | Non Handed |
| Product Type | Door Coordinators |
| ANSI/BHMA Standard | Meets ANSI A156.3 Type 21A |
| Material | 1-5/8" x 5/8" Steel |
| Fire Rating | UL Listed for installation on labeled frame |
| Finish | Black |
Downloads:
