Rosslare - AY-Z12A - Long Range Outdoor Proximity Reader - IP54
Description
Description

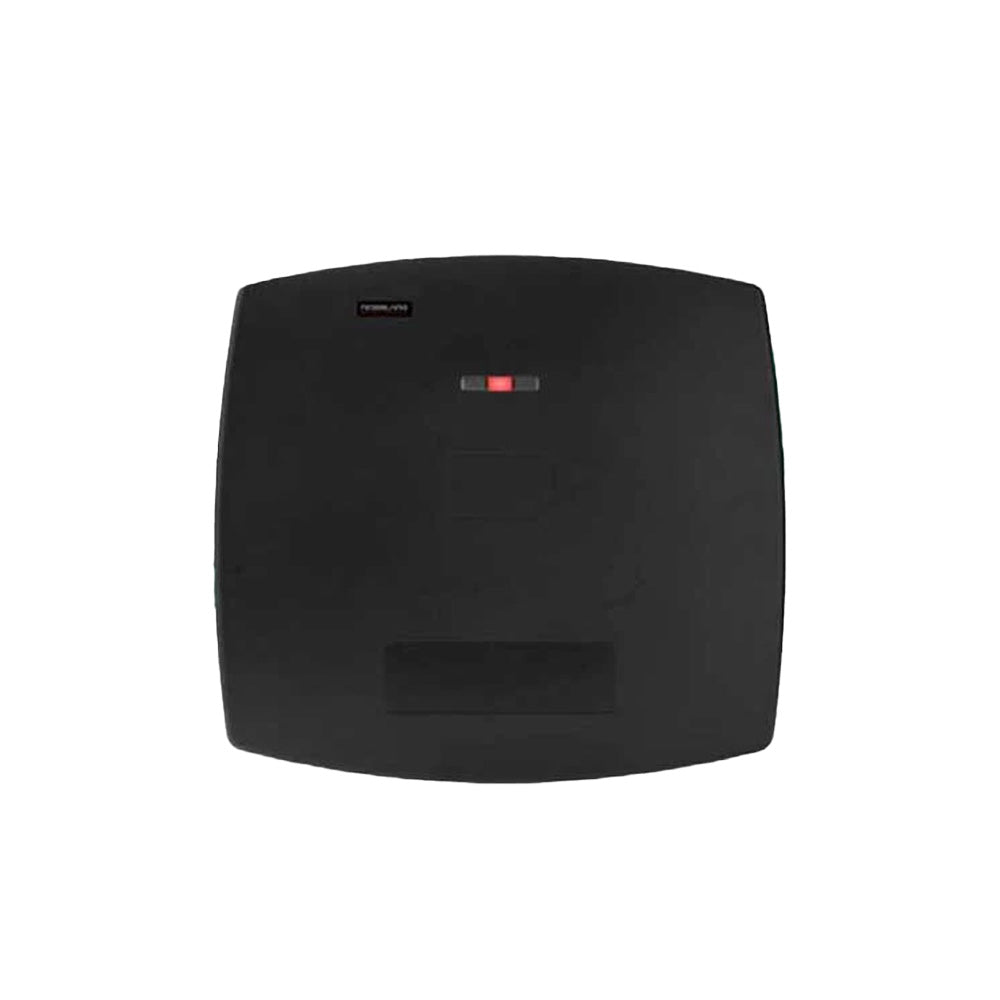

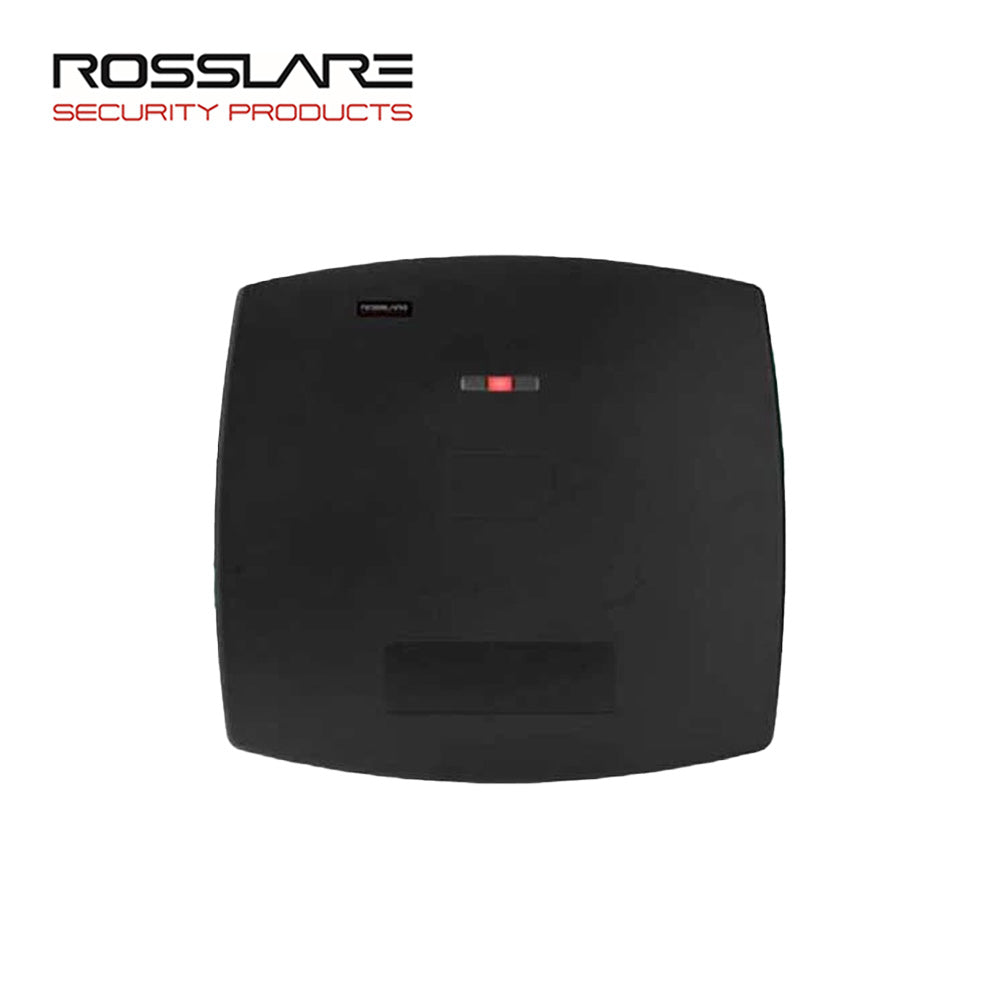

Rosslare - AY-Z12A - Long Range Outdoor Proximity Reader - IP54
The AY-Z12A is the low-cost solution for security situations that require a relatively compact, LongRange proximity reader. The state-of-the-art design and small footprint is ideal for indoor/outdoor access control that is both easy to install and easy to use. The AY-Z12A features an output format of standard Wiegand 26 Bits, which will allow it to work with most common controllers. For added convenience, the reader also contains tri LED indicators that provide the unit's status upon power up and the status for card reading attempts.
Features:
- Wiegand 26 Bit output format.
- RFID read range: Up to 60 cm (23.6 in.) in single mode, Up to 45 cm (17.7 in.) in multiple mode.
- Operating voltage range of 10 to 16 VDC.
- 60 cm (23.6 in.) shielded interface cable.
- RF Modulation: ASK at 125 kHz.
- Compatible with standard, passive EM type, cards and tags.
- Internal buzzer.
- LED control input.
- Optical wall tamper detection.
- Water-resistant with epoxy potting (IP65) suitable for indoor and outdoor applications.
- Made of tough polycarbonate UV-resistant plastic.
Specifications:
| Operating Voltage Range | 10-16 VDC, from a regulated power supply |
| Input Current | Standby: 280 mA at 12 VDC Maximum: 330 mA at 12 VDC |
| LED Control | Dry Contact, N.O. |
| Proximity | Maximum read range: 23.6 in. - single mode, 17.7 in. - multiple mode Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM Cards |
| Tamper | Optical back tamper sensor, O.C. active low 30 mA max sink current |
| Output Format | Wiegand 26-bit |
| Audio/Visual | Tri-color LED indicator, Built-in sounder |
| Design | Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Suitable for harsh environments |
| RFI Protection | > 20 V/m up to 1000 MHz |
| Device Certifications | IP54 |
| Dimensions | 11.8 x 11.8 x 1 in. |
| Weight | 1.066 kg (2.35 lbs) |
