SECO-LARM  |  SKU: SECO-E-941SA-300RQ

SECO-LARM E-941SA-300RQ 300-lb Electromagnetic Lock

$8321 $11125
Shipping calculated at checkout.
Trust Guard Security ScannedSecure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

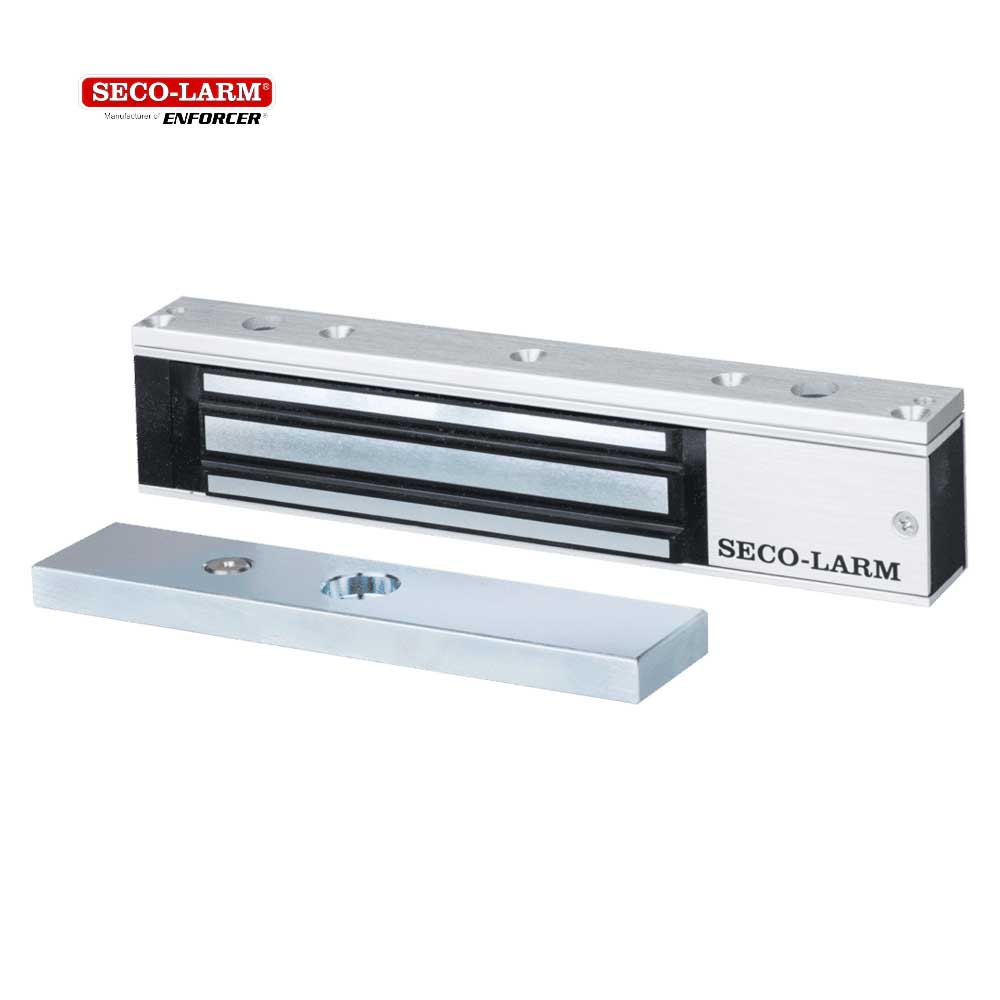

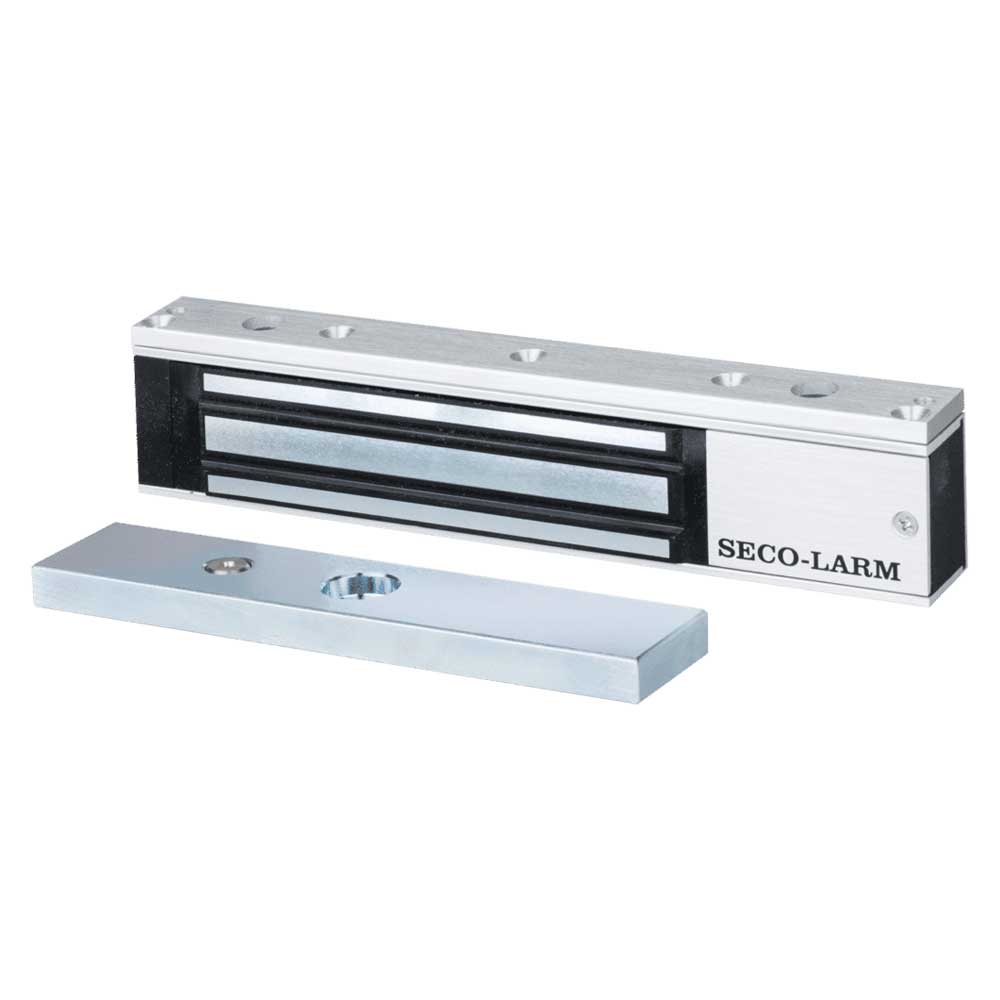

SECO-LARM E-941SA-300RQ 300-lb Electromagnetic Lock

The E-941SA-300RQ electromagnetic lock is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.

Features:
  • 300-lb (136kg) Holding force
  • No residual magnetism
  • MOV Surge protection
  • Anodized aluminum housing (US 28)
  • Suitable for cabinets, small enclosures, or pedestrian gates
  • Reversible installation for right- or left-swing doors

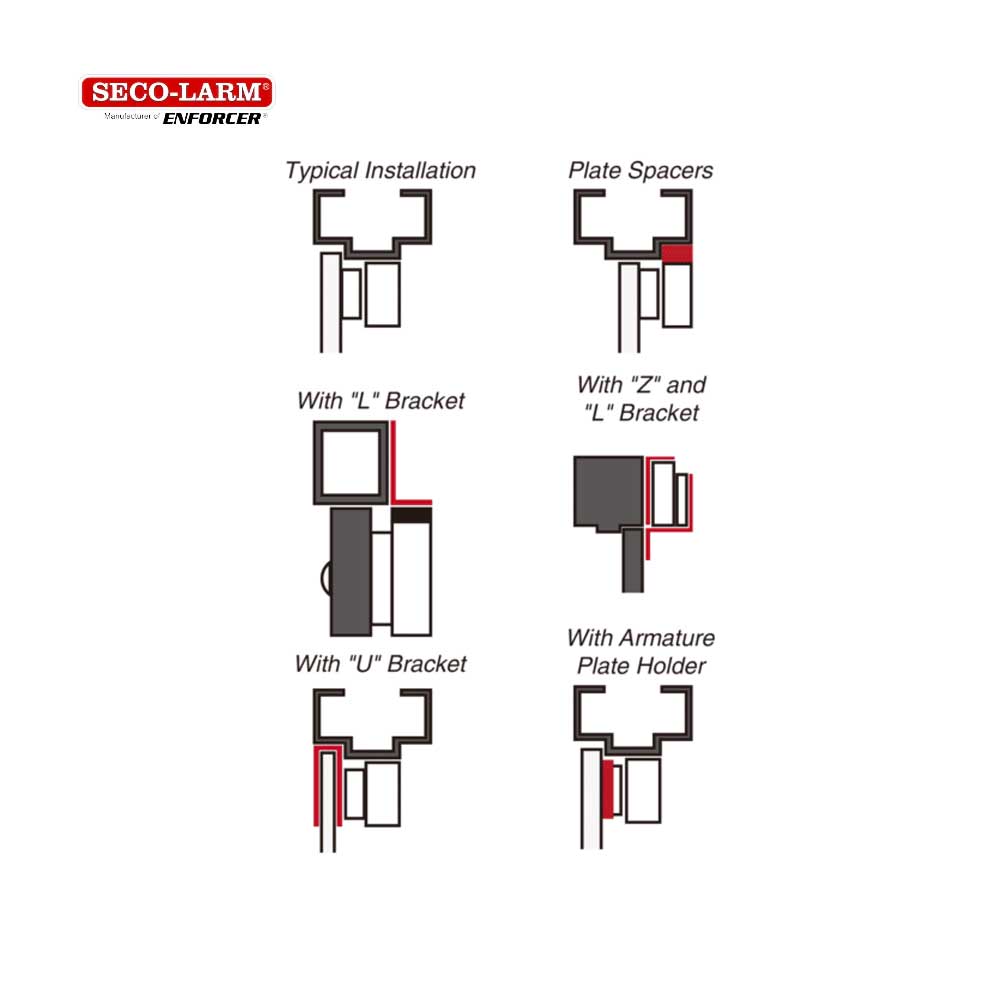

  • Adjustable mounting bracket
  • Complete mounting hardware for typical installations
  • Additional brackets available for easy mounting or atypical situations
  • Detachable faceplate for easy access to wiring
  • 12/24VDC Selectable
  • Lifetime limited warranty*

*Warranty applies in the USA and Canada only. Contact SECO-LARM for details.

Specifications:
Holding Force 300-lb (136kg)
Operating Voltage 12/24 VDC ±10%
Current Draw 420mA@12VDC, 210mA@24VDC
Operating Temperature 14º~131º F (-10º~55º C)

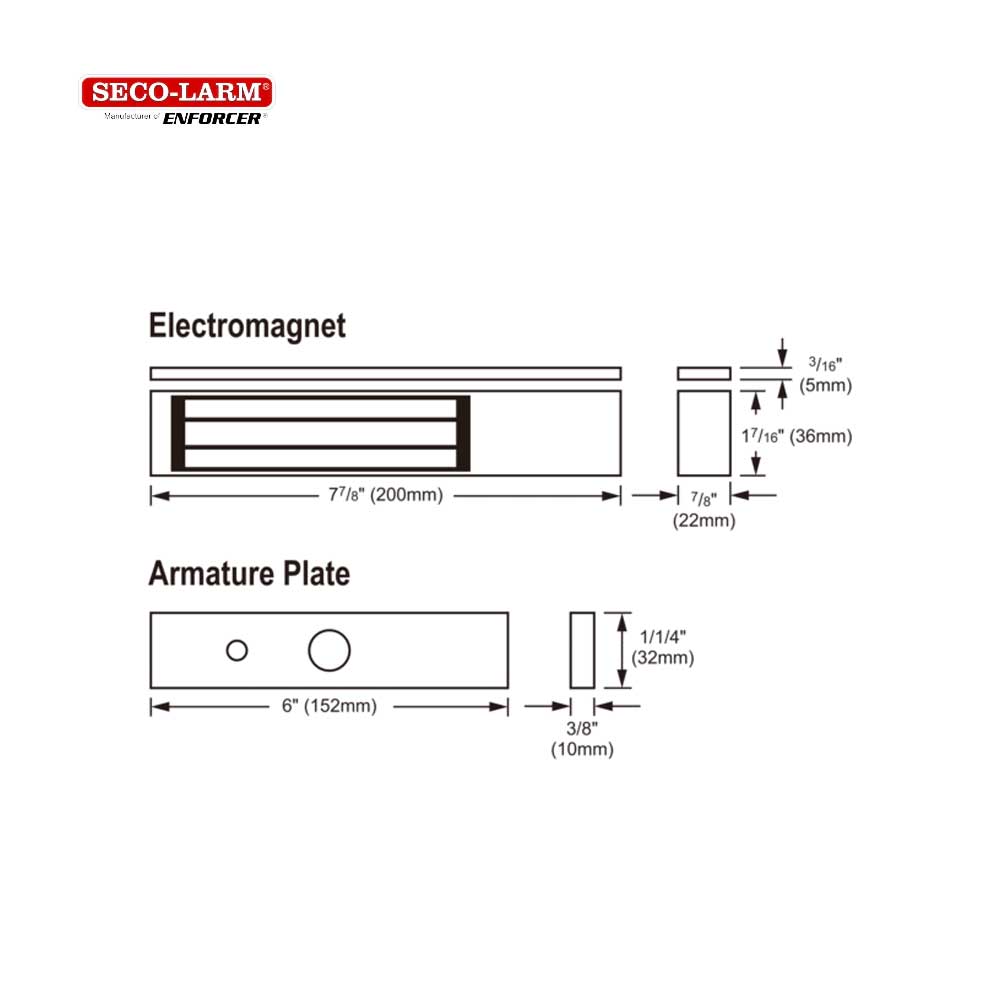

Electromagnet Dimensions 7-7/8″ x 1-3/8″ x 1″ (200 x 35 x 24 mm)
RoHS Compliance Yes
Armature Dimensions 6″ x 3/8″ x 1-1/4″ (152 x 10 x 32 mm)
Weight 3-lb 5-oz (1.5kg)
Case Quantity 10 pcs
Troubleshooting:
Door does not lock
  • Check to make sure the wires are securely tightened to the terminal block.
  • Check that the power supply is connected and operating.
  • Use a multimeter to check the resistance of coils inside the lock. See below.
  • Make sure the rubber washer is installed and free from damage.
Doors lock, but can easily be forced open
  • Make sure the electromagnet and armature plates are properly aligned.
  • Make sure the contact surfaces of the electromagnet and armature plates are clean and free from rust.
  • Check the power leads with a meter, and make sure 12VDC or 24VDC is present.
  • Make sure the rubber washer is installed and free from damage.
Delay in door releasing
  • The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode.
Download:
