Camden CV-550SPKV3 Stand-Alone Proximity Reader and Keypad 20,000 U...
Description
Description

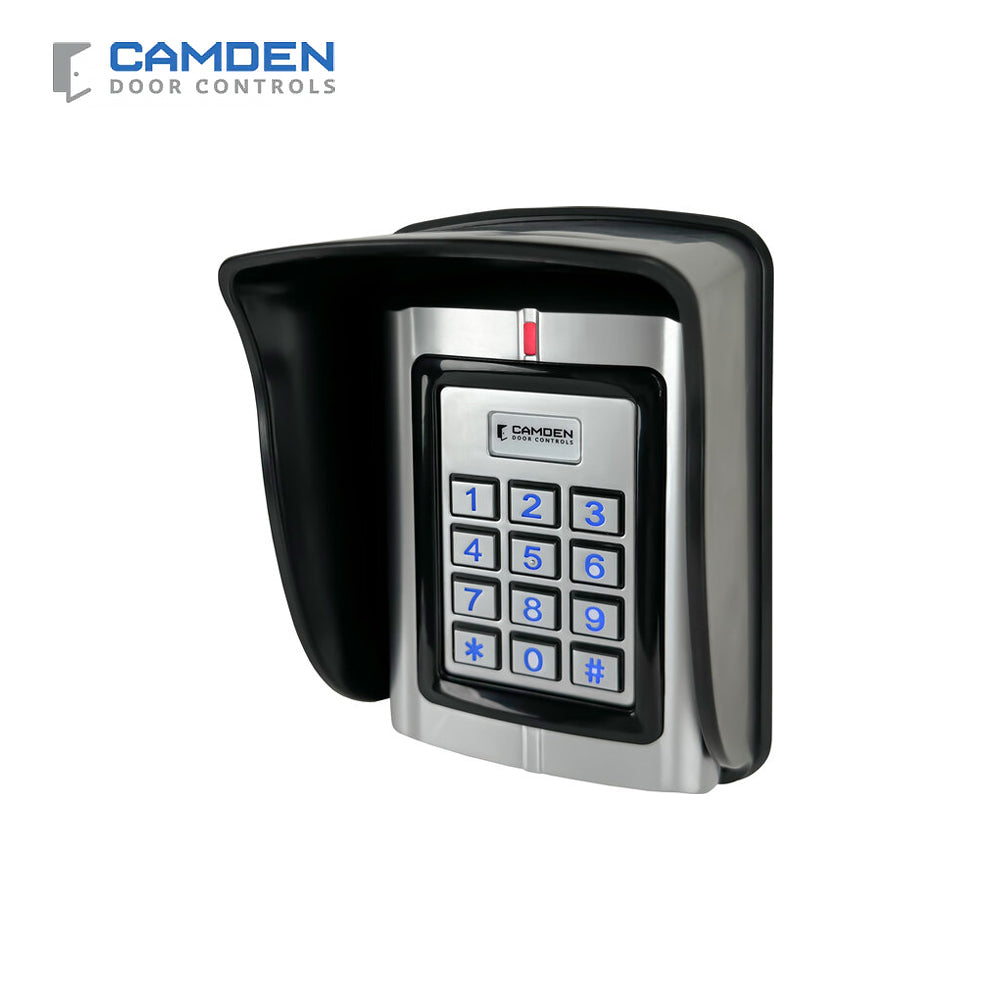

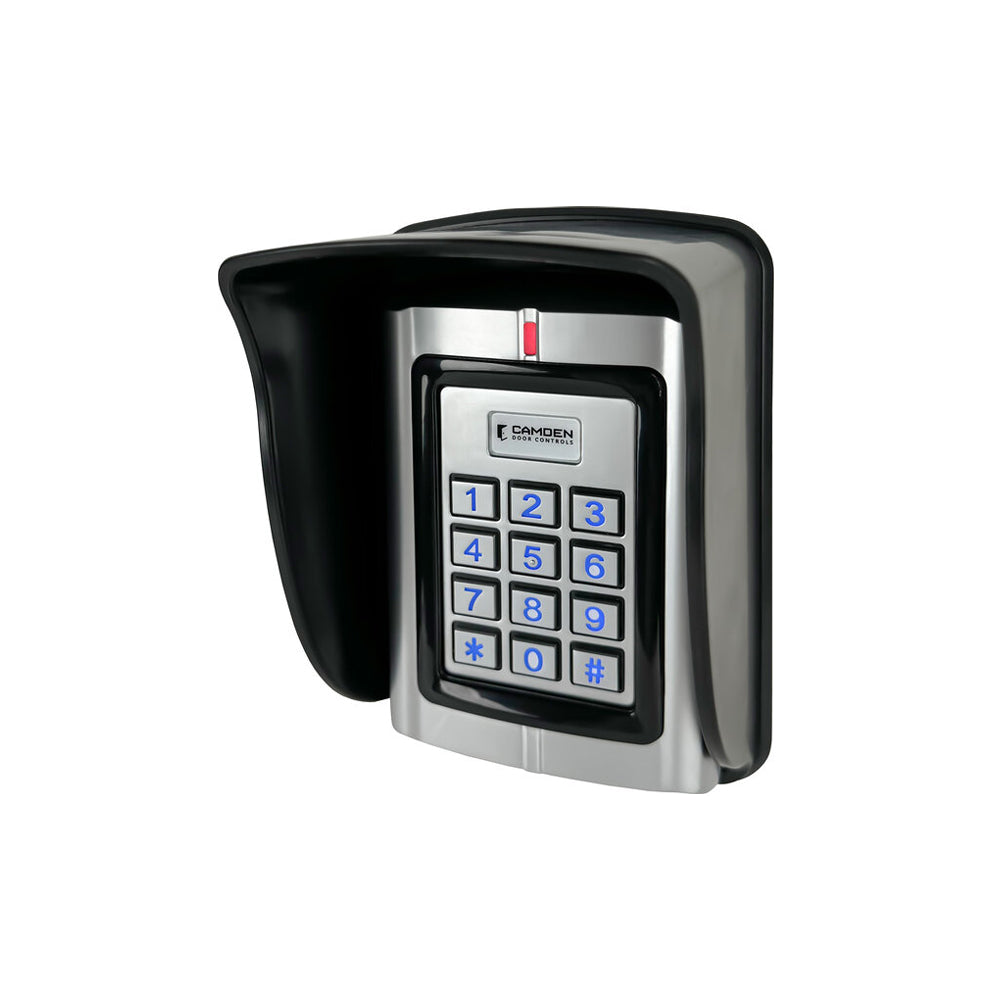

Camden CV-550SPKV3 Stand-Alone Proximity Reader and Keypad 20,000 Users 12V DC
Camden's Next Generation CV-550SPK offers a complete single-door access control solution for high-traffic applications that demand weather and vandal resistant performance over years of operation. The sturdy, cast metal housing and illuminated keypad with proximity reader supports up to 20,000 users, making it ideal for professional offices, schools, commercial and industrial applications. The 26-bit Wiegand input and output allows the CV550SPK to also operate as a single or dual credential device, while the variety of configuration options make it compatible with most access systems.
Features:
- Batch card/tag enrollment
- Cast metal, heavy duty construction
- Backlit vandal resistant keypad
- Weather resistant IP68 rated
- Up to 20,000 users - Supports card, PIN, card + PIN (HID 26, 34 and 37 bit, HID and EM format)
- 4 to 6 digit PIN code length
- (1) Form 'C' relay output
- Tamper alarm output
- Request to exit device input
- Door contact input
- Adjustable door alarm time and door open time
- Wiegand output for integration with access control systems
- External 26-bit to 66-bit Wiegand card reader input
- 3 year warranty
Specifications:
| Voltage | 12V DC +/- 10% |
| User Codes | 2,000 |
| IP Rating | 68 |
| Idle Current | 25 mA |
| Contact Type | (1) Form 'C' |
| Contact Rating | 1 Amp @ 30 VDC |
| Alarm Output Load | 1 Amp @ 30 VDC |
| Ring Bell Load | 1 Amp @ 30 VDC |
| Card Read Distance | 2" (50mm) max. |
| Card Frequency | 125KHZ, EM and HID |
| Card Format | 22 to 66 Bit Wiegand |
| Keypad Format | 4 Bit, 8 Bit and Virtual Card Number |
| Temp Range | -49°F to 113°F (-45°C to 55°C) |
| Dimensions | 5-7/8"H x 4-1/8"W x 3-1/2"D (150mm x 104mm x 90mm - with weather shield) |
Download:
