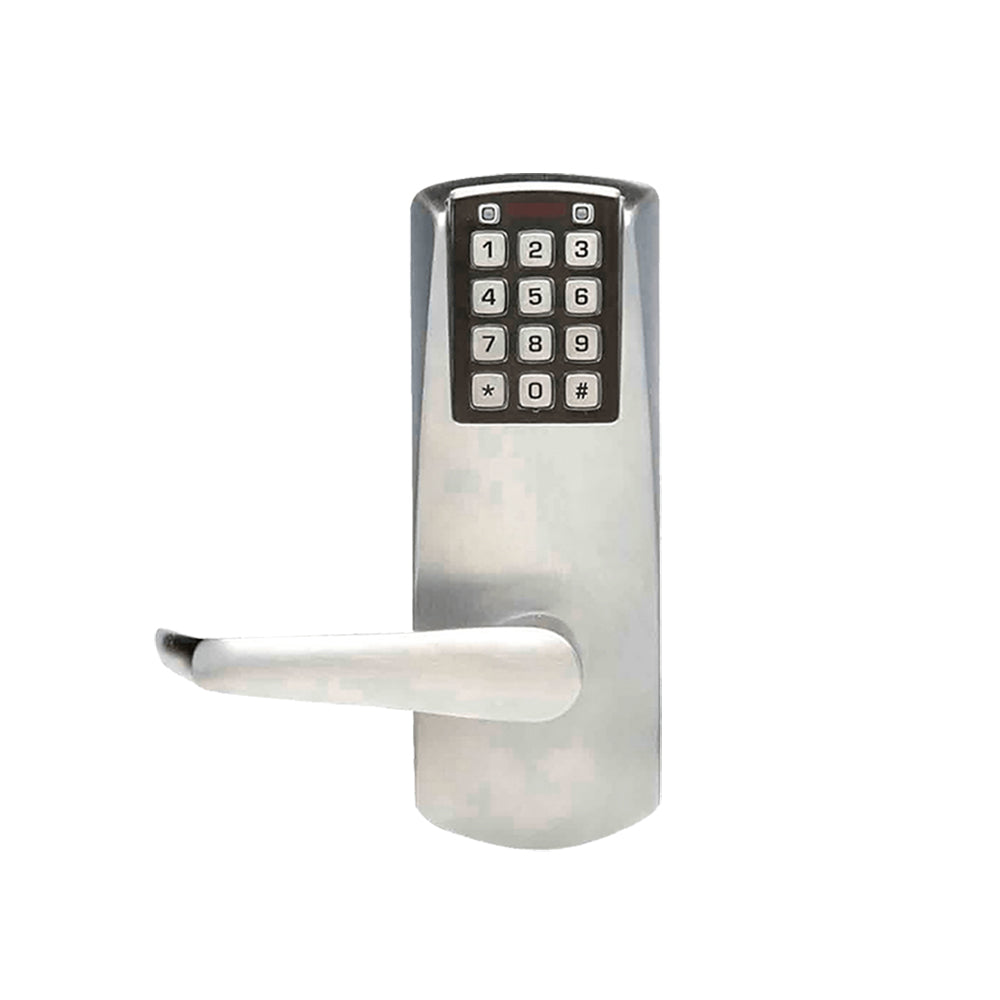

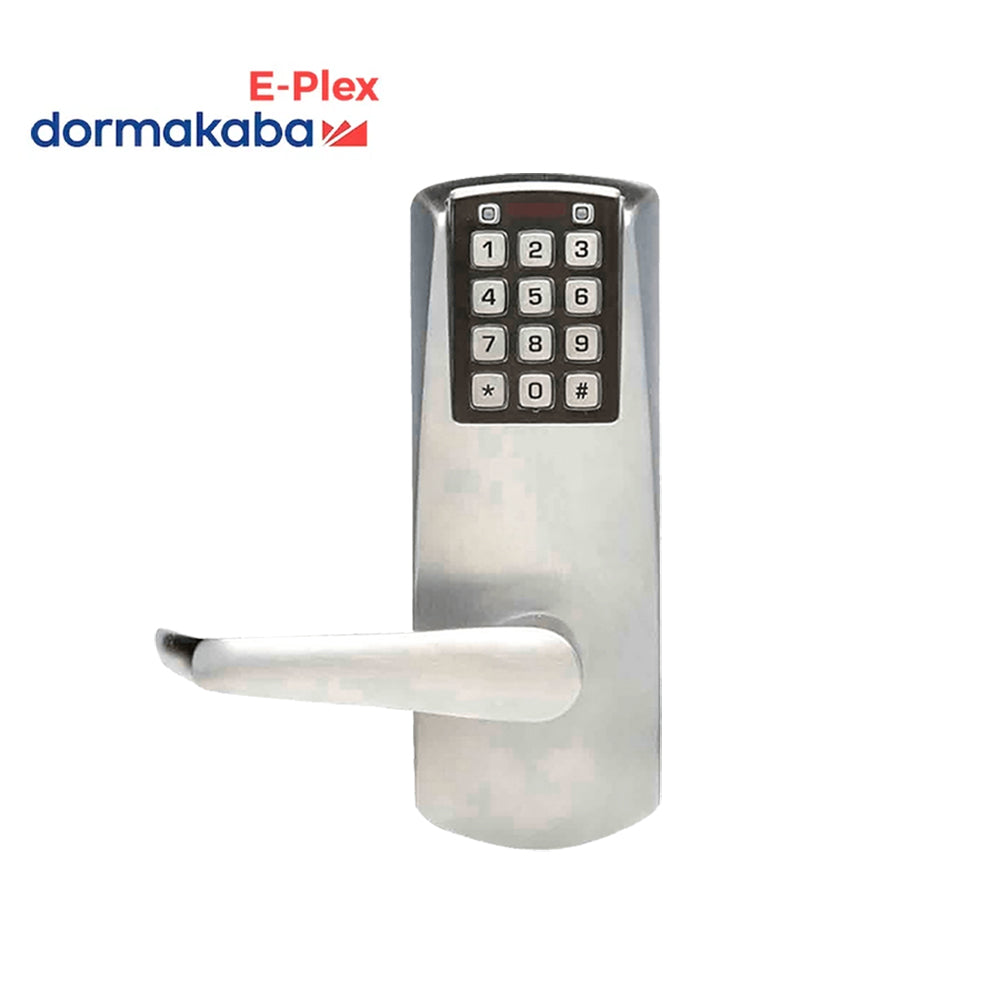

Dormakaba E-Plex - E201ULL - Electronic Pushbutton Exit Device Lever Trim with Mortise and SVR Devices
The DormaKaba E201ULL-41 E-Plex 2000 Exit Trim is a heavy-duty Grade 1 electronic pushbutton access solution designed for commercial exit devices. It provides secure exterior entry using programmable PIN codes while maintaining free egress from the inside. The keyless design eliminates the need for a mechanical key override and does not require wiring to or through the door.
The E201ULL-41 supports up to 100 user access codes and stores the most recent 1,000 lock events in its audit trail. The lock can be programmed directly through the keypad without removing it from the door, with optional Microsoft Excel-based software available for programming and audit management.
This exit trim is designed for use with compatible rim, mortise, and surface vertical rod (SVR) exit devices. The exit device itself is not included. Its non-handed design can be easily adjusted in the field for left- or right-hand doors.
The E-Plex 2000 Exit Trim combines durable commercial-grade construction, keypad access, and flexible programming for demanding indoor and outdoor applications.
Key Features:
- 100 programmable access codes
- Stores up to 1,000 audit events
- No key override - keypad access only
- Compatible with rim, mortise, and surface vertical rod (SVR) exit devices
- Three operating modes: PIN Access, Passage, and Lockout
- Heavy-duty commercial Grade 1 construction
- Solid cast exterior housing and lever
- Non-handed design for left- or right-hand doors
- Keypad programming without removing the lock from the door
- Optional Microsoft Excel-based software for programming and audit management
- No wiring required to or through the door
- ADA compliant
- UL 10C fire rated
- ANSI/BHMA Grade 1 certified
- Indoor/outdoor approved
Exit Device Compatibility
- Arrow S1250, S3800
- Corbin Russwin 5200/5200A
- Detex 10/F10
- Dorma 9300/9300F
- Precision 21/FL21
- Sargent 2828, 3828, 8800, 8888
- Von Duprin 98/98F, 99/99F
- Yale 7100
Specifications:
| Brand | E-Plex |
| Series | E-Plex 2000 |
| Model | E201ULL-41 |
| Product Type | Electronic Exit Trim |
| Access Method | Pushbutton Keypad / PIN |
| Access Codes | 100 |
| Audit Trail | 1,000 events |
| Key Override | None |
| Compatible Exit Devices | Rim, Mortise, SVR |
| Handing | Non-handed / Field reversible |
| Minimum Stile | 5" (127 mm) |
| Door Thickness | 1-3/4" to 2-1/4" (44-57 mm) |
| Pre-assembled Door Thickness | 1-3/4" to 2-1/8" (44-54 mm) |
| Operating Modes | PIN Access, Passage, Lockout |
| Construction | Heavy-duty commercial Grade 1 |
| Accessibility | ADA compliant |
| Fire Rating | UL 10C |
| Durability | ANSI/BHMA Grade 1 |
| Environmental | Indoor/Outdoor |
| Operating Temperature | -31°F to 151°F (-35°C to 66°C) |
| Manufacturer Warranty | 3 years |
