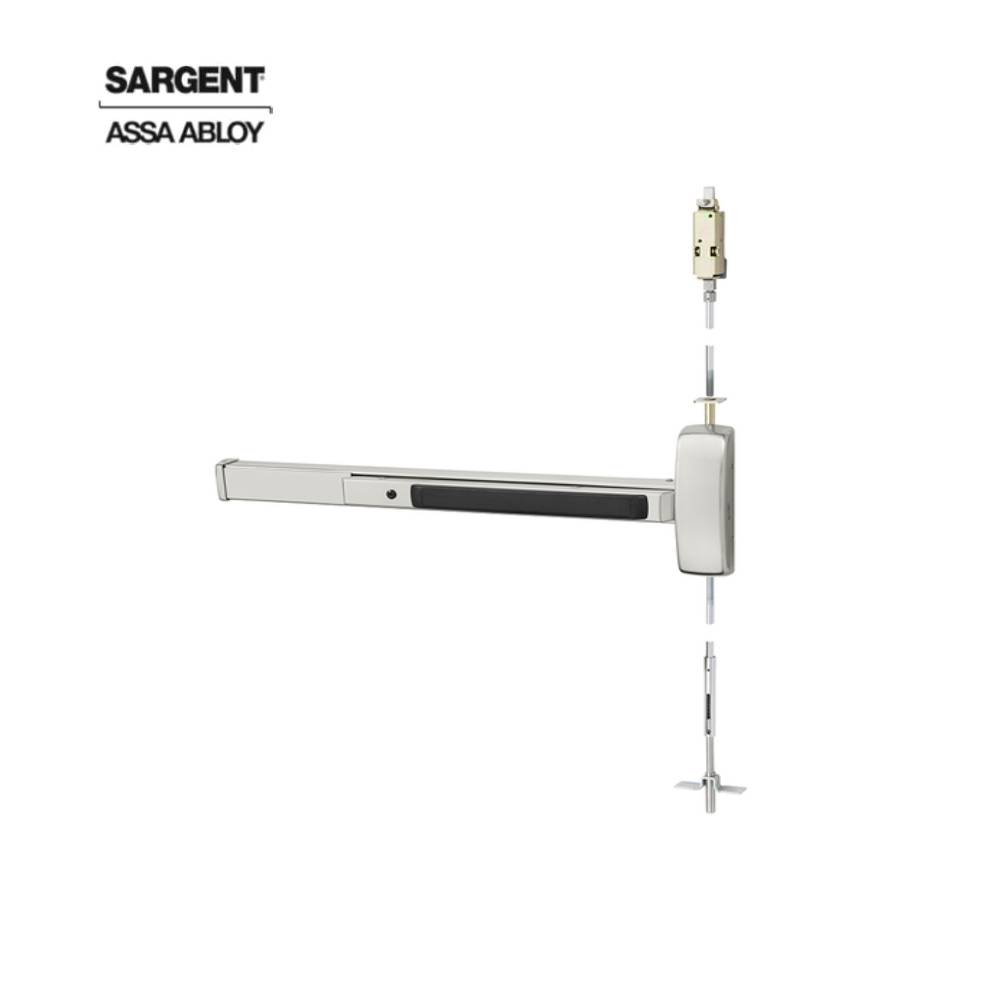

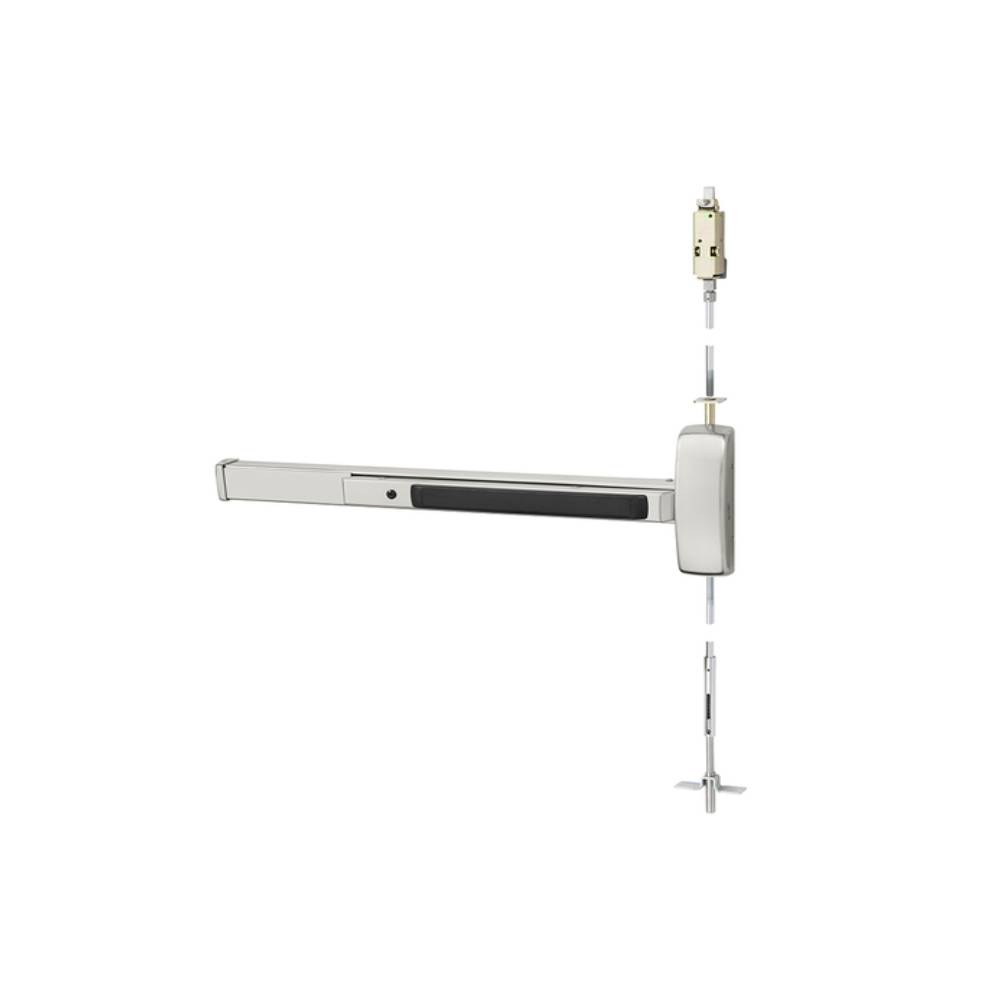

Sargent - WD8613F - Concealed Vertical Rod Exit Bar Classroom Function - Wide Stile Pushpad - 36" - F Lever with Escutcheon - RHR - SFIC - US32D (Satin Stainless Steel)
The Sargent 8600 Series provides simplicity, strength, and durability.
The 8600 Series is designed for standard width stile applications on hollow metal doors and has both single and double door applications.
Feature:
- Door Types Metal Doors, 1-3/4" (44mm) minimum thickness.
- F Rail for 33" to 36" door widths, No cutting required for 36" door
- Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
- Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
- Door/Opening Height: Must be specified - 120" (3048mm) Max Door Opening
- 96" max door height for HC and WS options
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Projection: Pushbar Neutral ��� 3" (76mm), Pushbar Depressed ��� 2-1/8" (54mm)
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Sargent |
| SKU | WD8613F ETF RHR 32D |
| UID | SARWD8613FETFRHR32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| ADA Compliance | Yes |
Technical Specifications:
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Concealed Vertical Rod |
| Mechanical Function | Classroom |
| Device Length | 36" |
| Hand | Right Hand Reverse |
| Dogging Options | Hex Key Dogging |
| Top Strike | 650 |
| Strike Bottom | 606 |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 713-4 ETF RHRB 26D |
| Includes Cylinder(s) | Yes |
| Cylinder Type | 1-1/8" Mortise |
| Minimum Stile Size | 4-1/2" |
| Door Material | Wood |
| Door Width | 33" to 36" |
| Door Height | 120" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Product Type | Concealed Vertical Rod Exit Devices |
