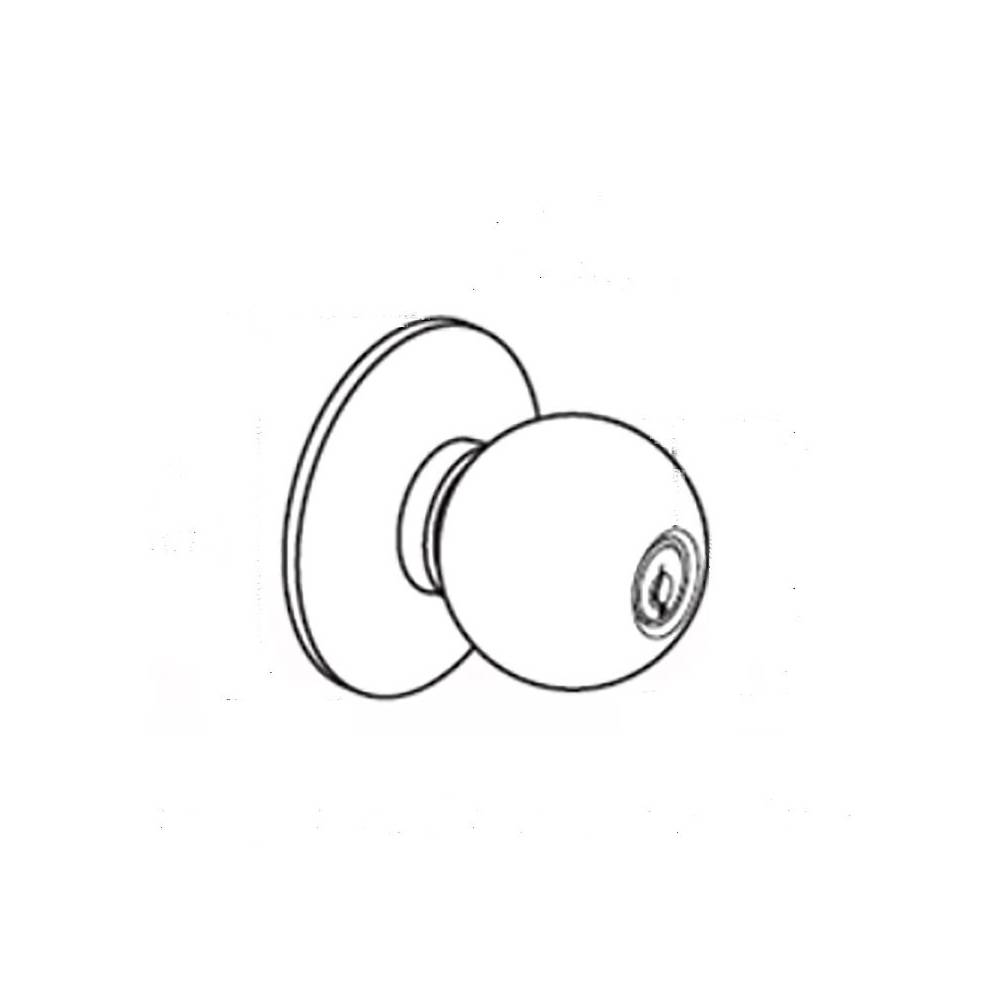

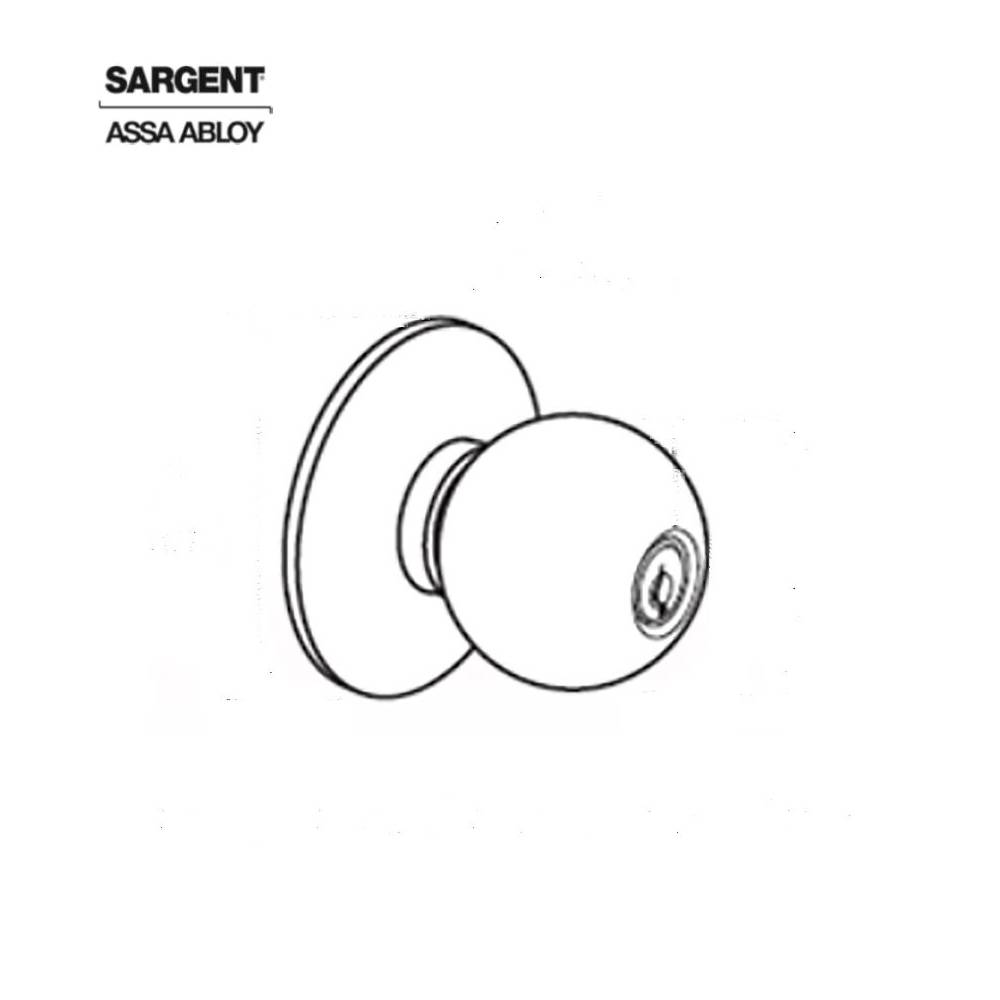

Sargent - 28-8XG05 - Cylindrical Knob Lock LB Design with 4-7/8" ANSI Strike and 2-3/4" Backset - Entry/Office - LA Keyway - US32D (Satin Stainless Steel)
The 8X Series is available in 3 finishes and has a versatile design.
The SARGENT 8X line is designed and tested for robust applications. The Grade 1 bored-in lock is a worry free solution that is ideal for high traffic areas.
Feature:
- Suitable for 1-3/8" ��� 2" thick doors
- Latches are reversible, self-adjusting to door bevel
- Accepts SARGENT standard, Signature and Degree�� cylinders
- Available in 3 finishes
- Accurate alignment, smooth operation and reversibility of the lock without disassembly of knob and cylinder
- Versatile design to satisfy door requirements, making installation easy for new construction, as well as retrofits and renovations
- Design accommodates common door preps and satisfies all door handing
- Maintain and expand master keying systems��� versatility for multiple levels of security
- Handles virtually all interior and exterior applications
Product Specifications:
| Manufacturer | Sargent |
| SKU | 28-8XG05 LB 32D |
| UID | SAR100288XG05LB32D |
| Grade | Grade 1 |
| Unit of Measure | Each |
| Application | Heavy Duty |
Technical Specifications:
| Function | 05-Entrance or Office |
| ANSI Function | F81 - Office |
| Lever/Knob Design | B Lever |
| Rose/Escutcheon Design | L Rose |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Not Handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Projection | 1/2" |
| Std. Strike Number | 808 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Product Type | Cylindrical Lock |
