Description
Description

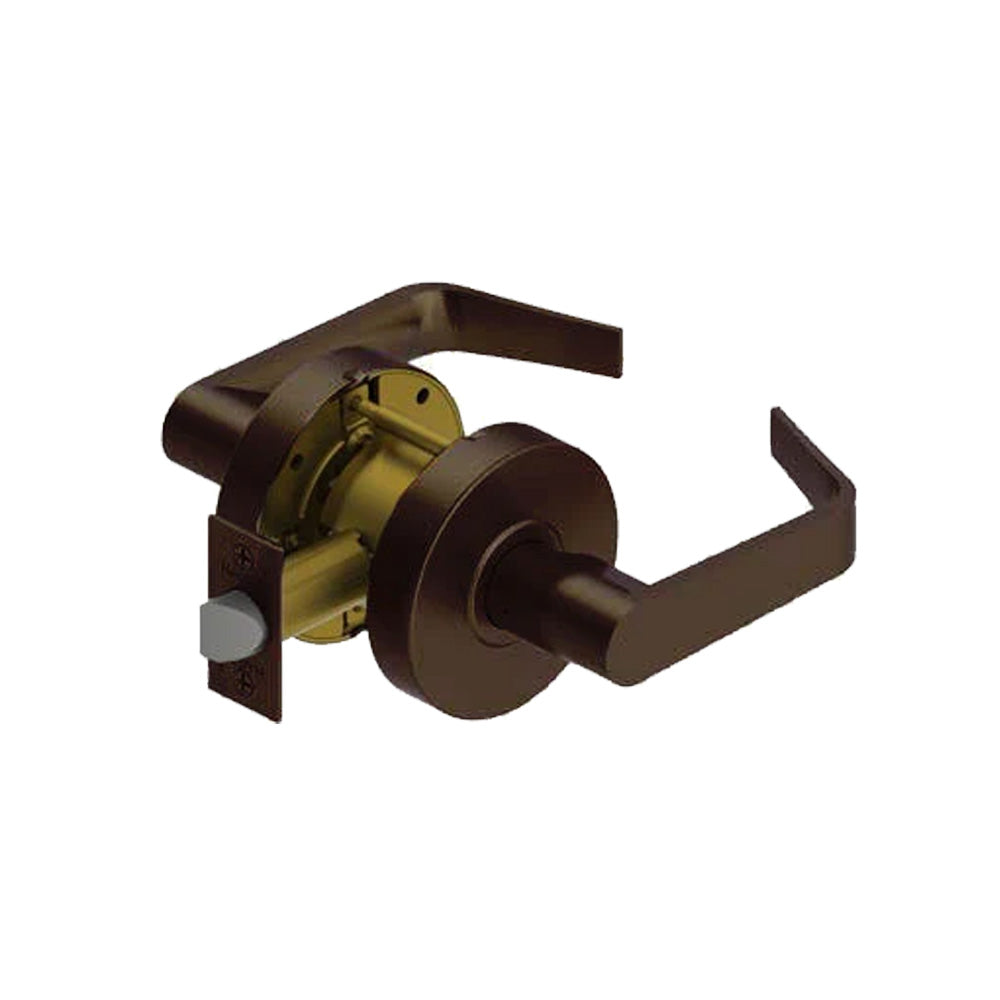

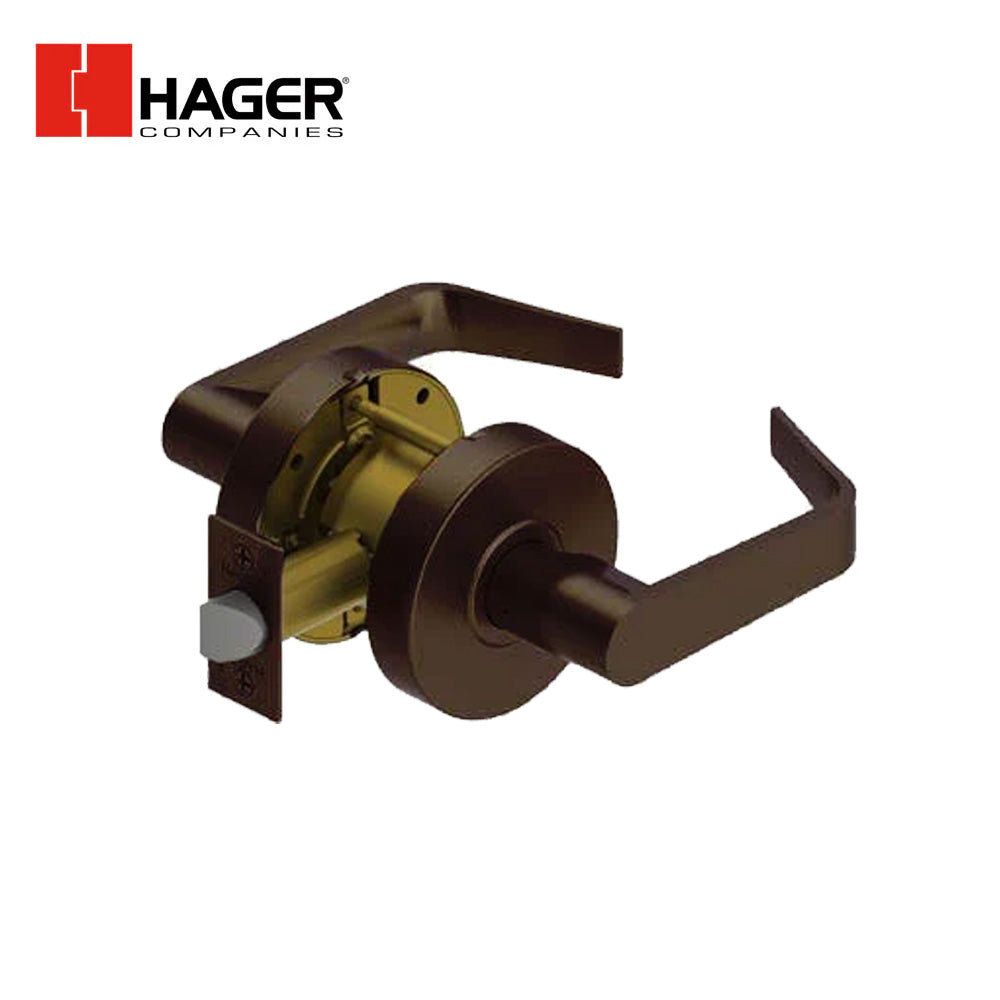

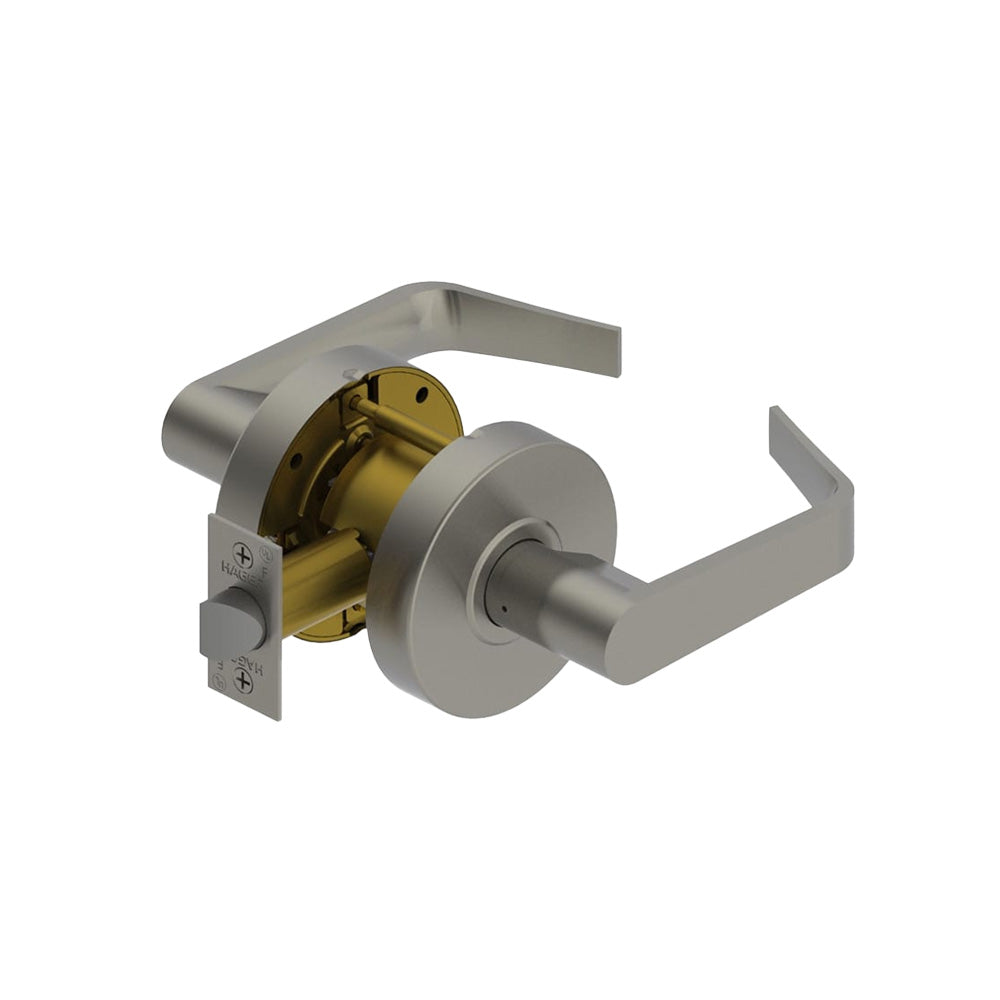

HAGER - 2510 - Passage Lever Set with 2-3/4" Backset - ASA strike - Grade 2
Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Applications | Standard Duty Commercial |
| ANSI Function | F75 - Passage |
| Handing | Non-Handed |
| Door Thickness | 1-3/8" - 2" |
| Backset | 2-3/4" |
| Rose Diameter | 3-11/32" (85mm) |
| Strikes | 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike |
| Options | Additional latchbolts and strikes available |
Certifications:
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- UL10C Positive Pressure Rated
- Meets BHMA A156.2 Grade 2 test standards
Exposed Trim:
- Wrought brass, bronze, and stainless steel
- Lever is zinc based, plated to match BHMA symbols
Standard Door Prep:
- Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
- Latch hole - 1" (25 mm) diameter (edge bore)
Lock Chassis:
- Heavy gauge steel, zinc dichromated for corrosion resistance
- Thru-posts are removable
- Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty
Latchbolt Type:
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
- 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60mm) backset
