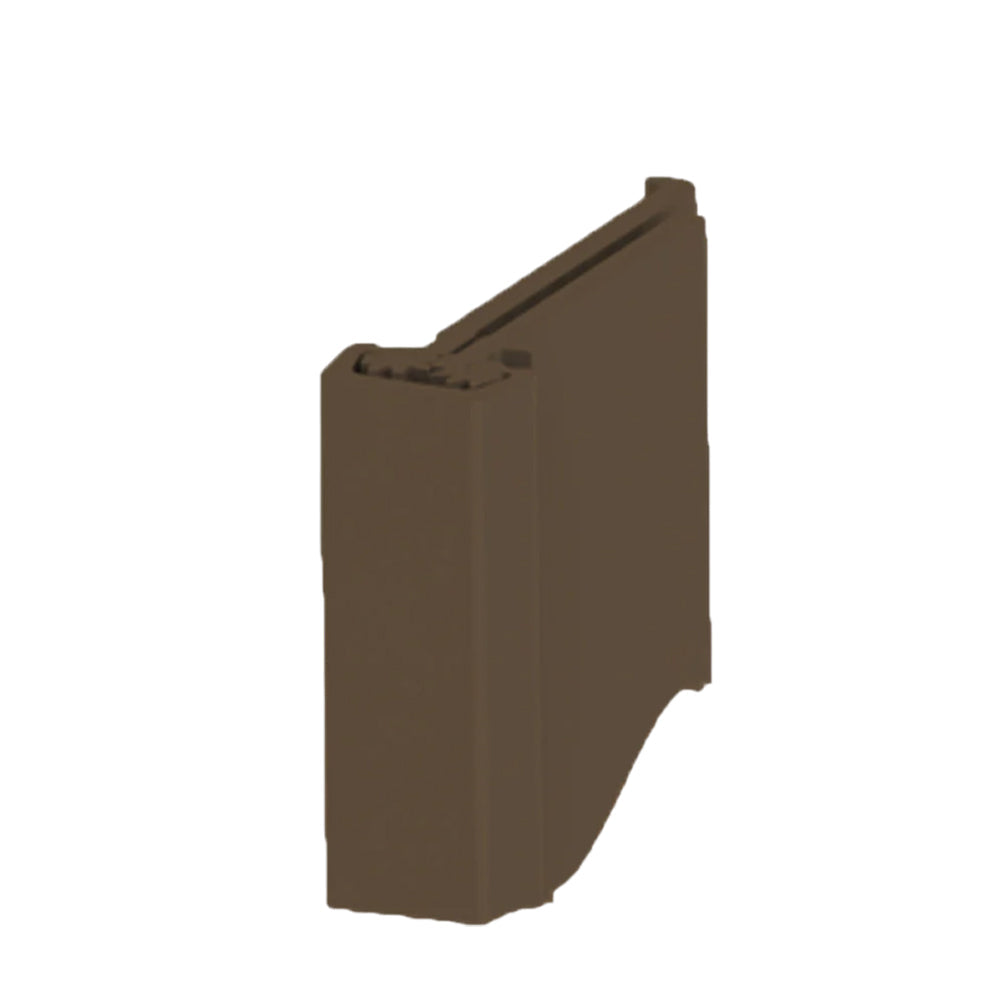

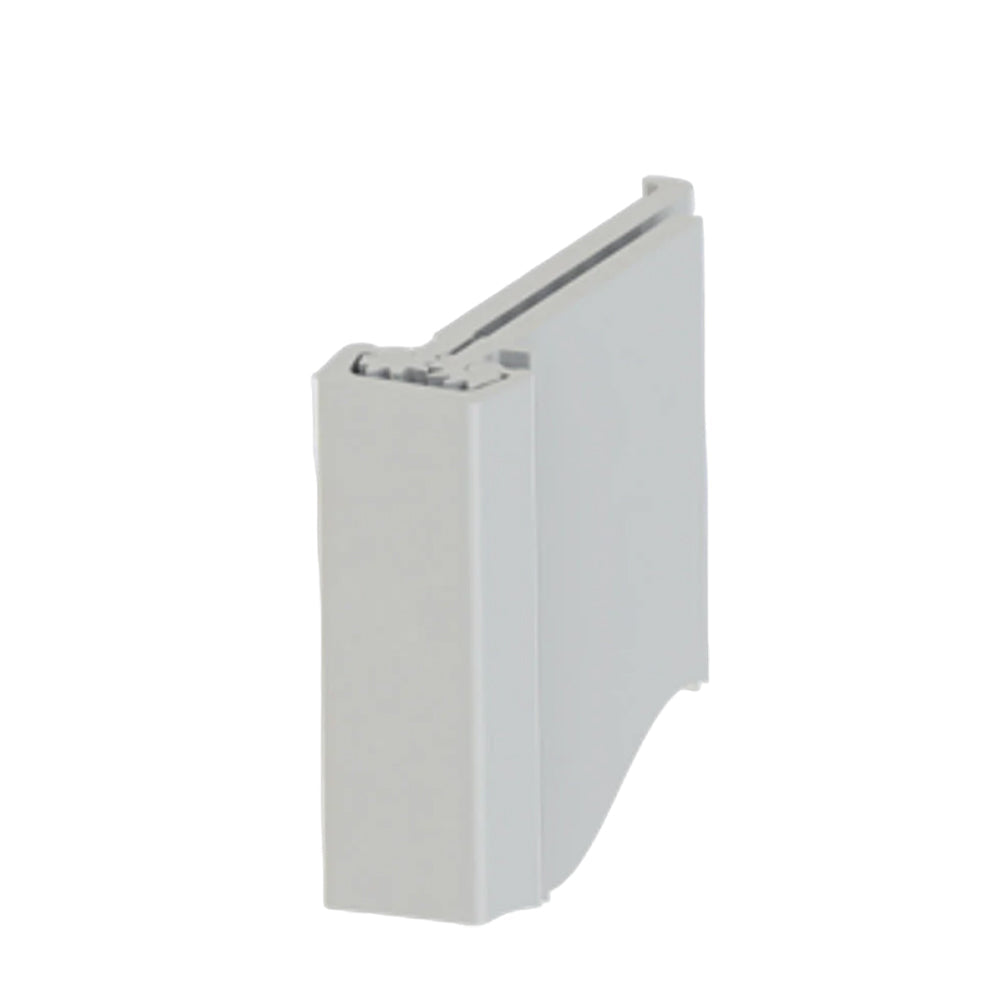

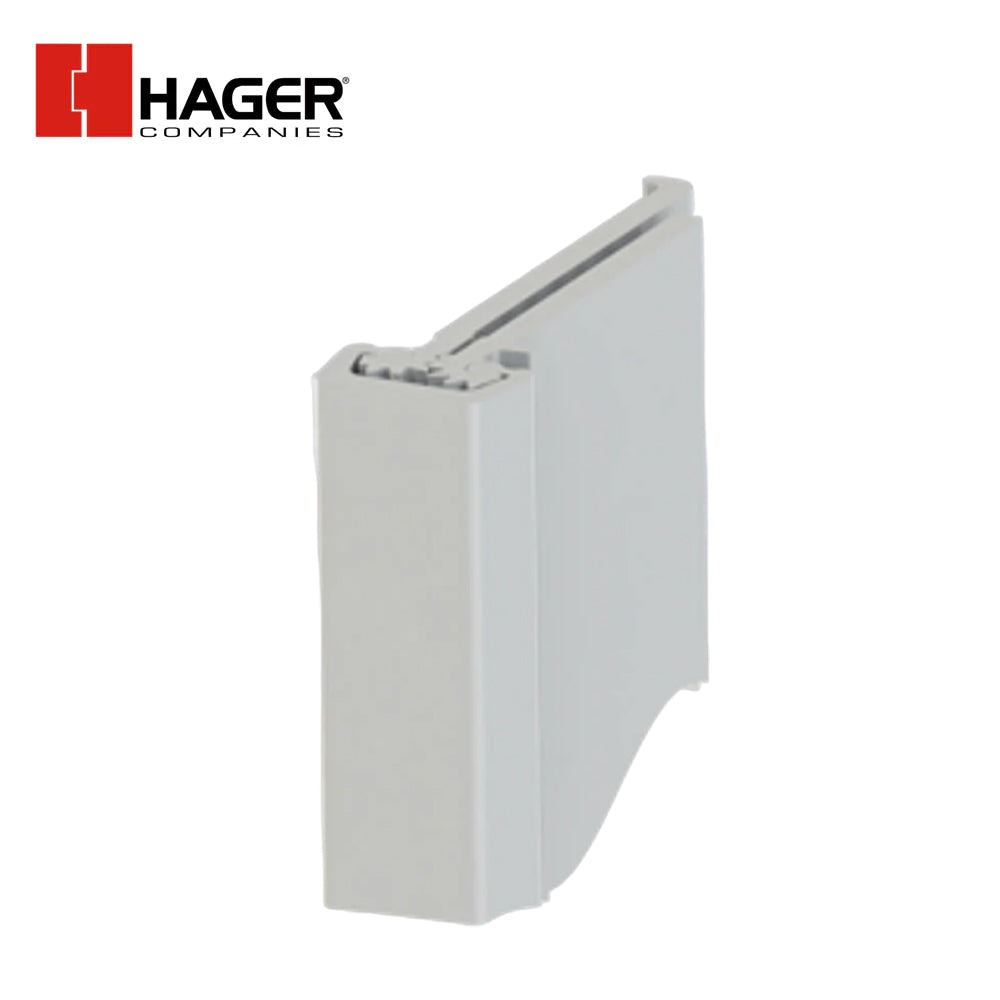

HAGER - 780-124HD - Heavy Duty Concealed Leaf Continuous Geared Hinge

NOTE: This Item Does NOT Qualify for FREE Shipping. Please Contact Us for More Information.

  • Product SKU: HAGR-780-124HD-79-CLR
Satin Aluminum Clear Anodized-628
Dark Bronze Anodized Aluminum-313
  • Order within

    and choose FedEx 2Day® Shipping

HAGER - 780-124HD - Heavy Duty Concealed Leaf Continuous Geared Hinge

HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.

  • ANSI/BHMA A156.26 C
  • Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
  • Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.HAGERco.com. HAGER warrants US10B finish only over brass or bronze base material. If steel base material is necessary, HAGER recommends US10A lacquer finish.

Product Specifications:

  • For deep inset or flush-with-frame (when using rabbeted frames) applications, center hung doors, heavy cabinets
  • For square edged doors on hinge side
  • Heavy duty for high frequency doors - for wood or metal doors 1-3/4" (44 mm) thick
  • Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (specify "LL")
  • Door edge protection lip
  • Frame alignment rib for proper hinge and door location
  • DKB - Satin Aluminum Clear Anodized (628)
  • DBA - Dark Bronze Anodized Aluminum (313)
  • BLK - Black Etch Anodize
Special Features
  • Frame alignment rib for proper hinge and door location
  • Door edge protection lip

Fire Rating: Up to 3 hr. metal and 90 min. wood composite (with studs)

Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Length: 79", 83", 85", 95", 119"

Length Options: Standard and Custom

Material: Aluminum 6063-T6

Clearance: 5/16" (8 mm) hinge side

  • EPD: Roton Continuous Hinges Environmental Product Declaration
  • When opened 90° door projects 13/16" past a standard 5/8" stop of jamb.
