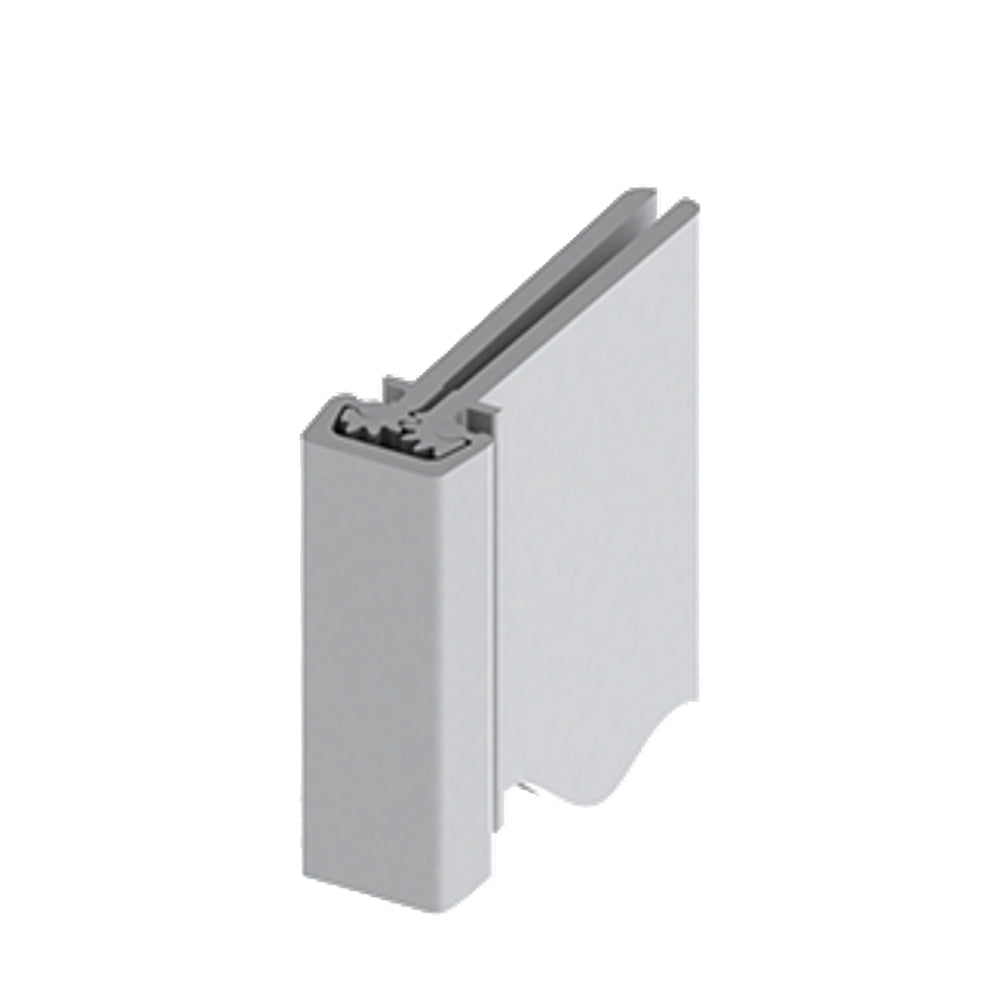

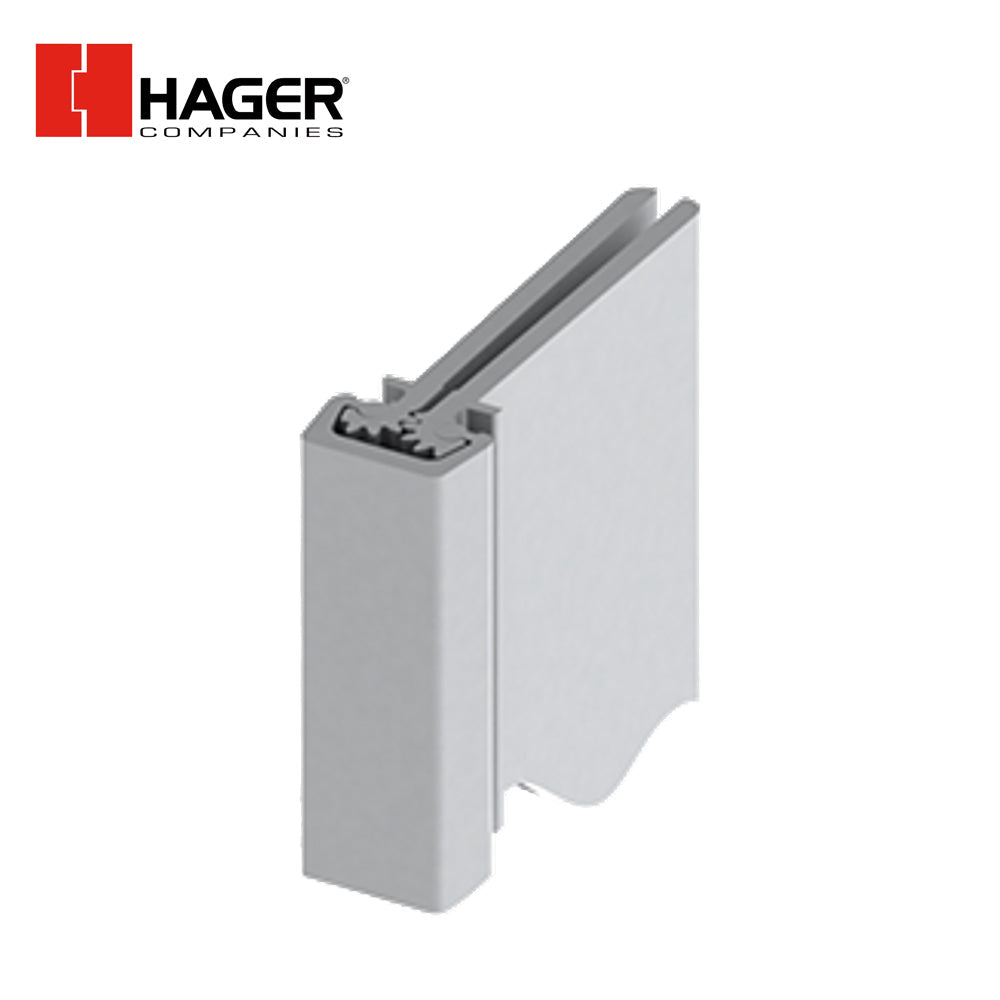

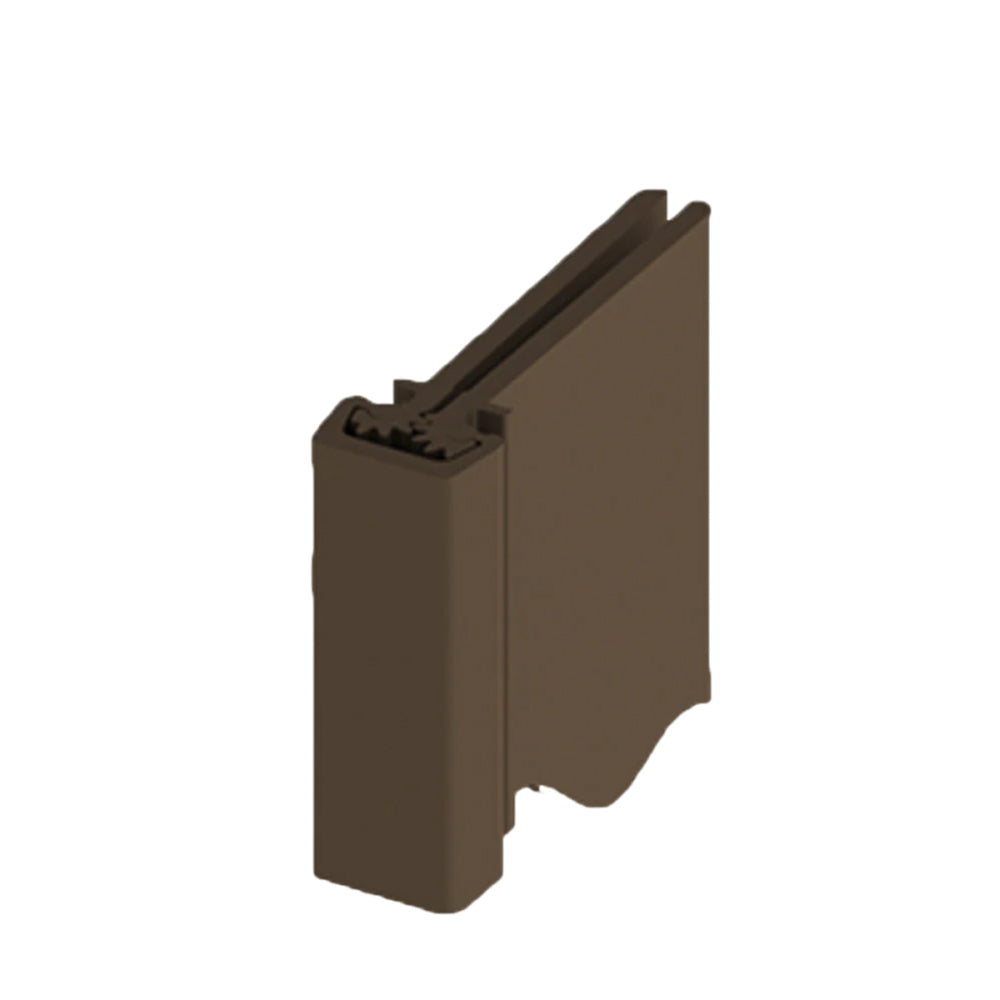

HAGER - 780-226HD - Heavy Duty Concealed Leaf Continuous Geared Hinge
Please note that this item does not qualify for free shipping. After you place your order, we will reach out to collect shipping costs.
Description
Description
HAGER - 780-226HD - Heavy Duty Concealed Leaf Continuous Geared Hinge
- ANSI/BHMA A156.26 C
- Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards;
Product Specifications:
Applications:
- Frame leaf alignment rib for proper hinge and door location
- Intended for doors 2" or thicker
Clearance:
- 5/16" (8 mm) hinge side,
- Plus standard lockside clearance.
- Refer to Door and Frame Dimensioning in the General Information section for further details
Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.
Electric Modifications:
- Power Transfer Preparation (EPT 2) or (EPT 10);
- Exposed Electric Contacts (E)
- Exposed Electric Switches (E1S)
- Electric Through-Wire (ETW)
- Electric Monitoring (EMN)
- Electric Through-Wire and Monitoring (ETM)
Fasteners:
- Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
- Optional: 1/2 Dril-Kwik® Screws, 1/2 wood Screws
- Additional Options Available upon request.
Features:
- Heavy duty for high frequency doors or heavy, medium frequency doors. All for doors 2†(51 mm) thick or greater.
- Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (Specify “LLâ€)
- Frame and door leaf alignment ribs for proper hinge and door location.
Finishes: CLR, DBZ, BLK;
Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.
Length: 79", 83", 85", 95", 119"
Material: Aluminum 6063-T6
Notes:
- EPD: Roton Continuous Hinges Environmental Product Declaration
Options:
- Hospital Tip
- TIPIT® (see Roton accessories)
Product Description:
- Concealed Leaf
- Heavy Duty
- For Doors 2" or Thicker
Download:
