Autel MaxiCheck MX808 OBD2 All System Diagnostic Scanner (Discontinued)
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
This device cannot be returned after it has been registered or used.
Description
Description

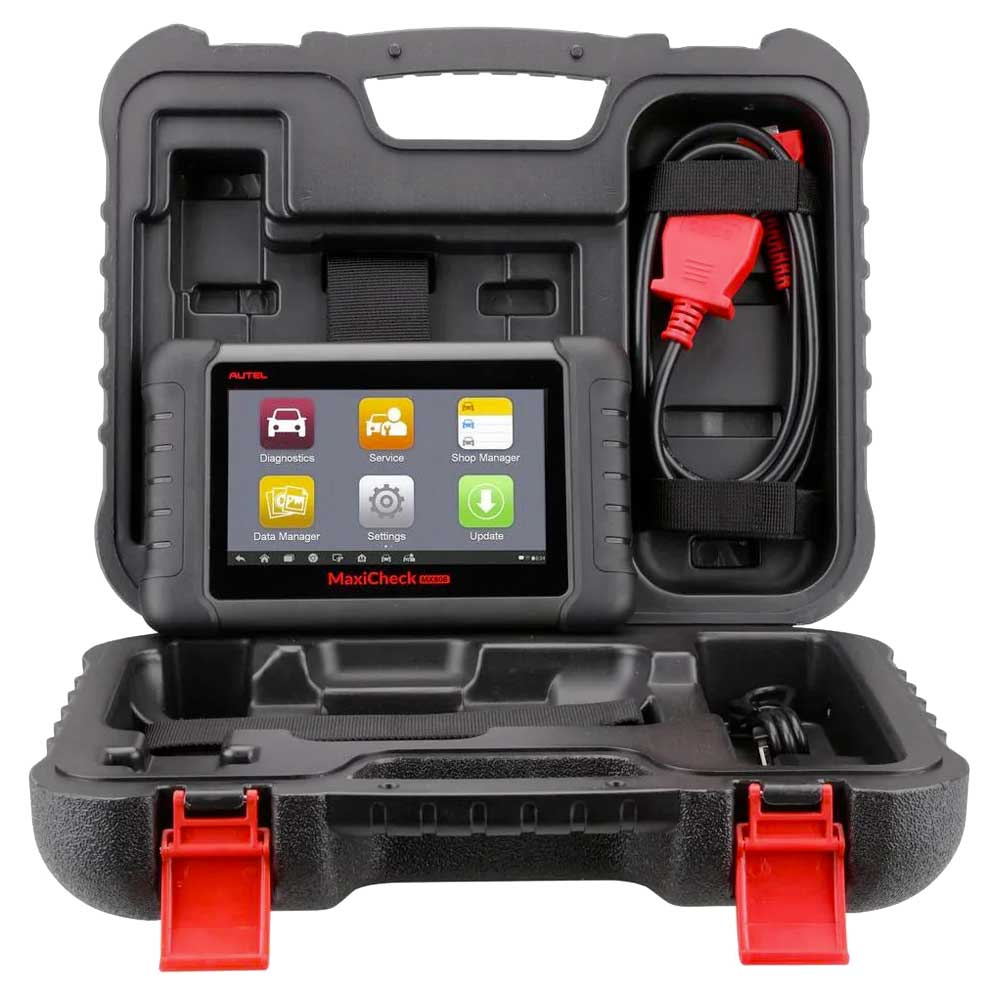

Autel MaxiCheck MX808 OBD2 All System Diagnostic Scanner

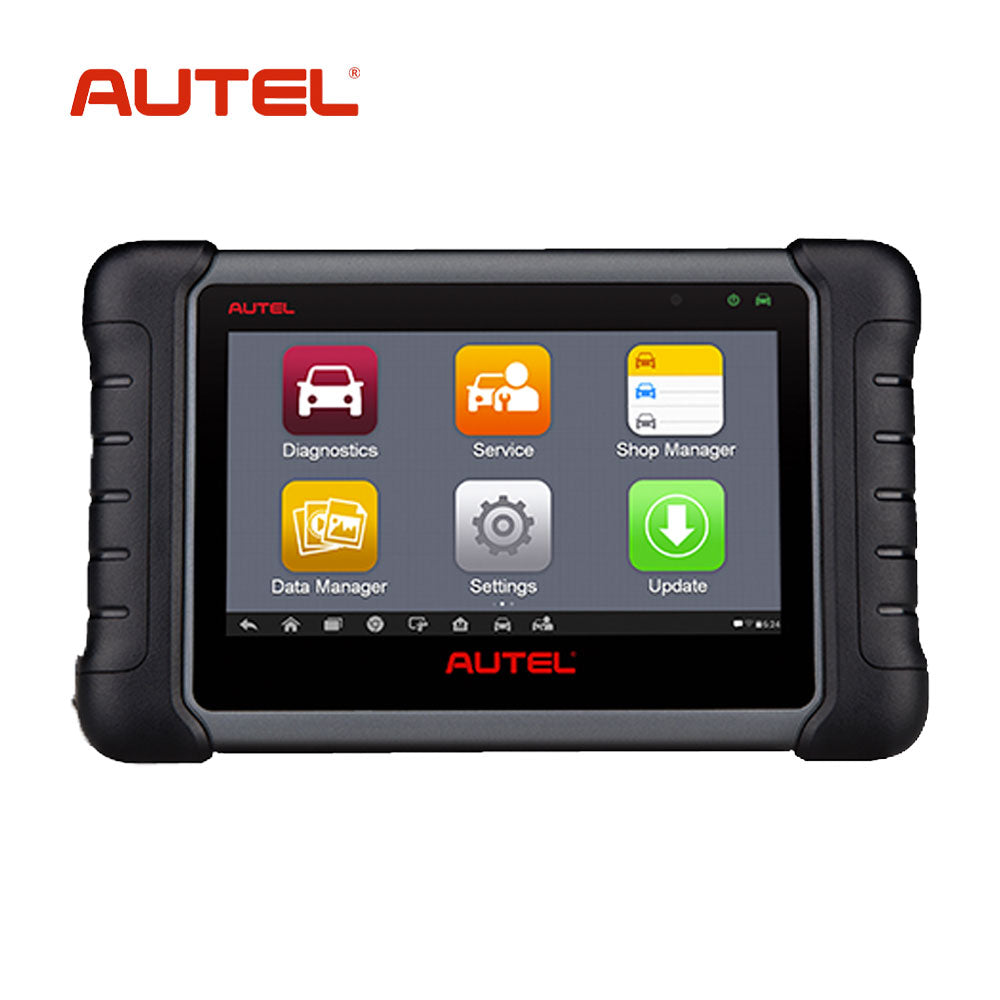

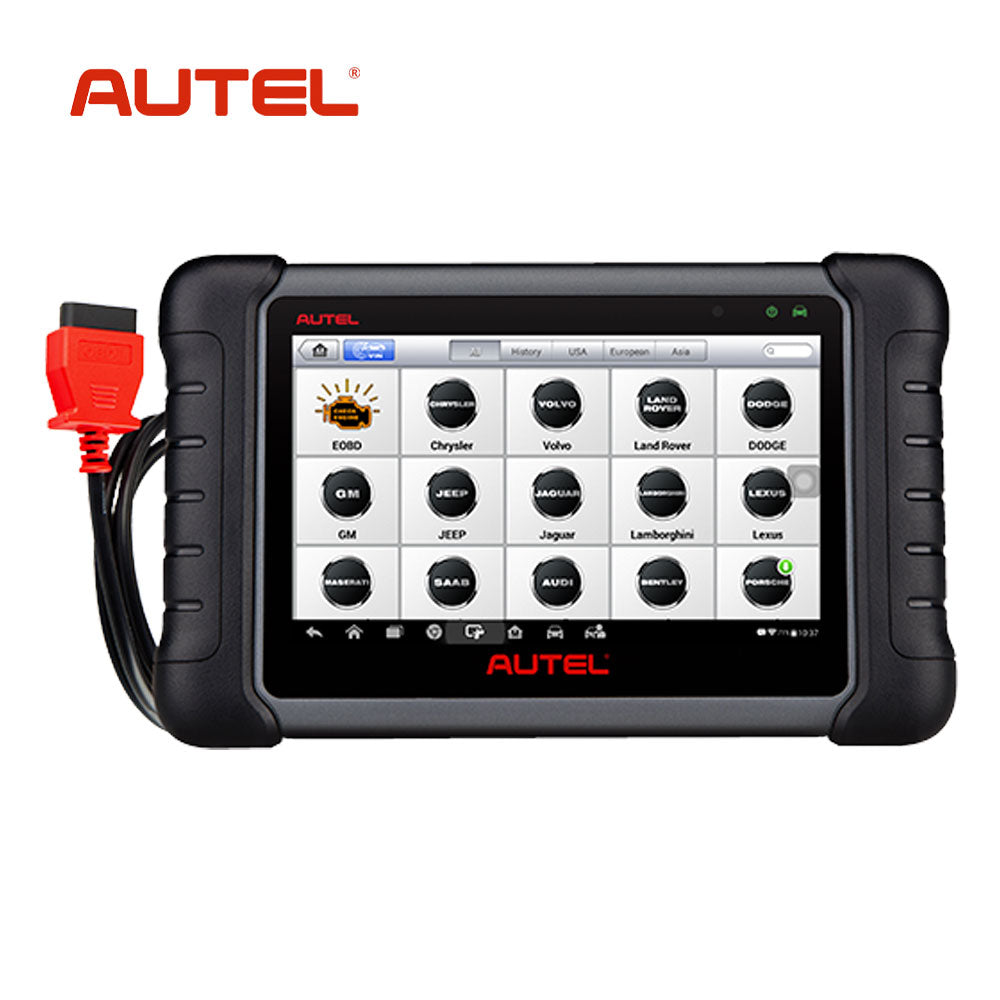

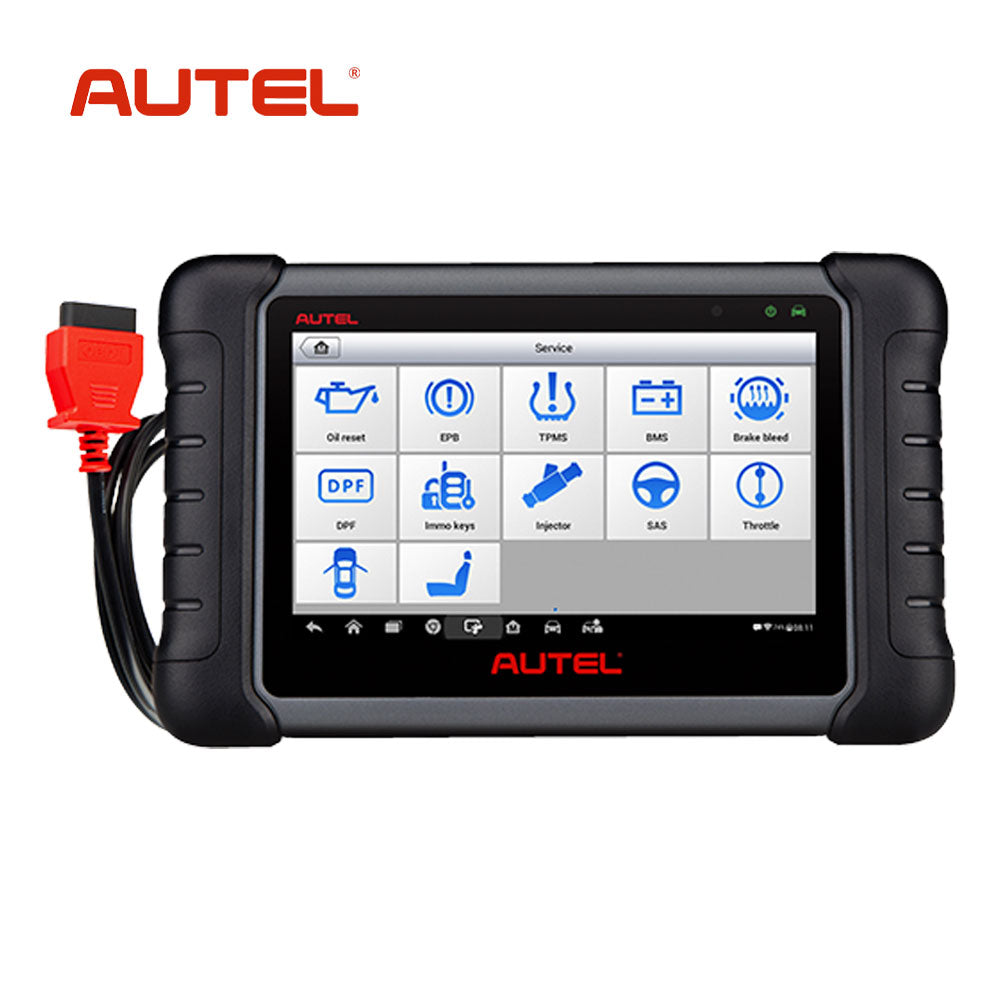

When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality.
Description:
- Read/clear codes for all available systems
- Display live data in text, graph & analog for easy data review
- Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
- NEW! Support active test and complete special functions
- Reset Steering Angle Sensor (SAS)
- Reset service mileage and service intervals
- Relearn parking brake pad after replacement
- Support forced DPF regeneration and adjusting injectors
- Support battery registration and reset
- NEW! Compatible with Videoscope
Specification
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.4, KitKat |
| Processor | Cortex-A9 processor(1.6 GHz) |
| Memory | 64G |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0 USB2.0 Wi-Fi HDMI Type A Micro SD card slot(supports up to 32GB) |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A Output: buzzer |
| Power and Battery |
3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V |
| Operating Temp | -10to60°C(14to140°F) |
| Storage Temp | -20to70°C(-4to158°F) |
| Operating Humidity | 5%-95%non-condensing |
| Dimensions(WXHXD) | 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4) |
| Net Weight | 885g(2.31|b.) |
| Protocols |
ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code, SAE-J1850 VPW,SAE-J1850PWM, ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN) SAE J2610,GM UART UART Echo Byte Protocol Honda Diag-H Protocol,TP2.0,TP1.6 |
Comparison:
MaxiCheck MX808 Flyer
MaxiCheck MX808 Quick Start Guide
