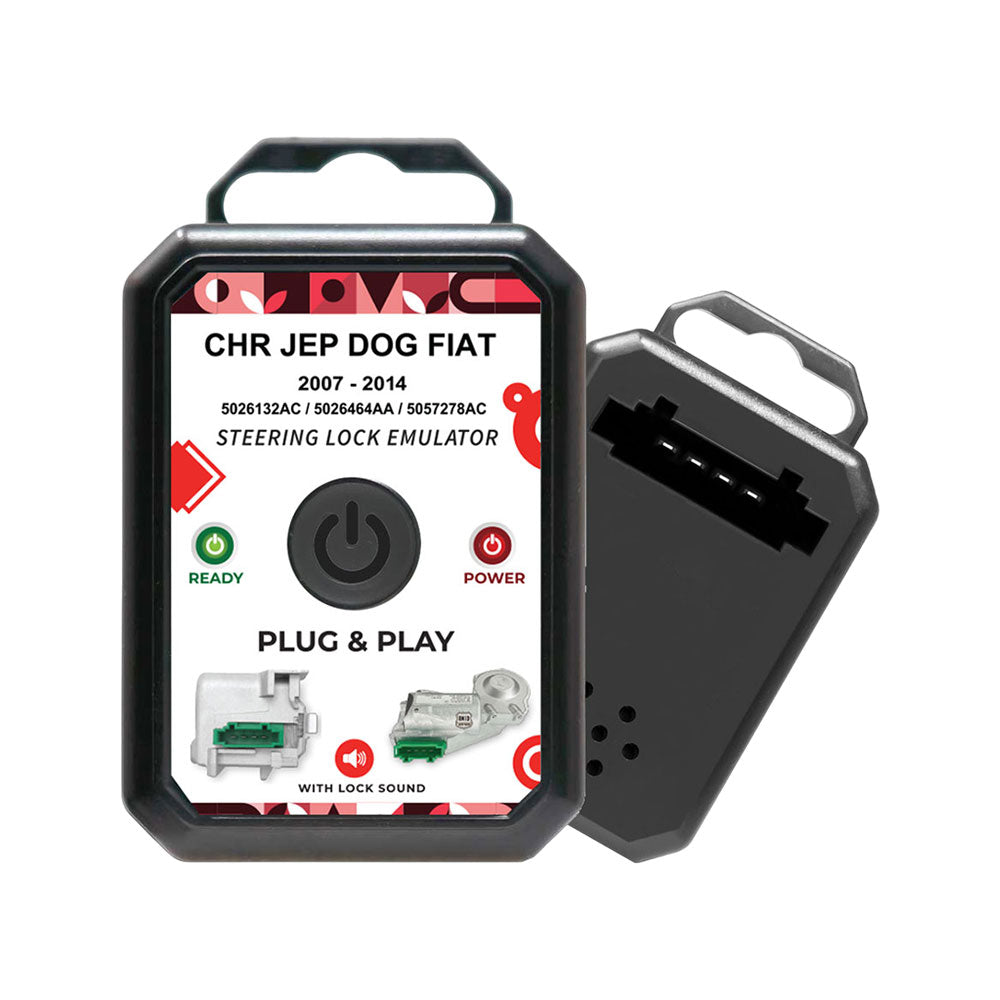

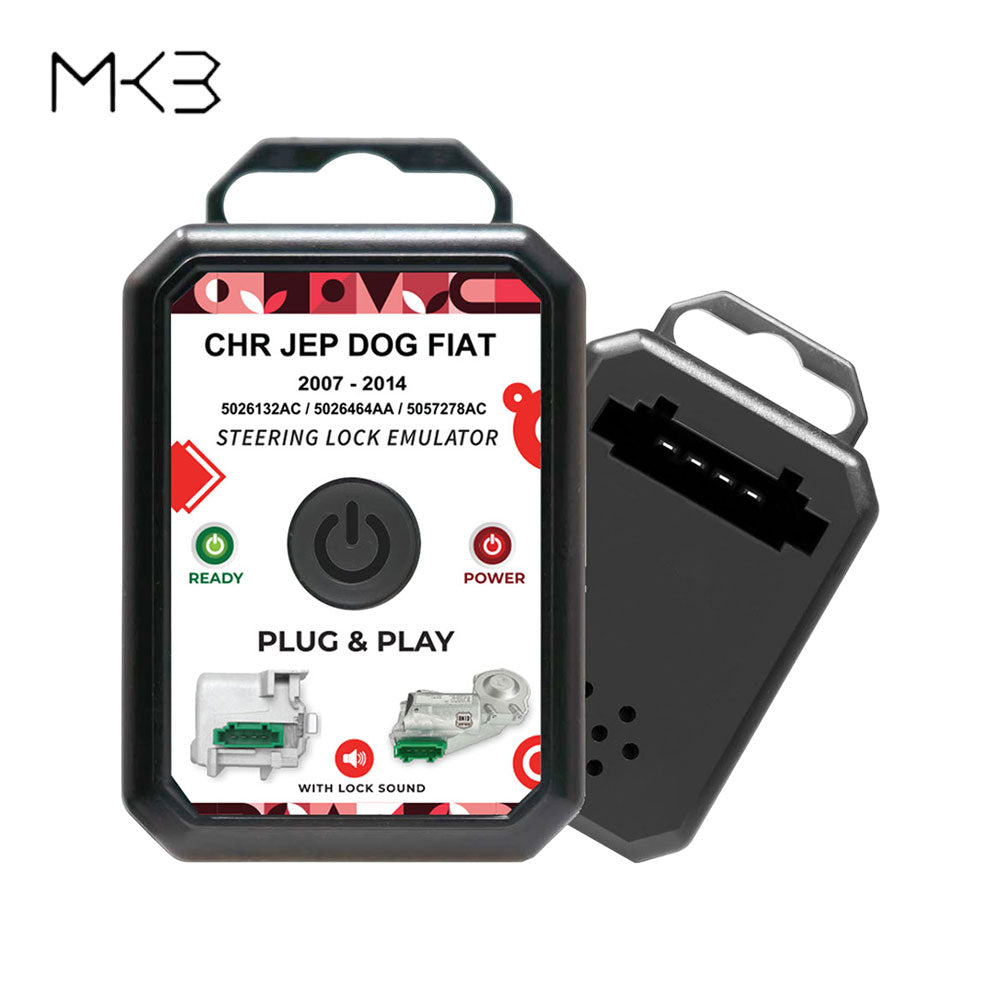

MK3 Jeep Chrysler Dodge Fiat ESL Electronic Steering Lock Emulator Simulator with Lock Sound

MK3 Jeep Chrysler Dodge Fiat ESL Electronic Steering Lock Emulator Simulator with Lock Sound

Jeep Chrysler Dodge Lancia Electronic Steering Lock Problem Is One Among The Foremost Frequent Problems In Jeep Chrysler Dodge Lancia Starting System, Jeep Chrysler Dodge Lancia Dealer Need To Order New Steering Lock And Program It Which Is Just Too Much Costly And Required While Of Waiting.
MK20005 Electronic Steering Lock Jeep Chrysler Dodge Fiat Emulator Will Fix Your Steering Lock Malfunction Error, And Therefore The Jeep Chrysler Dodge Lancia Esl Elv Universal Steering Lock Emulator Will Bypass Jeep Chrysler Dodge Lancia Elv always. No Require Coding, Simply Connect it , And It'll Fix Your Jeep Chrysler Dodge Lancia Esl Fail. If You Would Like To Shunt The Jeep Chrysler Dodge Lancia Steering Lock Emulator To a Different Vehicle To Diagnose A Damage Then Steering Lock Bypass Emulator Are Often Connected To Different Car Without Coding.
MK20005 Jeep Chrysler Dodge Fiat Esl Elv Emulator Will Make Your Work Easier, Faster, its Safer And More strength.

Emulator Overview:

• ELV Is A Self-occurring Mechanical Failure In The Steering Column Lock.
• The Occurrence Of The Fault Does Not Depend On Any Fault.
• In Case Of Malfunction, Even If There Is No Problem In The Vehicle Key, The Working Key Will Not Start The Vehicle Because The ELV Steering Column Lock Will Not Be Activated.
• In This Case, A New ELV Steering Column Lock Must Be Installed In The Vehicle And Programmed Into The Vehicle.
• Steering Lock Problem Is One Among The Foremost Frequent Problems In Jeep Chrysler Dodge Lancia Starting System, Jeep Chrysler Dodge Lancia Dealer Need To Order New Steering Lock And Program It Which Is Just Too Much Costly And Required While Of Waiting.
• Electronic Steering Lock Jeep Chrysler Dodge Lancia Emulator Will Fix Your Steering Lock Malfunction Error, And Therefore The Jeep Chrysler Dodge Lancia Esl Elv Universal Steering Lock Emulator Will Bypass Mercedes Benz Elv always.
  No Require Coding, Simply Connect it, And It'll Fix Your Mercedes Benz Esl Fail.

Emulator Light Behavior:

• After Connecting To The Car, Or To The Testing Cables, Insert The Car Key To The Switch.
• If Emulator Light Turn Green That Mean It's Connected Well And Therefore The Car Is Prepared To Start Out.
• If Emulator Light Turn Red That Mean The Key Doesn't Belong To An Equivalent Eis / Ezs Otherwise You Have Jeep Chrysler Dodge Lancia Eis Problem.
• If Emulator Light Didn't Turn No You Want To Check The Facility Supply Of The Car / Cables.

Emulator Pinout:

• Pin1: +12v
• Pin2: GND
• Pin3: not used
• Pin4: LIN line

Emulator Installation:

• Unplug The Elv Wire From The First Car Steering Lock Unit.
• If Vehicle Steering Lock Is In Lock Mode, Steering Lock Must Be Faraway From The Car
• Connect Our MK3 Elv Emulator To The Car And Begin The Car.

Emulator Fitments:

• Jeep.
• Chrysler.
• Dodge.
• Lancia.
• Fiat.

Video:
