Launch - ES200 EV Insulation Resistance Tester
Description
Description

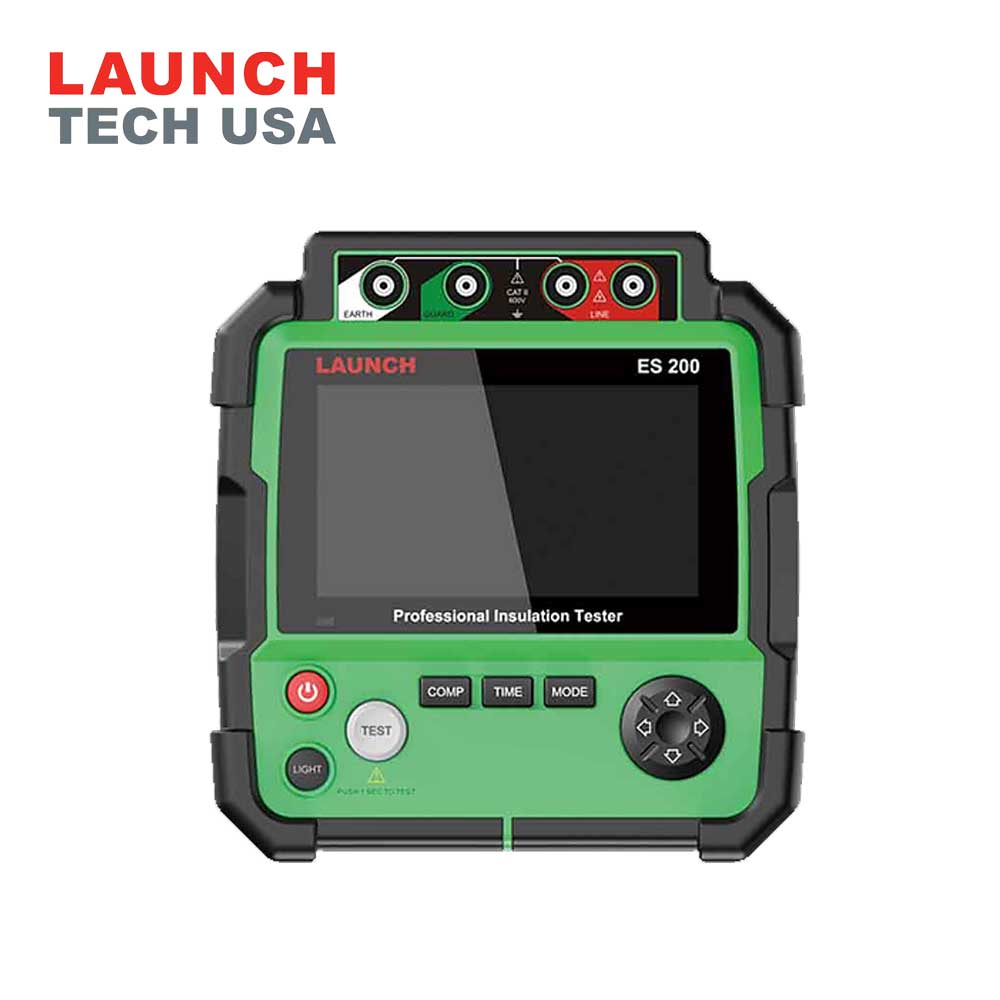

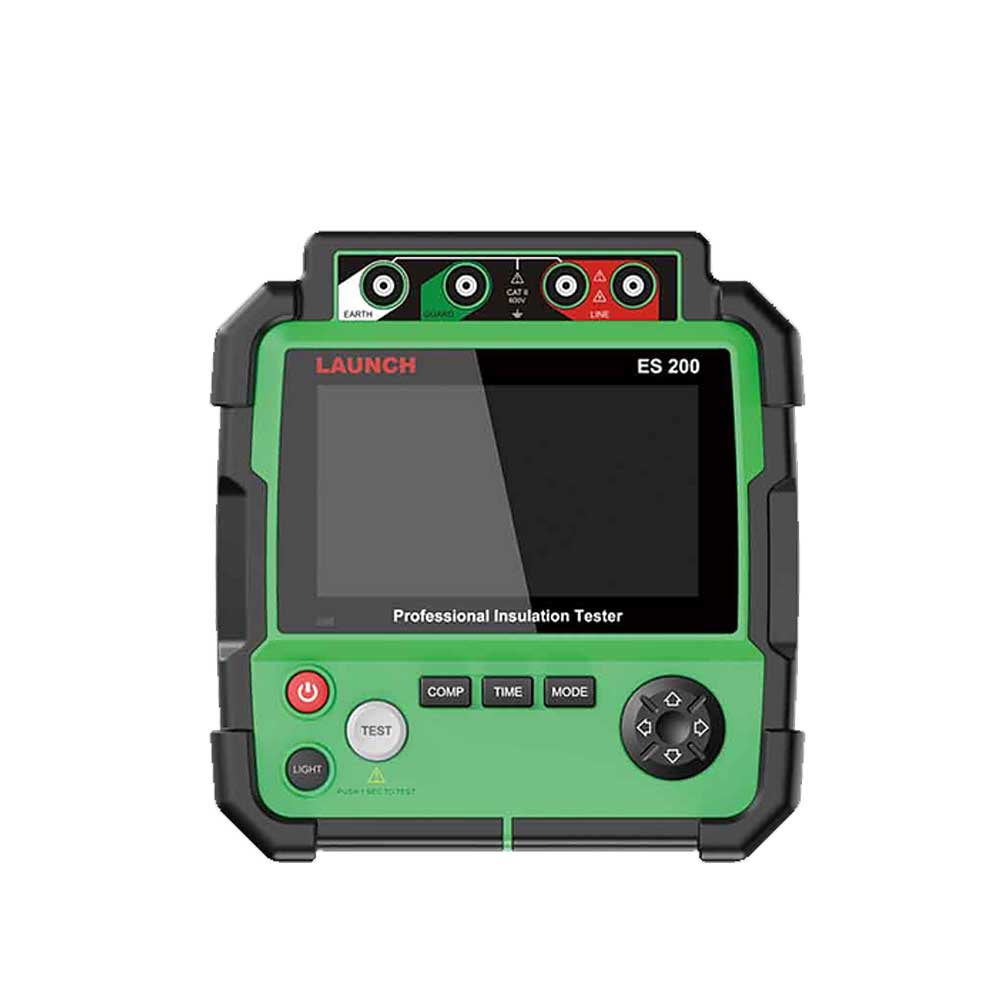

Launch - ES200 EV Insulation Resistance Tester
Insulation testing allows for detecting the resistance of high voltages in the electrical components of Electric Vehicles. By performing the insulation test, this ensures that electrical components of the EV are in optimal condition within the specified parameters enabling a safe driving experience and operation of the EV. Insulation Resistance testing is when the DC high voltage is transformed from the E pole to the L pole, in which current is generated between the E pole and L pole. The insulation resistance is then displayed on the screen through IN conversion and calculation. The insulation resistance refers to the leakage current of the insulation material between the live part and the exposed non-live metal part (shell).In comparison to different products, the varying values of DC high voltages will be applied, such as 500V,1000V,2500V etc. and a minimum safe insulation resistance value will be set. If the measured resistance value is lower than the safe resistance value, there may be a risk of electric shock.
Features:
- ES200 is capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
- Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
- Three measurement modes: timing measurement, comparison measurement, continuous measurement, and omnidirectional measurement.
Specifications:
- Battery: 3150mAh
- Display: 5”
- Working Temperature: 0~50°C / 122.00 ℉
- Dimensions: 180*174*65.5 (mm)
- Weight: 1.7kg
ERP CODE: 301181047
